Hitachi / Hikoki R14DSL Cordless Cleaner Spare Parts

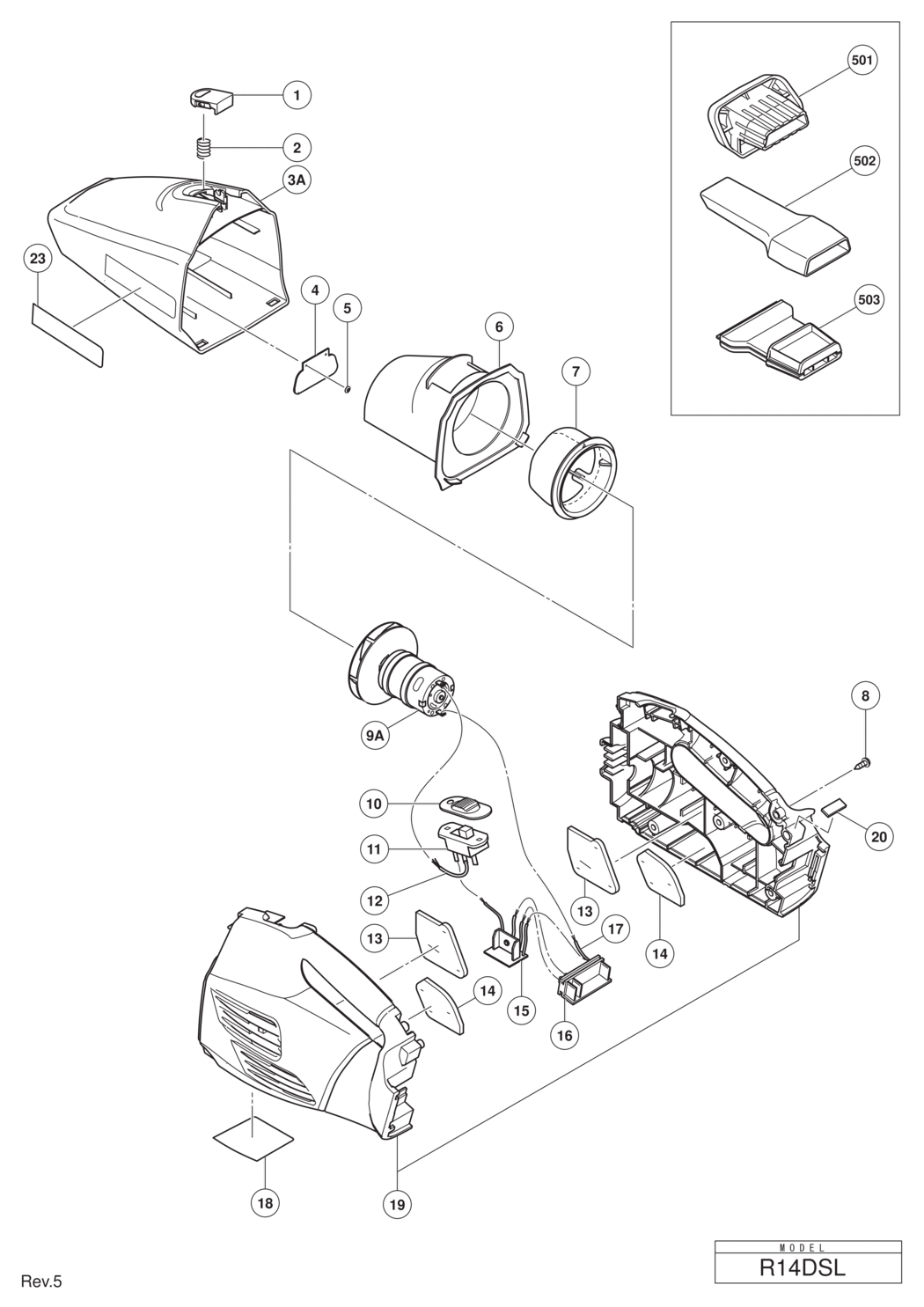

An exploded diagram and spare parts listing for the Hitachi / Hikoki R14DSL Cordless Cleaner

	Ex VAT	Inc VAT
1 - PUSHING BUTTON HIT-331382.A1 331382	-
2 - SPRING HIT-331383.A1 331383	-
3 - DUST CASE HIT-331385.A1 331385	-
4 - VALVE HIT-331386.A1 331386	£1.67	£2.00
5 - PUSHING NUT HIT-331384.A1 331384	£1.67	£2.00
6 - WATER GUARD HIT-331387.A1 331387	-
7 - FILTER HIT-331404.A1 331404	£6.42	£7.70
8 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A92 301653	£1.67	£2.00
9A - MOTOR HIT-334897.A0 334897	-
*10 - SWITCH COVER HIT-331388.A1 331388	-
11 - SLIDE SWITCH HIT-331393.A1 331393	-
12 - INTERNAL WIRE (BLACK) HIT-331396.A0 331396	-
13 - NOISE PACKING(A) HIT-331380.A1 331380	-
14 - NOISE PACKING(B) HIT-331381.A1 331381	-
15 - TERMINAL HIT-331395.A1 331395	-
16 - TERMINAL SUPPORT (A) HIT-315141.A14 315141	£1.67	£2.00
17 - TERMINAL HIT-331394.A0 331394	-
18 - NAME PLATE HIT-000000.A3530 000000	-
19 - HOUSING (A).(B) SET HIT-331379.A1 331379	-
501 - BRUSH NOZZLE HIT-331405.A1 331405	-
502 - CREVICE NOZZLE HIT-331406.A1 331406	-
503 - SQUEEGEE NOZZLE HIT-331407.A1 331407	-
