Hitachi / Hikoki PF-3300 Utility Engine Spare Parts

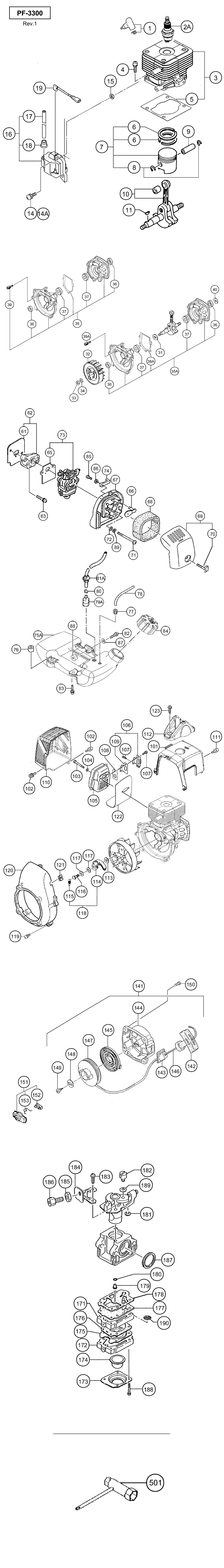

An exploded diagram and spare parts listing for the Hitachi / Hikoki PF-3300 Utility Engine

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP ASS'Y HIT-6687468.A20 6687468	£3.64	£4.37
2A - SPARK PLUG ASS'Y CJ6Y HIT-6699323.A3 6699323	-
3 - CYLINDER SET HIT-6685491.A1 6685491	-
4 - HEX. HOLE BOLT M5X16/S HIT-6684903.A61 6684903	-
5 - CYLINDER GASKET HIT-6685749.A3 6685749	-
6 - PISTON RING (XR1-1856) HIT-6685331.A34 6685331	£12.57	£15.08
7 - PISTON SET HIT-6685898.A9 6685898	£37.49	£44.99
8 - CIRCLIP HIT-6685078.A37 6685078	-
9 - PISTON PIN HIT-6686008.A12 6686008	£3.64	£4.37
10 - CRANK SHAFT COMP HIT-6696499.A13 6696499	-
11 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A25 6684899	-
12 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A26 6684899	-
13 - STOP CORD W 190M HIT-6687876.A1 6687876	-
14 - HEX. HOLE BOLT 4X15/PS TILL A044600 HIT-6684682.A8 6684682	£1.67	£2.00
14A - HEX. HOLE BOLT M4X18/WS SINCE A044601 HIT-6684599.A65 6684599	-
15 - WASHER T1.6 SINCE A044601 HIT-6684600.A11 6684600	-
*15 - HEX. HOLE BOLT 4X15/PS TILL A044600 HIT-6684682.A9 6684682	£1.67	£2.00
*15 - HEX. HOLE BOLT M4X18/WS SINCE A044601 HIT-6684599.A66 6684599	-
16 - IGNITION COIL ASS'Y HIT-6687666.A0 6687666	-
16 - IGNITION COIL ASS'Y HIT-6699773.A1 6699773	-
17 - HIGH TENSION CORD 180L HIT-6687889.A1 6687889	-
18 - RUBBER CAP HIT-6684602.A38 6684602	-
19 - WASHER T1.6 SINCE A044601 HIT-6684600.A12 6684600	-
19 - STOP CORD W 190M HIT-6687876.A0 6687876	-
*31 - GEAR SHAFT SHIM 0.10 HIT-6689177.A14 6689177	-
*31 - GEAR SHAFT SHIM 0.15 HIT-6689178.A21 6689178	-
*31 - GEAR SHAFT SHIM 0.20 HIT-6684604.A15 6684604	-
*31 - GEAR SHAFT SHIM 0.30 HIT-6684605.A66 6684605	-
32 - MAGNETO ROTOR COMP. HIT-6687375.A5 6687375	-
33 - HEX. NUT M8 HIT-6684612.A83 6684612	-
34 - SMALL WASHER 8 HIT-6695184.A15 6695184	-
35 - CRANK CASE ASS'Y HIT-6686586.A3 6686586	-
35 - CRANK CASE ASS'Y TILL J001000 HIT-6699351.A1 6699351	-
35A - CRANK CASE ASS'Y SINCE J001001 HIT-6699279.A1 6699279	-
36 - OIL SEAL TB 12227 HIT-6684607.A120 6684607	£4.07	£4.88
37 - BALL BEARING 6001 C3 HIT-6684608.A80 6684608	£5.70	£6.84
37 - BALL BEARING 6001 C3 HIT-6695535.A2 6695535	£5.70	£6.84
38 - CRANK CASE GASKET HIT-6686723.A1 6686723	-
38A - CRANK CASE GASKET SINCE J001001 HIT-6699280.A3 6699280	-
39 - HEX. HOLE BOLT M5X16/S HIT-6684903.A62 6684903	-
39A - HEX. HOLE BOLT M5X16/S SINCE J001001 HIT-6684903.A63 6684903	-
40 - BOLT WASHER M8 HIT-6684611.A42 6684611	-
41 - STARTER PULLEY ASS'Y HIT-6693394.A5 6693394	£9.42	£11.30
42 - STARTER PAWL HIT-6693299.A5 6693299	£3.29	£3.95
43 - STARTER PAWL SPRING HIT-6693345.A28 6693345	£3.89	£4.67
44 - HEX. HOLE BOLT 4X18WS HIT-6695508.A68 6695508	£1.67	£2.00
61 - INLET MANIFOLD GASKET HIT-6689895.A18 6689895	£1.67	£2.00
62 - INSULATOR SET HIT-6689972.A20 6689972	£6.59	£7.91
63 - HEX. HOLE BOLT M5X25WS HIT-6695515.A54 6695515	£1.67	£2.00
64 - CARBURETOR PACKING HIT-6684616.A40 6684616	£1.67	£2.00
65 - CARBURETOR PACKING HIT-6684616.A41 6684616	£1.67	£2.00
65 - CHOKE PLATE 2.0 HIT-6691276.A16 6691276	£1.67	£2.00
66 - CLEANER BODY COMP. HIT-6690120.A11 6690120	£12.32	£14.78
66 - CHOKE PLATE 2.0 HIT-6691276.A15 6691276	£1.67	£2.00
67 - CLEANER BODY COMP. HIT-6690120.A12 6690120	£12.32	£14.78
67 - CLEANER SPONGE HIT-6690365.A19 6690365	£1.67	£2.00
68 - CLEANER SPONGE HIT-6690365.A20 6690365	£1.67	£2.00
68 - CLEANER COVER ASS'Y HIT-6690402.A8 6690402	£12.16	£14.59
69 - CLEANER COVER ASS'Y HIT-6690402.A9 6690402	£12.16	£14.59
70 - HEX. HOLE BOLT 5X55 HIT-6695056.A8 6695056	-
70 - COVER FIXING BOLT COMP. HIT-6698730.A5 6698730	£5.52	£6.63
71 - S.WASHER 5 HIT-6684662.A79 6684662	£1.67	£2.00
71 - HEX. HOLE BOLT 5X55 HIT-6695056.A7 6695056	-
72 - SMALL WASHER 5 HIT-6684864.A107 6684864	-
73 - CARBURETOR SET WYJ318 HIT-6690465.A3 6690465	-
74 - CHOKE CONTROL LEVER HIT-6691239.A10 6691239	£2.98	£3.57
75A - TANK F T HIT-6699336.A3 6699336	£31.02	£37.23
76 - COLLAR 5.8 HIT-6692244.A26 6692244	£1.67	£2.00
77 - RETURN GROMMET HIT-6697846.A142 6697846	£2.08	£2.50
77A - RETURN GROMMET HIT-6697846.A143 6697846	£2.08	£2.50
78 - FUEL PIPE 3X5X85 HIT-6684880.A30 6684880	-
79A - PUMP FILTER BODY COMP HIT-66A3864.A78 66A3864	-
80 - CLIP 1 HIT-6684619.A6 6684619	£1.67	£2.00
80 - CLIP D6 HIT-6685198.A63 6685198	-
81 - SHIELD TUBE 3X5X180 HIT-6684618.A29 6684618	£6.12	£7.35
81A - SHIELD TUBE ASS'Y HIT-6697939.A3 6697939	-
82 - HEX. HOLE BOLT M5X25/S HIT-6684709.A209 6684709	£1.67	£2.00
83 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A55 6695504	£1.67	£2.00
84 - TANK CAP D ASS'Y HIT-6691748.A5 6691748	£6.04	£7.25
85 - TAP SCREW 4X14 P HIT-6695280.A13 6695280	£1.67	£2.00
86 - BOLT WASHER M4 HIT-6685070.A51 6685070	£1.67	£2.00
87 - WASHER M5 (BLACK) HIT-6684918.A86 6684918	£1.67	£2.00
88 - TANK FIXING COLLAR HIT-6692183.A3 6692183	-
89 - S.WASHER 5 HIT-6684662.A78 6684662	£1.67	£2.00
101 - CYLINDER COVER BLK HIT-6685689.A2 6685689	-
102 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A54 6695504	£1.67	£2.00
103 - HEX. HOLE BOLT M6X65 HIT-6695067.A7 6695067	£1.67	£2.00
104 - BOLT WASHER 6 HIT-6684639.A56 6684639	£1.67	£2.00
105 - MUFFLER COMP HIT-6692572.A0 6692572	-
106 - TAIL PIPE SET HIT-6692714.A0 6692714	-
107 - SCREW M4X8/WS HIT-6684651.A18 6684651	-
108 - SPARK ARRESTER HIT-6692701.A7 6692701	-
109 - TAIL PIPE GASKET HIT-6692888.A1 6692888	-
110 - HEAT SHIELD HIT-6687263.A3 6687263	-
110 - MUFFLER PROTECTOR BLK HIT-6692811.A1 6692811	-
111 - MUFFLER PROTECTOR BLK HIT-6692811.A2 6692811	-
111 - SCREW 4X18/PS HIT-6695375.A31 6695375	-
112 - PLUG COVER HIT-6688351.A3 6688351	-
112 - HEX. HOLE BOLT 4X18WS HIT-6695508.A67 6695508	£1.67	£2.00
113 - PLUG COVER HIT-6688351.A2 6688351	-
113 - CLUTCH WASHER B HIT-6689645.A31 6689645	£1.67	£2.00
114 - CLUTCH ARM COMP. HIT-6688610.A5 6688610	£13.94	£16.73
114 - CLUTCH WASHER B HIT-6689645.A30 6689645	£1.67	£2.00
115 - CLUTCH ARM COMP. HIT-6688610.A6 6688610	£13.94	£16.73
115 - CLUTCH SPRING HIT-6689420.A9 6689420	£2.81	£3.37
116 - CLUTCH SPRING HIT-6689420.A10 6689420	£2.81	£3.37
116 - CLUTCH STEP BOLT HIT-6689628.A13 6689628	£3.29	£3.95
117 - CLUTCH STEP BOLT HIT-6689628.A14 6689628	£3.29	£3.95
117 - WAVE WASHER 10 HIT-6695203.A0 6695203	£1.67	£2.00
118 - HEX. HOLE BOLT M5X18/WS HIT-6684647.A7 6684647	£1.67	£2.00
118 - CLUTCH SET ASS'Y HIT-6688482.A6 6688482	-
119 - HEX. HOLE BOLT M5X18/WS HIT-6684647.A8 6684647	£1.67	£2.00
119 - WAVE WASHER 10 HIT-6695203.A1 6695203	£1.67	£2.00
120 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A6 6684682	£1.67	£2.00
120 - FAN CASE BARREL FINISH HIT-6687023.A0 6687023	-
121 - FAN CASE BARREL FINISH HIT-6687023.A1 6687023	-
121 - PRIMARY CORD GROMMET HIT-6688057.A31 6688057	-
122 - HEAT SHIELD HIT-6687263.A2 6687263	-
122 - PRIMARY CORD GROMMET HIT-6688057.A30 6688057	-
123 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A7 6684682	£1.67	£2.00
141 - RECOIL STARTER ASS'Y HIT-6692969.A7 6692969	£25.30	£30.36
142 - STARTER HANDLE HIT-6693227.A23 6693227	-
143 - ROPE GUIDE HIT-6693135.A4 6693135	-
144 - RECOIL STARTER BODY HIT-6693036.A5 6693036	-
145 - RECOIL SPRING HIT-6693111.A7 6693111	£15.16	£18.19
146 - ROPE 3.5X890 HIT-6693157.A7 6693157	-
147 - STARTER ROPE REEL HIT-6693057.A5 6693057	£8.18	£9.81
148 - ROPE REEL WASHER HIT-6693419.A5 6693419	-
149 - SET SCREW HIT-6693632.A5 6693632	-
150 - SCREW 4X18/PS HIT-6695375.A32 6695375	-
151 - STARTER PULLEY ASS'Y HIT-6693394.A6 6693394	£9.42	£11.30
152 - STARTER PAWL HIT-6693299.A4 6693299	£3.29	£3.95
153 - STARTER PAWL SPRING HIT-6693345.A27 6693345	£3.89	£4.67
161 - PUMP BODY COMP. HIT-6684879.A34 6684879	£35.37	£42.44
162 - PRIMING PUMP COMP. HIT-6684687.A6 6684687	£9.27	£11.12
163 - DIAPHRAGM COVER HIT-6684688.A94 6684688	£5.70	£6.84
164 - PRIMING BODY HIT-6684689.A5 6684689	£5.87	£7.04
165 - METERING DIAPHRAGM COMP. HIT-6690830.A23 6690830	£14.58	£17.50
166 - DIAPHRAGM GASKET HIT-6684691.A5 6684691	£5.70	£6.84
167 - PUMP DIAPHRAGM HIT-6684693.A26 6684693	£5.70	£6.84
168 - PUMP GASKET HIT-6691457.A42 6691457	£8.48	£10.18
169 - MAIN JET #38.5 HIT-6696130.A17 6696130	-
170 - O-RING HIT-6684695.A167 6684695	£1.67	£2.00
171 - STOP RING HIT-6684696.A30 6684696	-
171 - PUMP BODY COMP. HIT-6684879.A35 6684879	£35.37	£42.44
172 - PRIMING PUMP COMP. HIT-6684687.A7 6684687	£9.27	£11.12
172 - SWIVEL HIT-6684697.A131 6684697	-
173 - DIAPHRAGM COVER HIT-6684688.A93 6684688	£5.70	£6.84
173 - THROTTLE SET SCREW HIT-6684870.A61 6684870	-
174 - PRIMING BODY HIT-6684689.A6 6684689	£5.87	£7.04
174 - CABLE ADJUSTER STAY HIT-6684873.A17 6684873	-
175 - LOCK NUT M6 HIT-6684872.A65 6684872	-
175 - METERING DIAPHRAGM COMP. HIT-6690830.A24 6690830	£14.58	£17.50
176 - DIAPHRAGM GASKET HIT-6684691.A6 6684691	£5.70	£6.84
176 - CABLE ADJUSTER HIT-6684871.A15 6684871	-
177 - PUMP DIAPHRAGM HIT-6684693.A25 6684693	£5.70	£6.84
177 - CLEANER PACKING HIT-6684875.A19 6684875	-
178 - SET SCREW HIT-6684699.A100 6684699	-
178 - PUMP GASKET HIT-6691457.A43 6691457	£8.48	£10.18
179 - THRUST WASHER HIT-6684874.A61 6684874	-
179 - MAIN JET #38.5 HIT-6696130.A18 6696130	-
180 - O-RING HIT-6684695.A168 6684695	£1.67	£2.00
180 - INLET SCREEN HIT-6684700.A2 6684700	-
181 - STOP RING HIT-6684696.A29 6684696	-
182 - SWIVEL HIT-6684697.A132 6684697	-
183 - THROTTLE SET SCREW HIT-6684870.A60 6684870	-
184 - CABLE ADJUSTER STAY HIT-6684873.A18 6684873	-
185 - LOCK NUT M6 HIT-6684872.A64 6684872	-
186 - CABLE ADJUSTER HIT-6684871.A16 6684871	-
187 - CLEANER PACKING HIT-6684875.A18 6684875	-
188 - SET SCREW HIT-6684699.A101 6684699	-
189 - THRUST WASHER HIT-6684874.A62 6684874	-
190 - INLET SCREEN HIT-6684700.A1 6684700	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A26 6684764	£7.64	£9.17
601 - NAME PLATE PF-3300 HIT-6694233.A0 6694233	-
