Hitachi / Hikoki P20SF Planer Spare Parts

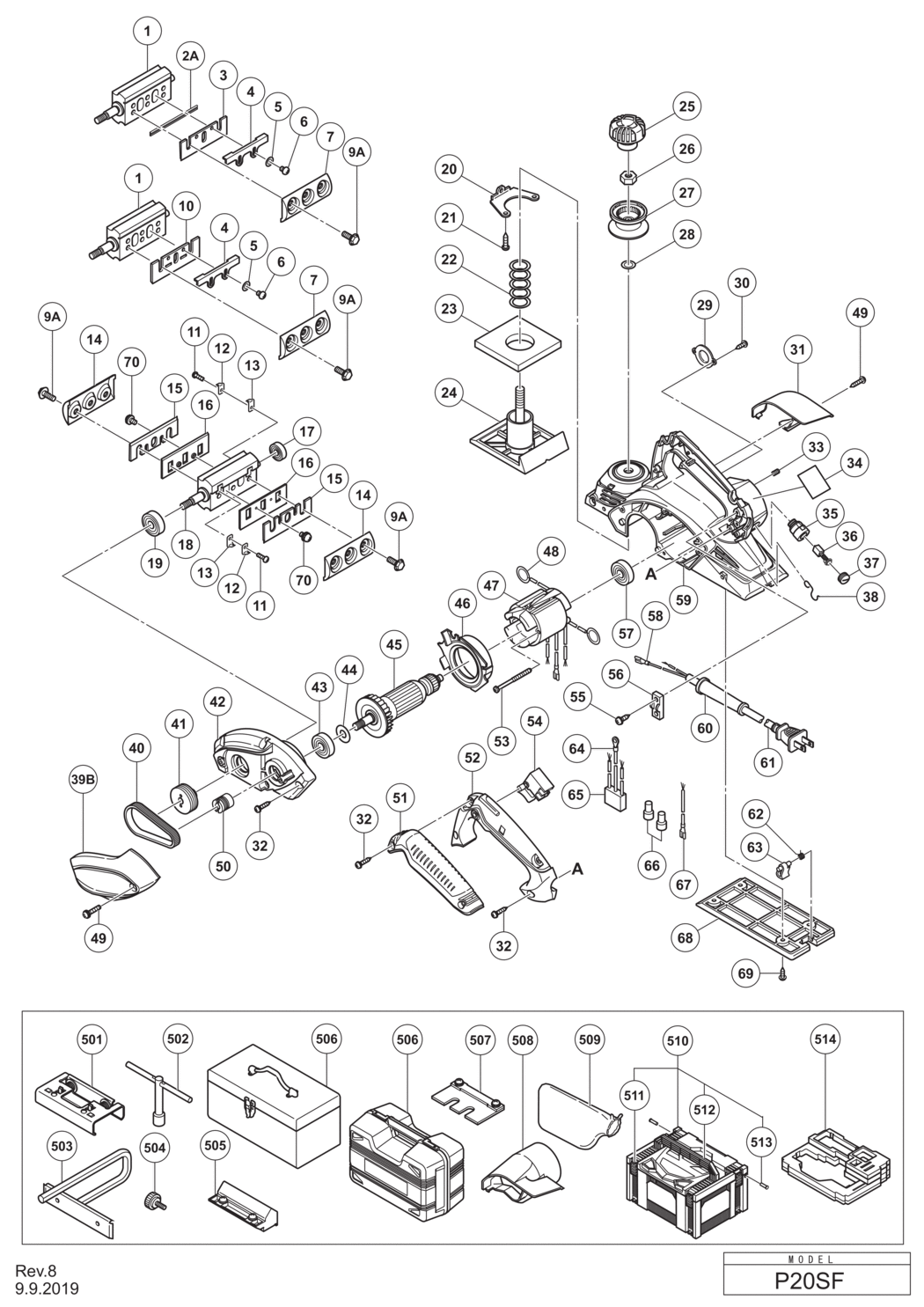

An exploded diagram and spare parts listing for the Hitachi / Hikoki P20SF Planer

	Ex VAT	Inc VAT
1 - CUTTER BLOCK ASS'Y (W/B.B) INCLUD.17 HIT-334480.A1 334480	£30.82	£36.98
2A - PLANER BLADES (1 PAIR) FOR DOUBLE EDGE BLADE TYPE HIT-336571.A0 336571	£11.68	£14.02
3 - SET PLATE (B) (1 PAIR) FOR DOUBLE EDGE BLADE TYPE HIT-334478.A3 334478	£11.18	£13.42
4 - SET PLATE (A) EXCEPT FOR IND HIT-314754.A5 314754	£3.85	£4.62
5 - WASHER M4 (10 PCS.) EXCEPT FOR IND HIT-949423.A35 949423	£1.67	£2.00
6 - MACHINE SCREW M4X5 (10 PCS.) EXCEPT FOR IND HIT-949213.A10 949213	£1.67	£2.00
7 - BLADE HOLDER (1 PAIR) EXCEPT FOR IND HIT-316398.A5 316398	£15.38	£18.45
9A - BOLT M6 HIT-336574.A0 336574	£3.29	£3.95
10 - PLANER BLADES 82MM (1 PAIR) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-314746.A0 314746	-
11 - MACHINE SCREW M4X10 (10 PCS.) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-949216.A52 949216	£1.67	£2.00
*12 - HOLDER SPRING (B) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-958731Z.A1 958731Z	£1.67	£2.00
*13 - GUARD PLATE (A) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-958732Z.A1 958732Z	£1.67	£2.00
*14 - BLADE HOLDER (1 PAIR) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-958734Z.A1 958734Z	£12.16	£14.59
*15 - PLANER BLADES 82MM (1 PAIR) EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-958728.A0 958728	-
*16 - BACK METAL EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-958733Z.A1 958733Z	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A72 608VVM	£5.70	£6.84
*18 - CUTTER BLOCK ASS'Y (W/B.B) INCLUD.11-13 HIT-334481.A0 334481	-
19 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A14 6200VV	£7.36	£8.83
20 - SCREW PLATE HIT-958945.A2 958945	£1.67	£2.00
21 - TAPPING SCREW D4X16 HIT-954004.A6 954004	£1.67	£2.00
22 - SPRING HIT-958709.A5 958709	£1.67	£2.00
23 - RUBBER PACKING HIT-958708.A1 958708	£1.67	£2.00
24 - FRONT BASE HIT-334739.A0 334739	£14.86	£17.83
25 - KNOB (A) HIT-334494.A0 334494	£3.92	£4.70
26 - LOCK NUT M10 HIT-334497.A2 334497	£3.92	£4.70
*27 - KNOB (B) HIT-334488.A0 334488	£3.92	£4.70
*27 - KNOB (B) FOR USA HIT-334489.A0 334489	-
28 - WASHER (B) HIT-301659.A2 301659	£1.67	£2.00
29 - BEARING COVER HIT-334492.A0 334492	-
30 - NO LONGER AVAILABLE HIT-309470.A6 309470	-
31 - TIP COVER HIT-334501.A0 334501	£3.92	£4.70
32 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A64 301653	£1.67	£2.00
33 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A123 938477	£1.67	£2.00
34 - NAME PLATE HIT-000000.A4634 000000	-
35 - BRUSH HOLDER HIT-957571.A4 957571	£3.97	£4.76
36 - CARBON BRUSH (1 PAIR) HIT-999021.A0 999021	£5.54	£6.65
37 - BRUSH CAP HIT-931266.A8 931266	£1.67	£2.00
*38 - CORD HOLDER HIT-334736.A0 334736	-
*38 - CORD HOLDER FOR TPE HIT-334498.A0 334498	-
*38 - CORD HOLDER NOR HIT-334498.A1 334498	-
39B - BELT COVER HIT-334487.A0 334487	£3.66	£4.39
39B - BELT COVER FOR USA HIT-334487M.A0 334487M	-
40 - BELT HIT-958718.A2 958718	£11.23	£13.48
41 - PULLEY (B) HIT-334491.A2 334491	£7.30	£8.76
42 - END BRACKET HIT-334486.A0 334486	-
43 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A15 6200VV	£7.36	£8.83
44 - WASHER (A) HIT-334713.A1 334713	-
*45 - ARMATURE ASS'Y 110V-120V INCLUD.43 HIT-360936U.A0 360936U	-
*45 - ARMATURE 110V FOR GBR (110V) HIT-360936H.A0 360936H	£36.79	£44.15
*45 - ARMATURE 127V HIT-360936D.A0 360936D	-
*45 - ARMATURE 220V-230V HIT-360936E.A0 360936E	£41.22	£49.46
*45 - ARMATURE 220V FOR BRA (220V) HIT-360936G.A0 360936G	-
*45 - ARMATURE 240V HIT-360936F.A1 360936F	-
46 - FAN GUIDE HIT-334493.A3 334493	-
*47 - STATOR ASS'Y 110V INCLUD.48 HIT-340834C.A0 340834C	£26.26	£31.51
*47 - STATOR ASS'Y 110V-120V INCLUD.48 FOR USA HIT-340835C.A1 340835C	-
*47 - STATOR ASS'Y 127V INCLUD.48 HIT-340835D.A0 340835D	-
*47 - STATOR ASS'Y 220V-230V INCLUD.48 HIT-340834E.A1 340834E	-
*47 - STATOR ASS'Y 220V-230V INCLUD.48 FOR BRA (220V) HIT-340835E.A1 340835E	-
*47 - STATOR ASS'Y 240V INCLUD.48 HIT-340834F.A0 340834F	-
*47 - STATOR ASS'Y 240V INCLUD.48 FOR MAL HIT-340835F.A0 340835F	-
48 - BRUSH TERMINAL HIT-931867.A3 931867	£1.67	£2.00
49 - MACHINE SCREW (BLACK) M4X16 HIT-333163.A3 333163	£3.02	£3.63
50 - PULLEY (A) HIT-334490.A0 334490	£5.52	£6.63
51 - GRIP COVER HIT-334485.A0 334485	-
52 - HANDLE COVER HIT-334484.A1 334484	-
53 - HEX. HD. TAPPING SCREW D4X60 HIT-960108.A4 960108	£1.67	£2.00
*54 - SWITCH W/OFF LOCK TYPE HIT-334474.A2 334474	£12.61	£15.13
*54 - SWITCH W/ON LOCK TYPE HIT-322101.A1 322101	-
55 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A34 984750	£1.67	£2.00
56 - CORD CLIP HIT-937631.A122 937631	£1.67	£2.00
57 - BALL BEARING 608VVC2PS2L HIT-608VVM.A70 608VVM	£5.70	£6.84
58 - FASTON HIT-331707.A5 331707	£1.67	£2.00
*59 - HOUSING ASS'Y INCLUD.20 HIT-334482.A1 334482	£43.83	£52.60
*59 - HOUSING ASS'Y INCLUD.20 HIT-334483.A0 334483	-
60 - CORD ARMOR D8.8 HIT-953327.A25 953327	£1.67	£2.00
*61 - CORD (CORD ARMOR D8.8) HIT-500409Z.A9 500409Z	-
*61 - CORD (CORD ARMOR D8.8) FOR NOR HIT-500247Z.A8 500247Z	-
*61 - CORD (CORD ARMOR D8.8) FOR USA HIT-500432Z.A1 500432Z	-
*61 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500231Z.A1 500231Z	-
*61 - CORD (CORD ARMOR D8.8) FOR THA HIT-500455Z.A8 500455Z	-
*61 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A51 500435Z	£14.14	£16.97
*61 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A53 500461Z	£15.56	£18.67
*61 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A7 500439Z	-
*61 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500447Z.A19 500447Z	£7.92	£9.51
*61 - CORD (CORD ARMOR D8.8) FOR BRA HIT-500487Z.A0 500487Z	-
*61 - CORD (CORD ARMOR D8.8) FOR KOR HIT-500234Z.A47 500234Z	-
*61 - CORD (CORD ARMOR D8.8) FOR TPE HIT-500470Z.A1 500470Z	-
62 - SPRING HIT-334500.A3 334500	£1.67	£2.00
63 - STAND HIT-334499.A0 334499	-
*64 - TERMINAL FOR AUS HIT-961419Z.A9 961419Z	-
*65 - NOISE SUPPRESSOR FOR AUS HIT-994273.A57 994273	£7.30	£8.76
*66 - CONNECTOR 50091 (10 PCS.) HIT-959140.A68 959140	£4.98	£5.97
*66 - CONNECTOR 50092 (10 PCS.) FOR AUS HIT-959141.A39 959141	£7.12	£8.54
*67 - INTERNAL WIRE FOR AUS HIT-331269.A2 331269	-
68 - REAR BASE HIT-334838.A1 334838	£9.85	£11.82
69 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A34 307811	-
70 - MACHINE SCREW (W/WASHERS) M4X8 FOR IND HIT-976815.A4 976815	£1.67	£2.00
501 - SET GAUGE FOR IND HIT-334693.A2 334693	-
502 - BOX WRENCH 10MM HIT-940543.A3 940543	£7.34	£8.81
503 - GUIDE HIT-958842Z.A3 958842Z	£4.96	£5.95
504 - STOPPER SCREW M5X14 HIT-940650.A6 940650	£1.67	£2.00
505 - BLADE SHARPENING ASS'Y EXCEPT FOR DOUBLE EDGE BLADE TYPE HIT-314767.A0 314767	£6.29	£7.55
*506 - CASE FOR USA HIT-334735.A0 334735	-
*506 - CASE FOR GBR HIT-334475.A0 334475	£30.82	£36.98
507 - SET GAUGE EXCEPT FOR IND HIT-316419.A2 316419	£8.52	£10.22
508 - DUST ADAPTER FOR USA HIT-334502.A4 334502	£3.83	£4.60
509 - DUST BAG (BLACK) HIT-322955.A12 322955	£14.47	£17.36
509 - DUST BAG (BLACK) FOR METABOHPT HIT-322955M.A1 322955M	-
510 - CASE ASS'Y (STACKABLE 3) INCLUD.511-513 HIT-337108.A4 337108	-
511 - LATCH HIT-336472.A74 336472	£1.67	£2.00
512 - HANDLE HIT-336473.A0 336473	£6.43	£7.72
513 - HINGE HIT-336474.A74 336474	£1.67	£2.00
514 - BOTTOM CASHION HIT-337742.A0 337742	-
601 - ELBOW HIT-334503.A0 334503	£3.38	£4.06
602 - DUST ADAPTER EXCEPT FOR USA HIT-334502.A5 334502	£3.83	£4.60
603 - DUST BAG (BLACK) EXCEPT FOR USA HIT-322955.A13 322955	£14.47	£17.36
