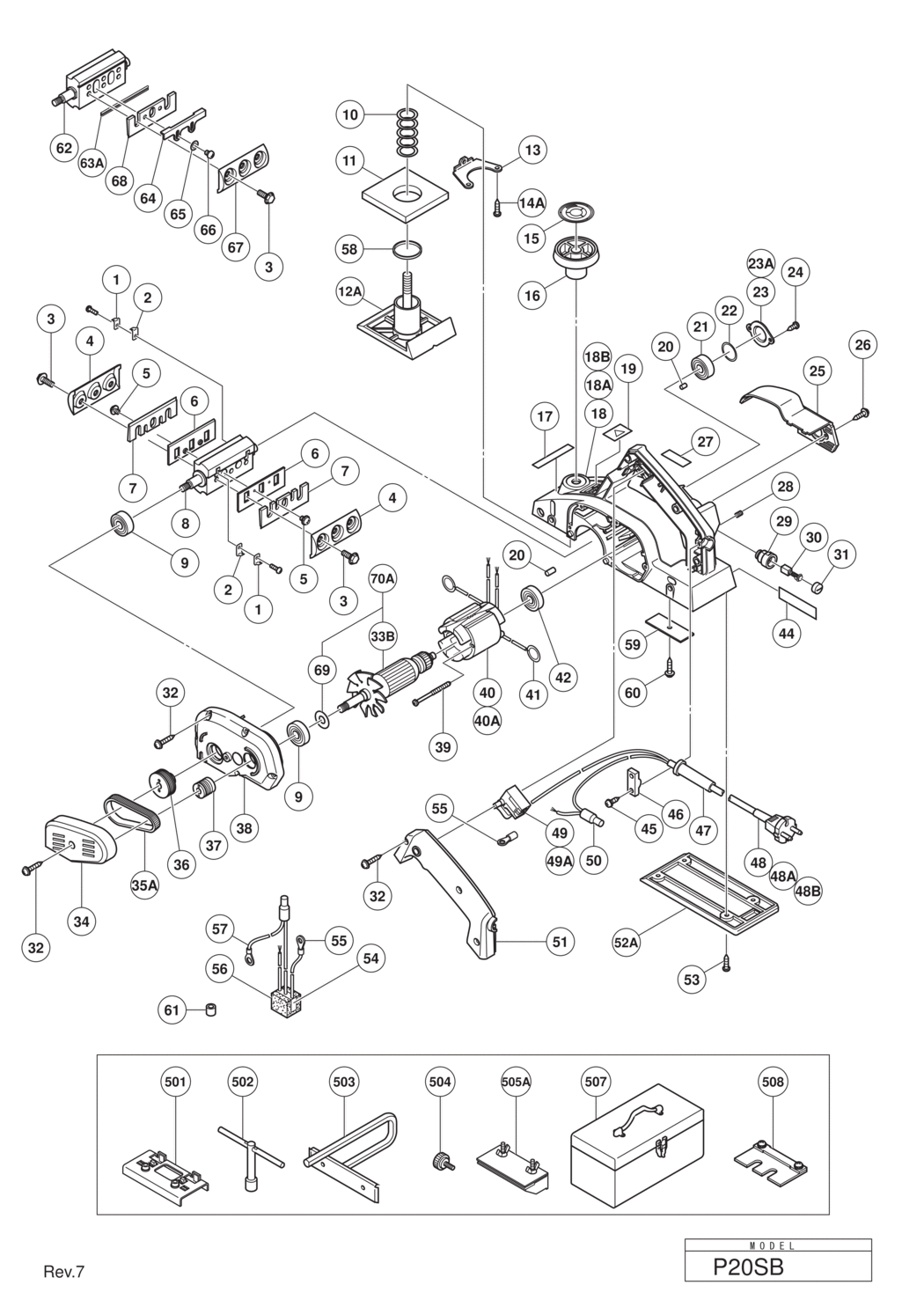

3 - BOLT (W/WASHER) M6X18
HIT-990669.A1
990669
|
£1.67
|
£2.00
|
|
|
9 - BALL BEARING 6200VVCMPS2L
HIT-6200VV.A11
6200VV
|
£7.36
|
£8.83
|
|
|
10 - SPRING
HIT-958709.A4
958709
|
£1.67
|
£2.00
|
|
|
11 - RUBBER PACKING
HIT-958708.A2
958708
|
£1.67
|
£2.00
|
|
|
12A - FRONT BASE
HIT-335305.A0
335305
|
-
|
|
|
|
13 - SCREW PLATE
HIT-958945.A0
958945
|
£1.67
|
£2.00
|
|
|
14A - TAPPING SCREW D4X16
HIT-954004.A11
954004
|
£1.67
|
£2.00
|
|
|
*15 - SCALE
HIT-958710.A0
958710
|
£1.67
|
£2.00
|
|
|
*16 - KNOB ASS'Y INCLUD.15
HIT-958729.A0
958729
|
£7.30
|
£8.76
|
|
|
17 - BRAND LABEL
HIT-957561.A7
957561
|
-
|
|
|
|
*18 - HOUSING ASS'Y W/O LOCK SWITCH INCLUD.13
HIT-308103.A0
308103
|
-
|
|
|
|
19 - MARK PLATE
HIT-000000.A4434
000000
|
-
|
|
|
|
20 - BEARING LOCK
HIT-931701.A28
931701
|
£1.67
|
£2.00
|
|
|
21 - BALL BEARING 6000VVCMPS2L
HIT-6000VV.A84
6000VV
|
£7.62
|
£9.15
|
|
|
22 - THRUST WASHER (B)
HIT-945153.A0
945153
|
-
|
|
|
|
*23 - BEARING COVER
HIT-313671.A0
313671
|
-
|
|
|
|
24 - TAPPING SCREW D4X12
HIT-954017.A0
954017
|
£1.67
|
£2.00
|
|
|
25 - TAIL COVER
HIT-958714.A0
958714
|
£5.98
|
£7.18
|
|
|
26 - TAPPING SCREW (W/WASHER) D4X16
HIT-930446.A3
930446
|
£1.67
|
£2.00
|
|
|
27 - CAUTION PLATE
HIT-000000.A4435
000000
|
-
|
|
|
|
28 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A110
938477
|
£1.67
|
£2.00
|
|
|
29 - BRUSH HOLDER
HIT-957571.A2
957571
|
£3.97
|
£4.76
|
|
|
30 - CARBON BRUSH (1 PAIR)
HIT-999021.A2
999021
|
£5.54
|
£6.65
|
|
|
31 - BRUSH CAP
HIT-931266.A9
931266
|
£1.67
|
£2.00
|
|
|
32 - TAPPING SCREW (W/WASHER) D4X25
HIT-956636.A2
956636
|
-
|
|
|
|
*33B - ARMATURE ASS'Y 110V-115V INCLUD.9
HIT-360966U.A0
360966U
|
-
|
|
|
|
*33B - ARMATURE 220V-230V SINCE 5.2012
HIT-360967E.A0
360967E
|
-
|
|
|
|
*34 - BELT COVER (GREEN)
HIT-958719Z.A0
958719Z
|
£4.33
|
£5.20
|
|
|
35A - BELT
HIT-958718.A0
958718
|
£11.23
|
£13.48
|
|
|
36 - PULLEY (B)
HIT-958717.A0
958717
|
-
|
|
|
|
37 - PULLEY (A)
HIT-958716.A0
958716
|
-
|
|
|
|
38 - END BRACKET
HIT-958704.A0
958704
|
£15.32
|
£18.38
|
|
|
39 - HEX. HD. TAPPING SCREW D4X60
HIT-960108.A6
960108
|
£1.67
|
£2.00
|
|
|
*40 - STATOR ASS'Y 110V-115V INCLUD.41
HIT-958693P.A0
958693P
|
-
|
|
|
|
*40 - STATOR ASS'Y 230V INCLUD.41 FOR NZL
HIT-958693G.A0
958693G
|
-
|
|
|
|
41 - BRUSH TERMINAL
HIT-930630.A2
930630
|
£1.67
|
£2.00
|
|
|
42 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A89
608VVM
|
£5.70
|
£6.84
|
|
|
*43 - RIVET D2.5X4.8 (10 PCS.) EXCEPT FOR KOR
HIT-949510.A8
949510
|
£1.67
|
£2.00
|
|
|
44 - NAME PLATE
HIT-000000.A4436
000000
|
-
|
|
|
|
45 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A14
984750
|
£1.67
|
£2.00
|
|
|
46 - CORD CLIP
HIT-937631.A133
937631
|
£1.67
|
£2.00
|
|
|
*47 - CORD ARMOR D8.2
HIT-930487.A9
930487
|
£3.85
|
£4.62
|
|
|
*48 - CORD (CORD ARMOR D8.2) FOR GBR (110V)
HIT-500461Z.A52
500461Z
|
£15.56
|
£18.67
|
|
|
*48 - CORD (CORD ARMOR D8.2) FOR SIN
HIT-500423Z.A14
500423Z
|
-
|
|
|
|
*49A - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK FOR NZL
HIT-963756Z.A1
963756Z
|
£20.44
|
£24.53
|
|
|
*50 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR HKG
HIT-959140.A75
959140
|
£4.98
|
£5.97
|
|
|
*51 - HANDLE COVER (GREEN) SINCE 5.1998 FOR HKG
HIT-958944.A0
958944
|
-
|
|
|
|
*52A - REAR BASE
HIT-335306.A0
335306
|
-
|
|
|
|
53 - TAPPING SCREW D4X16
HIT-954004.A9
954004
|
£1.67
|
£2.00
|
|
|
*54 - NOISE SUPPRESSOR FOR NZL
HIT-994273.A66
994273
|
£7.30
|
£8.76
|
|
|
*55 - TERMINAL FOR NZL
HIT-980063.A119
980063
|
£1.67
|
£2.00
|
|
|
*56 - SUPPORT (B) FOR NZL
HIT-930153.A22
930153
|
£1.67
|
£2.00
|
|
|
*57 - INTERNAL WIRE FOR NZL
HIT-985191.A0
985191
|
-
|
|
|
|
*61 - TUBE (D) FOR AUS
HIT-981373.A63
981373
|
£1.67
|
£2.00
|
|
|
*62 - CUTTER BLOCK ASS'Y INCLUD.9.21 FOR DOUBLE EDGED BLADE TYPE
HIT-316397.A0
316397
|
£48.38
|
£58.05
|
|
|
*63A - PLANER BLADES (1 PAIR) FOR DOUBLE EDGED BLADE TYPE
HIT-336571.A4
336571
|
£11.68
|
£14.02
|
|
|
*64 - SET PLATE (A) FOR DOUBLE EDGED BLADE TYPE
HIT-314754.A3
314754
|
£3.85
|
£4.62
|
|
|
65 - WASHER M4 (10 PCS.) FOR DOUBLE EDGED BLADE TYPE
HIT-949423.A56
949423
|
£1.67
|
£2.00
|
|
|
*66 - MACHINE SCREW M4X5 (10 PCS.) FOR DOUBLE EDGED BLADE TYPE
HIT-949213.A1
949213
|
£1.67
|
£2.00
|
|
|
*67 - BLADE HOLDER (1 PAIR) FOR DOUBLE EDGED BLADE TYPE
HIT-316398.A0
316398
|
£15.38
|
£18.45
|
|
|
*68 - SET PLATE (B) (1 PAIR) FOR DOUBLE EDGED BLADE TYPE
HIT-314740.A1
314740
|
£22.91
|
£27.49
|
|
|
69 - WASHER (A) SINCE 5.2012
HIT-334713.A3
334713
|
-
|
|
|
|
*70A - ARMATURE ASS'Y 220V-230V INCLUD.33B
HIT-360943E.A0
360943E
|
-
|
|
|
|
502 - BOX WRENCH 10MM
HIT-940543.A5
940543
|
£7.34
|
£8.81
|
|
|
503 - GUIDE
HIT-958842Z.A1
958842Z
|
£4.96
|
£5.95
|
|
|
504 - STOPPER SCREW M5X14
HIT-940650.A5
940650
|
£1.67
|
£2.00
|
|
|
*508 - SET GAUGE FOR DOUBLE EDGED BLADE TYPE
HIT-316419.A1
316419
|
£8.52
|
£10.22
|
|
