Hitachi / Hikoki NV90HMC High Pressure Coil Nailer Spare Parts

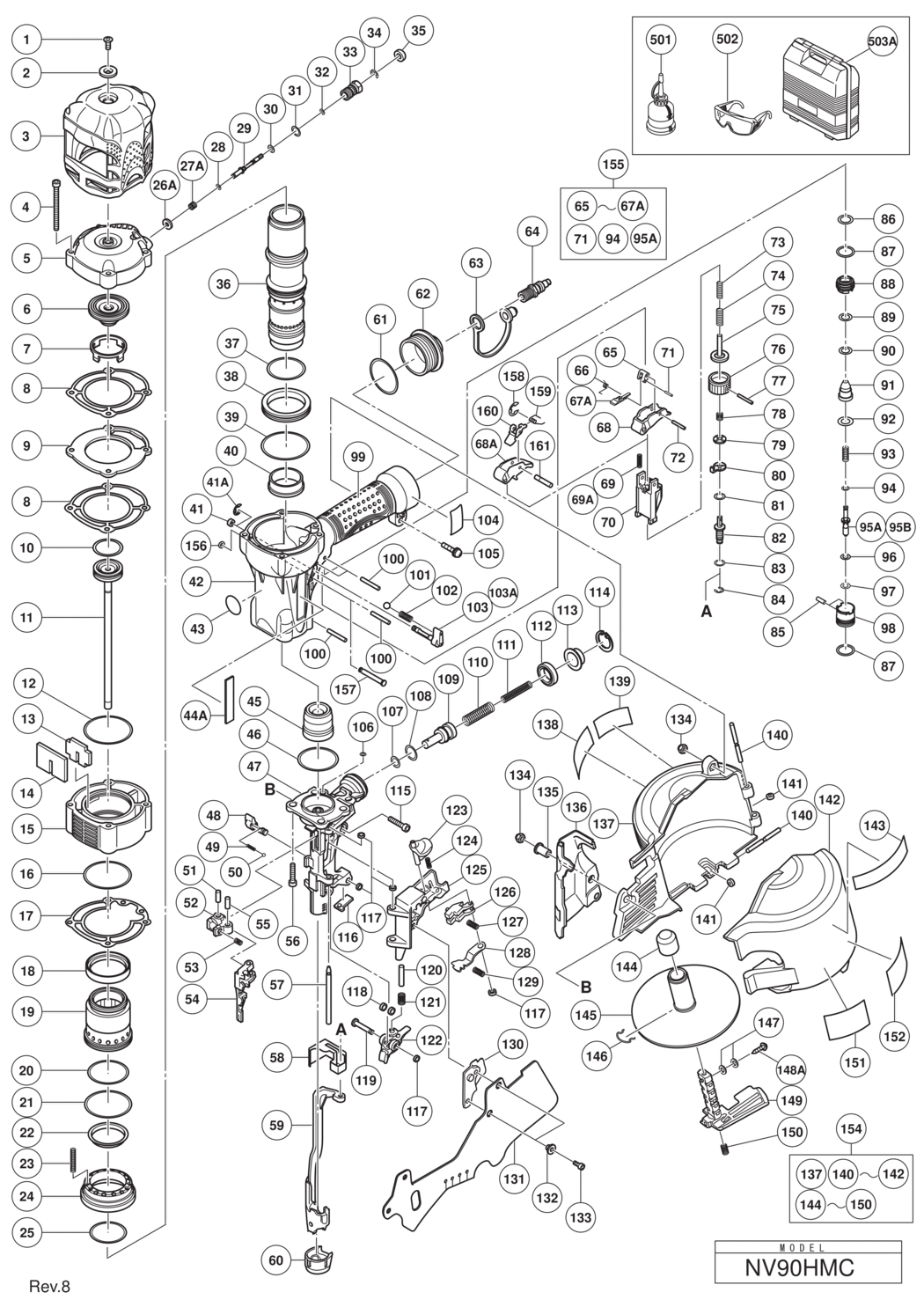

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV90HMC High Pressure Coil Nailer

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X10 HIT-887128.A0 887128	-
2 - WASHER HIT-885264.A0 885264	-
3 - PROTECTOR HIT-886890.A0 886890	-
4 - NYLOCK BOLT M5X65 HIT-885854.A0 885854	-
5 - UPPER COVER (GOLD) HIT-886901.A1 886901	-
6 - HEAD BUMPER HIT-886898.A0 886898	-
7 - HEAD GUIDE HIT-886904.A0 886904	-
8 - PACKING (B) HIT-886902.A0 886902	-
9 - PLATE HIT-886903.A1 886903	-
10 - PISTON O-RING HIT-886881.A0 886881	-
11 - PISTON (H) HIT-886880.A0 886880	-
12 - O-RING (I.D 48.5) HIT-886900.A0 886900	-
13 - MUFFLER (A) HIT-885851.A0 885851	-
14 - MUFFLER HIT-885850.A0 885850	-
15 - EXHAUST COVER (GOLD) HIT-887127.A0 887127	-
16 - O-RING HIT-887129.A1 887129	-
17 - GASKET (C) HIT-885852.A0 885852	-
18 - SLEEVE VALVE RUBBER HIT-885839.A1 885839	£23.88	£28.65
19 - SLEEVE VALVE HIT-886896.A1 886896	-
20 - O-RING HIT-887126.A0 887126	-
21 - O-RING HIT-885841.A0 885841	-
22 - EXHAUST RUBBER HIT-885844.A1 885844	-
23 - SLEEVE VALVE SPRING HIT-885846.A0 885846	-
24 - VALVE PLATE HIT-886899.A0 886899	-
25 - O-RING (S-32) HIT-872767.A10 872767	£1.67	£2.00
26A - VALVE PACKING HIT-884338.A6 884338	-
27A - SPRING HIT-887177.A5 887177	-
28 - PLUNGER O-RING HIT-878607.A4 878607	£1.67	£2.00
29 - PLUNGER HIT-886044.A0 886044	-
30 - O-RING (1AP-3) HIT-873093.A15 873093	£1.67	£2.00
31 - O-RING (S-10) HIT-987105.A24 987105	£1.67	£2.00
32 - O-RING (S3) HIT-881715.A11 881715	-
33 - VALVE BUSHING HIT-885027.A0 885027	-
34 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A22 968643	£1.67	£2.00
35 - KNOB HIT-884334.A4 884334	-
36 - CYLINDER HIT-886894.A0 886894	-
37 - O-RING (S-36) HIT-984483.A2 984483	£1.67	£2.00
38 - CYLINDER PLATE HIT-886895.A0 886895	-
39 - O-RING (B) HIT-985765.A1 985765	£1.67	£2.00
40 - CYLINDER RING HIT-881244.A1 881244	-
41 - FEEDER SHAFT RING HIT-886669.A3 886669	-
41A - RETAINING RING (E-TYPE) FOR D4 SHAFT SINCE 7.2016 FOR NOR HIT-968643.A21 968643	£1.67	£2.00
42 - BODY ASS'Y (GOLD) INCLUD.98 HIT-886893.A0 886893	-
43 - WARNING LABEL (A) HIT-883513.A11 883513	-
44A - BRAND PLATE HIT-886342.A4 886342	£1.67	£2.00
45 - PISTON BUMPER HIT-886882.A0 886882	-
46 - O-RING (S-34) HIT-980879.A11 980879	£1.67	£2.00
47 - NOSE HIT-886883.A0 886883	-
48 - CHANGE KNOB HIT-887124.A0 887124	-
49 - LOCK SPRING HIT-882923.A10 882923	-
50 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A15 959148	£1.67	£2.00
51 - ROLL PIN D4X18 (10 PCS.) HIT-949498.A0 949498	-
52 - FEEDER ARM (B) HIT-883144.A6 883144	-
53 - FEEDER SPRING HIT-883143.A0 883143	-
54 - FEEDER (A) HIT-886886.A0 886886	-
55 - PLUNGER (B) HIT-883093.A2 883093	-
56 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A6 993040	£2.69	£3.23
57 - NAIL GUIDE SHAFT HIT-883091.A1 883091	-
58 - PUSHING LEVER COVER (B) HIT-883113.A1 883113	-
59 - PUSHING LEVER(A) HIT-886892.A0 886892	-
60 - NOSE CAP (A) HIT-886889.A0 886889	-
61 - O-RING (I.D 37.2) HIT-880183.A13 880183	£1.67	£2.00
62 - CAP (GOLD) HIT-886426.A3 886426	-
63 - DUST CAP HIT-877914.A6 877914	-
64 - AIR PLUG L-PT 1/4 HIT-883135.A1 883135	-
65 - TRIGGER PIECE (C) HIT-886626.A1 886626	-
66 - TRIGGER SPRING HIT-886627.A3 886627	-
67A - TRIGGER ARM (D) HIT-000000.A1201 000000	-
68 - TRIGGER HIT-886623.A4 886623	-
68A - TRIGGER (S) SINCE 7.2016 FOR NOR HIT-886052.A1 886052	-
69 - TRIGGER SPRING HIT-883759.A5 883759	-
69A - TRIGGER SPRING SINCE 7.2016 FOR NOR HIT-884916.A2 884916	-
70 - PUSHING LEVER GUIDE HIT-886047.A2 886047	-
71 - ROLL PIN D1.6X10 HIT-886228.A5 886228	-
72 - ROLL PIN D2.5X16 HIT-881951.A8 881951	-
73 - PUSHING LEVER SPRING (B) HIT-883302.A1 883302	-
74 - PUSHING LEVER SPRING (A) HIT-883305.A1 883305	-
75 - PUSHING LEVER (C) HIT-882891.A7 882891	-
76 - ADJUSTER HIT-882889.A6 882889	-
77 - ROLL PIN D2X16 HIT-880093.A7 880093	-
78 - ADJUSTER SPRING HIT-882890.A2 882890	-
79 - ADJUSTER PLATE (C) HIT-884973.A3 884973	£1.67	£2.00
80 - ADJUSTER PLATE (A) HIT-882886.A3 882886	-
81 - O-RING (S-4) HIT-981317.A19 981317	£1.67	£2.00
82 - PUSHING LEVER (B) HIT-886043.A1 886043	-
83 - O-RING (S-5) HIT-872822.A13 872822	£3.19	£3.83
84 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A6 872971	£1.67	£2.00
85 - PIN D2X8 (10 PCS.) HIT-949778.A2 949778	-
86 - O-RING (S-14) HIT-876319.A3 876319	£1.67	£2.00
87 - O-RING (S-16) HIT-876031.A0 876031	£2.98	£3.57
88 - VALVE BUSHING (B) HIT-886910.A0 886910	-
89 - O-RING (P7-U) HIT-883105.A2 883105	-
90 - O-RING (P9-U) HIT-883104.A2 883104	-
91 - VALVE PISTON HIT-883101.A2 883101	-
92 - O-RING (1AP-11) HIT-878764.A4 878764	-
93 - PLUNGER SPRING HIT-883103.A2 883103	-
94 - O-RING (I.D 1.8) HIT-883405.A6 883405	-
95A - PLUNGER HIT-000000.A1203 000000	-
95B - PLUNGER (S) SINCE 7.2016 FOR NOR HIT-886051.A0 886051	-
96 - O-RING (1AP-5) HIT-873407.A0 873407	-
97 - O-RING (S-6) HIT-997218.A2 997218	-
98 - VALVE BUSHING (A) HIT-883099.A2 883099	-
99 - GRIP RUBBER (A) HIT-000000.A1205 000000	-
100 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A13 949865	£3.28	£3.93
101 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A12 959148	£1.67	£2.00
102 - LOCK SPRING HIT-882923.A11 882923	-
103 - LOCK KNOB HIT-886727.A0 886727	-
103A - LOCK KNOB (A) SINCE 7.2016 FOR NOR HIT-885865.A2 885865	-
104 - CAUTION PLATE (C) HIT-000000.A1207 000000	-
105 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A3 880734	£1.67	£2.00
106 - O-RING (1AP-3) HIT-873093.A17 873093	£1.67	£2.00
107 - O-RING (P-9) HIT-872645.A25 872645	£1.67	£2.00
108 - FEED PISTON O-RING (I.D. 14) HIT-877763.A2 877763	-
109 - FEED PISTON HIT-883094.A2 883094	-
110 - FEED SPRING (A) HIT-883095.A1 883095	-
111 - FEED SPRING (B) HIT-883096.A2 883096	-
112 - BUMPER HIT-885681.A1 885681	-
113 - FEED PISTON COVER HIT-883098.A2 883098	-
114 - RETAINING RING FOR D24 HOLE HIT-983748.A4 983748	£1.67	£2.00
115 - HEX. SOCKET HD. BOLT M5X22 HIT-883368.A0 883368	-
116 - NOSE BUMPER HIT-887131.A1 887131	-
117 - SHAFT RING HIT-880319.A10 880319	£1.67	£2.00
118 - NOSE SLEEVE HIT-887122.A1 887122	-
119 - NOSE SHAFT HIT-887125.A1 887125	-
120 - URETHANE SHAFT HIT-887132.A0 887132	-
121 - SPRING HIT-886888.A0 886888	-
122 - NOSE PIECE (A) HIT-886887.A0 886887	-
123 - GUIDE LOCK HIT-887130.A0 887130	-
124 - SPRING HIT-880446.A13 880446	£1.67	£2.00
125 - NAIL GUIDE HIT-886884.A0 886884	-
126 - NAIL STOPPER (A) HIT-883085.A2 883085	-
127 - STOPPER SPRING (A) HIT-883088.A0 883088	-
128 - NAIL STOPPER (B) HIT-883086.A0 883086	-
129 - STOPPER SPRING (B) HIT-883087.A4 883087	-
130 - NAIL GUIDE COVER HIT-883089.A2 883089	-
131 - COVER HIT-886885.A0 886885	-
132 - SLEEVE (B) HIT-882881.A6 882881	-
133 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A1 880630	£1.67	£2.00
134 - NYLON NUT M5 HIT-877371.A51 877371	£1.67	£2.00
135 - SLEEVE HIT-882907.A11 882907	£5.09	£6.11
136 - PUSHING LEVER COVER (A) HIT-886891.A0 886891	-
137 - MAGAZINE HIT-886906.A0 886906	-
138 - LABEL (D) HIT-000000.A1208 000000	-
139 - WARNING LABEL HIT-887175.A1 887175	-
140 - PIN HIT-883111.A9 883111	-
141 - FEEDER SHAFT RING HIT-877826.A15 877826	£1.67	£2.00
142 - MAGAZINE COVER HIT-886907.A0 886907	-
143 - CAUTION PLATE (B) HIT-000000.A1209 000000	-
144 - HOLDER CAP (A) HIT-881003.A4 881003	£1.67	£2.00
145 - NAIL HOLDER HIT-880503.A4 880503	£7.12	£8.54
146 - RATCHET SPRING HIT-880398.A6 880398	£5.87	£7.04
147 - WASHER M4 (10 PCS.) HIT-949423.A7 949423	£1.67	£2.00
148A - TAPPING SCREW (W/WASHER) D3X10 HIT-995481.A1 995481	-
149 - HOLDER SHAFT HIT-887123.A0 887123	-
150 - SPRING HIT-881826.A11 881826	£1.67	£2.00
151 - NAME PLATE HIT-000000.A1210 000000	-
152 - WARNING LABEL HIT-887174.A4 887174	-
154 - MAGAZINE ASS'Y INCLUD.137 HIT-887317.A0 887317	-
155 - TRIGGER PARTS SET INCLUD.65-67A HIT-888727.A1 888727	-
156 - O-RING (I.D 1.8) SINCE 7.2016 FOR NOR HIT-883405.A7 883405	-
157 - TRIGGER PIN SINCE 7.2016 FOR NOR HIT-889023.A0 889023	-
158 - RETAINING RING (E-TYPE) FOR D1.5 SHAFT SINCE 7.2016 FOR NOR HIT-886056.A2 886056	-
159 - SPRING (S) SINCE 7.2016 FOR NOR HIT-886054.A2 886054	-
160 - TRIGGER ARM (S) SINCE 7.2016 FOR NOR HIT-886053.A0 886053	-
161 - TRIGGER ARM PIN SINCE 7.2016 FOR NOR HIT-886055.A0 886055	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-883136.A3 883136	-
502 - PROTECTIVE GLASSES HIT-875769.A99 875769	-
503A - CASE HIT-888666.A1 888666	-
601 - GRIP TAPE (A) HIT-881768.A20 881768	-
602A - TAPE (2 PCS.) HIT-888213.A10 888213	-
603 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A15 876212	-
604 - SINGLE SEQUENTIAL ACTUATION MECHANISMKIT HIT-887951.A0 887951	-
605 - HANGER PARTS SET FOR EUROPE HIT-888097.A1 888097	-
