Hitachi / Hikoki NV90AB Coil Nailer Spare Parts

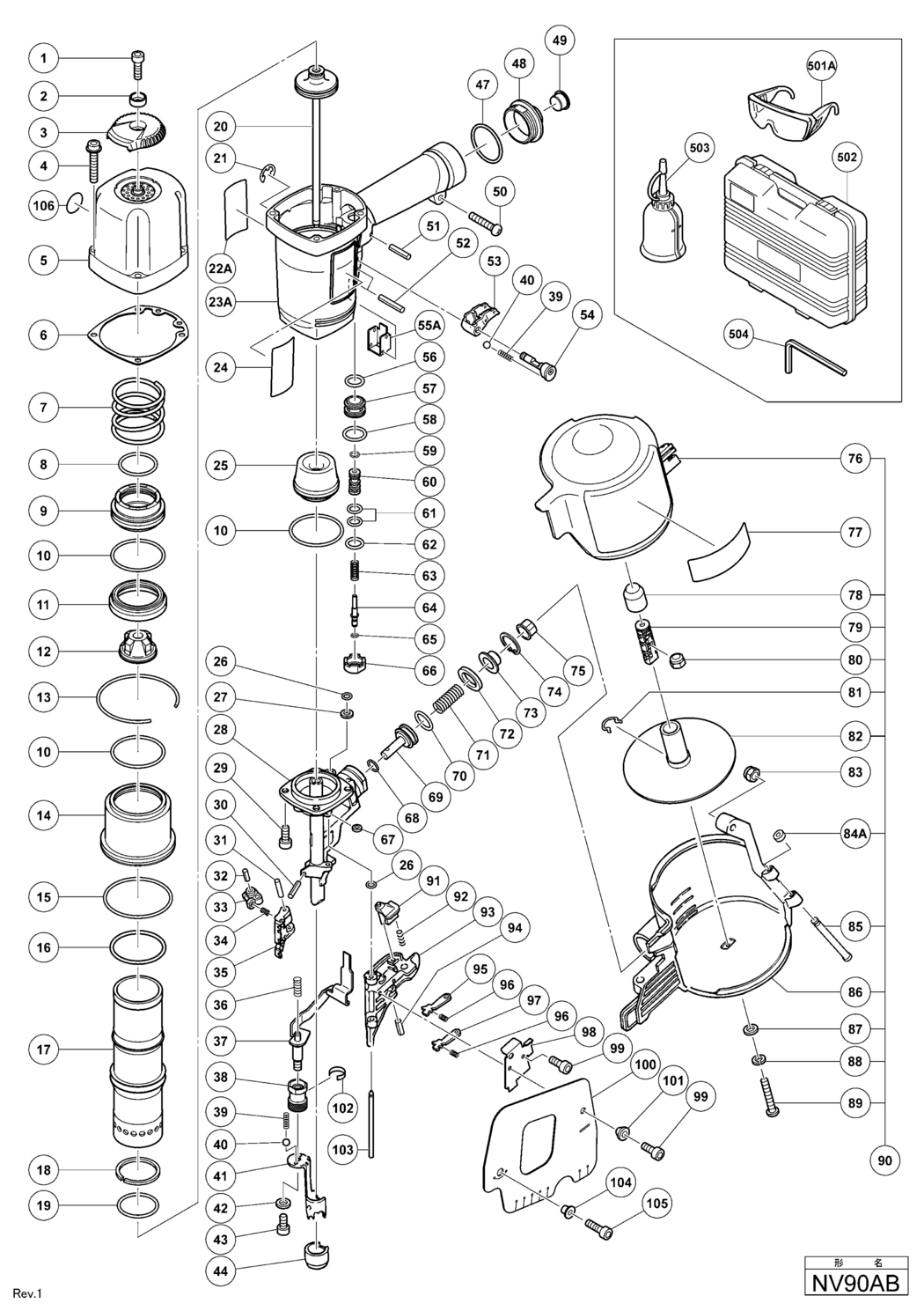

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV90AB Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X16 (10 PCS.) HIT-949755.A4 949755	£3.64	£4.37
2 - PLATE HIT-880515.A0 880515	£4.92	£5.90
3 - TOP COVER HIT-884332.A8 884332	£6.38	£7.66
4 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X35 HIT-301597.A0 301597	£1.67	£2.00
*5 - EXHAUST COVER HIT-882820.A0 882820	-
*5 - EXHAUST COVER FOR H/K HIT-882821.A0 882821	-
6 - GASKET (B) HIT-878919.A0 878919	£3.99	£4.79
7 - SPRING HIT-878912.A0 878912	£18.60	£22.32
8 - O-RING (I.D 38.5) HIT-878913.A0 878913	£1.67	£2.00
9 - HEAD VALVE HIT-878911.A0 878911	£29.84	£35.81
10 - O-RING (I.D 52.6) HIT-878372.A1 878372	£3.70	£4.44
11 - HEAD VALVE RUBBER HIT-878918.A0 878918	£7.42	£8.91
12 - EXHAUST VALVE RUBBER HIT-878915.A0 878915	£14.54	£17.45
13 - RETAINING RING HIT-880513.A0 880513	£1.67	£2.00
14 - CYLINDER PLATE HIT-880707.A0 880707	-
15 - CYLINDER O-RING (I.D 68.3) HIT-874104.A0 874104	£3.70	£4.44
16 - O-RING HIT-878961.A0 878961	£3.99	£4.79
17 - CYLINDER HIT-881007.A0 881007	-
18 - PISTON RING HIT-878931.A0 878931	£33.17	£39.80
19 - O-RING HIT-880127.A0 880127	£1.67	£2.00
20 - PISTON (H) HIT-880990.A0 880990	£165.66	£198.79
21 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A18 955479	£1.67	£2.00
22A - WARNING LABEL EXCEPT FOR H/K HIT-884070.A6 884070	-
*23A - BODY ASS'Y (W/GRIP RUBBER: SUPPLIED WITH ITEM HIT-880510.A0 880510	-
*23A - BODY ASS'Y (W/GRIP RUBBER FOR H/K: SUPPLIED WITH HIT-882161.A0 882161	-
24 - NAME PLATE HIT-000000.A2151 000000	-
25 - PISTON BUMPER HIT-880991.A0 880991	£24.21	£29.05
26 - O-RING (P-4) HIT-874436.A15 874436	£1.67	£2.00
27 - WASHER HIT-878964.A0 878964	£1.67	£2.00
28 - NOSE HIT-880992.A0 880992	-
29 - NYLOCK HIGH TENSION BOLT M7X20 HIT-993068.A1 993068	£1.67	£2.00
30 - ROLL PIN D3X20 (10 PCS.) HIT-949685.A3 949685	£1.67	£2.00
31 - NEEDLE ROLLER HIT-880998.A0 880998	-
32 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A3 949770	£3.58	£4.29
33 - FEEDER ARM HIT-878132.A3 878132	-
34 - FEEDER SPRING HIT-878340.A6 878340	£1.67	£2.00
35 - FEEDER HIT-881372.A0 881372	-
36 - SPRING HIT-878425.A2 878425	£1.67	£2.00
37 - PUSHING LEVER (B) HIT-880499.A0 880499	-
38 - ADJUSTER HIT-880082.A0 880082	-
39 - SPRING (C) HIT-982454.A18 982454	£1.67	£2.00
40 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A31 959155	£1.67	£2.00
41 - PUSHING LEVER (A) HIT-881000.A0 881000	£40.15	£48.18
42 - WASHER HIT-880081.A1 880081	-
43 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A2 949657	-
44 - NOSE CAP (A) HIT-880132.A0 880132	£5.87	£7.04
47 - O-RING (I.D 37.2) HIT-880183.A11 880183	£1.67	£2.00
*48 - CAP HIT-880379.A4 880379	£28.55	£34.26
*48 - CAP FOR H/K HIT-882162.A0 882162	-
49 - DUST CAP HIT-872035.A11 872035	-
50 - MACHINE SCREW M5X25 (BLACK) HIT-302316.A1 302316	£1.67	£2.00
51 - ROLL PIN D3X22 (10 PCS.) HIT-949864.A0 949864	£3.28	£3.93
52 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A5 949865	£3.28	£3.93
53 - TRIGGER (A) HIT-880674.A1 880674	£9.06	£10.87
54 - CHANGE KNOB (B) HIT-880086.A0 880086	-
55A - PUSHING LEVER GUIDE HIT-884336.A2 884336	-
56 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A3 877699	£1.67	£2.00
57 - VALVE BUSHING (B) HIT-878881.A9 878881	£28.02	£33.63
58 - O-RING (S-18) HIT-878885.A39 878885	£1.67	£2.00
59 - O-RING (S-4) HIT-981317.A3 981317	£1.67	£2.00
60 - VALVE PISTON (B) HIT-880672.A1 880672	£25.41	£30.49
61 - O-RING (I.D 8.8) HIT-878925.A0 878925	£1.67	£2.00
62 - O-RING (I.D 11) HIT-878887.A1 878887	£1.67	£2.00
63 - PLUNGER SPRING HIT-878884.A1 878884	£1.67	£2.00
64 - PLUNGER (A) HIT-880673.A7 880673	£12.74	£15.29
65 - O-RING (I.D. 1.8) HIT-878888.A22 878888	£1.67	£2.00
66 - VALVE BUSHING (A) HIT-880671.A7 880671	£19.08	£22.89
67 - SHAFT RING HIT-880319.A3 880319	£1.67	£2.00
68 - O-RING (P-9) HIT-872645.A33 872645	£1.67	£2.00
69 - FEED PISTON HIT-880999.A0 880999	£21.88	£26.26
70 - O-RING (P-21) HIT-880330.A5 880330	£1.67	£2.00
71 - FEED SPRING HIT-877144.A1 877144	-
72 - BUMPER HIT-877711.A1 877711	£1.67	£2.00
73 - FEED PISTON COVER HIT-880331.A1 880331	£3.76	£4.51
74 - RETAINING RING FOR D28 HOLE (10 PCS.) HIT-939555.A2 939555	-
75 - MAGAZINE BUSHING HIT-878305.A1 878305	£1.67	£2.00
76 - MAGAZINE COVER HIT-881004.A0 881004	-
77 - WARNING LABEL EXCEPT FOR H/K HIT-880476.A0 880476	-
78 - HOLDER CAP (A) HIT-881003.A0 881003	£1.67	£2.00
79 - HOLDER SHAFT HIT-880505.A0 880505	£4.45	£5.34
80 - NYLON NUT M4 HIT-876465.A12 876465	£1.67	£2.00
81 - RATCHET SPRING HIT-880398.A0 880398	£5.87	£7.04
82 - NAIL HOLDER HIT-880503.A0 880503	£7.12	£8.54
83 - NYLON NUT M5 HIT-877371.A27 877371	£1.67	£2.00
84A - FEEDER SHAFT RING HIT-877826.A5 877826	£1.67	£2.00
85 - PIN HIT-880508.A0 880508	-
86 - MAGAZINE HIT-881002.A0 881002	£33.45	£40.14
87 - WASHER M4 (10 PCS.) HIT-949423.A14 949423	£1.67	£2.00
88 - SPRING WASHER M4 (10 PCS.) HIT-949453.A50 949453	£1.67	£2.00
89 - MACHINE SCREW M4X35 (10 PCS.) HIT-949226.A0 949226	£1.67	£2.00
90 - MAGAZINE ASS'Y INCLUD.76 HIT-881001.A0 881001	£72.44	£86.93
91 - GUIDE LOCK HIT-880495.A0 880495	£19.04	£22.85
92 - SPRING HIT-880446.A16 880446	£1.67	£2.00
93 - NAIL GUIDE HIT-881371.A0 881371	-
94 - ROLL PIN D3X8 (10 PCS.) HIT-949749.A1 949749	£1.67	£2.00
95 - NAIL STOPPER (A) HIT-880493.A0 880493	£8.66	£10.39
96 - STOPPER SPRING HIT-880494.A0 880494	£1.67	£2.00
97 - NAIL STOPPER (B) HIT-880994.A0 880994	£7.39	£8.87
98 - NAIL GUIDE COVER HIT-880995.A0 880995	-
99 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A8 880413	£1.67	£2.00
100 - COVER HIT-880996.A0 880996	£11.22	£13.47
101 - SLEEVE (B) HIT-878337.A1 878337	£2.98	£3.57
102 - LABEL (D) HIT-000000.A2153 000000	-
103 - NAIL GUIDE SHAFT HIT-880997.A0 880997	-
104 - SLEEVE HIT-881005.A0 881005	£7.85	£9.42
105 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A19 949821	£3.28	£3.93
106 - WARNING LABEL (A) FOR EUROPE HIT-883513.A3 883513	-
501A - PROTECTIVE GLASSES HIT-875769.A128 875769	-
*502 - CASE HIT-880711.A0 880711	-
*502 - CASE FOR H/K HIT-882822.A0 882822	-
503 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A8 877153	-
504 - HEX. BAR WRENCH 3MM HIT-943277.A4 943277	£1.67	£2.00
601 - SEQUENTIAL TRIP MECHANISM SET HIT-881012.A0 881012	-
602 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A9 317918	£37.06	£44.47
603 - GRIP TAPE (A) HIT-881768.A30 881768	-
604A - TAPE (2 PCS.) HIT-888213.A19 888213	-
605 - HANGER PARTS SET FOR EUROPE HIT-888098.A0 888098	-
