Hitachi / Hikoki NV83A3 Coil Nailer Spare Parts

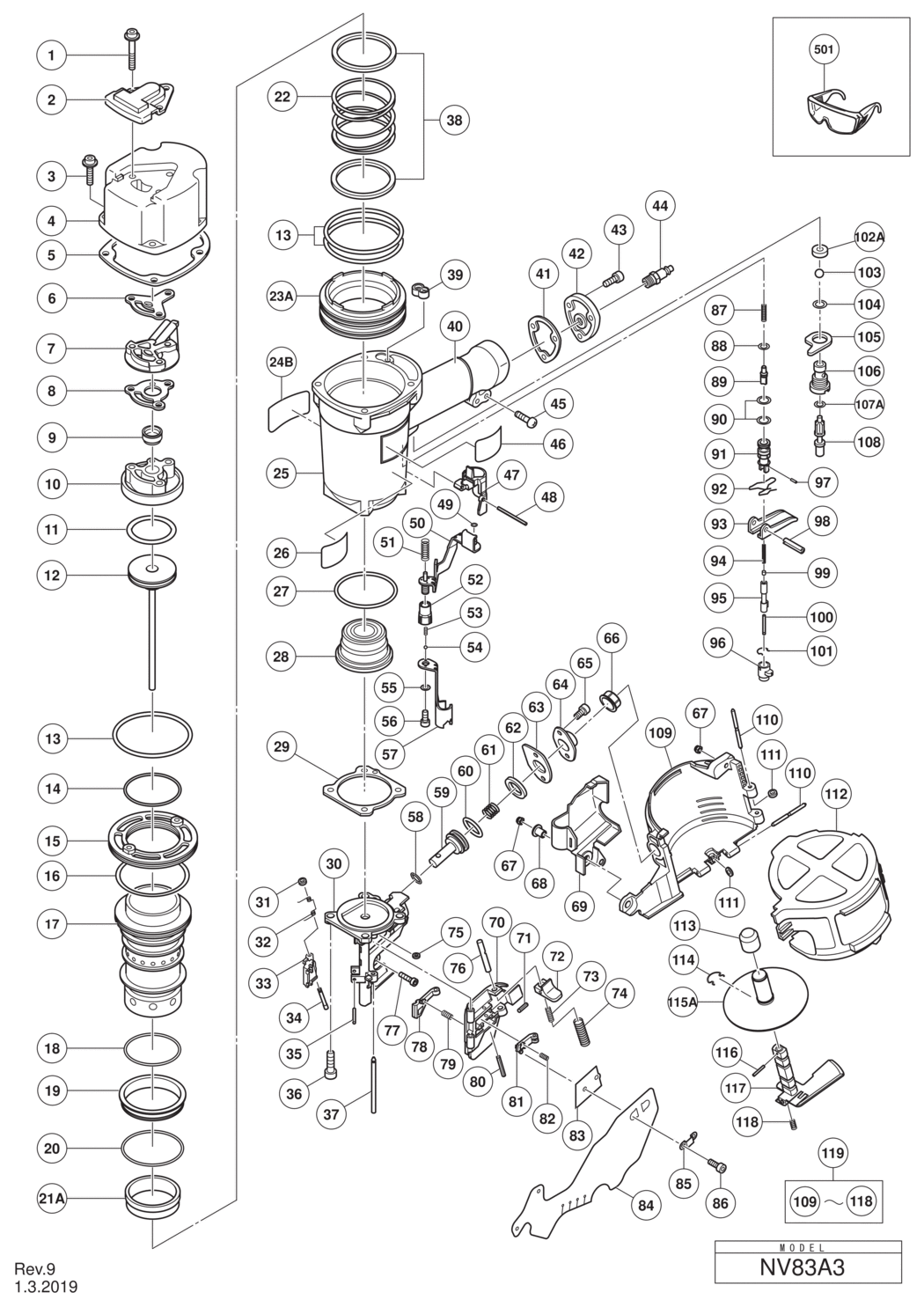

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV83A3 Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X45 HIT-883509.A0 883509	-
2 - TOP COVER HIT-877330.A1 877330	£4.78	£5.73
3 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M6X25 HIT-883507.A4 883507	-
4 - EXHAUST COVER HIT-877324.A3 877324	-
5 - GASKET (B) HIT-877325.A1 877325	£4.24	£5.09
6 - GASKET (F) HIT-877329.A3 877329	£1.67	£2.00
7 - EXHAUST PIECE HIT-877328.A1 877328	-
8 - GASKET (C) HIT-877854.A1 877854	£1.67	£2.00
9 - EXHAUST VALVE HIT-887774.A4 887774	-
10 - HEAD CAP HIT-887859.A0 887859	-
11 - O-RING (1AP-48) HIT-877368.A0 877368	£1.67	£2.00
12 - PISTON (H) HIT-878428.A0 878428	£127.49	£152.99
13 - O-RING (S-90) HIT-877316.A8 877316	£1.67	£2.00
14 - CYLINDER O-RING (I.D 63.1) HIT-877312.A6 877312	£1.67	£2.00
15 - CYLINDER PLATE HIT-877318.A1 877318	£26.09	£31.31
16 - CYLINDER O-RING (I.D 79.3) HIT-877313.A0 877313	-
17 - CYLINDER HIT-887762.A0 887762	-
18 - O-RING (I.D 59.6/W2.4) HIT-878376.A1 878376	-
19 - GUIDE SLEEVE TILL 10.2012 HIT-887767.A1 887767	-
20 - O-RING (S-70) TILL 10.2012 HIT-878863.A8 878863	£1.67	£2.00
21A - CYLINDER RING HIT-886483.A2 886483	-
22 - CYLINDER SPRING HIT-877321.A3 877321	-
23A - CYLINDER GUIDE (B) HIT-887763.A1 887763	-
24B - WARNING LABEL HIT-888957.A1 888957	-
25 - BODY ASS'Y INLCUD.40 HIT-887858.A0 887858	-
26 - LABEL HIT-887864.A1 887864	-
27 - CYLINDER O-RING (I.D 63.9) HIT-877315.A1 877315	-
28 - PISTON BUMPER (B) HIT-883511.A4 883511	£19.17	£23.00
29 - GASKET (A) HIT-877334.A1 877334	£1.67	£2.00
30 - NOSE HIT-887843.A0 887843	-
31 - FEEDER SHAFT RING HIT-877826.A0 877826	£1.67	£2.00
32 - FEEDER SPRING HIT-877851.A0 877851	£3.35	£4.02
33 - FEEDER HIT-887848.A0 887848	-
34 - FEEDER SHAFT HIT-877825.A3 877825	£9.21	£11.05
35 - ROLL PIN D3X20 (10 PCS.) HIT-887461.A2 887461	-
36 - NYLOCK HEX. SOCKET HD. BOLT M8X22 HIT-883492.A3 883492	-
37 - NAIL GUIDE SHAFT HIT-887847.A1 887847	-
38 - BASE WASHER HIT-877322.A1 877322	-
39 - GASKET (G) HIT-877327.A3 877327	-
40 - GRIP RUBBER HIT-000000.A2140 000000	-
41 - GASKET (D) HIT-877331.A3 877331	£1.67	£2.00
42 - CAP HIT-878311.A4 878311	£15.42	£18.51
43 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.) HIT-949658.A16 949658	£3.28	£3.93
44 - AIR PLUG HIT-000000.A2142 000000	-
45 - MACHINE SCREW M5X25 (10 PCS.) HIT-949243.A5 949243	£1.67	£2.00
46 - NAME PLATE HIT-887866.A0 887866	-
47 - VALVE GUARD HIT-887862.A0 887862	-
48 - ROLL PIN D3X45 HIT-887852.A0 887852	-
49 - O-RING (S3) HIT-881715.A8 881715	-
50 - PUSHING LEVER (B) HIT-887851.A0 887851	-
51 - SPRING HIT-884067.A2 884067	-
52 - ADJUSTER HIT-326799.A1 326799	-
53 - ADJUSTER SPRING HIT-880175.A3 880175	£1.67	£2.00
54 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A37 959148	£1.67	£2.00
55 - WASHER HIT-880081.A2 880081	-
56 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A0 949657	-
57 - PUSHING LEVER(A) HIT-887850.A0 887850	-
58 - O-RING (P-9) HIT-872645.A30 872645	£1.67	£2.00
59 - FEED PISTON HIT-887849.A0 887849	-
60 - O-RING (P-22) HIT-876796.A19 876796	£1.67	£2.00
61 - FEED SPRING HIT-877144.A2 877144	-
62 - BUMPER HIT-877711.A4 877711	£1.67	£2.00
63 - FEED PISTON COVER (A) HIT-877827.A1 877827	-
64 - FEED PISTON COVER HIT-877713.A0 877713	-
65 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-887474.A0 887474	-
66 - MAGAZINE BUSHING HIT-878305.A2 878305	£1.67	£2.00
67 - NYLON NUT M5 HIT-877371.A23 877371	£1.67	£2.00
68 - SLEEVE HIT-882907.A9 882907	£5.09	£6.11
69 - GUARD HIT-887857.A0 887857	-
70 - NAIL GUIDE HIT-887844.A0 887844	-
71 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A5 887458	-
72 - GUIDE LOCK (A) HIT-326774.A3 326774	-
73 - SPRING HIT-877372.A5 877372	£1.67	£2.00
74 - SPRING HIT-878425.A1 878425	£1.67	£2.00
75 - SHAFT RING HIT-880319.A7 880319	£1.67	£2.00
76 - LOCK SHAFT HIT-877820.A3 877820	-
77 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A7 949757	£3.64	£4.37
78 - SUB NAIL STOPPER HIT-878401.A0 878401	£20.91	£25.09
79 - SUB STOPPER SPRING HIT-877468.A3 877468	£1.67	£2.00
80 - ROLL PIN D3X28 HIT-887846.A0 887846	-
81 - MAIN NAIL STOPPER (N) HIT-887845.A1 887845	-
82 - MAIN STOPPER SPRING HIT-876681.A4 876681	£1.67	£2.00
83 - NAIL GUIDE COVER HIT-877469.A1 877469	£1.67	£2.00
84 - COVER HIT-884023.A0 884023	-
85 - PLATE HIT-884022.A1 884022	-
86 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-886307.A5 886307	£1.67	£2.00
87 - PLUNGER SPRING HIT-887724.A4 887724	-
88 - O-RING (P-4) HIT-874436.A19 874436	£1.67	£2.00
89 - PLUNGER HIT-887725.A0 887725	-
90 - O-RING (I.D 10.7) HIT-884112.A5 884112	-
91 - VALVE BUSHING HIT-887903.A0 887903	-
92 - TRIGGER SPRING HIT-887727.A3 887727	-
93 - TRIGGER HIT-876203.A12 876203	£1.67	£2.00
94 - ROD SPRING HIT-887728.A1 887728	-
95 - ROD (A) HIT-887904.A0 887904	-
96 - CHANGE KNOB HIT-887766.A0 887766	-
97 - PIN HIT-887768.A0 887768	-
98 - ROLL PIN D3X30 HIT-887865.A3 887865	-
99 - ROD (B) HIT-887729.A3 887729	-
100 - ROD (C) HIT-887732.A0 887732	-
101 - RATCHET SPRING HIT-886331.A6 886331	£1.67	£2.00
102A - VALVE PACKING HIT-888151.A7 888151	-
103 - URETHANE BALL (C) D7.14 HIT-875645.A12 875645	£3.70	£4.44
104 - O-RING (S-12) HIT-875638.A30 875638	£1.67	£2.00
105 - VALVE PLATE HIT-887771.A4 887771	-
106 - TRIGGER VALVE BUSHING HIT-887839.A1 887839	-
107A - O-RING (I.D. 2.8) HIT-890032.A1 890032	-
108 - TRIGGER PLUNGER HIT-887905.A3 887905	-
109 - MAGAZINE HIT-887855.A1 887855	-
110 - PIN HIT-883111.A4 883111	-
111 - FEEDER SHAFT RING HIT-877826.A3 877826	£1.67	£2.00
112 - MAGAZINE COVER HIT-884034.A0 884034	£15.31	£18.37
113 - HOLDER CAP HIT-884038.A0 884038	-
114 - RATCHET SPRING HIT-884037.A2 884037	-
115A - NAIL HOLDER (A) HIT-888107.A2 888107	-
116 - ROLL PIN D2.5 HIT-887856.A0 887856	-
117 - HOLDER SHAFT HIT-884079.A2 884079	-
118 - SPRING HIT-881826.A10 881826	£1.67	£2.00
119 - MAGAZINE ASS'Y INCLUD.109-118 HIT-887853.A0 887853	-
501 - PROTECTIVE GLASSES HIT-875769.A125 875769	-
601 - GRIP TAPE (A) HIT-881768.A27 881768	-
602A - TAPE (2 PCS.) HIT-888213.A16 888213	-

Attribute Name	Value
Brand	Hikoki
