Hitachi / Hikoki NV75HMC High Pressure Coil Nailer Spare Parts

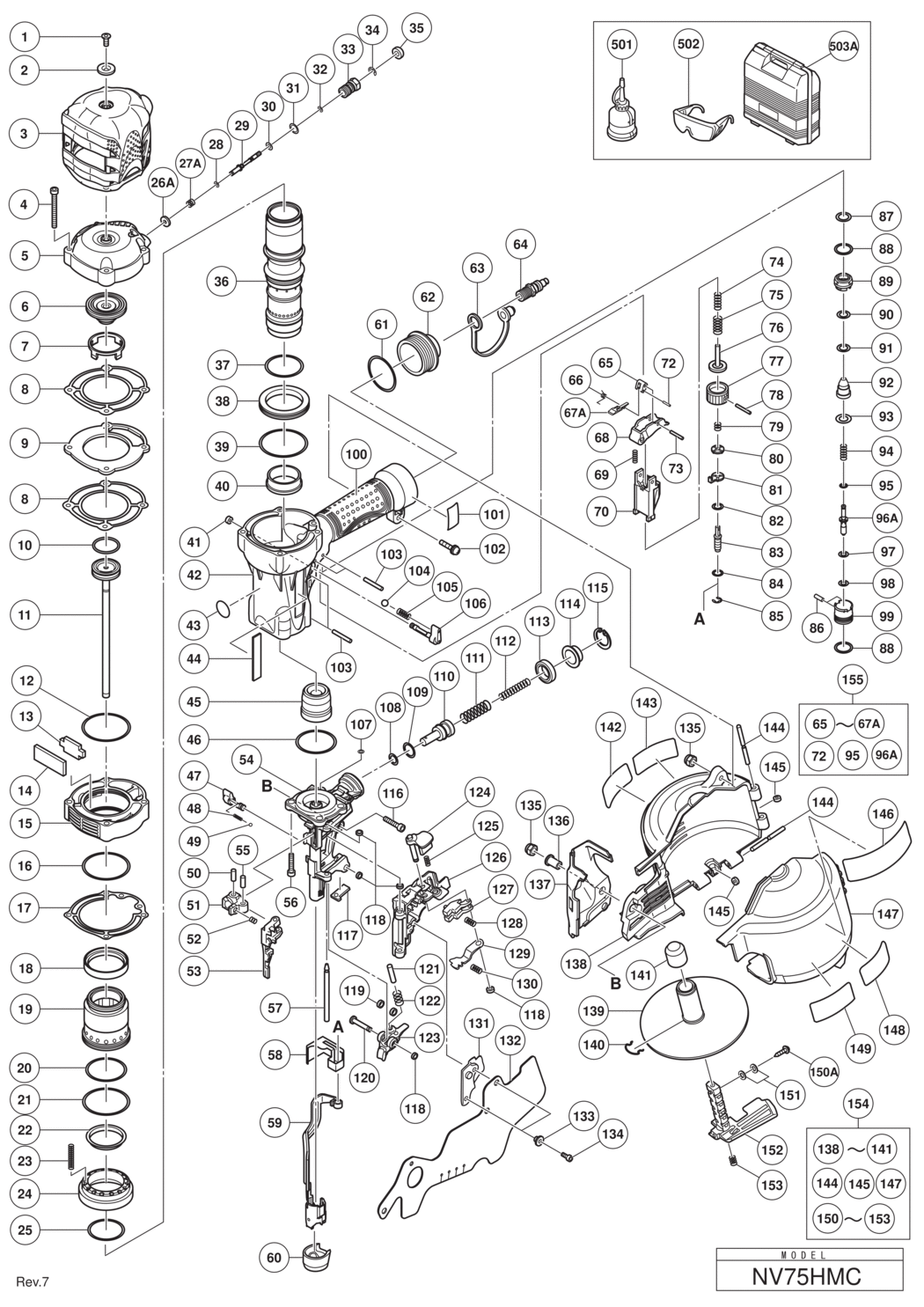

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV75HMC High Pressure Coil Nailer

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X10 HIT-887128.A1 887128	-
2 - WASHER HIT-885264.A2 885264	-
3 - PROTECTOR HIT-887721.A0 887721	-
4 - NYLOCK BOLT M5X55 HIT-883403.A1 883403	-
5 - UPPER COVER (GOLD) HIT-886901.A0 886901	-
6 - HEAD BUMPER HIT-886898.A1 886898	-
7 - HEAD GUIDE HIT-886904.A1 886904	-
8 - PACKING (B) HIT-886902.A1 886902	-
9 - PLATE HIT-886903.A0 886903	-
10 - PISTON O-RING HIT-885830.A0 885830	-
11 - PISTON (H) HIT-887703.A0 887703	-
12 - O-RING (I.D 48.5) HIT-886900.A1 886900	-
13 - MUFFLER (A) HIT-887718.A0 887718	-
14 - MUFFLER HIT-887717.A0 887717	-
15 - EXHAUST COVER (GOLD) HIT-887714.A0 887714	-
16 - O-RING HIT-887129.A0 887129	-
17 - PACKING (C) HIT-887715.A0 887715	-
18 - SLEEVE VALVE RUBBER HIT-885839.A0 885839	£23.88	£28.65
19 - SLEEVE VALVE HIT-886896.A0 886896	-
20 - O-RING HIT-887126.A1 887126	-
21 - O-RING HIT-885841.A1 885841	-
22 - EXHAUST RUBBER HIT-885844.A0 885844	-
23 - SLEEVE VALVE SPRING HIT-885846.A1 885846	-
24 - VALVE PLATE HIT-887723.A0 887723	-
25 - O-RING (S-32) HIT-872767.A8 872767	£1.67	£2.00
26A - VALVE PACKING HIT-884338.A3 884338	-
27A - SPRING HIT-887177.A4 887177	-
28 - PLUNGER O-RING HIT-878607.A7 878607	£1.67	£2.00
29 - PLUNGER HIT-886044.A1 886044	-
30 - O-RING (1AP-3) HIT-873093.A7 873093	£1.67	£2.00
31 - O-RING (S-10) HIT-987105.A8 987105	£1.67	£2.00
32 - O-RING (S3) HIT-881715.A4 881715	-
33 - VALVE BUSHING HIT-885027.A2 885027	-
34 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A12 968643	£1.67	£2.00
35 - KNOB HIT-884334.A3 884334	-
36 - CYLINDER HIT-887716.A0 887716	-
37 - O-RING (S-36) HIT-984483.A5 984483	£1.67	£2.00
38 - CYLINDER PLATE HIT-886895.A1 886895	-
39 - O-RING (B) HIT-985765.A0 985765	£1.67	£2.00
40 - CYLINDER RING HIT-881244.A3 881244	-
41 - FEEDER SHAFT RING HIT-886669.A2 886669	-
42 - BODY ASS'Y (GOLD) INCLUD.100 HIT-886893.A1 886893	-
43 - WARNING LABEL (A) HIT-883513.A20 883513	-
44 - BRAND PLATE HIT-886342.A15 886342	£1.67	£2.00
45 - PISTON BUMPER HIT-886882.A1 886882	-
46 - O-RING (S-34) HIT-980879.A0 980879	£1.67	£2.00
47 - CHANGE KNOB HIT-887124.A1 887124	-
48 - LOCK SPRING HIT-882923.A5 882923	-
49 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A45 959148	£1.67	£2.00
50 - ROLL PIN D4X18 (10 PCS.) HIT-949498.A2 949498	-
51 - FEEDER ARM (B) HIT-883144.A0 883144	-
52 - FEEDER SPRING HIT-883143.A6 883143	-
53 - FEEDER (A) HIT-887706.A0 887706	-
54 - NOSE HIT-887704.A0 887704	-
55 - PLUNGER (B) HIT-883093.A1 883093	-
56 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A1 993040	£2.69	£3.23
57 - NAIL GUIDE SHAFT HIT-883091.A2 883091	-
58 - PUSHING LEVER COVER (B) HIT-883113.A3 883113	-
59 - PUSHING LEVER (A) HIT-887711.A0 887711	-
60 - NOSE CAP (A) HIT-887712.A0 887712	-
61 - O-RING (I.D 37.2) HIT-880183.A0 880183	£1.67	£2.00
62 - CAP (GOLD) HIT-886426.A1 886426	-
63 - DUST CAP HIT-877914.A4 877914	-
64 - AIR PLUG L-PT 1/4 HIT-883135.A3 883135	-
65 - TRIGGER PIECE (C) HIT-886626.A3 886626	-
66 - TRIGGER SPRING HIT-886627.A1 886627	-
67A - TRIGGER ARM (D) HIT-000000.A3521 000000	-
68 - TRIGGER HIT-886623.A2 886623	-
69 - TRIGGER SPRING HIT-883759.A2 883759	-
70 - PUSHING LEVER GUIDE HIT-886047.A0 886047	-
72 - ROLL PIN D1.6X10 HIT-886228.A2 886228	-
73 - ROLL PIN D2.5X16 HIT-881951.A15 881951	-
74 - PUSHING LEVER SPRING (B) HIT-883302.A2 883302	-
75 - PUSHING LEVER SPRING (A) HIT-883305.A3 883305	-
76 - PUSHING LEVER (C) HIT-882891.A4 882891	-
77 - ADJUSTER HIT-882889.A3 882889	-
78 - ROLL PIN D2X16 HIT-880093.A4 880093	-
79 - ADJUSTER SPRING HIT-882890.A5 882890	-
80 - ADJUSTER PLATE (C) HIT-884973.A5 884973	£1.67	£2.00
81 - ADJUSTER PLATE (A) HIT-882886.A8 882886	-
82 - O-RING (S-4) HIT-981317.A23 981317	£1.67	£2.00
83 - PUSHING LEVER (B) HIT-886043.A0 886043	-
84 - O-RING (S-5) HIT-872822.A4 872822	£3.19	£3.83
85 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A20 872971	£1.67	£2.00
86 - PIN D2X8 (10 PCS.) HIT-949778.A3 949778	-
87 - O-RING (S-14) HIT-876319.A2 876319	£1.67	£2.00
88 - O-RING (S-16) HIT-876031.A7 876031	£2.98	£3.57
89 - VALVE BUSHING (B) HIT-886910.A1 886910	-
90 - O-RING (P7-U) HIT-883105.A1 883105	-
91 - O-RING (P9-U) HIT-883104.A3 883104	-
92 - VALVE PISTON HIT-883101.A3 883101	-
93 - O-RING (1AP-11) HIT-878764.A0 878764	-
94 - PLUNGER SPRING HIT-883103.A1 883103	-
95 - O-RING (I.D 1.8) HIT-883405.A0 883405	-
96A - PLUNGER HIT-000000.A3523 000000	-
97 - O-RING (1AP-5) HIT-873407.A3 873407	-
98 - O-RING (S-6) HIT-997218.A7 997218	-
99 - VALVE BUSHING (A) HIT-883099.A1 883099	-
100 - GRIP RUBBER (A) HIT-000000.A3525 000000	-
101 - CAUTION PLATE (C) HIT-000000.A3527 000000	-
102 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A10 880734	£1.67	£2.00
103 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A1 949865	£3.28	£3.93
104 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A44 959148	£1.67	£2.00
105 - LOCK SPRING HIT-882923.A4 882923	-
106 - LOCK KNOB HIT-886727.A2 886727	-
107 - O-RING (1AP-3) HIT-873093.A8 873093	£1.67	£2.00
108 - O-RING (P-9) HIT-872645.A8 872645	£1.67	£2.00
109 - FEED PISTON O-RING (I.D. 14) HIT-877763.A14 877763	-
110 - FEED PISTON HIT-883094.A3 883094	-
111 - FEED SPRING (A) HIT-883095.A0 883095	-
112 - FEED SPRING (B) HIT-883096.A3 883096	-
113 - BUMPER HIT-885681.A2 885681	-
114 - FEED PISTON COVER HIT-883098.A3 883098	-
115 - RETAINING RING FOR D24 HOLE HIT-983748.A5 983748	£1.67	£2.00
116 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A30 949757	£3.64	£4.37
117 - NOSE BUMPER HIT-887131.A0 887131	-
118 - SHAFT RING HIT-880319.A17 880319	£1.67	£2.00
119 - NOSE SLEEVE HIT-887122.A0 887122	-
120 - NOSE SHAFT HIT-887125.A0 887125	-
121 - URETHANE SHAFT HIT-887710.A0 887710	-
122 - SPRING HIT-887709.A0 887709	-
123 - NOSE PIECE (A) HIT-887918.A0 887918	-
124 - GUIDE LOCK HIT-887130.A1 887130	-
125 - SPRING HIT-880446.A9 880446	£1.67	£2.00
126 - NAIL GUIDE HIT-887705.A0 887705	-
127 - NAIL STOPPER (A) HIT-883085.A1 883085	-
128 - STOPPER SPRING (A) HIT-883088.A2 883088	-
129 - NAIL STOPPER (B) HIT-885677.A0 885677	-
130 - STOPPER SPRING (B) HIT-883087.A1 883087	-
131 - NAIL GUIDE COVER HIT-883089.A1 883089	-
132 - COVER HIT-887708.A0 887708	-
133 - SLEEVE (B) HIT-882881.A4 882881	-
134 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A6 880630	£1.67	£2.00
135 - NYLON NUT M5 HIT-877371.A24 877371	£1.67	£2.00
136 - SLEEVE HIT-882907.A8 882907	£5.09	£6.11
137 - PUSHING LEVER COVER (A) HIT-887713.A0 887713	-
138 - MAGAZINE HIT-887720.A0 887720	-
139 - NAIL HOLDER HIT-880503.A2 880503	£7.12	£8.54
140 - RATCHET SPRING HIT-880398.A2 880398	£5.87	£7.04
141 - HOLDER CAP (A) HIT-881003.A2 881003	£1.67	£2.00
142 - LABEL (D) HIT-000000.A2135 000000	-
143 - WARNING LABEL HIT-887175.A0 887175	-
144 - PIN HIT-883111.A3 883111	-
145 - FEEDER SHAFT RING HIT-877826.A1 877826	£1.67	£2.00
146 - CAUTION PLATE (B) HIT-000000.A2136 000000	-
147 - MAGAZINE COVER HIT-883396.A0 883396	-
148 - WARNING LABEL HIT-887174.A5 887174	-
149 - NAME PLATE HIT-000000.A2137 000000	-
150A - TAPPING SCREW (W/WASHER) D3X10 HIT-995481.A0 995481	-
151 - WASHER M4 (10 PCS.) HIT-949423.A13 949423	£1.67	£2.00
152 - HOLDER SHAFT HIT-883324.A1 883324	-
153 - SPRING HIT-881826.A9 881826	£1.67	£2.00
154 - MAGAZINE ASS'Y INCLUD.138-141 HIT-887719.A0 887719	-
155 - TRIGGER PARTS SET INCLUD.65-67A HIT-888727.A0 888727	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-883136.A2 883136	-
502 - PROTECTIVE GLASSES HIT-875769.A126 875769	-
503A - CASE HIT-888666.A0 888666	-
601 - GRIP TAPE (A) HIT-881768.A28 881768	-
602A - TAPE (2 PCS.) HIT-888213.A17 888213	-
603 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A18 876212	-
604 - GRIP GUIDE HIT-887133.A1 887133	-
605 - HANGER PARTS SET HIT-887978.A0 887978	-
606 - SINGLE SEQUENTIAL ACTUATION MECHANISMKIT HIT-887951.A1 887951	-
