Hitachi / Hikoki NV75AG Coil Nailer Spare Parts

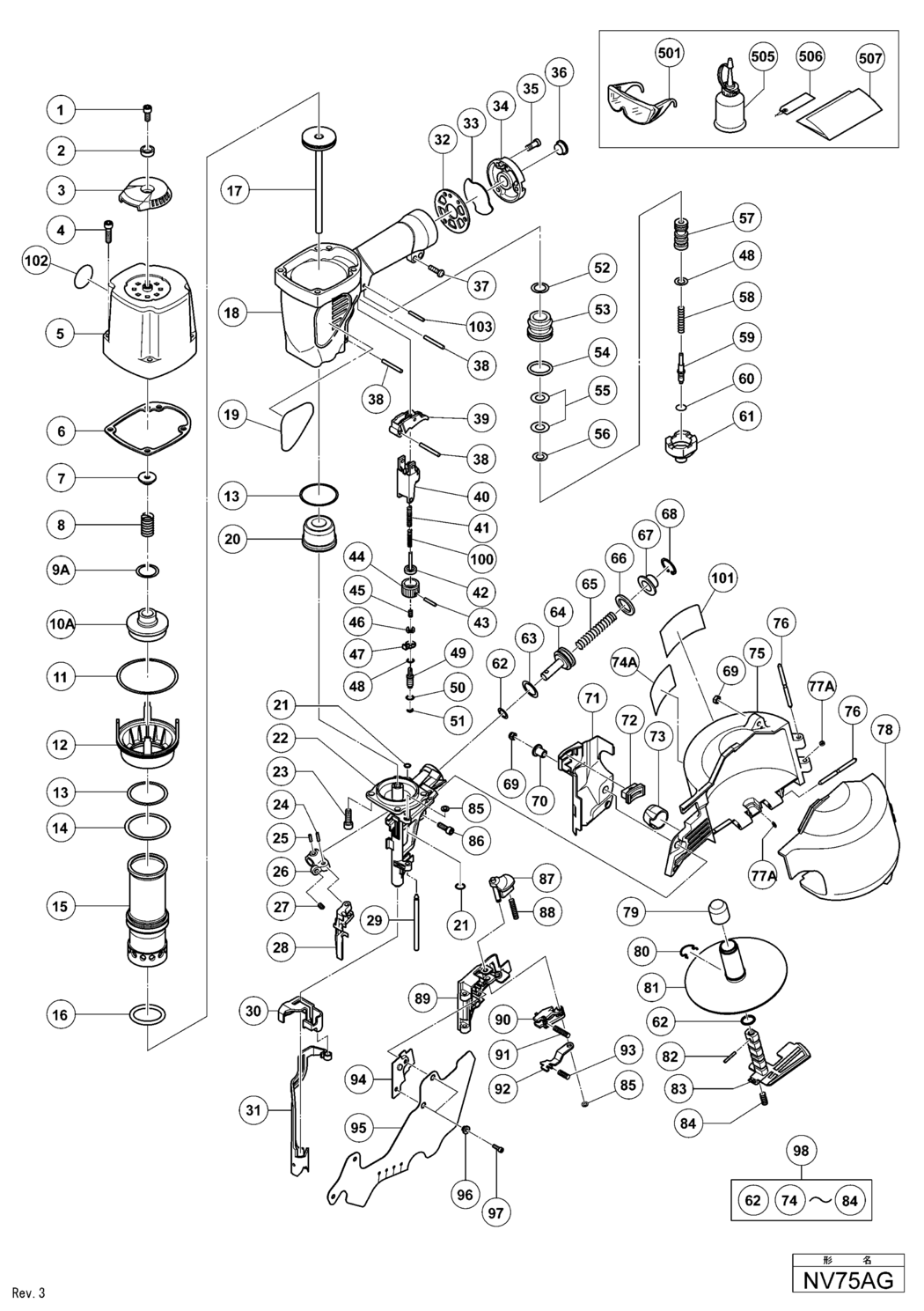

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV75AG Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A19 949657	-
2 - PLATE HIT-880515.A3 880515	£4.92	£5.90
3 - TOP COVER HIT-884332.A2 884332	£6.38	£7.66
4 - HEX. SOCKET HD. BOLT M5X35 (10 PCS.) HIT-949822.A1 949822	-
5 - EXHAUST COVER HIT-883451.A2 883451	-
6 - GASKET (B) HIT-883452.A0 883452	-
7 - HEAD BUMPER HIT-882914.A3 882914	£9.32	£11.19
8 - HEAD VALVE SPRING HIT-882913.A3 882913	-
9A - O-RING (I.D. 20.8) HIT-883992.A0 883992	-
10A - HEAD VALVE (A) HIT-882927.A4 882927	-
11 - O-RING (S-70) HIT-878863.A6 878863	£1.67	£2.00
12 - CYLINDER PLATE HIT-882910.A4 882910	-
13 - O-RING (S-46) HIT-882874.A2 882874	-
14 - O-RING (1AP-48) HIT-877368.A8 877368	£1.67	£2.00
15 - CYLINDER HIT-883989.A0 883989	-
16 - O-RING (I.D 37) HIT-883431.A1 883431	£1.67	£2.00
17 - PISTON (H) HIT-883980.A0 883980	-
18 - BODY HIT-883988.A0 883988	-
20 - PISTON BUMPER HIT-883432.A1 883432	£19.35	£23.22
21 - O-RING (P-4) HIT-874436.A0 874436	£1.67	£2.00
22 - NOSE HIT-883981.A0 883981	-
23 - NYLOCK HIGH TENSION BOLT M6X20 HIT-880675.A4 880675	-
24 - PLUNGER (B) HIT-883093.A0 883093	-
25 - ROLL PIN D4X16 (10 PCS.) HIT-949497.A2 949497	£3.28	£3.93
26 - FEEDER ARM (B) HIT-883144.A2 883144	-
27 - FEEDER SPRING HIT-883143.A4 883143	-
28 - FEEDER HIT-883092.A0 883092	-
29 - NAIL GUIDE SHAFT HIT-883091.A3 883091	-
30 - PUSHING LEVER COVER (B) HIT-882900.A0 882900	-
31 - PUSHING LEVER (A) HIT-883852.A0 883852	-
32 - GASKET (B) HIT-883678.A0 883678	-
33 - DUST FILTER HIT-883679.A0 883679	-
34 - CAP HIT-881949.A1 881949	-
35 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A9 949821	£3.28	£3.93
36 - DUST CAP HIT-872035.A0 872035	-
37 - MACHINE SCREW (W/WASHERS) M5X30 (BLACK) HIT-880881.A3 880881	£1.67	£2.00
38 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A4 949865	£3.28	£3.93
39 - TRIGGER HIT-883990.A0 883990	-
40 - PUSHING LEVER GUIDE HIT-882885.A2 882885	-
41 - PUSHING LEVER SPRING HIT-882892.A0 882892	-
41 - PUSHING LEVER SPRING (A) FOR EUROPE HIT-883305.A4 883305	-
42 - PUSHING LEVER (C) HIT-882891.A3 882891	-
43 - ROLL PIN D2X16 HIT-880093.A2 880093	-
44 - ADJUSTER HIT-883982.A0 883982	-
45 - ADJUSTER SPRING HIT-882890.A7 882890	-
46 - ADJUSTER PLATE (B) HIT-882887.A2 882887	-
47 - ADJUSTER PLATE (A) HIT-882886.A5 882886	-
48 - O-RING (S-4) HIT-981317.A25 981317	£1.67	£2.00
49 - PUSHING LEVER (B) HIT-882888.A3 882888	-
50 - O-RING (S-5) HIT-872822.A7 872822	£3.19	£3.83
51 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A15 872971	£1.67	£2.00
52 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A8 877699	£1.67	£2.00
53 - VALVE BUSHING (B) HIT-878881.A4 878881	£28.02	£33.63
54 - O-RING (S-18) HIT-878885.A13 878885	£1.67	£2.00
55 - O-RING (I.D 8.8) HIT-878925.A7 878925	£1.67	£2.00
56 - O-RING (I.D 11) HIT-878887.A7 878887	£1.67	£2.00
57 - VALVE PISTON (B) HIT-880672.A6 880672	£25.41	£30.49
58 - PLUNGER SPRING HIT-878884.A7 878884	£1.67	£2.00
59 - PLUNGER (A) HIT-880673.A4 880673	£12.74	£15.29
60 - O-RING (I.D. 1.8) HIT-878888.A8 878888	£1.67	£2.00
61 - VALVE BUSHING (A) TILL 9.2003 HIT-880671.A3 880671	£19.08	£22.89
61 - VALVE BUSHING (A) SINCE 10.2003 HIT-882920.A2 882920	-
62 - O-RING (P-9) HIT-872645.A4 872645	£1.67	£2.00
63 - O-RING (P-21) HIT-880330.A4 880330	£1.67	£2.00
64 - FEED PISTON HIT-883300.A1 883300	-
65 - FEED SPRING HIT-882883.A0 882883	-
66 - BUMPER HIT-877711.A7 877711	£1.67	£2.00
67 - FEED PISTON COVER HIT-880331.A4 880331	£3.76	£4.51
68 - RETAINING RING FOR D28 HOLE (10 PCS.) HIT-939555.A5 939555	-
69 - NYLON NUT M5 HIT-877371.A0 877371	£1.67	£2.00
70 - SLEEVE HIT-882907.A4 882907	£5.09	£6.11
71 - PUSHING LEVER COVER (A) HIT-883853.A0 883853	-
72 - PROTECTOR (B) HIT-882901.A1 882901	-
73 - NOSE CAP (A) HIT-883106.A3 883106	-
74A - WARNING LABEL HIT-884070.A5 884070	-
75 - MAGAZINE (A) HIT-883984.A0 883984	-
76 - PIN HIT-883111.A11 883111	-
77A - FEEDER SHAFT RING HIT-877826.A21 877826	£1.67	£2.00
78 - MAGAZINE COVER (A) HIT-883985.A0 883985	-
79 - HOLDER CAP (A) HIT-883987.A0 883987	-
80 - RATCHET SPRING HIT-880398.A12 880398	£5.87	£7.04
81 - NAIL HOLDER HIT-880503.A5 880503	£7.12	£8.54
82 - ROLL PIN D2.5X12 HIT-878791.A7 878791	£1.67	£2.00
83 - HOLDER SHAFT (A) HIT-883986.A0 883986	-
84 - SPRING HIT-881826.A3 881826	£1.67	£2.00
85 - SHAFT RING HIT-880319.A16 880319	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A31 949757	£3.64	£4.37
87 - GUIDE LOCK HIT-886107.A4 886107	£8.59	£10.31
88 - SPRING HIT-880446.A8 880446	£1.67	£2.00
89 - NAIL GUIDE HIT-883392.A0 883392	-
90 - NAIL STOPPER (A) HIT-883085.A0 883085	-
91 - STOPPER SPRING (A) HIT-883088.A3 883088	-
92 - NAIL STOPPER (B) HIT-883086.A3 883086	-
93 - STOPPER SPRING (B) HIT-883087.A0 883087	-
94 - NAIL GUIDE COVER HIT-883089.A0 883089	-
95 - COVER HIT-883393.A0 883393	-
96 - SLEEVE (B) HIT-882881.A3 882881	-
97 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A17 880630	£1.67	£2.00
98 - MAGAZINE ASS'Y INCLUD.62 HIT-883983.A0 883983	-
100 - PUSHING LEVER SPRING (B) FOR EUROPE HIT-883302.A3 883302	-
101 - WARNING LABEL FOR EUROPE HIT-878183.A6 878183	-
102 - WARNING LABEL (A) FOR EUROPE HIT-883513.A21 883513	-
103 - ROLL PIN D3X22 (10 PCS.) SINCE 10.2003 HIT-949864.A4 949864	£3.28	£3.93
501 - PROTECTIVE GLASSES HIT-875769.A62 875769	-
505 - PNEUMATIC TOOL LUBRICANT (30CC) FOR EUROPE HIT-877153.A29 877153	-
506 - CAUTION TAG HIT-887288.A0 887288	-
507 - LEAFLET HIT-882414.A2 882414	-
601 - SEQUENTIAL TRIP MECHANISM SET HIT-883991.A1 883991	-
602 - HANGER PARTS SET FOR EUROPE HIT-888097.A2 888097	-
