Hitachi / Hikoki NV65AJ Coil Nailer Spare Parts

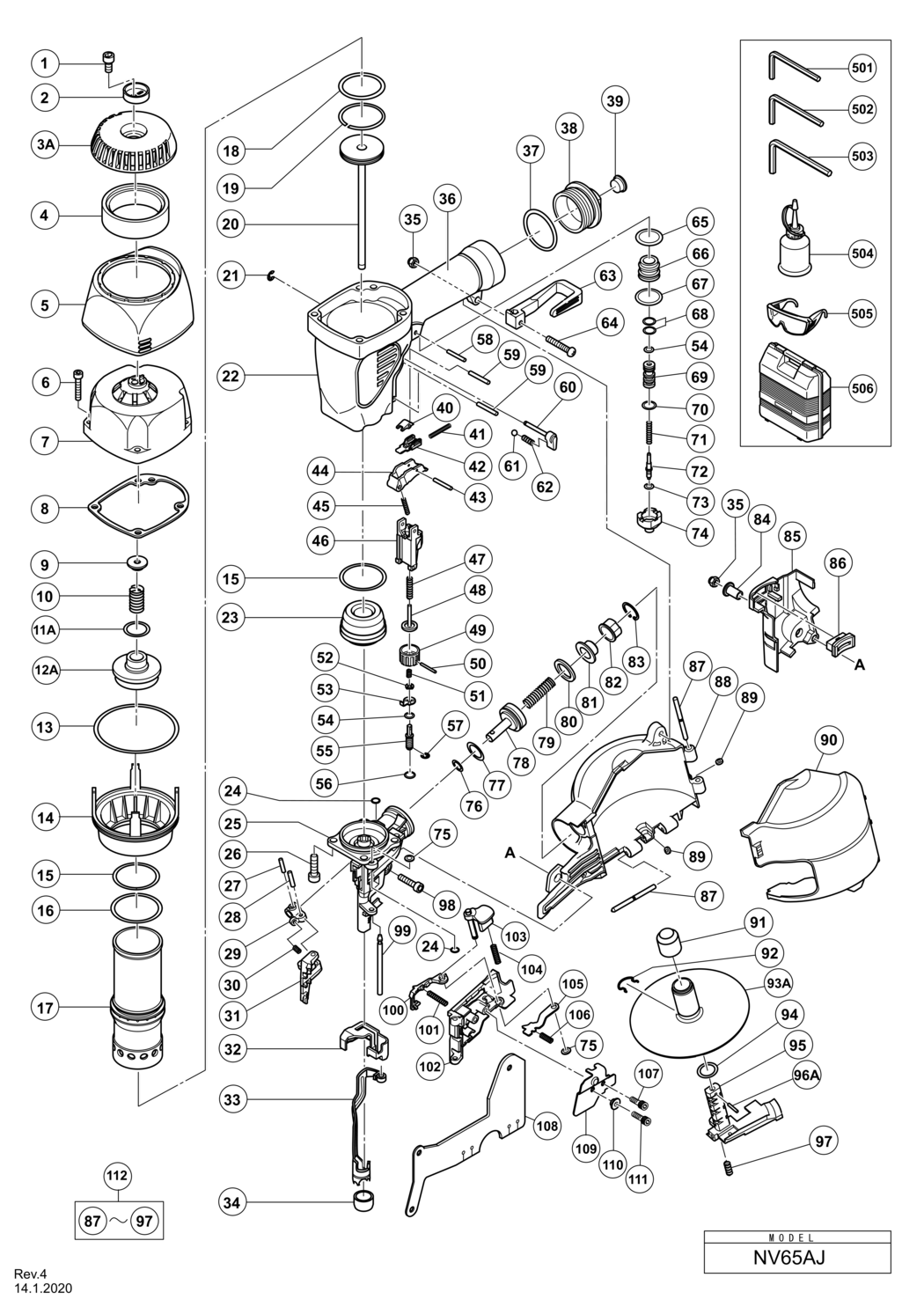

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV65AJ Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A8 949657	-
2 - PLATE HIT-882919.A1 882919	-
3A - TOP COVER HIT-882917.A1 882917	-
4 - MUFFLER HIT-882918.A0 882918	-
5 - PROTECTOR (A) HIT-883632.A0 883632	-
6 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A11 949662	£3.64	£4.37
7 - EXHAUST COVER HIT-884300.A0 884300	-
8 - GASKET (A) HIT-882915.A1 882915	-
9 - HEAD BUMPER HIT-882914.A5 882914	£9.32	£11.19
10 - HEAD VALVE SPRING HIT-882913.A1 882913	-
11A - O-RING (I.D. 20.8) HIT-883992.A6 883992	-
12A - HEAD VALVE (A) HIT-882927.A1 882927	-
13 - O-RING (S-70) HIT-878863.A1 878863	£1.67	£2.00
14 - CYLINDER PLATE HIT-882910.A0 882910	-
15 - O-RING (S-46) HIT-882874.A0 882874	-
16 - O-RING (1AP-48) HIT-877368.A3 877368	£1.67	£2.00
17 - CYLINDER HIT-882909.A1 882909	-
18 - PISTON O-RING HIT-882871.A1 882871	-
19 - PISTON RING HIT-882872.A0 882872	-
20 - PISTON (H) HIT-883920.A0 883920	-
21 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A3 968643	£1.67	£2.00
22 - BODY ASS'Y INCLUD.36 HIT-884301.A0 884301	-
23 - PISTON BUMPER HIT-882873.A1 882873	-
24 - O-RING (P-4) HIT-874436.A4 874436	£1.67	£2.00
25 - NOSE HIT-883921.A0 883921	-
26 - NYLOCK HIGH TENSION BOLT M6X20 HIT-880675.A2 880675	-
27 - ROLL PIN D4X16 (10 PCS.) HIT-949497.A1 949497	£3.28	£3.93
28 - NEEDLE ROLLER HIT-880659.A3 880659	-
29 - FEEDER ARM HIT-878132.A10 878132	-
30 - FEEDER SPRING HIT-882924.A1 882924	-
31 - FEEDER HIT-883923.A0 883923	-
32 - PUSHING LEVER COVER (B) HIT-882900.A2 882900	-
33 - PUSHING LEVER (A) HIT-883924.A0 883924	-
34 - NOSE CAP (A) HIT-880678.A0 880678	-
35 - NYLON NUT M5 HIT-877371.A16 877371	£1.67	£2.00
36 - GRIP RUBBER HIT-000000.A5359 000000	-
37 - O-RING (I.D 37.2) HIT-880183.A4 880183	£1.67	£2.00
38 - CAP HIT-882162.A4 882162	-
39 - DUST CAP HIT-877914.A1 877914	-
40 - TRIGGER PIECE HIT-882896.A1 882896	-
41 - SPRING HIT-882897.A1 882897	-
42 - TRIGGER ARM (B) HIT-882895.A1 882895	-
43 - ROLL PIN D2.5X16 HIT-881951.A19 881951	-
44 - TRIGGER HIT-882894.A1 882894	-
45 - TRIGGER SPRING HIT-883759.A1 883759	-
46 - PUSHING LEVER GUIDE HIT-882885.A1 882885	-
47 - PUSHING LEVER SPRING HIT-882892.A3 882892	-
48 - PUSHING LEVER (C) HIT-882891.A1 882891	-
49 - ADJUSTER HIT-882889.A1 882889	-
50 - ROLL PIN D2X16 HIT-880093.A1 880093	-
51 - ADJUSTER SPRING HIT-882890.A8 882890	-
52 - ADJUSTER PLATE (B) HIT-882887.A1 882887	-
53 - ADJUSTER PLATE (A) HIT-882886.A7 882886	-
54 - O-RING (S-4) HIT-981317.A24 981317	£1.67	£2.00
55 - PUSHING LEVER (B) HIT-882888.A5 882888	-
56 - O-RING (S-5) HIT-872822.A8 872822	£3.19	£3.83
57 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A14 872971	£1.67	£2.00
58 - ROLL PIN D3X22 (10 PCS.) HIT-949864.A3 949864	£3.28	£3.93
59 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A2 949865	£3.28	£3.93
60 - LOCK KNOB HIT-884302.A0 884302	-
61 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A41 959148	£1.67	£2.00
62 - LOCK SPRING HIT-882923.A1 882923	-
63 - HOOK HIT-883763.A0 883763	-
64 - MACHINE SCREW M5X35 (BLACK) HIT-302197.A1 302197	£1.67	£2.00
65 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A7 877699	£1.67	£2.00
66 - VALVE BUSHING (B) HIT-882925.A2 882925	-
67 - O-RING (S-18) HIT-878885.A12 878885	£1.67	£2.00
68 - O-RING (I.D 8.8) HIT-878925.A8 878925	£1.67	£2.00
69 - VALVE PISTON (B) HIT-880672.A7 880672	£25.41	£30.49
70 - O-RING (I.D 11) HIT-878887.A8 878887	£1.67	£2.00
71 - PLUNGER SPRING HIT-878884.A8 878884	£1.67	£2.00
72 - PLUNGER (A) HIT-882921.A1 882921	-
73 - O-RING (I.D. 1.8) HIT-878888.A7 878888	£1.67	£2.00
74 - VALVE BUSHING (A) HIT-882920.A3 882920	-
75 - SHAFT RING HIT-880319.A15 880319	£1.67	£2.00
76 - O-RING (P-9) HIT-872645.A2 872645	£1.67	£2.00
77 - O-RING (P-21) HIT-880330.A2 880330	£1.67	£2.00
78 - FEED PISTON HIT-882673.A2 882673	-
79 - FEED SPRING HIT-882883.A1 882883	-
80 - BUMPER HIT-877711.A9 877711	£1.67	£2.00
81 - FEED PISTON COVER HIT-880331.A6 880331	£3.76	£4.51
82 - MAGAZINE BUSHING HIT-878305.A4 878305	£1.67	£2.00
83 - RETAINING RING FOR D28 HOLE (10 PCS.) HIT-939555.A4 939555	-
84 - SLEEVE HIT-882907.A2 882907	£5.09	£6.11
85 - PUSHING LEVER COVER (A) HIT-882899.A1 882899	-
86 - PROTECTOR (B) HIT-882901.A3 882901	-
87 - PIN HIT-881825.A2 881825	£1.67	£2.00
88 - MAGAZINE HIT-882903.A0 882903	-
89 - FEEDER SHAFT RING HIT-877826.A24 877826	£1.67	£2.00
90 - MAGAZINE COVER HIT-883926.A0 883926	-
91 - HOLDER CAP (A) HIT-881003.A6 881003	£1.67	£2.00
92 - RATCHET SPRING HIT-880398.A9 880398	£5.87	£7.04
93A - NAIL HOLDER HIT-885683.A1 885683	-
94 - O-RING (P-9) HIT-872645.A3 872645	£1.67	£2.00
95 - ROLL PIN D2.5X12 HIT-878791.A5 878791	£1.67	£2.00
96A - HOLDER SHAFT HIT-889509.A3 889509	-
97 - SPRING HIT-881826.A0 881826	£1.67	£2.00
98 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A26 949757	£3.64	£4.37
99 - NAIL GUIDE SHAFT HIT-880658.A0 880658	-
100 - NAIL STOPPER (A) HIT-883783.A0 883783	-
101 - NAIL STOPPER SPRING HIT-882878.A1 882878	-
102 - NAIL GUIDE HIT-883922.A0 883922	-
103 - GUIDE LOCK HIT-886107.A3 886107	£8.59	£10.31
104 - SPRING HIT-880446.A5 880446	£1.67	£2.00
105 - NAIL STOPPER (B) HIT-882680.A3 882680	£4.22	£5.07
106 - STOPPER SPRING HIT-880494.A3 880494	£1.67	£2.00
107 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A22 880413	£1.67	£2.00
108 - COVER HIT-882880.A0 882880	-
109 - NAIL GUIDE COVER HIT-883784.A2 883784	-
110 - SLEEVE (B) HIT-882881.A1 882881	-
111 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A16 880630	£1.67	£2.00
112 - MAGAZINE ASS'Y INCLUD.87-97 HIT-884303.A0 884303	-
501 - HEX. BAR WRENCH 3MM HIT-943277.A24 943277	£1.67	£2.00
502 - HEX. BAR WRENCH 4MM HIT-944458.A48 944458	£1.67	£2.00
503 - HEX. BAR WRENCH 5MM HIT-944459.A15 944459	£1.67	£2.00
504 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A27 877153	-
505 - PROTECTIVE GLASSES HIT-875769.A55 875769	-
506 - CASE HIT-880790.A0 880790	-
601 - GRIP TAPE (A) HIT-881768.A4 881768	-
602A - TAPE (2 PCS.) HIT-888213.A36 888213	-
603 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A8 876212	-
604 - SEQUENTIAL TRIP MECHANISM SET HIT-883991.A0 883991	-
