Hitachi / Hikoki NV65AH2 Coil Nailer Spare Parts

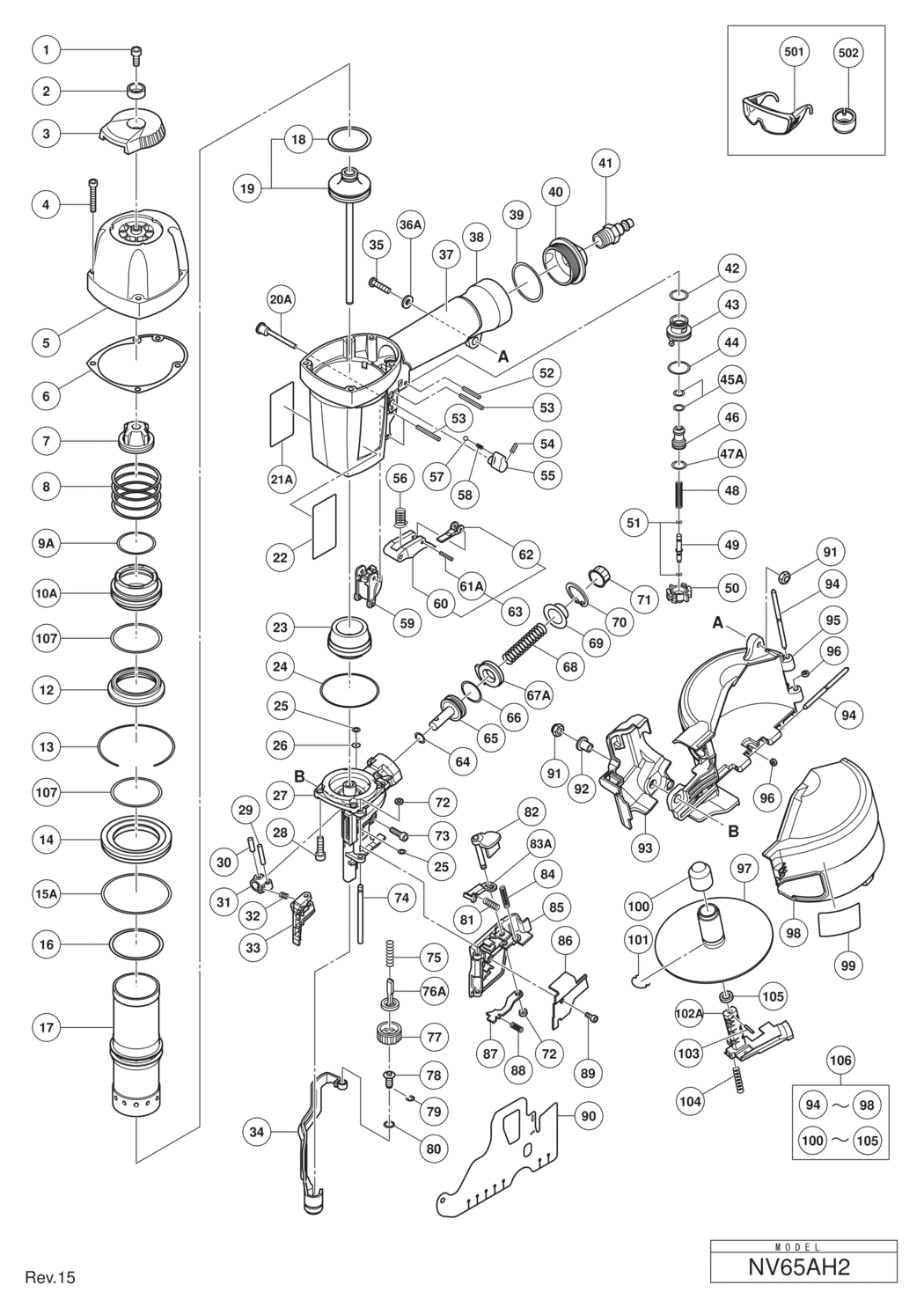

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV65AH2 Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X16 (10 PCS.) HIT-949755.A12 949755	£3.64	£4.37
2 - PLATE HIT-880515.A7 880515	£4.92	£5.90
3 - TOP COVER HIT-884332.A4 884332	£6.38	£7.66
4 - HEX. SOCKET HD. BOLT M5X35 (10 PCS.) HIT-949822.A4 949822	-
5 - EXHAUST COVER HIT-888013.A0 888013	-
6 - GASKET HIT-880358.A0 880358	-
7 - EXHAUST VALVE RUBBER (A) HIT-881761.A1 881761	-
8 - HEAD VALVE SPRING HIT-880356.A1 880356	£6.02	£7.22
9A - O-RING (S-34) HIT-889510.A0 889510	-
10A - HEAD VALVE HIT-889036.A0 889036	-
12 - HEAD VALVE RUBBER (A) HIT-881760.A0 881760	-
13 - RETAINING RING HIT-880669.A1 880669	-
14 - CYLINDER PLATE HIT-880667.A1 880667	-
15A - CYLINDER O-RING (I.D. 63.1) HIT-884339.A1 884339	-
16 - O-RING (P-46) HIT-878716.A4 878716	£1.67	£2.00
17 - CYLINDER HIT-888025.A0 888025	-
18 - O-RING (I.D. 34.7) HIT-882685.A1 882685	-
19 - PISTON HIT-888026.A0 888026	£44.67	£53.60
20A - CHANGE ROD (D) HIT-888798.A1 888798	-
21A - WARNING LABEL HIT-888957.A7 888957	-
22 - NAME PLATE HIT-888024.A0 888024	-
23 - PISTON BUMPER HIT-882676.A1 882676	£14.44	£17.33
24 - O-RING (S-44) HIT-880362.A1 880362	-
25 - O-RING (P-4) HIT-874436.A7 874436	£1.67	£2.00
26 - WASHER HIT-878279.A0 878279	-
27 - NOSE HIT-888007.A0 888007	-
28 - NYLOCK HIGH TENSION BOLT M6X20 HIT-880675.A1 880675	-
29 - NEEDLE ROLLER HIT-880659.A1 880659	-
30 - ROLL PIN D4X20 HIT-888162.A1 888162	-
31 - FEEDER ARM HIT-878132.A9 878132	-
32 - FEEDER SPRING HIT-888108.A1 888108	-
33 - FEEDER HIT-882671.A0 882671	-
34 - PUSHING LEVER (A) HIT-888259.A0 888259	-
35 - MACHINE SCREW M5X20 (BLACK) HIT-302196.A6 302196	£1.67	£2.00
36A - WASHER HIT-889024.A9 889024	-
37 - GRIP RUBBER HIT-000000.A5355 000000	-
38 - BODY ASS'Y INCLUD.37 HIT-888012.A0 888012	-
39 - O-RING (I.D 37.2) HIT-880183.A3 880183	£1.67	£2.00
40 - CAP HIT-888014.A1 888014	-
41 - AIR PLUG NPT 3/8 HIT-887863.A4 887863	-
42 - FEED PISTON O-RING (I.D. 14) HIT-877763.A17 877763	-
43 - VALVE BUSHING (B) HIT-884963.A0 884963	-
44 - O-RING (P-18) HIT-873570.A6 873570	£1.67	£2.00
45A - O-RING (P-7) HIT-889335.A12 889335	-
46 - VALVE PISTON HIT-884964.A13 884964	-
47A - O-RING (1AP-10) HIT-889495.A12 889495	-
48 - PLUNGER SPRING HIT-887178.A10 887178	-
49 - PLUNGER HIT-888177.A0 888177	-
50 - VALVE BUSHING (A) HIT-884962.A13 884962	-
51 - O-RING (I.D. 1.8) HIT-878888.A1 878888	£1.67	£2.00
52 - ROLL PIN D3X22 (10 PCS.) HIT-949864.A6 949864	£3.28	£3.93
53 - ROLL PIN D3X30 HIT-887865.A2 887865	-
54 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A21 887458	-
55 - CHANGE KNOB (D) HIT-887684.A0 887684	-
56 - TRIGGER ARM SPRING HIT-888261.A0 888261	-
57 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A3 959155	£1.67	£2.00
58 - SPRING HIT-887673.A5 887673	-
59 - PUSHING LEVER GUIDE (D) HIT-887686.A4 887686	-
60 - TRIGGER(D) HIT-888402.A0 888402	-
61A - ROLL PIN D2.5 HIT-887856.A3 887856	-
62 - TRIGGER ARM (E) HIT-888174.A0 888174	-
63 - TRIGGER(D) INCLUD.60-62 HIT-888173.A0 888173	-
64 - O-RING (P-9) HIT-872645.A16 872645	£1.67	£2.00
65 - FEED PISTON HIT-888401.A0 888401	-
66 - O-RING (P-21) HIT-880330.A1 880330	£1.67	£2.00
67A - DAMPER HIT-889339.A1 889339	-
68 - FEED SPRING HIT-878603.A0 878603	-
69 - FEED PISTON COVER HIT-880331.A7 880331	£3.76	£4.51
70 - RETAINING RING HIT-888028.A0 888028	-
71 - MAGAZINE BUSHING HIT-878305.A5 878305	£1.67	£2.00
72 - SHAFT RING HIT-880319.A20 880319	£1.67	£2.00
73 - HEX. SOCKET HD. BOLT M5X22 HIT-888102.A1 888102	-
74 - NAIL GUIDE SHAFT HIT-888009.A0 888009	-
75 - SPRING HIT-888258.A0 888258	-
76A - PUSHING LEVER (D) HIT-889331.A3 889331	-
77 - ADJUSTER HIT-886736.A2 886736	-
78 - PUSHING LEVER (B) HIT-888257.A0 888257	-
79 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A35 872971	£1.67	£2.00
80 - O-RING (S-5) HIT-872822.A0 872822	£3.19	£3.83
81 - SPRING (F) HIT-301631.A10 301631	£1.67	£2.00
82 - GUIDE LOCK HIT-886107.A6 886107	£8.59	£10.31
83A - NAIL STOPPER (A) HIT-889128.A0 889128	-
84 - SPRING HIT-880446.A2 880446	£1.67	£2.00
85 - NAIL GUIDE HIT-888008.A0 888008	-
86 - NAIL GUIDE COVER HIT-882681.A0 882681	£5.43	£6.52
87 - NAIL STOPPER (B) HIT-882680.A2 882680	£4.22	£5.07
88 - STOPPER SPRING HIT-880494.A5 880494	£1.67	£2.00
89 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A18 880413	£1.67	£2.00
90 - COVER HIT-888260.A0 888260	-
91 - NYLON NUT M5 HIT-877371.A18 877371	£1.67	£2.00
92 - SLEEVE HIT-882907.A1 882907	£5.09	£6.11
93 - PUSHING LEVER COVER HIT-888265.A0 888265	-
94 - PIN HIT-888021.A0 888021	-
95 - MAGAZINE HIT-888016.A0 888016	-
96 - FEEDER SHAFT RING HIT-877826.A16 877826	£1.67	£2.00
97 - NAIL HOLDER HIT-888018.A0 888018	-
98 - MAGAZINE COVER HIT-888017.A0 888017	-
99 - LABEL HIT-888266.A0 888266	-
100 - HOLDER CAP (A) HIT-888020.A0 888020	-
101 - RATCHET SPRING HIT-880398.A8 880398	£5.87	£7.04
102A - HOLDER SHAFT HIT-889509.A0 889509	-
103 - ROLL PIN D2.5X12 HIT-878791.A11 878791	£1.67	£2.00
104 - SPRING HIT-881826.A5 881826	£1.67	£2.00
105 - VALVE PACKING HIT-888151.A4 888151	-
106 - MAGAZINE ASS'Y INCLUD.94-98 HIT-888015.A0 888015	-
107 - CYLINDER O-RING (C) HIT-889010.A0 889010	-
501 - PROTECTIVE GLASSES HIT-875769.A10 875769	-
502 - NOSE CAP FOR USA HIT-878344.A2 878344	-
601 - GRIP TAPE HIT-880408.A4 880408	£10.98	£13.17
603 - CASE HIT-880517.A0 880517	-
604 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A19 877153	-
605 - PNEUMATIC TOOL LUBRICANT (120CC) HIT-874042.A6 874042	-
606 - SINGLE SEQUENTIAL ACTUATION MECHANISMKIT HIT-887916.A0 887916	-
