Hitachi / Hikoki NV65AH Nailer Spare Parts

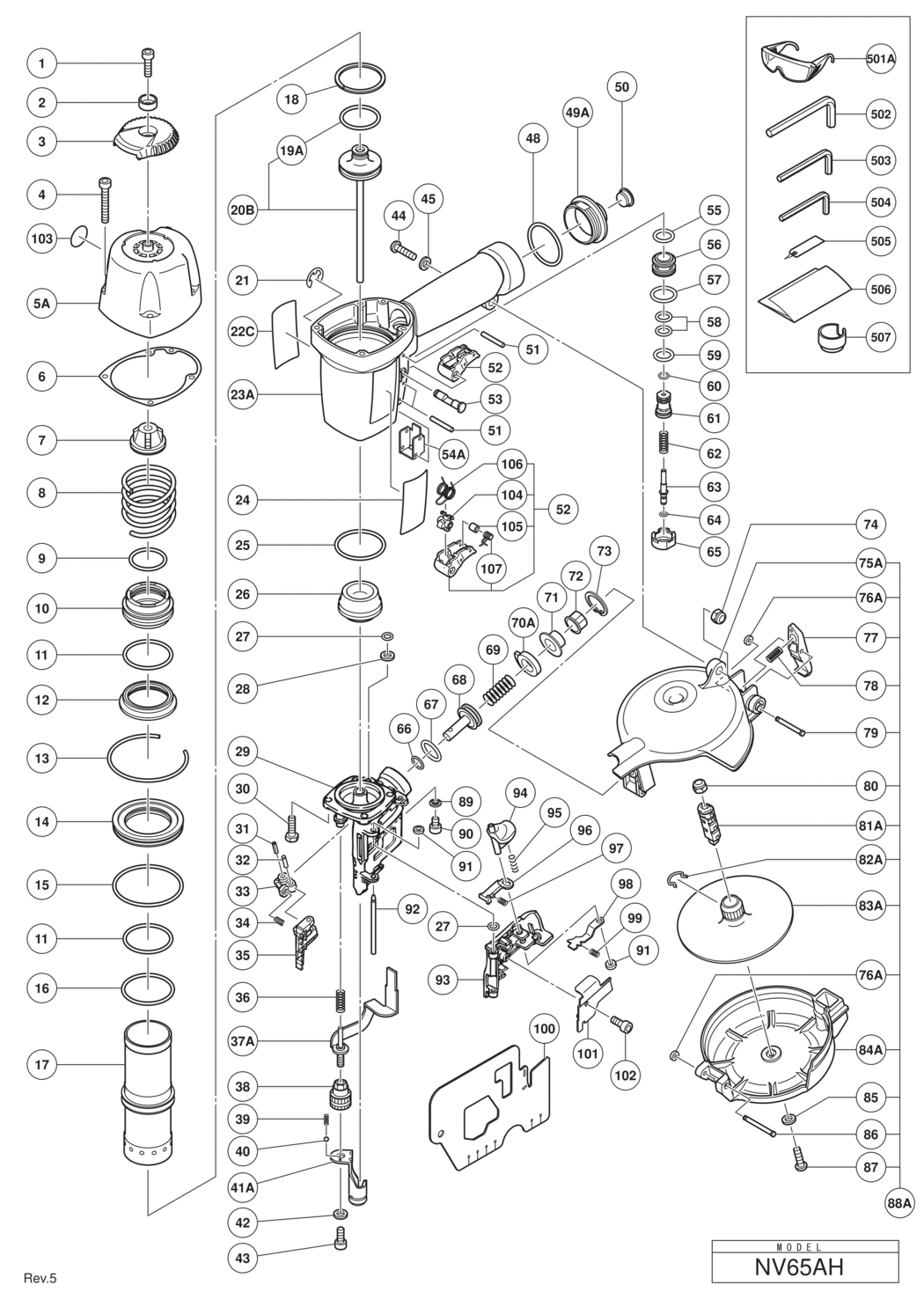

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV65AH Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X16 (10 PCS.) HIT-949755.A3 949755	£3.64	£4.37
2 - PLATE HIT-880515.A1 880515	£4.92	£5.90
3 - TOP COVER HIT-884332.A7 884332	£6.38	£7.66
4 - HEX. SOCKET HD. BOLT M5X35 (10 PCS.) HIT-949822.A0 949822	-
5A - EXHAUST COVER HIT-888013.A1 888013	-
6 - GASKET HIT-880358.A1 880358	-
7 - EXHAUST VALVE RUBBER (A) HIT-881761.A0 881761	-
8 - HEAD VALVE SPRING HIT-880356.A0 880356	£6.02	£7.22
9 - O-RING (S-34) HIT-980879.A5 980879	£1.67	£2.00
10 - HEAD VALVE HIT-880354.A0 880354	-
11 - CYLINDER O-RING (C) I.D 44.7 HIT-878714.A0 878714	-
12 - HEAD VALVE RUBBER (A) HIT-881760.A1 881760	-
13 - RETAINING RING HIT-880669.A0 880669	-
14 - CYLINDER PLATE HIT-880667.A0 880667	-
15 - CYLINDER O-RING (I.D 63.1) HIT-877312.A3 877312	£1.67	£2.00
16 - O-RING (P-46) HIT-878716.A0 878716	£1.67	£2.00
17 - CYLINDER HIT-880668.A0 880668	-
18 - PISTON RING (TILL 3.2003) HIT-878691.A0 878691	£23.98	£28.77
19 - O-RING (I.D 34.2) (TILL 3.2003) HIT-880311.A0 880311	£1.67	£2.00
19A - O-RING (I.D. 34.7) SINCE 4.2003 HIT-882685.A0 882685	-
20B - PISTON HIT-888026.A1 888026	£44.67	£53.60
21 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A23 955479	£1.67	£2.00
22C - WARNING LABEL HIT-888957.A0 888957	-
23A - BODY ASS'Y (W/GRIP RUBBER: SUPPLIED WITH ITEM HIT-882672.A0 882672	-
25 - O-RING (S-44) HIT-880362.A0 880362	-
26 - PISTON BUMPER HIT-882676.A0 882676	£14.44	£17.33
27 - O-RING (P-4) HIT-874436.A14 874436	£1.67	£2.00
28 - WASHER HIT-878279.A2 878279	-
29 - NOSE HIT-882677.A0 882677	-
30 - NYLOCK HIGH TENSION BOLT M6X20 HIT-880675.A7 880675	-
31 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A2 949770	£3.58	£4.29
32 - NEEDLE ROLLER HIT-880659.A0 880659	-
33 - FEEDER ARM HIT-878132.A1 878132	-
34 - FEEDER SPRING HIT-878340.A4 878340	£1.67	£2.00
35 - FEEDER HIT-882671.A1 882671	-
36 - SAFETY SPRING HIT-880080.A0 880080	-
36 - PUSHING LEVER SPRING FOR EUROPE HIT-880380.A0 880380	£6.02	£7.22
37A - PUSHING LEVER (B) HIT-888171.A0 888171	-
38 - ADJUSTER (B) HIT-880383.A0 880383	£12.22	£14.67
39 - ADJUSTER SPRING HIT-880175.A1 880175	£1.67	£2.00
40 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A22 959148	£1.67	£2.00
41A - PUSHING LEVER(A) HIT-888027.A0 888027	-
42 - WASHER HIT-880081.A0 880081	-
43 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A3 949657	-
44 - MACHINE SCREW M5X20 (BLACK) HIT-302196.A3 302196	£1.67	£2.00
45 - WASHER HIT-876205.A0 876205	£1.67	£2.00
48 - O-RING (I.D 37.2) HIT-880183.A8 880183	£1.67	£2.00
49A - CAP HIT-888014.A0 888014	-
50 - DUST CAP HIT-872035.A13 872035	-
51 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A7 949865	£3.28	£3.93
52 - TRIGGER (A) FOR USA HIT-880674.A2 880674	£9.06	£10.87
52 - TRIGGER (A) ASS'Y INCLUD.104-107 FOR AUS HIT-881779.A0 881779	£74.41	£89.29
53 - TRIGGER PIN HIT-881952.A0 881952	-
54A - PUSHING LEVER GUIDE HIT-884336.A1 884336	-
55 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A1 877699	£1.67	£2.00
56 - VALVE BUSHING (B) HIT-878881.A7 878881	£28.02	£33.63
57 - O-RING (S-18) HIT-878885.A30 878885	£1.67	£2.00
58 - O-RING (I.D 8.8) HIT-878925.A2 878925	£1.67	£2.00
59 - O-RING (I.D 11) HIT-878887.A3 878887	£1.67	£2.00
60 - O-RING (S-4) HIT-981317.A8 981317	£1.67	£2.00
61 - VALVE PISTON (B) HIT-880672.A3 880672	£25.41	£30.49
62 - PLUNGER SPRING HIT-878884.A3 878884	£1.67	£2.00
63 - PLUNGER (A) HIT-880673.A6 880673	£12.74	£15.29
64 - O-RING (I.D. 1.8) HIT-878888.A17 878888	£1.67	£2.00
65 - VALVE BUSHING (A) HIT-880671.A6 880671	£19.08	£22.89
66 - O-RING (P-9) HIT-872645.A26 872645	£1.67	£2.00
67 - O-RING (P-21) HIT-880330.A6 880330	£1.67	£2.00
68 - FEED PISTON HIT-882673.A0 882673	-
69 - FEED SPRING HIT-878603.A1 878603	-
70A - DAMPER HIT-889339.A0 889339	-
71 - FEED PISTON COVER HIT-880331.A0 880331	£3.76	£4.51
72 - MAGAZINE BUSHING HIT-878305.A0 878305	£1.67	£2.00
73 - RETAINING RING FOR D28 HOLE (10 PCS.) HIT-939555.A0 939555	-
74 - NYLON NUT M5 HIT-877371.A41 877371	£1.67	£2.00
75A - MAGAZINE HIT-880335.A0 880335	-
76A - FEEDER SHAFT RING HIT-877826.A9 877826	£1.67	£2.00
77 - MAGAZINE STOPPER HIT-880336.A0 880336	£2.82	£3.39
78 - STOPPER SPRING HIT-880337.A0 880337	-
79 - PIN D4X35.5 HIT-880338.A0 880338	-
80 - NYLON NUT M4 HIT-876465.A17 876465	£1.67	£2.00
81A - HOLDER SHAFT HIT-882675.A0 882675	-
82A - RATCHET SPRING HIT-885543.A1 885543	-
83A - NAIL HOLDER HIT-880665.A0 880665	-
84A - MAGAZINE COVER HIT-882682.A0 882682	-
85 - WASHER M4 (10 PCS.) HIT-949423.A34 949423	£1.67	£2.00
86 - PIN D4X40 HIT-880341.A0 880341	-
87 - MACHINE SCREW M4X50 (10 PCS.) HIT-949230.A2 949230	£1.67	£2.00
88A - MAGAZINE ASS'Y INCLUD.75A-87 HIT-882674.A0 882674	-
89 - SLEEVE (B) HIT-878337.A3 878337	£2.98	£3.57
90 - HEX. SOCKET HD. BOLT M4X6 (10 PCS.) HIT-949766.A0 949766	£2.98	£3.57
91 - SHAFT RING HIT-880319.A0 880319	£1.67	£2.00
92 - NAIL GUIDE SHAFT HIT-880658.A2 880658	-
93 - NAIL GUIDE HIT-882678.A0 882678	£52.44	£62.93
94 - GUIDE LOCK HIT-886107.A7 886107	£8.59	£10.31
95 - SPRING HIT-880446.A14 880446	£1.67	£2.00
96 - NAIL STOPPER (A) HIT-882679.A0 882679	£18.29	£21.95
97 - SPRING (F) HIT-301631.A1 301631	£1.67	£2.00
98 - NAIL STOPPER (B) HIT-882680.A0 882680	£4.22	£5.07
99 - STOPPER SPRING HIT-880494.A1 880494	£1.67	£2.00
100 - COVER HIT-882683.A0 882683	-
101 - NAIL GUIDE COVER HIT-882681.A1 882681	£5.43	£6.52
102 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A13 880413	£1.67	£2.00
103 - WARNING LABEL (A) FOR EUROPE HIT-883513.A6 883513	-
104 - TRIGGER PIECE FOR AUS HIT-882983.A0 882983	-
105 - COLLAR FOR AUS HIT-882984.A0 882984	-
106 - SPRING (A) FOR AUS HIT-882985.A0 882985	-
107 - SPRING (B) FOR AUS HIT-882986.A0 882986	-
501A - PROTECTIVE GLASSES HIT-875769.A161 875769	-
502 - HEX. BAR WRENCH 5MM HIT-944459.A8 944459	£1.67	£2.00
503 - HEX. BAR WRENCH 4MM HIT-944458.A83 944458	£1.67	£2.00
504 - HEX. BAR WRENCH 3MM HIT-943277.A5 943277	£1.67	£2.00
505 - CAUTION TAG HIT-881976.A0 881976	-
506 - LEAFLET HIT-882414.A7 882414	-
507 - NOSE CAP FOR USA HIT-878344.A1 878344	-
601 - NOSE CAP HIT-878344.A0 878344	-
602 - CASE HIT-880517.A1 880517	-
603 - SEQUENTIAL TRIP MECHANISM SET HIT-881973.A0 881973	£49.78	£59.73
604 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A8 317918	£37.06	£44.47
605 - GRIP TAPE (A) HIT-881768.A34 881768	-
606A - TAPE (2 PCS.) HIT-888213.A11 888213	-
607 - HANGER PARTS SET FOR EUROPE HIT-888097.A0 888097	-
