Hitachi / Hikoki NV50AP3 2inch Washer Nailer Spare Parts

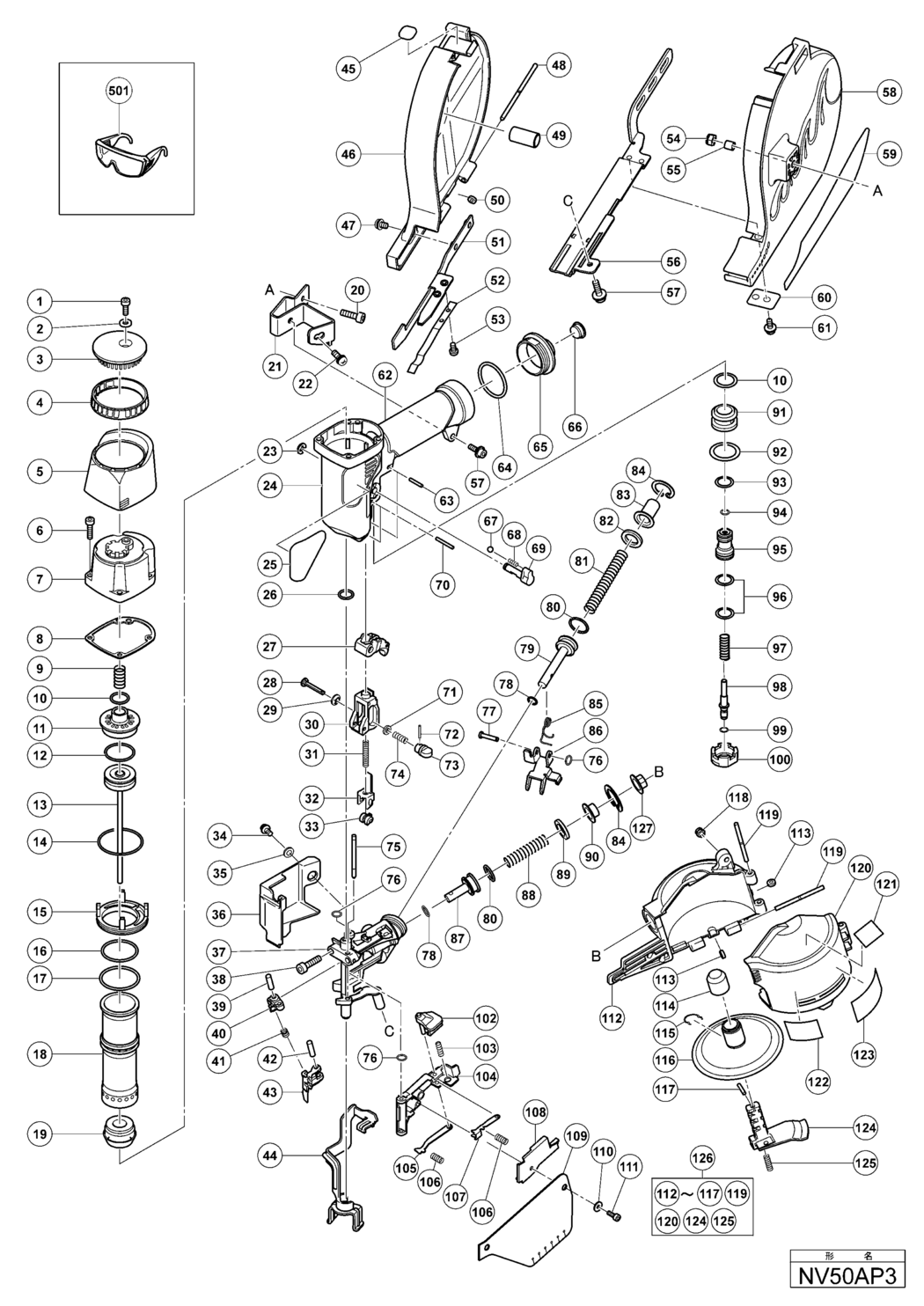

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV50AP3 2inch Washer Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A23 949819	£6.66	£7.99
2 - WASHER HIT-944260.A0 944260	£1.67	£2.00
3 - TOP COVER HIT-881841.A2 881841	£4.68	£5.62
4 - HEAD RING HIT-881840.A0 881840	£4.68	£5.62
5 - PROTECTOR (A) HIT-881883.A2 881883	£4.55	£5.46
6 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A4 949757	£3.64	£4.37
7 - EXHAUST COVER HIT-881879.A2 881879	£48.88	£58.66
8 - GASKET (A) HIT-881839.A2 881839	£1.67	£2.00
9 - HEAD VALVE SPRING HIT-881851.A2 881851	£3.28	£3.93
10 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A2 877699	£1.67	£2.00
11 - HEAD VALVE (A) HIT-881837.A2 881837	£10.54	£12.65
12 - O-RING (1BP-28) HIT-883365.A0 883365	-
13 - PISTON HIT-885390.A0 885390	-
14 - O-RING (1AS-50) HIT-990067.A0 990067	£1.67	£2.00
15 - CYLINDER PLATE HIT-881831.A0 881831	£4.68	£5.62
16 - O-RING (S-36) HIT-984483.A0 984483	£1.67	£2.00
17 - CYLINDER O-RING HIT-881864.A2 881864	£1.67	£2.00
18 - CYLINDER HIT-885531.A0 885531	-
19 - PISTON BUMPER HIT-881830.A2 881830	£15.71	£18.85
20 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A1 949660	£3.97	£4.76
21 - HANDLE ARM HIT-885413.A0 885413	-
22 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A8 990541	£1.67	£2.00
23 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A24 955479	£1.67	£2.00
24 - BODY ASS'Y INCLUD.62 HIT-885389.A0 885389	-
25 - NAME PLATE HIT-000000.A2774 000000	-
26 - O-RING (S-12) HIT-875638.A36 875638	£1.67	£2.00
27 - TRIGGER (A) HIT-884145.A1 884145	-
28 - ADJUSTER SHAFT HIT-881846.A0 881846	£8.66	£10.39
29 - LATCH HIT-886101.A1 886101	£7.42	£8.91
30 - PUSHING LEVER GUIDE HIT-316389.A3 316389	£4.10	£4.92
31 - PUSHING LEVER SPRING HIT-881844.A0 881844	-
32 - PUSHING LEVER (B) HIT-886099.A3 886099	£16.85	£20.22
33 - ADJUSTER HIT-886100.A0 886100	£12.52	£15.03
34 - NYLOCK BOLT (W/FLANGE) M5X8 HIT-878540.A1 878540	-
35 - WASHER HIT-876205.A1 876205	£1.67	£2.00
36 - PUSHING LEVER COVER HIT-885415.A0 885415	-
37 - TAIL COVER HIT-885392.A0 885392	-
38 - HEX. SOCKET HD. BOLT M6X25 (10 PCS.) HIT-949652.A2 949652	£3.85	£4.62
39 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A1 949770	£3.58	£4.29
40 - FEEDER ARM HIT-878132.A2 878132	-
41 - FEEDER SPRING HIT-878340.A5 878340	£1.67	£2.00
42 - NEEDLE ROLLER HIT-983545.A1 983545	£1.67	£2.00
43 - FEEDER HIT-885539.A0 885539	-
44 - PUSHING LEVER (A) HIT-885394.A0 885394	-
45 - RUBBER SHEET HIT-885532.A0 885532	-
46 - WASHER MAGAZINE HIT-885396.A0 885396	-
47 - SEAL LOCK SCREW (W/WASHERS) M5X8 (BLACK) HIT-310533.A2 310533	-
48 - PIN D4X88 HIT-885398.A0 885398	-
49 - SLEEVE (A) HIT-885399.A0 885399	-
50 - FEEDER SHAFT RING HIT-877826.A8 877826	£1.67	£2.00
51 - WASHER GUIDE HIT-885400.A0 885400	-
52 - WASHER SPRING HIT-885401.A0 885401	-
53 - SEAL LOCK SCREW M4X6 (BLACK) HIT-303631.A1 303631	£1.67	£2.00
54 - NYLON NUT M6 HIT-963837.A11 963837	£1.67	£2.00
55 - HOLDER SLEEVE (B) HIT-885414.A0 885414	£1.67	£2.00
56 - WASHER RAIL HIT-885395.A0 885395	-
57 - NYLOCK BOLT (W/FLANGE) M5X16 HIT-313082.A3 313082	£1.67	£2.00
58 - WASHER MAGAZINE COVER HIT-885397.A0 885397	-
59 - LABEL (A) HIT-000000.A2775 000000	-
60 - PLATE HIT-885533.A0 885533	-
61 - SEAL LOCK SCREW (W/WASHERS) M5X12 (BLACK HIT-678668.A0 678668	-
62 - GRIP RUBBER HIT-000000.A2776 000000	-
63 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A16 949518	£1.67	£2.00
64 - O-RING (I.D 37.2) HIT-880183.A9 880183	£1.67	£2.00
65 - CAP HIT-880379.A3 880379	£28.55	£34.26
66 - DUST CAP HIT-872035.A12 872035	-
67 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A45 959155	£1.67	£2.00
68 - SPRING (C) HIT-982454.A19 982454	£1.67	£2.00
69 - CHANGE KNOB HIT-884335.A0 884335	-
70 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A7 949539	£3.28	£3.93
71 - BOLT WASHER M4 (10 PCS.) HIT-949429.A27 949429	£1.67	£2.00
72 - ROLL PIN D1.6X12 HIT-878222.A0 878222	£1.67	£2.00
73 - ADJUSTER KNOB (B) HIT-885391.A0 885391	-
74 - ADJUSTER SPRING HIT-881853.A0 881853	£1.67	£2.00
75 - NAIL GUIDE SHAFT HIT-885535.A0 885535	-
76 - O-RING (1AP-3) HIT-873093.A18 873093	£1.67	£2.00
77 - PIN (A) HIT-885407.A0 885407	-
78 - O-RING (P-9) HIT-872645.A27 872645	£1.67	£2.00
79 - FEED PISTON (B) HIT-885402.A0 885402	-
80 - O-RING (P-18) HIT-873570.A15 873570	£1.67	£2.00
81 - SPRING (B) HIT-885403.A0 885403	-
82 - BUMPER (B) HIT-885534.A0 885534	-
83 - FEED PISTON COVER (A) HIT-885404.A0 885404	-
84 - RETAINING RING FOR D24 HOLE HIT-983748.A0 983748	£1.67	£2.00
85 - FEEDER SPRING HIT-885406.A0 885406	-
86 - WASHER FEEDER HIT-885405.A0 885405	-
87 - FEED PISTON HIT-885393.A0 885393	-
88 - SPRING D11.8 HIT-880409.A0 880409	£1.67	£2.00
89 - DAMPER HIT-877476.A2 877476	£1.67	£2.00
90 - FEED PISTON COVER HIT-880170.A1 880170	£1.67	£2.00
91 - VALVE BUSHING (B) HIT-878881.A6 878881	£28.02	£33.63
92 - O-RING (S-18) HIT-878885.A29 878885	£1.67	£2.00
93 - O-RING (I.D 11) HIT-878887.A4 878887	£1.67	£2.00
94 - O-RING (S-4) HIT-981317.A7 981317	£1.67	£2.00
95 - VALVE PISTON (B) HIT-884143.A1 884143	-
96 - O-RING (I.D 8.8) HIT-878925.A3 878925	£1.67	£2.00
97 - PLUNGER SPRING HIT-878884.A4 878884	£1.67	£2.00
98 - PLUNGER (A) HIT-884144.A0 884144	-
99 - O-RING (I.D. 1.8) HIT-878888.A16 878888	£1.67	£2.00
100 - VALVE BUSHING (A) HIT-880671.A5 880671	£19.08	£22.89
102 - GUIDE LOCK HIT-878103.A4 878103	£11.93	£14.32
103 - SPRING HIT-880446.A15 880446	£1.67	£2.00
104 - NAIL GUIDE (A) HIT-885536.A0 885536	-
105 - NAIL STOPPER (B) HIT-881814.A2 881814	£3.82	£4.58
106 - SPRING HIT-880393.A2 880393	£1.67	£2.00
107 - NAIL STOPPER (A) HIT-885537.A0 885537	-
108 - NAIL GUIDE COVER HIT-881815.A0 881815	£5.87	£7.04
109 - COVER HIT-885538.A0 885538	-
110 - SLEEVE (B) HIT-878337.A2 878337	£2.98	£3.57
111 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A12 880413	£1.67	£2.00
112 - MAGAZINE HIT-885540.A0 885540	-
113 - FEEDER SHAFT RING HIT-877826.A10 877826	£1.67	£2.00
114 - HOLDER CAP HIT-885412.A2 885412	-
115 - RATCHET SPRING HIT-885543.A0 885543	-
116 - NAIL HOLDER HIT-885411.A0 885411	£5.23	£6.28
117 - ROLL PIN D2.5 HIT-885544.A2 885544	-
118 - NYLON NUT M5 HIT-877371.A40 877371	£1.67	£2.00
119 - PIN D4X58 HIT-885541.A0 885541	-
120 - MAGAZINE COVER HIT-885409.A0 885409	£15.60	£18.72
121 - LABEL (B) HIT-000000.A2778 000000	-
122 - LABEL HIT-000000.A2779 000000	-
123 - WARNING LABEL HIT-884070.A8 884070	-
124 - HOLDER SHAFT HIT-885410.A2 885410	-
125 - SPRING HIT-885542.A2 885542	-
126 - MAGAZINE ASS'Y INCLUD.112-117 HIT-885408.A0 885408	-
127 - MAGAZINE BUSHING HIT-880177.A1 880177	£1.67	£2.00
501 - PROTECTIVE GLASSES HIT-875769.A160 875769	-
601 - GRIP TAPE (A) HIT-881768.A33 881768	-
