Hitachi / Hikoki NV50AH Coil Nailer Spare Parts

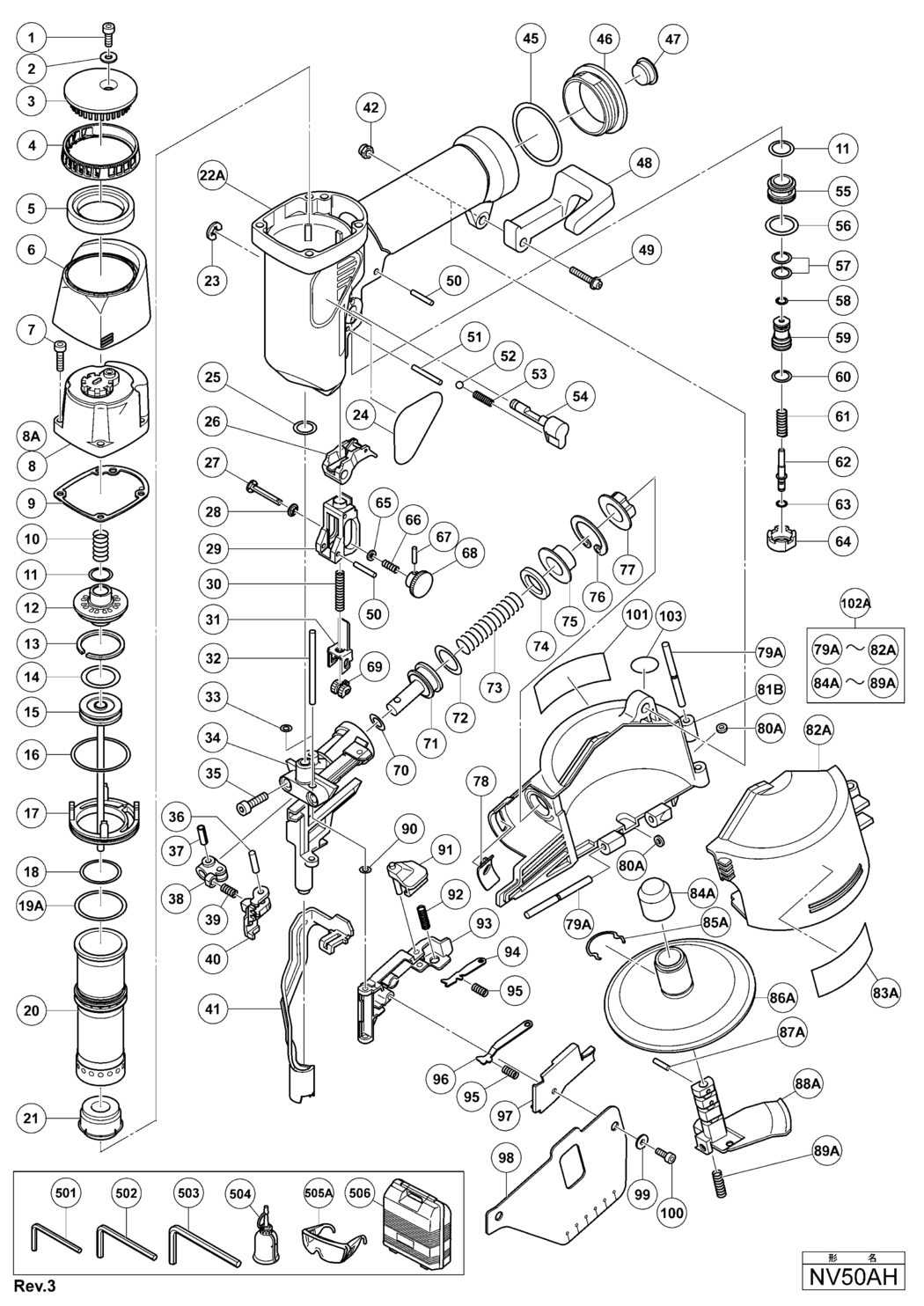

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV50AH Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A2 949819	£2.98	£3.57
2 - WASHER HIT-944260.A1 944260	£1.67	£2.00
3 - TOP COVER HIT-881841.A1 881841	£4.68	£5.62
4 - HEAD RING HIT-881840.A1 881840	£4.68	£5.62
5 - MUFFLER HIT-881835.A0 881835	£13.90	£16.68
*6 - PROTECTOR (A) HIT-881838.A0 881838	£3.12	£3.74
*6 - PROTECTOR (A) FOR H/K HIT-881883.A0 881883	£4.55	£5.46
7 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A37 949757	£3.64	£4.37
*8 - EXHAUST COVER HIT-881879.A0 881879	£48.88	£58.66
8A - EXHAUST COVER FOR H/K HIT-881865.A0 881865	-
9 - GASKET (A) HIT-881839.A1 881839	£1.67	£2.00
10 - HEAD VALVE SPRING HIT-881851.A0 881851	£3.28	£3.93
11 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A11 877699	£1.67	£2.00
12 - HEAD VALVE (A) HIT-881837.A0 881837	£10.54	£12.65
13 - PISTON RING HIT-881834.A1 881834	£15.25	£18.30
14 - PISTON O-RING HIT-881833.A0 881833	£1.67	£2.00
15 - PISTON HIT-881832.A1 881832	£80.54	£96.65
16 - O-RING (1AS-50) HIT-990067.A4 990067	£1.67	£2.00
17 - CYLINDER PLATE HIT-881831.A1 881831	£4.68	£5.62
18 - O-RING (S-36) HIT-984483.A4 984483	£1.67	£2.00
19A - CYLINDER O-RING HIT-881864.A1 881864	£1.67	£2.00
20 - CYLINDER HIT-881829.A0 881829	£33.79	£40.55
21 - PISTON BUMPER HIT-881830.A1 881830	£15.71	£18.85
*22A - BODY ASS'Y (W/GRIP RUBBER:SUPPLIED WITH ITEM NO.603 HIT-881877.A0 881877	£106.24	£127.49
*22A - BODY ASS'Y 604) HIT-881877.A1 881877	£106.24	£127.49
*22A - BODY ASS'Y FOR H/K (W/GRIP RUBBER:SUPPLIED WITH HIT-881878.A2 881878	-
*22A - BODY ASS'Y ITEM NO.603 HIT-881878.A3 881878	-
23 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A4 955479	£1.67	£2.00
24 - NAME PLATE HIT-000000.A5345 000000	-
25 - O-RING (S-12) HIT-875638.A2 875638	£1.67	£2.00
26 - TRIGGER (A) HIT-880674.A6 880674	£9.06	£10.87
27 - ADJUSTER SHAFT HIT-881846.A1 881846	£8.66	£10.39
29 - PUSHING LEVER GUIDE HIT-316389.A0 316389	£4.10	£4.92
30 - SPRING HIT-881882.A1 881882	£1.67	£2.00
31 - PUSHING LEVER (B) HIT-886099.A2 886099	£16.85	£20.22
32 - NAIL GUIDE SHAFT HIT-881811.A1 881811	£8.78	£10.54
33 - O-RING (1AP-3) HIT-873093.A0 873093	£1.67	£2.00
34 - NOSE HIT-881870.A0 881870	£212.27	£254.72
35 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A9 949660	£3.97	£4.76
36 - NEEDLE ROLLER HIT-983545.A8 983545	£1.67	£2.00
37 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A4 949770	£3.58	£4.29
38 - FEEDER ARM HIT-878132.A5 878132	-
39 - FEEDER SPRING HIT-878340.A2 878340	£1.67	£2.00
40 - FEEDER HIT-881818.A1 881818	£28.53	£34.24
41 - PUSHING LEVER (A) HIT-881873.A0 881873	£31.78	£38.13
42 - NYLON NUT M5 HIT-877371.A21 877371	£1.67	£2.00
45 - O-RING (I.D 37.2) HIT-880183.A7 880183	£1.67	£2.00
*46 - CAP HIT-880379.A1 880379	£28.55	£34.26
*46 - CAP FOR H/K HIT-882162.A2 882162	-
47 - DUST CAP HIT-872035.A4 872035	-
48 - HOOK HIT-881827.A2 881827	£4.68	£5.62
49 - MACHINE SCREW (W/WASHERS) M5X30 (BLACK) HIT-880881.A1 880881	£1.67	£2.00
50 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A8 949518	£1.67	£2.00
51 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A1 949539	£3.28	£3.93
52 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A5 959155	£1.67	£2.00
53 - SPRING (C) HIT-982454.A5 982454	£1.67	£2.00
54 - CHANGE KNOB (B) HIT-880086.A3 880086	-
55 - VALVE BUSHING (B) HIT-878881.A1 878881	£28.02	£33.63
56 - O-RING (S-18) HIT-878885.A2 878885	£1.67	£2.00
57 - O-RING (I.D 8.8) HIT-878925.A11 878925	£1.67	£2.00
58 - O-RING (S-4) HIT-981317.A36 981317	£1.67	£2.00
59 - VALVE PISTON (B) HIT-880672.A9 880672	£25.41	£30.49
60 - O-RING (I.D 11) HIT-878887.A11 878887	£1.67	£2.00
61 - PLUNGER SPRING HIT-878884.A10 878884	£1.67	£2.00
62 - PLUNGER (A) HIT-880673.A2 880673	£12.74	£15.29
63 - O-RING (I.D. 1.8) HIT-878888.A3 878888	£1.67	£2.00
64 - VALVE BUSHING (A) HIT-880671.A1 880671	£19.08	£22.89
65 - BOLT WASHER M4 (10 PCS.) HIT-949429.A62 949429	£1.67	£2.00
66 - ADJUSTER SPRING HIT-881853.A2 881853	£1.67	£2.00
67 - ROLL PIN D1.6X12 HIT-878222.A1 878222	£1.67	£2.00
68 - ADJUSTER KNOB HIT-881848.A1 881848	£6.09	£7.31
69 - ADJUSTER HIT-886100.A2 886100	£12.52	£15.03
70 - O-RING (P-9) HIT-872645.A14 872645	£1.67	£2.00
71 - FEED PISTON HIT-880168.A2 880168	£20.08	£24.09
72 - O-RING (P-18) HIT-873570.A7 873570	£1.67	£2.00
73 - SPRING D11.8 HIT-880409.A1 880409	£1.67	£2.00
74 - DAMPER HIT-877476.A4 877476	£1.67	£2.00
75 - FEED PISTON COVER HIT-880170.A2 880170	£1.67	£2.00
76 - RETAINING RING FOR D24 HOLE HIT-983748.A9 983748	£1.67	£2.00
77 - MAGAZINE BUSHING HIT-880177.A3 880177	£1.67	£2.00
78 - PROTECTOR (B) HIT-881850.A1 881850	£1.67	£2.00
79A - PIN D4X58 HIT-885541.A2 885541	-
80A - FEEDER SHAFT RING HIT-877826.A18 877826	£1.67	£2.00
81B - MAGAZINE HIT-886831.A1 886831	£15.42	£18.51
82A - MAGAZINE COVER HIT-885409.A2 885409	£15.60	£18.72
83A - WARNING LABEL EXCEPT FOR H/K HIT-884070.A0 884070	-
84A - HOLDER CAP HIT-885412.A0 885412	-
85A - RATCHET SPRING HIT-885543.A3 885543	-
86A - NAIL HOLDER HIT-885411.A2 885411	£5.23	£6.28
87A - ROLL PIN D2.5 HIT-885544.A0 885544	-
88A - HOLDER SHAFT HIT-885410.A0 885410	-
89A - SPRING HIT-885542.A0 885542	-
90 - O-RING (P-4) HIT-874436.A5 874436	£1.67	£2.00
91 - GUIDE LOCK HIT-878103.A2 878103	£11.93	£14.32
92 - SPRING HIT-880446.A4 880446	£1.67	£2.00
93 - NAIL GUIDE HIT-881871.A0 881871	£63.96	£76.75
94 - NAIL STOPPER (A) HIT-881872.A0 881872	£3.51	£4.21
95 - SPRING HIT-880393.A1 880393	£1.67	£2.00
96 - NAIL STOPPER (B) HIT-881814.A1 881814	£3.82	£4.58
97 - NAIL GUIDE COVER HIT-881815.A1 881815	£5.87	£7.04
98 - COVER HIT-881816.A1 881816	£5.87	£7.04
99 - SLEEVE (B) HIT-878337.A6 878337	£2.98	£3.57
100 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A16 880413	£1.67	£2.00
101 - WARNING LABEL EXCEPT FOR H/K HIT-878183.A2 878183	-
102A - MAGAZINE ASS'Y INCLUD.79A-82A HIT-881820.A1 881820	£47.12	£56.54
103 - WARNING LABEL (A) FOR EUROPE HIT-883513.A15 883513	-
501 - HEX. BAR WRENCH 3MM HIT-943277.A39 943277	£1.67	£2.00
502 - HEX. BAR WRENCH 4MM HIT-944458.A16 944458	£1.67	£2.00
503 - HEX. BAR WRENCH 5MM HIT-944459.A22 944459	£1.67	£2.00
504 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A21 877153	-
505A - PROTECTIVE GLASSES HIT-875769.A8 875769	-
*506 - CASE HIT-881849.A0 881849	-
*506 - CASE FOR H/K HIT-881881.A1 881881	-
601 - SEQUENTIAL TRIP MECHANISM SET HIT-881012.A1 881012	-
602 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A14 317918	£37.06	£44.47
603 - GRIP TAPE HIT-880408.A3 880408	£10.98	£13.17
604A - TAPE (2 PCS.) HIT-888213.A27 888213	-
81 B - MAGAZINE HIT-886831.A0 886831	£15.42	£18.51
