Hitachi / Hikoki NV50AG2 Coil Nailer Spare Parts

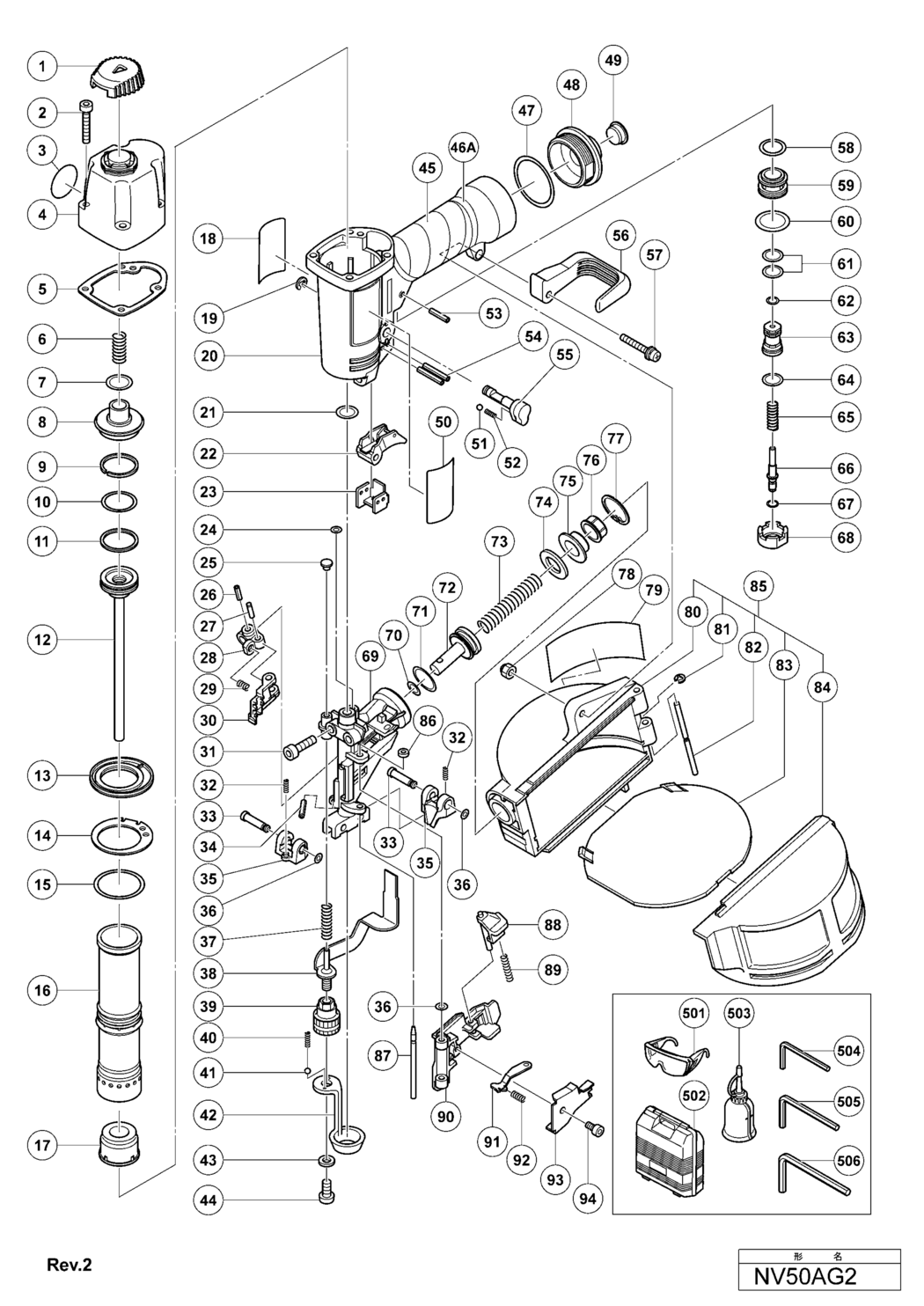

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV50AG2 Coil Nailer

	Ex VAT	Inc VAT
1 - TOP COVER HIT-880191.A0 880191	-
2 - HEX. SOCKET HD. BOLT M5X35 (10 PCS.) HIT-949822.A3 949822	-
3 - WARNING LABEL (A) EXCEPT FOR H/V HIT-883513.A16 883513	-
*4 - EXHAUST COVER FOR H/V HIT-880441.A0 880441	-
5 - GASKET (A) HIT-880196.A1 880196	£1.67	£2.00
6 - HEAD VALVE SPRING HIT-880190.A5 880190	-
7 - HEAD VALVE O-RING HIT-878600.A7 878600	£1.67	£2.00
8 - HEAD VALVE (A) HIT-880410.A1 880410	£12.78	£15.33
9 - PISTON RING HIT-878596.A0 878596	£12.78	£15.33
10 - PISTON O-RING HIT-880195.A0 880195	£1.67	£2.00
11 - BUMPER (A) HIT-880867.A0 880867	-
12 - PISTON HIT-882101.A0 882101	-
13 - CYLINDER PACKING HIT-881103.A0 881103	£3.26	£3.91
14 - CYLINDER WASHER (A) HIT-880187.A1 880187	£3.85	£4.62
15 - O-RING (P-32) HIT-986374.A12 986374	£1.67	£2.00
16 - CYLINDER HIT-880402.A0 880402	-
17 - PISTON BUMPER HIT-880403.A0 880403	-
18 - WARNING LABEL EXCEPT FOR H/V HIT-881128.A3 881128	-
19 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A2 955479	£1.67	£2.00
*20 - BODY ASS'Y INCLUD.45 HIT-885251.A0 885251	-
*20 - BODY ASS'Y INCLUD.45 HIT-882104.A0 882104	-
21 - O-RING (S-12) HIT-875638.A3 875638	£1.67	£2.00
22 - TRIGGER (A) HIT-880674.A5 880674	£9.06	£10.87
23 - PUSHING LEVER GUIDE HIT-880194.A1 880194	-
24 - O-RING (1AP-3) HIT-873093.A2 873093	£1.67	£2.00
25 - ADJUSTER STOPPER HIT-880176.A0 880176	-
26 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A5 949770	£3.58	£4.29
27 - NEEDLE ROLLER HIT-983545.A7 983545	£1.67	£2.00
28 - FEEDER ARM HIT-878132.A6 878132	-
29 - FEEDER SPRING HIT-878340.A0 878340	£1.67	£2.00
30 - FEEDER HIT-880433.A0 880433	-
31 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A8 949660	£3.97	£4.76
32 - SPRING HIT-880447.A0 880447	-
33 - GUIDE SHAFT HIT-880443.A0 880443	-
34 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A7 949518	£1.67	£2.00
35 - VERTICAL GUIDE HIT-880442.A0 880442	-
36 - O-RING (P-4) HIT-874436.A9 874436	£1.67	£2.00
37 - PUSHING LEVER SPRING HIT-880204.A1 880204	-
38 - PUSHING LEVER (B) HIT-880171.A0 880171	£37.11	£44.53
39 - ADJUSTER (B) HIT-880383.A2 880383	£12.22	£14.67
40 - ADJUSTER SPRING HIT-880175.A4 880175	£1.67	£2.00
41 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A68 959148	£1.67	£2.00
42 - PUSHING LEVER (A) HIT-880434.A0 880434	-
43 - WASHER HIT-880081.A5 880081	-
44 - HEX. SOCKET HD. BOLT M6X14 HIT-878633.A0 878633	-
45 - GRIP TAPE HIT-880408.A1 880408	£10.98	£13.17
46A - TAPE (2 PCS.) HIT-888213.A29 888213	-
47 - O-RING (I.D 37.2) HIT-880183.A6 880183	£1.67	£2.00
*48 - CAP HIT-880379.A0 880379	£28.55	£34.26
*48 - CAP FOR H/V HIT-882162.A1 882162	-
49 - DUST CAP HIT-872035.A5 872035	-
50 - NAME PLATE HIT-000000.A5341 000000	-
51 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A4 959155	£1.67	£2.00
52 - SPRING (C) HIT-982454.A4 982454	£1.67	£2.00
53 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A9 949518	£1.67	£2.00
54 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A0 949539	£3.28	£3.93
55 - CHANGE KNOB (B) HIT-880086.A2 880086	-
56 - HOOK HIT-880560.A0 880560	-
57 - MACHINE SCREW (W/WASHERS) M5X30 (BLACK) HIT-880881.A2 880881	£1.67	£2.00
58 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A12 877699	£1.67	£2.00
59 - VALVE BUSHING (B) HIT-878881.A0 878881	£28.02	£33.63
60 - O-RING (S-18) HIT-878885.A1 878885	£1.67	£2.00
61 - O-RING (I.D 8.8) HIT-878925.A12 878925	£1.67	£2.00
62 - O-RING (S-4) HIT-981317.A37 981317	£1.67	£2.00
63 - VALVE PISTON (B) HIT-880672.A10 880672	£25.41	£30.49
64 - O-RING (I.D 11) HIT-878887.A12 878887	£1.67	£2.00
65 - PLUNGER SPRING HIT-878884.A11 878884	£1.67	£2.00
66 - PLUNGER (A) HIT-880673.A1 880673	£12.74	£15.29
67 - O-RING (I.D. 1.8) HIT-878888.A2 878888	£1.67	£2.00
68 - VALVE BUSHING (A) HIT-880671.A0 880671	£19.08	£22.89
69 - NOSE HIT-880430.A0 880430	-
70 - O-RING (P-9) HIT-872645.A12 872645	£1.67	£2.00
71 - O-RING (1AP-20) HIT-944486.A2 944486	£1.67	£2.00
72 - FEED PISTON HIT-878579.A0 878579	-
73 - FEED SPRING HIT-880445.A0 880445	-
74 - BUMPER HIT-877711.A5 877711	£1.67	£2.00
75 - FEED PISTON COVER HIT-880331.A9 880331	£3.76	£4.51
76 - MAGAZINE BUSHING HIT-878305.A7 878305	£1.67	£2.00
77 - RETAINING RING FOR D28 HOLE (10 PCS.) HIT-939555.A6 939555	-
78 - NYLON NUT M5 HIT-877371.A20 877371	£1.67	£2.00
79 - WARNING LABEL EXCEPT FOR H/V HIT-878183.A1 878183	-
80 - MAGAZINE HIT-880436.A0 880436	-
81 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A37 872971	£1.67	£2.00
82 - HINGE PIN HIT-880439.A0 880439	-
83 - NAIL HOLDER HIT-880438.A0 880438	-
84 - MAGAZINE COVER HIT-880437.A0 880437	-
85 - MAGAZINE ASS'Y INCLUD.80-84 HIT-880435.A0 880435	-
86 - SHAFT RING HIT-880319.A19 880319	£1.67	£2.00
87 - NAIL GUIDE SHAFT HIT-880326.A0 880326	-
88 - GUIDE LOCK HIT-878103.A1 878103	£11.93	£14.32
89 - SPRING HIT-880446.A0 880446	£1.67	£2.00
90 - NAIL GUIDE HIT-880431.A0 880431	-
91 - NAIL STOPPER (B) HIT-880164.A1 880164	£1.67	£2.00
92 - STOPPER SPRING HIT-878575.A1 878575	£1.67	£2.00
93 - NAIL GUIDE COVER HIT-880432.A0 880432	-
94 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A15 880413	£1.67	£2.00
501 - PROTECTIVE GLASSES HIT-875769.A2 875769	-
*502 - CASE HIT-880444.A0 880444	-
*502 - CASE FOR H/V HIT-882105.A0 882105	-
503 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A17 877153	-
504 - HEX. BAR WRENCH 3MM HIT-943277.A37 943277	£1.67	£2.00
505 - HEX. BAR WRENCH 4MM HIT-944458.A20 944458	£1.67	£2.00
506 - HEX. BAR WRENCH 5MM HIT-944459.A19 944459	£1.67	£2.00
601 - SEQUENTIAL TRIP MECHANISM SET HIT-881012.A2 881012	-
