Hitachi / Hikoki NV50AF3 Coil Nailer Spare Parts

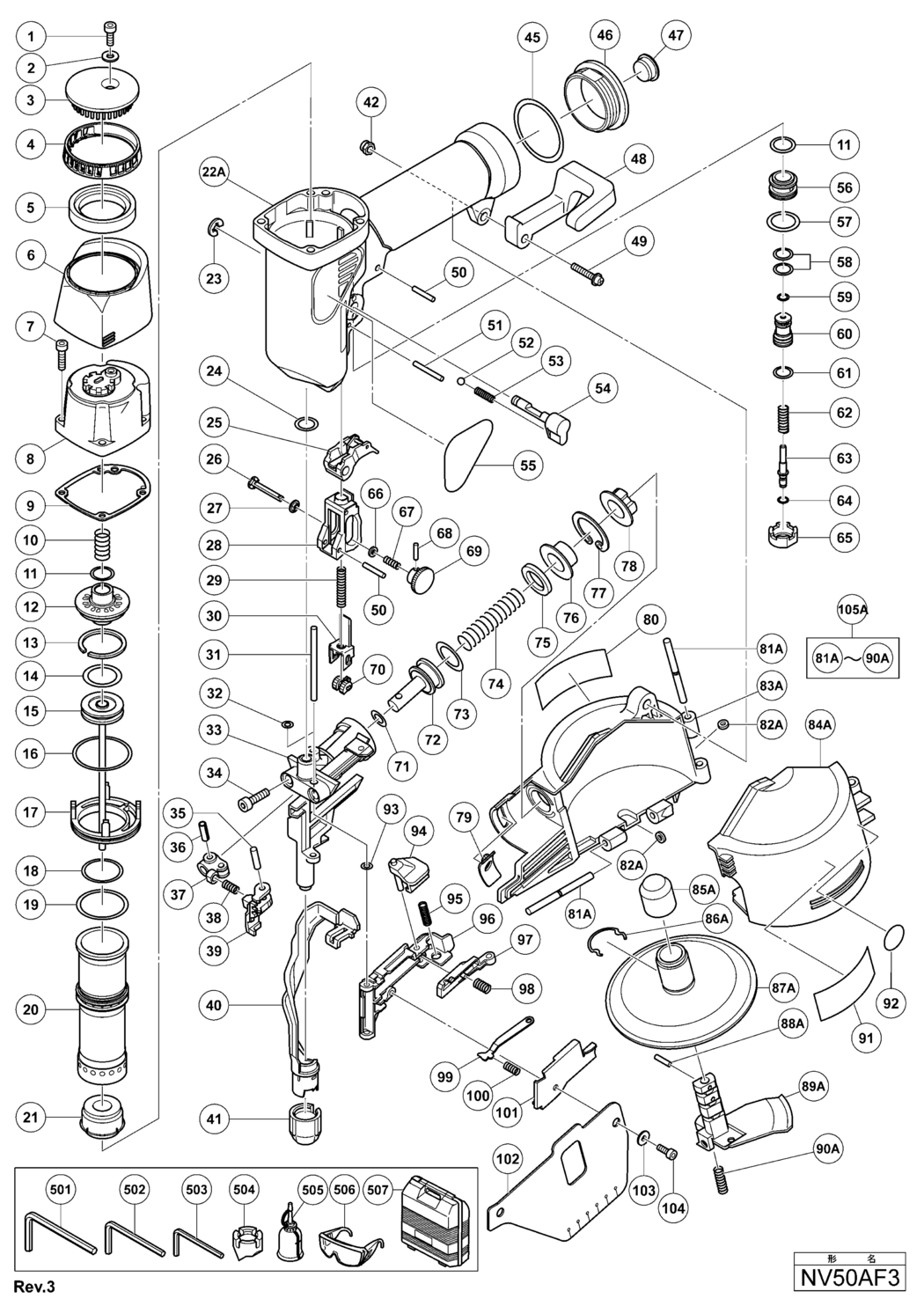

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV50AF3 Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A1 949819	£2.98	£3.57
2 - WASHER HIT-944260.A2 944260	£1.67	£2.00
3 - TOP COVER HIT-881841.A0 881841	£4.68	£5.62
4 - HEAD RING HIT-881840.A2 881840	£4.68	£5.62
5 - MUFFLER HIT-881835.A1 881835	£13.90	£16.68
*6 - PROTECTOR (A) HIT-881838.A1 881838	£3.12	£3.74
*6 - PROTECTOR (A) FOR H/V HIT-881883.A1 881883	£4.55	£5.46
7 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A36 949757	£3.64	£4.37
*8 - EXHAUST COVER HIT-881879.A1 881879	£48.88	£58.66
*8 - EXHAUST COVER FOR H/V HIT-881865.A1 881865	-
9 - GASKET (A) HIT-881839.A0 881839	£1.67	£2.00
10 - HEAD VALVE SPRING HIT-881851.A1 881851	£3.28	£3.93
11 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A10 877699	£1.67	£2.00
12 - HEAD VALVE (A) HIT-881837.A1 881837	£10.54	£12.65
13 - PISTON RING HIT-881834.A0 881834	£15.25	£18.30
14 - PISTON O-RING HIT-881833.A1 881833	£1.67	£2.00
15 - PISTON HIT-881832.A0 881832	£80.54	£96.65
16 - O-RING (1AS-50) HIT-990067.A3 990067	£1.67	£2.00
17 - CYLINDER PLATE HIT-881831.A2 881831	£4.68	£5.62
18 - O-RING (S-36) HIT-984483.A3 984483	£1.67	£2.00
19 - CYLINDER O-RING HIT-881864.A0 881864	£1.67	£2.00
20 - CYLINDER HIT-881829.A1 881829	£33.79	£40.55
21 - PISTON BUMPER HIT-881830.A0 881830	£15.71	£18.85
*22A - BODY ASS'Y (W/GRIP RUBBER:SUPPLIED WITH ITEM NO.602 HIT-881877.A2 881877	£106.24	£127.49
*22A - BODY ASS'Y 603) HIT-881877.A3 881877	£106.24	£127.49
*22A - BODY ASS'Y FOR H/V (W/GRIP RUBBER:SUPPLIED WITH HIT-881878.A0 881878	-
*22A - BODY ASS'Y ITEM NO.602 HIT-881878.A1 881878	-
23 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A3 955479	£1.67	£2.00
24 - O-RING (S-12) HIT-875638.A4 875638	£1.67	£2.00
25 - TRIGGER (A) HIT-880674.A4 880674	£9.06	£10.87
26 - ADJUSTER SHAFT HIT-881846.A2 881846	£8.66	£10.39
28 - PUSHING LEVER GUIDE HIT-316389.A1 316389	£4.10	£4.92
29 - SPRING HIT-881882.A0 881882	£1.67	£2.00
30 - PUSHING LEVER (B) HIT-886099.A1 886099	£16.85	£20.22
31 - NAIL GUIDE SHAFT HIT-881811.A0 881811	£8.78	£10.54
32 - O-RING (1AP-3) HIT-873093.A1 873093	£1.67	£2.00
33 - NOSE HIT-881810.A0 881810	-
34 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A7 949660	£3.97	£4.76
35 - NEEDLE ROLLER HIT-983545.A6 983545	£1.67	£2.00
36 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A6 949770	£3.58	£4.29
37 - FEEDER ARM HIT-878132.A7 878132	-
38 - FEEDER SPRING HIT-878340.A1 878340	£1.67	£2.00
39 - FEEDER HIT-881818.A0 881818	£28.53	£34.24
40 - PUSHING LEVER (A) HIT-881819.A0 881819	-
41 - NOSE CAP (A) HIT-881092.A1 881092	-
42 - NYLON NUT M5 HIT-877371.A19 877371	£1.67	£2.00
45 - O-RING (I.D 37.2) HIT-880183.A5 880183	£1.67	£2.00
*46 - CAP HIT-880379.A2 880379	£28.55	£34.26
*46 - CAP FOR H/V HIT-882162.A3 882162	-
47 - DUST CAP HIT-872035.A3 872035	-
48 - HOOK HIT-881827.A1 881827	£4.68	£5.62
49 - MACHINE SCREW (W/WASHERS) M5X30 (BLACK) HIT-880881.A0 880881	£1.67	£2.00
50 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A6 949518	£1.67	£2.00
51 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A2 949539	£3.28	£3.93
52 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A6 959155	£1.67	£2.00
53 - SPRING (C) HIT-982454.A6 982454	£1.67	£2.00
54 - CHANGE KNOB (B) HIT-880086.A4 880086	-
55 - NAME PLATE HIT-000000.A5337 000000	-
56 - VALVE BUSHING (B) HIT-878881.A2 878881	£28.02	£33.63
57 - O-RING (S-18) HIT-878885.A3 878885	£1.67	£2.00
58 - O-RING (I.D 8.8) HIT-878925.A10 878925	£1.67	£2.00
59 - O-RING (S-4) HIT-981317.A35 981317	£1.67	£2.00
60 - VALVE PISTON (B) HIT-880672.A8 880672	£25.41	£30.49
61 - O-RING (I.D 11) HIT-878887.A10 878887	£1.67	£2.00
62 - PLUNGER SPRING HIT-878884.A9 878884	£1.67	£2.00
63 - PLUNGER (A) HIT-880673.A3 880673	£12.74	£15.29
64 - O-RING (I.D. 1.8) HIT-878888.A4 878888	£1.67	£2.00
65 - VALVE BUSHING (A) HIT-880671.A2 880671	£19.08	£22.89
66 - BOLT WASHER M4 (10 PCS.) HIT-949429.A63 949429	£1.67	£2.00
67 - ADJUSTER SPRING HIT-881853.A1 881853	£1.67	£2.00
68 - ROLL PIN D1.6X12 HIT-878222.A2 878222	£1.67	£2.00
69 - ADJUSTER KNOB HIT-881848.A0 881848	£6.09	£7.31
70 - ADJUSTER HIT-886100.A1 886100	£12.52	£15.03
71 - O-RING (P-9) HIT-872645.A13 872645	£1.67	£2.00
72 - FEED PISTON HIT-880168.A1 880168	£20.08	£24.09
73 - O-RING (P-18) HIT-873570.A8 873570	£1.67	£2.00
74 - SPRING D11.8 HIT-880409.A2 880409	£1.67	£2.00
75 - DAMPER HIT-877476.A3 877476	£1.67	£2.00
76 - FEED PISTON COVER HIT-880170.A3 880170	£1.67	£2.00
77 - RETAINING RING FOR D24 HOLE HIT-983748.A8 983748	£1.67	£2.00
78 - MAGAZINE BUSHING HIT-880177.A2 880177	£1.67	£2.00
79 - PROTECTOR (B) HIT-881850.A0 881850	£1.67	£2.00
80 - WARNING LABEL EXCEPT FOR H/V HIT-878183.A0 878183	-
81A - PIN D4X58 HIT-885541.A1 885541	-
82A - FEEDER SHAFT RING HIT-877826.A19 877826	£1.67	£2.00
83A - MAGAZINE HIT-886831.A2 886831	£15.42	£18.51
84A - MAGAZINE COVER HIT-885409.A1 885409	£15.60	£18.72
85A - HOLDER CAP HIT-885412.A1 885412	-
86A - RATCHET SPRING HIT-885543.A2 885543	-
87A - NAIL HOLDER HIT-885411.A1 885411	£5.23	£6.28
88A - ROLL PIN D2.5 HIT-885544.A1 885544	-
89A - HOLDER SHAFT HIT-885410.A1 885410	-
90A - SPRING HIT-885542.A1 885542	-
91 - WARNING LABEL EXCEPT FOR H/V HIT-884070.A2 884070	-
92 - WARNING LABEL (A) EXCEPT FOR H/V HIT-883513.A17 883513	-
93 - O-RING (P-4) HIT-874436.A8 874436	£1.67	£2.00
94 - GUIDE LOCK HIT-878103.A0 878103	£11.93	£14.32
95 - SPRING HIT-880446.A1 880446	£1.67	£2.00
96 - NAIL GUIDE HIT-881812.A0 881812	-
97 - NAIL STOPPER (A) HIT-881813.A0 881813	-
98 - SPRING HIT-881817.A0 881817	-
99 - NAIL STOPPER (B) HIT-881814.A0 881814	£3.82	£4.58
100 - SPRING HIT-880393.A0 880393	£1.67	£2.00
101 - NAIL GUIDE COVER HIT-881815.A2 881815	£5.87	£7.04
102 - COVER HIT-881816.A0 881816	£5.87	£7.04
103 - SLEEVE (B) HIT-878337.A5 878337	£2.98	£3.57
104 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A14 880413	£1.67	£2.00
105A - MAGAZINE ASS'Y INCLUD.81A-90A HIT-881820.A0 881820	£47.12	£56.54
501 - HEX. BAR WRENCH 5MM HIT-944459.A18 944459	£1.67	£2.00
502 - HEX. BAR WRENCH 4MM HIT-944458.A21 944458	£1.67	£2.00
503 - HEX. BAR WRENCH 3MM HIT-943277.A38 943277	£1.67	£2.00
504 - NOSE CAP (B) HIT-881093.A0 881093	-
505 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A18 877153	-
506 - PROTECTIVE GLASSES HIT-875769.A1 875769	-
*507 - CASE HIT-881849.A1 881849	-
*507 - CASE FOR H/V HIT-881881.A0 881881	-
601 - SEQUENTIAL TRIP MECHANISM SET HIT-881012.A3 881012	-
602 - GRIP TAPE HIT-880408.A0 880408	£10.98	£13.17
603A - TAPE (2 PCS.) HIT-888213.A28 888213	-

Attribute Name	Value
Brand	Hikoki
