Hitachi / Hikoki NV50AA Coil Nailer Spare Parts

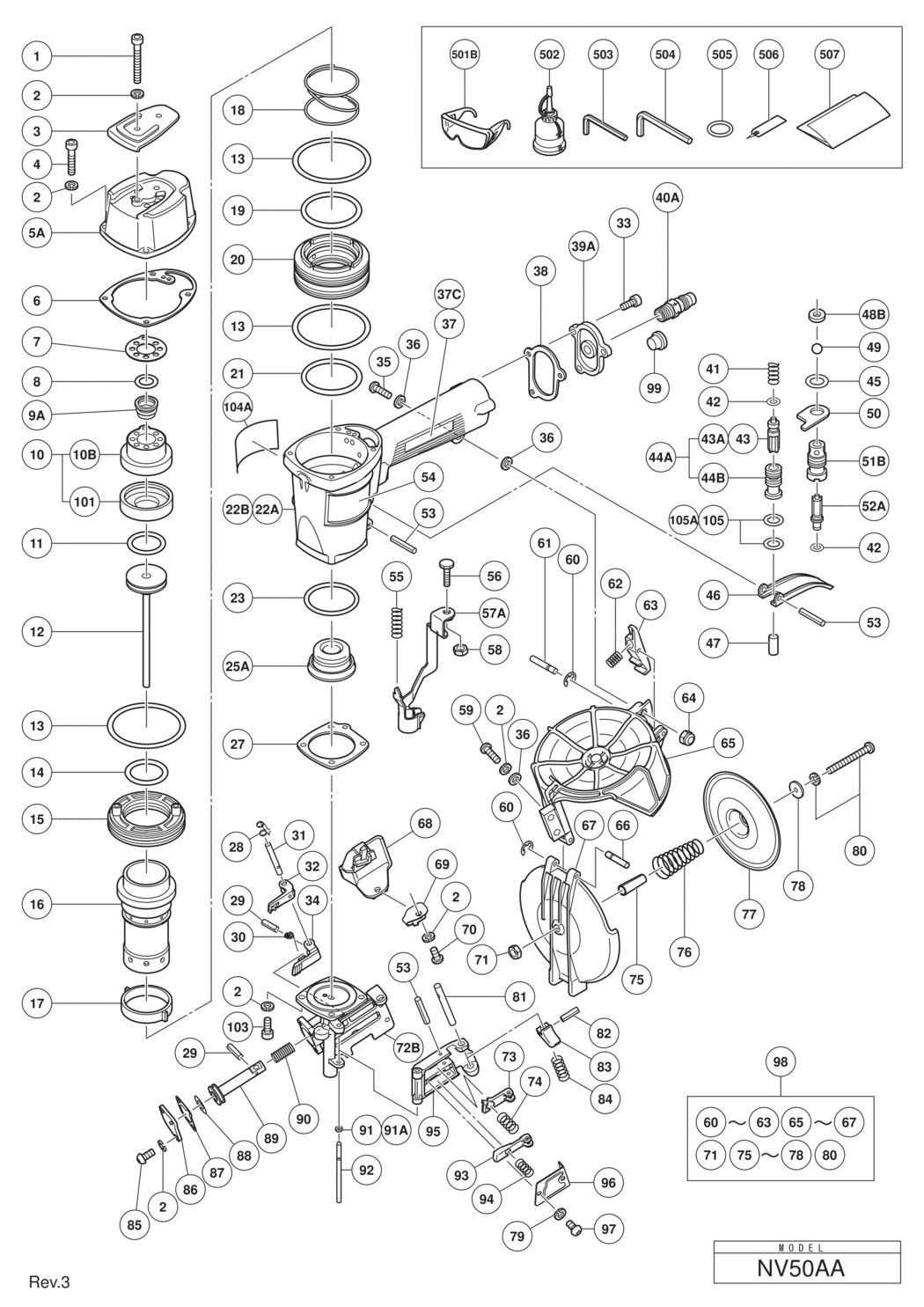

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV50AA Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A17 949662	£3.64	£4.37
2 - SPRING WASHER M5 (10 PCS.) HIT-949454.A0 949454	£1.67	£2.00
3 - TOP COVER HIT-876179.A0 876179	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A21 949757	£3.64	£4.37
*5A - EXHAUST COVER HIT-877917.A0 877917	-
*5A - EXHAUST COVER (B) FOR USA HIT-880275.A1 880275	£52.22	£62.67
6 - GASKET (B) HIT-876176.A0 876176	£1.67	£2.00
*6 - GASKET (F) FOR USA HIT-876712.A1 876712	£3.04	£3.65
7 - GASKET (C) HIT-876178.A0 876178	£1.67	£2.00
*7 - PACKING (G) FOR USA HIT-876713.A3 876713	£1.67	£2.00
8 - VALVE O-RING TILL 1.1987 HIT-872821.A2 872821	£3.19	£3.83
9A - EXHAUST VALVE HIT-878417.A1 878417	£6.12	£7.34
10 - HEAD CAP ASS'Y INCLUD.101 HIT-877129.A0 877129	-
10B - HEAD CAP FOR USA HIT-876711.A0 876711	£36.22	£43.46
11 - PISTON O-RING HIT-876174.A1 876174	£3.37	£4.04
12 - PISTON HIT-877127.A0 877127	-
13 - O-RING (S-65) HIT-876161.A0 876161	£3.19	£3.83
14 - CYLINDER O-RING (D) HIT-877126.A7 877126	£1.67	£2.00
15 - CYLINDER PLATE HIT-876168.A1 876168	£9.70	£11.64
16 - CYLINDER HIT-876632.A0 876632	-
17 - CYLINDER RING HIT-876167.A6 876167	£1.67	£2.00
18 - CYLINDER SPRING HIT-876172.A6 876172	£5.73	£6.88
19 - CYLINDER O-RING (A) HIT-877123.A0 877123	£1.67	£2.00
20 - CYLINDER GUIDE HIT-877122.A7 877122	£20.70	£24.84
21 - CYLINDER O-RING (B) HIT-877124.A8 877124	£1.67	£2.00
*22A - BODY HIT-877944.A0 877944	-
22B - BODY(B) HIT-000000.A5331 000000	-
23 - CYLINDER O-RING (C) HIT-877125.A0 877125	£1.67	£2.00
25A - PISTON BUMPER HIT-878359.A0 878359	-
27 - GASKET (A) HIT-876673.A0 876673	£1.67	£2.00
28 - MAIN FEEDER SPRING (A) HIT-876717.A0 876717	£8.22	£9.87
29 - ROLL PIN D2.5X10 (10 PCS.) HIT-949551.A0 949551	£1.67	£2.00
30 - SUB FEEDER SPRING HIT-876691.A0 876691	£3.73	£4.48
31 - FEEDER SHAFT HIT-876689.A0 876689	£3.44	£4.13
32 - MAIN FEEDER HIT-876688.A0 876688	-
33 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A4 949821	£3.28	£3.93
34 - SUB FEEDER HIT-876707.A0 876707	-
35 - MACHINE SCREW M5X22 (10 PCS.) HIT-949242.A2 949242	-
36 - WASHER HIT-876205.A6 876205	£1.67	£2.00
37 - BRAND LABEL TILL 7.1986 HIT-950565.A1 950565	£1.67	£2.00
37C - BRAND LABEL SINCE 8.1986 HIT-878182.A0 878182	-
38 - GASKET (D) HIT-877131.A4 877131	£1.67	£2.00
*39A - CAP HIT-878730.A0 878730	-
*39A - CAP FOR USA HIT-880036.A3 880036	£6.50	£7.80
40A - AIR PLUG PT 1/4 HIT-874782.A0 874782	-
41 - PLUNGER SPRING HIT-875643.A0 875643	£1.67	£2.00
42 - PLUNGER O-RING HIT-874820.A0 874820	£1.67	£2.00
43 - SAFETY PLUNGER (A) TILL 7.1986 HIT-876739.A1 876739	£9.45	£11.34
43A - PLUNGER (A) SINCE 8.1986 HIT-878122.A0 878122	£1.67	£2.00
44A - VALVE BUSHING ASS'Y INCLUD.43A HIT-876764.A1 876764	£22.41	£26.89
44B - VALVE BUSHING SINCE 8.1986 HIT-878266.A1 878266	£21.13	£25.36
45 - O-RING (S-12) HIT-875638.A1 875638	£1.67	£2.00
46 - TRIGGER HIT-876203.A4 876203	£1.67	£2.00
47 - SAFETY PLUNGER (B) HIT-875642.A1 875642	£8.34	£10.01
48B - VALVE PACKING HIT-888151.A5 888151	-
49 - URETHANE BALL (C) D7.14 HIT-875645.A0 875645	£3.70	£4.44
50 - VALVE PLATE HIT-875644.A8 875644	£1.67	£2.00
51B - TRIGGER VALVE BUSHING HIT-877335.A2 877335	£14.66	£17.59
52A - TRIGGER PLUNGER HIT-878121.A6 878121	£9.96	£11.95
53 - ROLL PIN D3X30 (10 PCS.) HIT-949866.A12 949866	£4.33	£5.20
54 - NAME PLATE HIT-000000.A5334 000000	-
55 - SAFETY BOLT HIT-875650.A7 875650	£1.67	£2.00
56 - SAFETY SPRING HIT-876676.A1 876676	£1.67	£2.00
56 - SPRING FOR EUROPE HIT-877943.A0 877943	£1.67	£2.00
57A - PUSHING LEVER (G) HIT-877941.A0 877941	-
58 - NUT M5 (10 PCS.) HIT-949555.A21 949555	£1.67	£2.00
59 - MACHINE SCREW M5X18 (10 PCS.) HIT-949240.A0 949240	-
60 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A36 872971	£1.67	£2.00
61 - STOPPER PIN HIT-877150.A2 877150	£3.44	£4.13
62 - STOPPER SPRING HIT-877149.A0 877149	£1.67	£2.00
63 - MAGAZINE STOPPER HIT-877151.A0 877151	-
64 - U-NUT M5 HIT-945255.A0 945255	£1.67	£2.00
65 - MAGAZINE HIT-877146.A0 877146	-
66 - HINGE PIN HIT-877152.A0 877152	£3.44	£4.13
67 - MAGAZINE COVER HIT-877147.A0 877147	-
68 - GUARD HIT-877138.A0 877138	-
69 - GUARD WASHER HIT-877145.A0 877145	-
70 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A14 949237	£1.67	£2.00
71 - NYLON NUT M4 HIT-876465.A6 876465	£1.67	£2.00
72B - NOSE ASS'Y INCLUD.92 HIT-877946.A0 877946	-
73 - MAIN NAIL STOPPER HIT-877143.A0 877143	-
74 - MAIN STOPPER SPRING HIT-876681.A0 876681	£1.67	£2.00
75 - SLEEVE HIT-877148.A0 877148	-
76 - HOLDER SPRING HIT-877141.A0 877141	-
77 - NAIL HOLDER HIT-877140.A0 877140	-
78 - THRUST WASHER HIT-875249.A5 875249	£1.67	£2.00
79 - SPRING WASHER M4 (10 PCS.) HIT-949453.A1 949453	£1.67	£2.00
80 - MACHINE SCREW (W/SP. WASHER) M4X40 HIT-986120.A0 986120	-
81 - LOCK SHAFT HIT-876682.A1 876682	-
82 - ROLL PIN D3X10 (10 PCS.) HIT-949776.A0 949776	£2.98	£3.57
83 - GUIDE LOCK HIT-877374.A0 877374	-
84 - SPRING HIT-877372.A6 877372	£1.67	£2.00
85 - HEX. SOCKET SET SCREW M5X10 HIT-876705.A0 876705	-
86 - FEED PISTON COVER HIT-877136.A0 877136	-
87 - GASKET (E) HIT-877137.A0 877137	-
88 - O-RING (P-16) HIT-873095.A9 873095	£1.67	£2.00
89 - FEED PISTON HIT-876692.A0 876692	-
90 - FEED SPRING HIT-877144.A0 877144	-
91 - SPLIT PIN D2X15 (10 PCS.) (TILL 10.1993 EXCEPT FOR USA HIT-949534.A0 949534	-
91A - FEEDER SHAFT RING FOR USA HIT-877826.A20 877826	£1.67	£2.00
92 - NAIL GUIDE SHAFT (A) INCLUD.91 (FEEDER SHAFT RING) HIT-876716.A0 876716	-
93 - SUB NAIL STOPPER HIT-876679.A0 876679	-
94 - SUB STOPPER SPRING HIT-876685.A0 876685	-
95 - NAIL GUIDE HIT-877134.A0 877134	-
96 - NAIL GUIDE COVER HIT-877135.A0 877135	-
97 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A13 949214	£1.67	£2.00
98 - MAGAZINE ASS'Y INCLUD.60-63 HIT-877139.A0 877139	-
99 - DUST CAP FOR USA HIT-872035.A2 872035	-
101 - HEAD CAP RUBBER HIT-877942.A0 877942	£11.07	£13.28
103 - NYLOCK HEX. SOCKET HD. BOLT M5X16 HIT-878181.A8 878181	£1.67	£2.00
104A - WARNING LABEL HIT-884070.A3 884070	-
105 - O-RING (S-12) TILL 9.2010 HIT-875638.A0 875638	£1.67	£2.00
105A - O-RING (I.D 10.7) SINCE 10.2010 HIT-884112.A4 884112	-
501B - PROTECTIVE GLASSES HIT-875769.A0 875769	-
502 - PNEUMATIC TOOL LUBRICANT (30CC) EXCEPT FOR USA HIT-877153.A16 877153	-
503 - HEX. BAR WRENCH 3MM FOR USA.EUROPE HIT-943277.A36 943277	£1.67	£2.00
504 - HEX. BAR WRENCH 4MM FOR USA HIT-944458.A19 944458	£1.67	£2.00
505 - VALVE O-RING FOR USA HIT-872821.A1 872821	£3.19	£3.83
506 - CAUTION TAG FOR USA HIT-882413.A4 882413	-
507 - LEAFLET FOR USA HIT-882414.A1 882414	-
604 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A0 876212	-
605 - DRIVE CONTROLLER HIT-876720.A0 876720	-
606 - HEX. BAR WRENCH 4MM HIT-944458.A18 944458	£1.67	£2.00
607 - HEX. BAR WRENCH 3MM HIT-943277.A35 943277	£1.67	£2.00
608A - POWER SET INCLUD.609-614 HIT-877908.A1 877908	-
609 - HEX. SOCKET HD. BOLT M5X65 (10 PCS.) HIT-949827.A0 949827	-
610 - HEX. SOCKET HD. BOLT M5X60 (10 PCS.) HIT-949826.A1 949826	-
611 - UPPER COVER HIT-877909.A0 877909	-
612 - GASKET (H) HIT-877911.A0 877911	£1.67	£2.00
613 - GASKET (J) W/4MM HOLE FOR ROLL TYPE NAILER HIT-877912.A1 877912	£1.67	£2.00
614 - EXHAUST PIECE HIT-877910.A1 877910	-
615 - SEQUENTIAL TRIP MECHANISM KIT HIT-876762.A0 876762	-
616 - GASKET (J) W/O 4MM HOLE FOR NON-ROLL TYPE NAILER HIT-877915.A1 877915	£1.67	£2.00
617 - BODY (B) ASS'Y INCLUD.618 HIT-882950.A0 882950	£139.38	£167.26
618 - GRIP TAPE (A) HIT-881768.A9 881768	-
620 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A15 317918	£37.06	£44.47
