Hitachi / Hikoki NV45AB3 Coil Nailer Spare Parts

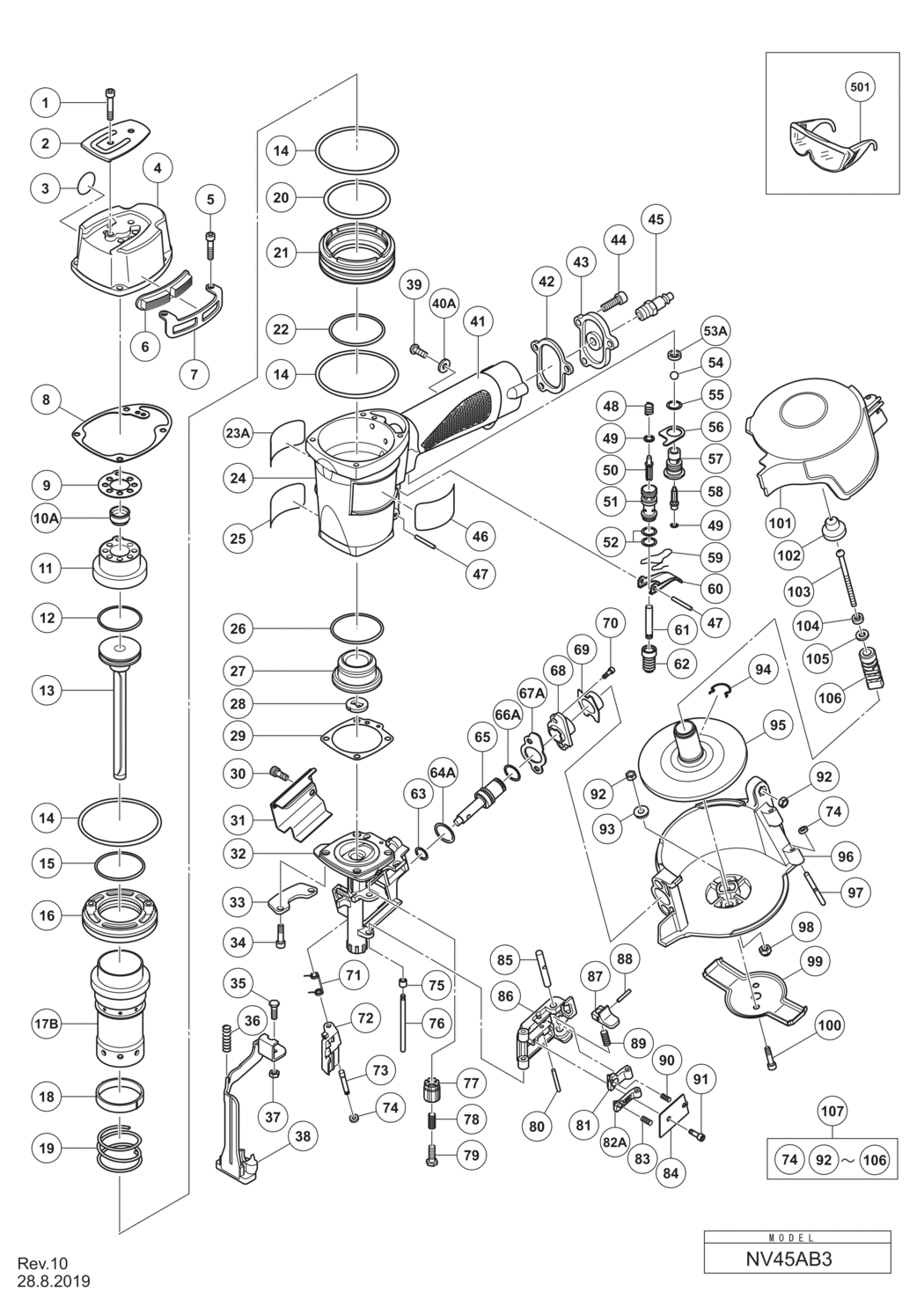

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV45AB3 Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A15 949662	£3.64	£4.37
2 - TOP COVER HIT-876179.A3 876179	£1.67	£2.00
3 - WARNING LABEL (A) HIT-883513.A10 883513	-
4 - EXHAUST COVER (B) HIT-888006.A1 888006	-
5 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A18 949757	£3.64	£4.37
6 - PROTECTOR HIT-883891.A0 883891	-
7 - BODY GUARD HIT-883890.A1 883890	-
8 - GASKET (F) HIT-883892.A1 883892	-
9 - PACKING (G) HIT-876713.A2 876713	£1.67	£2.00
10A - EXHAUST VALVE HIT-890209.A2 890209	-
11 - HEAD CAP HIT-876711.A2 876711	£36.22	£43.46
12 - PISTON O-RING HIT-876174.A5 876174	£3.37	£4.04
13 - PISTON (H) HIT-878156.A0 878156	£180.82	£216.99
14 - O-RING (I.D. 64.5) HIT-885793.A4 885793	-
15 - CYLINDER O-RING (D) HIT-877126.A4 877126	£1.67	£2.00
16 - CYLINDER PLATE HIT-876168.A5 876168	£9.70	£11.64
17B - CYLINDER HIT-889071.A0 889071	-
18 - CYLINDER RING HIT-876167.A2 876167	£1.67	£2.00
19 - CYLINDER SPRING HIT-876172.A2 876172	£5.73	£6.88
20 - CYLINDER O-RING (A) HIT-877123.A3 877123	£1.67	£2.00
21 - CYLINDER GUIDE HIT-877122.A4 877122	£20.70	£24.84
22 - CYLINDER O-RING (B) HIT-877124.A4 877124	£1.67	£2.00
23A - WARNING LABEL HIT-888957.A4 888957	-
24 - BODY ASS'Y INCLUD.41 HIT-883889.A0 883889	-
25 - WARNING LABEL HIT-878183.A8 878183	-
26 - CYLINDER O-RING (C) HIT-877125.A2 877125	£1.67	£2.00
27 - PISTON BUMPER HIT-878179.A2 878179	£19.61	£23.53
28 - BUMPER SHEET HIT-877993.A0 877993	£3.62	£4.35
29 - GASKET (A) HIT-883881.A0 883881	£1.67	£2.00
30 - HEX. SOCKET HD. BOLT M5X8 (10 PCS.) HIT-949818.A2 949818	-
31 - GUARD HIT-878151.A1 878151	-
32 - NOSE HIT-888109.A0 888109	-
33 - NOSE GUARD HIT-878173.A1 878173	-
34 - NYLOCK HEX. SOCKET HD. BOLT M5X16 HIT-878181.A1 878181	£1.67	£2.00
35 - SAFETY BOLT HIT-875650.A2 875650	£1.67	£2.00
36 - SPRING HIT-878178.A1 878178	£1.67	£2.00
37 - NUT M5 (10 PCS.) HIT-949555.A9 949555	£1.67	£2.00
38 - PUSHING LEVER HIT-883888.A1 883888	-
39 - MACHINE SCREW M5X22 (10 PCS.) HIT-949242.A1 949242	-
40A - WASHER HIT-889024.A1 889024	-
41 - GRIP RUBBER HIT-000000.A1193 000000	-
42 - GASKET (D) HIT-886719.A1 886719	-
43 - CAP HIT-880036.A2 880036	£6.50	£7.80
44 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A29 949821	£3.28	£3.93
45 - AIR PLUG NPT 3/8 HIT-887863.A8 887863	-
46 - NAME PLATE HIT-000000.A1195 000000	-
47 - ROLL PIN D3X30 (10 PCS.) HIT-949866.A1 949866	£4.33	£5.20
48 - PLUNGER SPRING HIT-886725.A4 886725	-
49 - PLUNGER O-RING HIT-874820.A8 874820	£1.67	£2.00
50 - PLUNGER (A) HIT-878155.A1 878155	£28.52	£34.23
51 - VALVE BUSHING (A) HIT-888114.A0 888114	-
52 - O-RING (I.D 10.7) HIT-884112.A8 884112	-
53A - VALVE PACKING HIT-888151.A9 888151	-
54 - URETHANE BALL (C) D7.14 HIT-875645.A8 875645	£3.70	£4.44
55 - O-RING (S-12) HIT-875638.A26 875638	£1.67	£2.00
56 - VALVE PLATE HIT-875644.A2 875644	£1.67	£2.00
57 - TRIGGER VALVE BUSHING HIT-877335.A7 877335	£14.66	£17.59
58 - TRIGGER PLUNGER HIT-878121.A2 878121	£9.96	£11.95
59 - TRIGGER SPRING (A) HIT-888115.A0 888115	-
60 - TRIGGER HIT-876203.A10 876203	£1.67	£2.00
61 - PLUNGER (B) HIT-878171.A0 878171	-
62 - VALVE RUBBER COVER HIT-878170.A1 878170	£1.67	£2.00
63 - O-RING (P-9) HIT-872645.A22 872645	£1.67	£2.00
64A - FEED PISTON O-RING (I.D. 14) HIT-889504.A1 889504	-
65 - FEED PISTON HIT-878152.A1 878152	£25.12	£30.14
66A - FEED PISTON O-RING (I.D.11) HIT-889505.A0 889505	-
67A - PACKING (E) HIT-890159.A1 890159	-
68 - FEED PISTON COVER HIT-877766.A0 877766	£33.88	£40.65
69 - MAGAZINE BUSHING HIT-877479.A1 877479	£1.67	£2.00
70 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A14 949819	£6.66	£7.99
71 - FEEDER SPRING HIT-877761.A1 877761	£1.67	£2.00
72 - FEEDER (A) HIT-883901.A0 883901	£33.84	£40.61
73 - FEEDER SHAFT HIT-877825.A0 877825	£9.21	£11.05
74 - FEEDER SHAFT RING HIT-877826.A12 877826	£1.67	£2.00
75 - SHAFT RING HIT-883885.A0 883885	-
76 - NAIL GUIDE SHAFT HIT-883884.A1 883884	-
77 - ADJUSTER HIT-883882.A1 883882	-
78 - ADJUSTER SPRING HIT-883883.A0 883883	-
79 - BOLT HIT-958805.A1 958805	-
80 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A9 949865	£3.28	£3.93
81 - MAIN NAIL STOPPER (A) HIT-886060.A0 886060	-
82A - NAIL STOPPER (A) HIT-888178.A1 888178	-
83 - SUB STOPPER SPRING HIT-877468.A1 877468	£1.67	£2.00
84 - NAIL GUIDE COVER HIT-877469.A3 877469	£1.67	£2.00
85 - LOCK SHAFT HIT-877820.A1 877820	-
86 - NAIL GUIDE HIT-888111.A0 888111	-
87 - GUIDE LOCK (A) HIT-326774.A1 326774	-
88 - ROLL PIN D3X10 (10 PCS.) HIT-949776.A6 949776	£2.98	£3.57
89 - SPRING HIT-877372.A0 877372	£1.67	£2.00
90 - MAIN STOPPER SPRING HIT-876681.A1 876681	£1.67	£2.00
91 - HEX. SOCKET HD. BOLT M4X6 (10 PCS.) HIT-949766.A1 949766	£2.98	£3.57
92 - U-NUT M5 HIT-945255.A2 945255	£1.67	£2.00
93 - SLEEVE HIT-878164.A1 878164	£15.19	£18.23
94 - RATCHET SPRING HIT-880398.A4 880398	£5.87	£7.04
95 - NAIL HOLDER HIT-883896.A1 883896	£7.57	£9.08
96 - MAGAZINE HIT-888112.A0 888112	-
97 - PIN HIT-883111.A7 883111	-
98 - NYLON NUT M4 HIT-876465.A9 876465	£1.67	£2.00
99 - MAGAZINE GUARD HIT-883898.A1 883898	-
100 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A9 949665	£3.15	£3.78
101 - MAGAZINE COVER HIT-888113.A0 888113	-
102 - HOLDER CAP HIT-883900.A1 883900	-
103 - MACHINE SCREW M4X50 (10 PCS.) HIT-949230.A1 949230	£1.67	£2.00
104 - SPRING WASHER M4 (10 PCS.) HIT-949453.A77 949453	£1.67	£2.00
105 - WASHER M4 (10 PCS.) HIT-949423.A8 949423	£1.67	£2.00
106 - HOLDER SHAFT HIT-883897.A0 883897	-
107 - MAGAZINE ASS'Y INCLUD.74 HIT-888130.A0 888130	-
501 - PROTECTIVE GLASSES HIT-875769.A93 875769	-
601 - GRIP TAPE (A) HIT-881768.A16 881768	-
603 - HANGER PARTS SET HIT-888099.A1 888099	-
604 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A3 877153	-
605 - HEX. BAR WRENCH 4MM HIT-944458.A116 944458	£1.67	£2.00
