Hitachi / Hikoki NV45AB2 1-3/4inch Coil Nailer Spare Parts

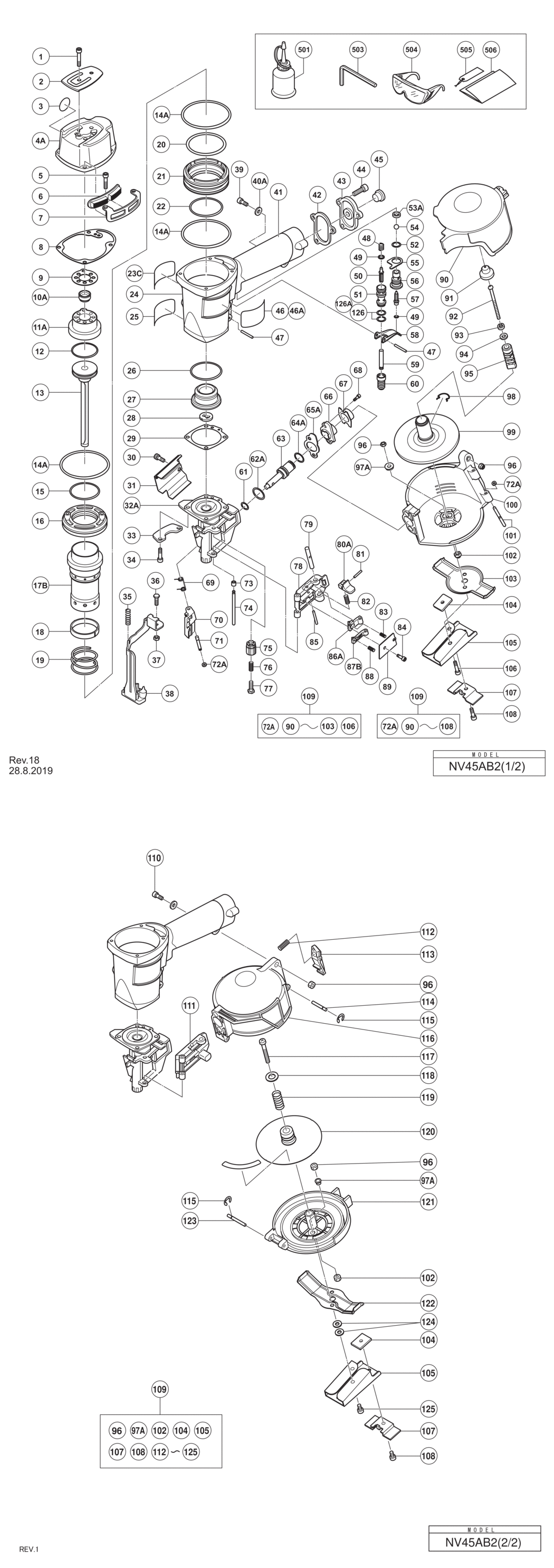

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV45AB2 1-3/4inch Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A14 949662	£3.64	£4.37
2 - TOP COVER HIT-876179.A2 876179	£1.67	£2.00
3 - WARNING LABEL (A) FOR EUROPE HIT-883513.A9 883513	-
4A - EXHAUST COVER (B) HIT-888006.A0 888006	-
5 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A19 949757	£3.64	£4.37
6 - PROTECTOR HIT-883891.A1 883891	-
7 - BODY GUARD HIT-883890.A0 883890	-
8 - GASKET (F) HIT-883892.A0 883892	-
9 - PACKING (G) HIT-876713.A1 876713	£1.67	£2.00
10A - EXHAUST VALVE HIT-890209.A3 890209	-
11A - HEAD CAP HIT-876711.A3 876711	£36.22	£43.46
12 - PISTON O-RING HIT-876174.A6 876174	£3.37	£4.04
13 - PISTON (H) HIT-878156.A1 878156	£180.82	£216.99
14A - O-RING (I.D. 64.5) HIT-885793.A5 885793	-
15 - CYLINDER O-RING (D) HIT-877126.A5 877126	£1.67	£2.00
16 - CYLINDER PLATE HIT-876168.A6 876168	£9.70	£11.64
17B - CYLINDER HIT-889071.A1 889071	-
18 - CYLINDER RING HIT-876167.A1 876167	£1.67	£2.00
19 - CYLINDER SPRING HIT-876172.A1 876172	£5.73	£6.88
20 - CYLINDER O-RING (A) HIT-877123.A2 877123	£1.67	£2.00
21 - CYLINDER GUIDE HIT-877122.A5 877122	£20.70	£24.84
22 - CYLINDER O-RING (B) HIT-877124.A5 877124	£1.67	£2.00
23C - WARNING LABEL HIT-888957.A5 888957	-
24 - BODY ASS'Y INCLUD.41 HIT-883889.A1 883889	-
25 - WARNING LABEL FOR EUROPE HIT-878183.A9 878183	-
26 - CYLINDER O-RING (C) HIT-877125.A3 877125	£1.67	£2.00
27 - PISTON BUMPER HIT-878179.A1 878179	£19.61	£23.53
28 - BUMPER SHEET HIT-877993.A1 877993	£3.62	£4.35
29 - GASKET (A) HIT-883881.A1 883881	£1.67	£2.00
30 - HEX. SOCKET HD. BOLT M5X8 (10 PCS.) HIT-949818.A1 949818	-
31 - GUARD HIT-878151.A0 878151	-
32A - NOSE HIT-888109.A1 888109	-
33 - NOSE GUARD HIT-878173.A0 878173	-
34 - NYLOCK HEX. SOCKET HD. BOLT M5X16 HIT-878181.A0 878181	£1.67	£2.00
35 - SPRING HIT-878178.A0 878178	£1.67	£2.00
36 - SAFETY BOLT HIT-875650.A0 875650	£1.67	£2.00
37 - NUT M5 (10 PCS.) HIT-949555.A7 949555	£1.67	£2.00
38 - PUSHING LEVER HIT-883888.A0 883888	-
39 - MACHINE SCREW M5X22 (10 PCS.) HIT-949242.A0 949242	-
40A - WASHER HIT-889024.A0 889024	-
41 - GRIP RUBBER HIT-000000.A1189 000000	-
42 - GASKET (D) HIT-877131.A2 877131	£1.67	£2.00
43 - CAP HIT-880036.A0 880036	£6.50	£7.80
44 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A31 949821	£3.28	£3.93
45 - DUST CAP HIT-872035.A8 872035	-
46 - NAME PLATE HIT-321949.A0 321949	-
46A - NAME PLATE FOR MODEL (S) HIT-888740.A0 888740	-
47 - ROLL PIN D3X30 (10 PCS.) HIT-949866.A0 949866	£4.33	£5.20
48 - PLUNGER SPRING HIT-875643.A3 875643	£1.67	£2.00
49 - PLUNGER O-RING HIT-874820.A6 874820	£1.67	£2.00
50 - PLUNGER (A) HIT-878155.A0 878155	£28.52	£34.23
51 - VALVE BUSHING HIT-878166.A0 878166	-
52 - O-RING (S-12) HIT-875638.A24 875638	£1.67	£2.00
53A - VALVE PACKING HIT-888151.A10 888151	-
54 - URETHANE BALL (C) D7.14 HIT-875645.A10 875645	£3.70	£4.44
55 - VALVE PLATE HIT-875644.A0 875644	£1.67	£2.00
56 - TRIGGER VALVE BUSHING HIT-877335.A8 877335	£14.66	£17.59
57 - TRIGGER PLUNGER HIT-878121.A0 878121	£9.96	£11.95
58 - TRIGGER HIT-876203.A8 876203	£1.67	£2.00
59 - PLUNGER (B) HIT-878171.A1 878171	-
60 - VALVE RUBBER COVER HIT-878170.A0 878170	£1.67	£2.00
61 - O-RING (P-9) HIT-872645.A20 872645	£1.67	£2.00
62A - FEED PISTON O-RING (I.D. 14) HIT-889504.A0 889504	-
63 - FEED PISTON HIT-878152.A0 878152	£25.12	£30.14
64A - FEED PISTON O-RING (I.D.11) HIT-889505.A1 889505	-
65A - PACKING (E) HIT-890159.A0 890159	-
66 - FEED PISTON COVER HIT-877766.A1 877766	£33.88	£40.65
67 - MAGAZINE BUSHING HIT-877479.A2 877479	£1.67	£2.00
68 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A12 949819	£6.66	£7.99
69 - FEEDER SPRING HIT-877761.A0 877761	£1.67	£2.00
70 - FEEDER (A) HIT-883901.A1 883901	£33.84	£40.61
71 - FEEDER SHAFT HIT-877825.A1 877825	£9.21	£11.05
72A - FEEDER SHAFT RING HIT-877826.A11 877826	£1.67	£2.00
73 - SHAFT RING HIT-883885.A1 883885	-
74 - NAIL GUIDE SHAFT HIT-883884.A0 883884	-
75 - ADJUSTER HIT-883882.A0 883882	-
76 - ADJUSTER SPRING HIT-883883.A1 883883	-
77 - BOLT HIT-958805.A0 958805	-
78 - NAIL GUIDE HIT-883887.A0 883887	-
79 - LOCK SHAFT HIT-877820.A0 877820	-
80A - GUIDE LOCK (A) HIT-326774.A0 326774	-
81 - ROLL PIN D3X10 (10 PCS.) HIT-949776.A5 949776	£2.98	£3.57
82 - SPRING HIT-877372.A2 877372	£1.67	£2.00
83 - MAIN STOPPER SPRING HIT-876681.A3 876681	£1.67	£2.00
84 - HEX. SOCKET HD. BOLT M4X6 (10 PCS.) HIT-949766.A2 949766	£2.98	£3.57
85 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A10 949865	£3.28	£3.93
86A - MAIN NAIL STOPPER (A) HIT-886060.A1 886060	-
87B - NAIL STOPPER (A) HIT-888178.A0 888178	-
88 - SUB STOPPER SPRING HIT-877468.A2 877468	£1.67	£2.00
89 - NAIL GUIDE COVER HIT-877469.A2 877469	£1.67	£2.00
90 - MAGAZINE COVER HIT-883899.A0 883899	-
91 - HOLDER CAP HIT-883900.A0 883900	-
92 - MACHINE SCREW M4X50 (10 PCS.) HIT-949230.A0 949230	£1.67	£2.00
93 - SPRING WASHER M4 (10 PCS.) HIT-949453.A76 949453	£1.67	£2.00
94 - WASHER M4 (10 PCS.) HIT-949423.A9 949423	£1.67	£2.00
95 - HOLDER SHAFT HIT-883897.A1 883897	-
96 - U-NUT M5 HIT-945255.A1 945255	£1.67	£2.00
97A - SLEEVE HIT-878164.A0 878164	£15.19	£18.23
98 - RATCHET SPRING HIT-880398.A3 880398	£5.87	£7.04
99 - NAIL HOLDER HIT-883896.A0 883896	£7.57	£9.08
100 - MAGAZINE HIT-883895.A0 883895	-
101 - PIN HIT-883111.A8 883111	-
102 - NYLON NUT M4 HIT-876465.A7 876465	£1.67	£2.00
103 - MAGAZINE GUARD HIT-883898.A0 883898	-
104 - PLATE NUT FOR USA HIT-878213.A0 878213	-
105 - GUIDE BASE FOR USA HIT-878176.A0 878176	-
106 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A10 949665	£3.15	£3.78
107 - SHINGLE GUIDE FOR USA HIT-878175.A0 878175	-
108 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) FOR USA HIT-949819.A11 949819	£6.66	£7.99
*109 - MAGAZINE ASS'Y INCLUD.72 HIT-883893.A0 883893	-
*109 - MAGAZINE ASS'Y INCLUD.72 HIT-883894.A0 883894	-
*109 - MAGAZINE ASS'Y INCLUD.96 HIT-878174.A0 878174	-
*109 - MAGAZINE ASS'Y 112-125 FOR USA(BOTTOM LOADING MAGAZINE) HIT-878174.A1 878174	-
110 - MACHINE SCREW M5X20 (10 PCS.) FOR USA (BOTTOM LOADING MAGAZINE) HIT-949241.A13 949241	£1.67	£2.00
111 - NAIL GUIDE FOR USA (BOTTOM LOADING MAGAZINE) HIT-878153.A0 878153	-
112 - STOPPER SPRING FOR USA (BOTTOM LOADING MAGAZINE) HIT-877149.A2 877149	£1.67	£2.00
113 - MAGAZINE STOPPER FOR USA (BOTTOM LOADING MAGAZINE) HIT-880146.A0 880146	£1.67	£2.00
114 - STOPPER PIN FOR USA (BOTTOM LOADING MAGAZINE) HIT-877150.A0 877150	£3.44	£4.13
115 - RETAINING RING (E-TYPE) FOR D3 SHAFT FOR USA (BOTTOM LOADING MAGAZINE) HIT-872971.A10 872971	£1.67	£2.00
116 - MAGAZINE FOR USA (BOTTOM LOADING MAGAZINE) HIT-878158.A0 878158	-
117 - MACHINE SCREW M4X40 (10 PCS.) FOR USA (BOTTOM LOADING MAGAZINE) HIT-949228.A1 949228	£1.67	£2.00
118 - WASHER FOR USA (BOTTOM LOADING MAGAZINE) HIT-875246.A1 875246	£1.67	£2.00
119 - HOLDER SPRING FOR USA (BOTTOM LOADING MAGAZINE) HIT-877894.A1 877894	£1.67	£2.00
120 - NAIL HOLDER FOR USA (BOTTOM LOADING MAGAZINE) HIT-878159.A0 878159	-
121 - MAGAZINE COVER FOR USA (BOTTOM LOADING MAGAZINE) HIT-878161.A0 878161	-
122 - MAGAZINE GUARD FOR USA (BOTTOM LOADING MAGAZINE) HIT-878163.A0 878163	-
123 - HINGE PIN FOR USA (BOTTOM LOADING MAGAZINE) HIT-877152.A2 877152	£3.44	£4.13
124 - WASHER M5 (10 PCS.) FOR USA (BOTTOM LOADING MAGAZINE) HIT-949424.A24 949424	£1.67	£2.00
125 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) FOR USA (BOTTOM LOADING MAGAZINE) HIT-949821.A32 949821	£3.28	£3.93
126 - O-RING (S-12) TILL 4.2011 HIT-875638.A23 875638	£1.67	£2.00
126A - O-RING (I.D 10.7) SINCE 5.2011 HIT-884112.A9 884112	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) FOR EUROPE HIT-877153.A1 877153	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A118 944458	£1.67	£2.00
504 - PROTECTIVE GLASSES HIT-875769.A95 875769	-
505 - CAUTION TAG FOR USA HIT-878188.A0 878188	-
506 - LEAFLET FOR USA HIT-882414.A4 882414	-
601 - SEQUENTIAL TRIP MECHANISM SET HIT-878226.A0 878226	-
602 - GRIP TAPE (A) HIT-881768.A18 881768	-
603A - TAPE (2 PCS.) HIT-888213.A6 888213	-
604 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A2 317918	£37.06	£44.47
605 - HANGER PARTS SET FOR EUROPE HIT-888099.A0 888099	-
