Hitachi / Hikoki NV38AB2 Coil Nailer Spare Parts

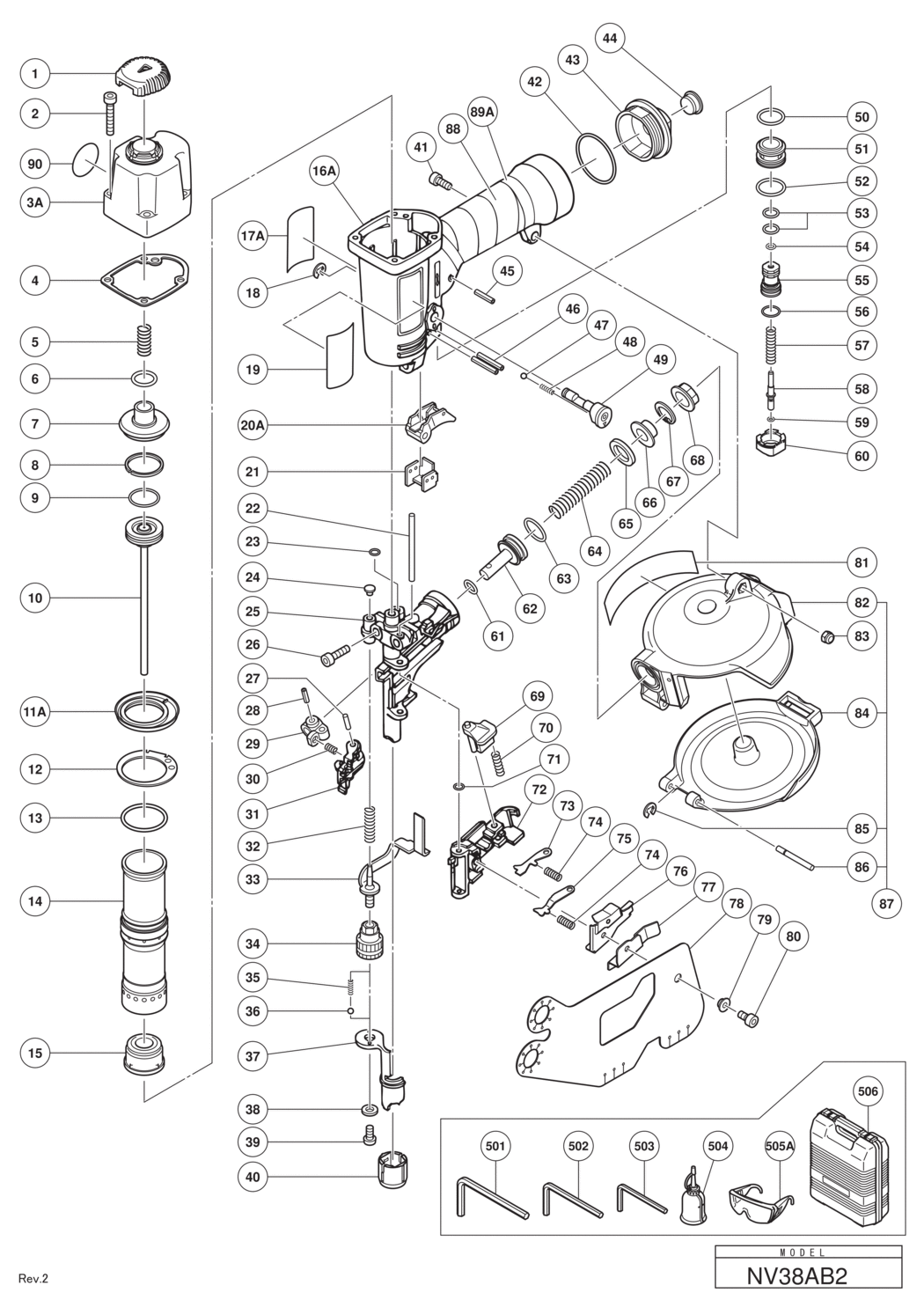

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV38AB2 Coil Nailer

	Ex VAT	Inc VAT
1 - TOP COVER HIT-880191.A1 880191	-
2 - HEX. SOCKET HD. BOLT M5X28 HIT-878115.A0 878115	-
3A - EXHAUST COVER HIT-880200.A0 880200	-
4 - GASKET (A) HIT-880196.A0 880196	£1.67	£2.00
5 - HEAD VALVE SPRING HIT-880190.A0 880190	-
6 - HEAD VALVE O-RING HIT-878600.A0 878600	£1.67	£2.00
7 - HEAD VALVE (A) HIT-880410.A4 880410	£12.78	£15.33
8 - PISTON RING HIT-878596.A1 878596	£12.78	£15.33
9 - PISTON O-RING HIT-880195.A1 880195	£1.67	£2.00
10 - PISTON HIT-880188.A0 880188	£89.94	£107.93
11A - CYLINDER PACKING HIT-881103.A1 881103	£3.26	£3.91
12 - CYLINDER WASHER (A) HIT-880187.A0 880187	£3.85	£4.62
13 - O-RING (P-32) HIT-986374.A5 986374	£1.67	£2.00
14 - CYLINDER HIT-881124.A0 881124	-
15 - PISTON BUMPER HIT-880185.A0 880185	£11.75	£14.10
16A - BODY ASS'Y INCLUD.88 HIT-881127.A0 881127	-
17A - WARNING LABEL HIT-881128.A0 881128	-
18 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A15 955479	£1.67	£2.00
19 - NAME PLATE HIT-000000.A1186 000000	-
20A - TRIGGER (A) HIT-880674.A0 880674	£9.06	£10.87
21 - PUSHING LEVER GUIDE HIT-880194.A0 880194	-
22 - NAIL GUIDE SHAFT HIT-880161.A0 880161	£8.82	£10.58
23 - O-RING (1AP-3) HIT-873093.A14 873093	£1.67	£2.00
24 - ADJUSTER STOPPER HIT-880176.A1 880176	-
25 - NOSE HIT-881120.A0 881120	£217.65	£261.18
26 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A6 949660	£3.97	£4.76
27 - NEEDLE ROLLER HIT-983545.A5 983545	£1.67	£2.00
28 - ROLL PIN D4X14 (10 PCS.) HIT-949770.A0 949770	£3.58	£4.29
29 - FEEDER ARM HIT-878132.A0 878132	-
30 - FEEDER SPRING HIT-878340.A3 878340	£1.67	£2.00
31 - FEEDER HIT-880167.A0 880167	£27.88	£33.45
32 - PUSHING LEVER SPRING HIT-880204.A0 880204	-
33 - PUSHING LEVER (B) HIT-880171.A1 880171	£37.11	£44.53
34 - ADJUSTER (B) HIT-880383.A1 880383	£12.22	£14.67
35 - ADJUSTER SPRING HIT-880175.A0 880175	£1.67	£2.00
36 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A16 959148	£1.67	£2.00
37 - PUSHING LEVER (A) HIT-881090.A0 881090	£24.68	£29.62
38 - WASHER HIT-880081.A4 880081	-
39 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A7 949657	-
40 - NOSE CAP (A) HIT-881092.A0 881092	-
41 - MACHINE SCREW M5X20 (BLACK) HIT-302196.A2 302196	£1.67	£2.00
42 - O-RING (I.D 37.2) HIT-880183.A12 880183	£1.67	£2.00
43 - CAP HIT-880379.A5 880379	£28.55	£34.26
44 - DUST CAP HIT-872035.A9 872035	-
45 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A18 949518	£1.67	£2.00
46 - ROLL PIN D3X25 (10 PCS.) HIT-949539.A14 949539	£3.28	£3.93
47 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A24 959155	£1.67	£2.00
48 - SPRING (C) HIT-982454.A27 982454	£1.67	£2.00
49 - CHANGE KNOB (B) HIT-880086.A1 880086	-
50 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A0 877699	£1.67	£2.00
51 - VALVE BUSHING (B) HIT-878881.A10 878881	£28.02	£33.63
52 - O-RING (S-18) HIT-878885.A43 878885	£1.67	£2.00
53 - O-RING (I.D 8.8) HIT-878925.A4 878925	£1.67	£2.00
54 - O-RING (S-4) HIT-981317.A17 981317	£1.67	£2.00
55 - VALVE PISTON (B) HIT-880672.A0 880672	£25.41	£30.49
56 - O-RING (I.D 11) HIT-878887.A0 878887	£1.67	£2.00
57 - PLUNGER SPRING HIT-878884.A0 878884	£1.67	£2.00
58 - PLUNGER (A) HIT-880673.A8 880673	£12.74	£15.29
59 - O-RING (I.D. 1.8) HIT-878888.A26 878888	£1.67	£2.00
60 - VALVE BUSHING (A) HIT-880671.A8 880671	£19.08	£22.89
61 - O-RING (P-9) HIT-872645.A19 872645	£1.67	£2.00
62 - FEED PISTON HIT-880168.A0 880168	£20.08	£24.09
63 - O-RING (P-18) HIT-873570.A20 873570	£1.67	£2.00
64 - FEED SPRING HIT-880169.A0 880169	-
65 - DAMPER HIT-877476.A1 877476	£1.67	£2.00
66 - FEED PISTON COVER HIT-880170.A0 880170	£1.67	£2.00
67 - RETAINING RING FOR D24 HOLE HIT-983748.A1 983748	£1.67	£2.00
68 - MAGAZINE BUSHING HIT-880177.A0 880177	£1.67	£2.00
69 - GUIDE LOCK HIT-878103.A3 878103	£11.93	£14.32
70 - SPRING HIT-880446.A12 880446	£1.67	£2.00
71 - O-RING (P-4) HIT-874436.A20 874436	£1.67	£2.00
72 - NAIL GUIDE HIT-880162.A0 880162	£61.98	£74.37
73 - NAIL STOPPER (A) HIT-880163.A0 880163	£1.67	£2.00
74 - STOPPER SPRING HIT-878575.A0 878575	£1.67	£2.00
75 - NAIL STOPPER (B) HIT-880164.A0 880164	£1.67	£2.00
76 - NAIL GUIDE COVER HIT-880165.A0 880165	-
77 - NAIL GUIDE COVER (B) HIT-880201.A0 880201	-
78 - COVER HIT-880166.A0 880166	-
79 - SLEEVE (B) HIT-878337.A4 878337	£2.98	£3.57
80 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A1 880413	£1.67	£2.00
81 - WARNING LABEL HIT-880476.A1 880476	-
82 - MAGAZINE HIT-881091.A0 881091	-
83 - NYLON NUT M5 HIT-877371.A48 877371	£1.67	£2.00
84 - MAGAZINE COVER HIT-881122.A0 881122	-
85 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A11 872971	£1.67	£2.00
86 - HINGE PIN HIT-877152.A3 877152	£3.44	£4.13
87 - MAGAZINE ASS'Y INCLUD.82 HIT-881121.A0 881121	-
88 - GRIP TAPE HIT-880408.A5 880408	£10.98	£13.17
89A - TAPE (2 PCS.) HIT-888213.A7 888213	-
90 - WARNING LABEL (A) FOR EUROPE HIT-883513.A8 883513	-
501 - HEX. BAR WRENCH 5MM HIT-944459.A1 944459	£1.67	£2.00
502 - HEX. BAR WRENCH 4MM HIT-944458.A117 944458	£1.67	£2.00
503 - HEX. BAR WRENCH 3MM HIT-943277.A13 943277	£1.67	£2.00
504 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A0 877153	-
505A - PROTECTIVE GLASSES HIT-875769.A96 875769	-
506 - CASE HIT-878676.A0 878676	-
601 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A1 317918	£37.06	£44.47
