Hitachi / Hikoki NV100H High Pressure Coil Nailer Spare Parts

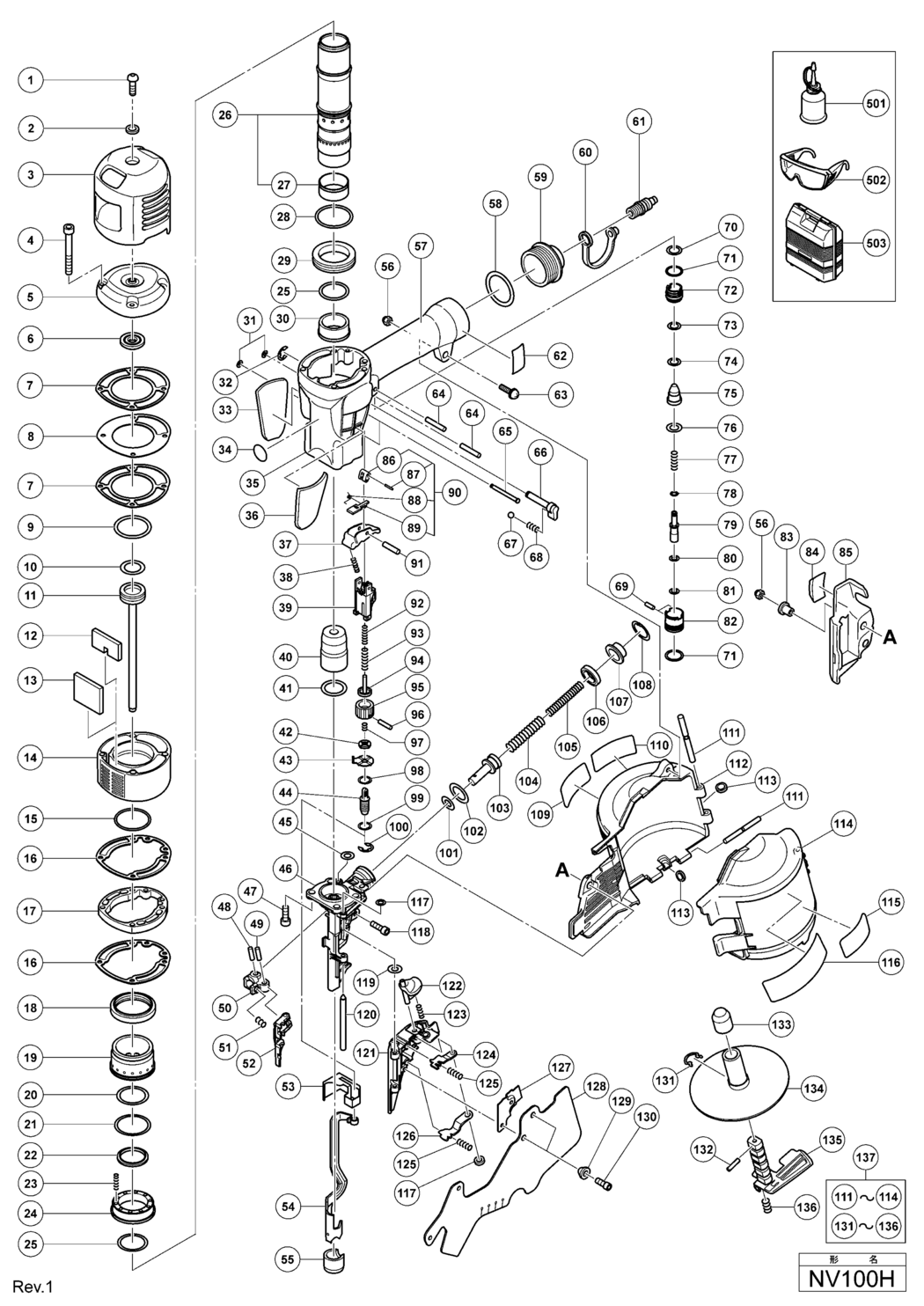

An exploded diagram and spare parts listing for the Hitachi / Hikoki NV100H High Pressure Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X10 HIT-880324.A0 880324	-
2 - WASHER HIT-876205.A3 876205	£1.67	£2.00
3 - HEAD GUARD (A) HIT-885190.A0 885190	-
4 - NYLOCK HEX. SOCKET HD. BOLT M5X80 HIT-885189.A0 885189	-
5 - UPPER COVER (GOLD) HIT-886632.A0 886632	-
6 - HEAD BUMPER HIT-883423.A1 883423	-
7 - GASKET (B) HIT-883130.A0 883130	-
8 - PLATE HIT-883132.A1 883132	-
9 - O-RING (I.D 45.5) HIT-883401.A1 883401	-
10 - PISTON O-RING HIT-885253.A1 885253	-
11 - PISTON (H) HIT-885179.A0 885179	-
12 - MUFFLER (B) HIT-883128.A0 883128	-
13 - MUFFLER (A) HIT-883127.A0 883127	-
14 - EXHAUST COVER (GOLD) HIT-886631.A0 886631	-
15 - O-RING (S-48) HIT-980715.A2 980715	£3.28	£3.93
16 - GASKET (C) HIT-885188.A0 885188	-
17 - SPACER (GOLD) HIT-886633.A0 886633	-
18 - SLEEVE VALVE RUBBER HIT-883121.A0 883121	-
19 - SLEEVE VALVE HIT-885259.A0 885259	-
20 - O-RING (I.D 35.5) HIT-885261.A0 885261	-
21 - O-RING (I.D 41.5) HIT-885260.A0 885260	-
22 - EXHAUST RUBBER HIT-883120.A1 883120	-
23 - SLEEVE VALVE SPRING HIT-883123.A0 883123	-
24 - VALVE PLATE HIT-883122.A0 883122	-
25 - O-RING (I.D 29.7) HIT-880865.A0 880865	-
26 - CYLINDER ASS'Y INCLUD.27 HIT-885367.A0 885367	-
27 - CYLINDER SLEEVE HIT-885258.A0 885258	-
28 - O-RING (I.D 45.5) HIT-883418.A0 883418	-
29 - CYLINDER PLATE HIT-883117.A1 883117	-
30 - CYLINDER RING HIT-881244.A0 881244	-
31 - O-RING (I.D. 1.8) HIT-878888.A27 878888	£1.67	£2.00
32 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A20 968643	£1.67	£2.00
33 - BRAND LABEL (D) HIT-000000.A1177 000000	-
34 - WARNING LABEL (A) HIT-883513.A7 883513	-
35 - BODY ASS'Y INCLUD.57 HIT-887973.A0 887973	-
36 - BRAND LABEL (C) HIT-000000.A1178 000000	-
37 - TRIGGER HIT-886623.A3 886623	-
38 - TRIGGER SPRING HIT-883759.A4 883759	-
39 - PUSHING LEVER GUIDE HIT-885255.A0 885255	-
40 - PISTON BUMPER HIT-885254.A0 885254	-
41 - O-RING (S-34) HIT-980879.A10 980879	£1.67	£2.00
42 - ADJUSTER PLATE (C) HIT-884973.A2 884973	£1.67	£2.00
43 - ADJUSTER PLATE (A) HIT-882886.A4 882886	-
44 - PUSHING LEVER (B) HIT-882888.A2 882888	-
45 - O-RING (1AP-3) HIT-873093.A16 873093	£1.67	£2.00
46 - NOSE HIT-885180.A0 885180	-
47 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A5 993040	£2.69	£3.23
48 - ROLL PIN D4X16 (10 PCS.) HIT-949497.A6 949497	£3.28	£3.93
49 - NEEDLE ROLLER HIT-998426.A8 998426	£1.67	£2.00
50 - FEEDER ARM (B) HIT-883144.A5 883144	-
51 - FEEDER SPRING HIT-883143.A1 883143	-
52 - FEEDER HIT-885185.A0 885185	-
53 - PUSHING LEVER COVER (B) HIT-883113.A0 883113	-
54 - PUSHING LEVER (A) HIT-885186.A0 885186	-
55 - NOSE CAP (A) HIT-883106.A0 883106	-
56 - NYLON NUT M5 HIT-877371.A50 877371	£1.67	£2.00
57 - GRIP RUBBER HIT-000000.A1179 000000	-
58 - O-RING (I.D 37.2) HIT-880183.A14 880183	£1.67	£2.00
59 - CAP (GOLD) HIT-886426.A4 886426	-
60 - DUST CAP HIT-877914.A5 877914	-
61 - AIR PLUG L-PT 1/4 HIT-883135.A0 883135	-
62 - CAUTION PLATE (C) HIT-000000.A1181 000000	-
63 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A2 880734	£1.67	£2.00
64 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A12 949865	£3.28	£3.93
65 - TRIGGER PIN HIT-885268.A2 885268	-
66 - LOCK KNOB (A) HIT-885865.A1 885865	-
67 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A14 959148	£1.67	£2.00
68 - LOCK SPRING HIT-882923.A8 882923	-
69 - PIN D2X8 (10 PCS.) HIT-949778.A0 949778	-
70 - O-RING (S-14) HIT-876319.A4 876319	£1.67	£2.00
71 - O-RING (S-16) HIT-876031.A2 876031	£2.98	£3.57
72 - VALVE BUSHING (B) HIT-883100.A0 883100	-
73 - O-RING (P7-U) HIT-883105.A3 883105	-
74 - O-RING (P9-U) HIT-883104.A1 883104	-
75 - VALVE PISTON HIT-883101.A1 883101	-
76 - O-RING (1AP-11) HIT-878764.A2 878764	-
77 - PLUNGER SPRING HIT-883103.A3 883103	-
78 - O-RING (I.D 1.8) HIT-883405.A4 883405	-
79 - PLUNGER HIT-886621.A0 886621	-
80 - O-RING (1AP-5) HIT-873407.A1 873407	-
81 - O-RING (S-6) HIT-997218.A4 997218	-
82 - VALVE BUSHING (A) HIT-883099.A4 883099	-
83 - SLEEVE HIT-882907.A12 882907	£5.09	£6.11
84 - PROTECTOR (B) HIT-881223.A0 881223	-
85 - PUSHING LEVER COVER (A) HIT-883112.A0 883112	-
86 - TRIGGER PIECE (C) HIT-886626.A0 886626	-
87 - ROLL PIN D1.6X10 HIT-886228.A4 886228	-
88 - TRIGGER SPRING HIT-886627.A4 886627	-
89 - TRIGGER ARM (C) HIT-886625.A1 886625	-
90 - TRIGGER ARM ASS'Y INCLUD.86-89 HIT-886624.A0 886624	-
91 - ROLL PIN D2.5X16 HIT-881951.A7 881951	-
92 - PUSHING LEVER SPRING (D) HIT-884399.A0 884399	-
93 - PUSHING LEVER SPRING (C) HIT-884398.A1 884398	-
94 - PUSHING LEVER (C) HIT-882891.A5 882891	-
95 - ADJUSTER HIT-882889.A4 882889	-
96 - ROLL PIN D2X16 HIT-880093.A5 880093	-
97 - ADJUSTER SPRING HIT-882890.A4 882890	-
98 - O-RING (S-4) HIT-981317.A18 981317	£1.67	£2.00
99 - O-RING (S-5) HIT-872822.A11 872822	£3.19	£3.83
100 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A8 872971	£1.67	£2.00
101 - O-RING (P-9) HIT-872645.A24 872645	£1.67	£2.00
102 - FEED PISTON O-RING (I.D. 14) HIT-877763.A0 877763	-
103 - FEED PISTON HIT-883094.A0 883094	-
104 - FEED SPRING (A) HIT-883095.A3 883095	-
105 - FEED SPRING (B) HIT-883096.A0 883096	-
106 - BUMPER HIT-883097.A0 883097	-
107 - FEED PISTON COVER HIT-883098.A0 883098	-
108 - RETAINING RING FOR D24 HOLE HIT-983748.A3 983748	£1.67	£2.00
109 - WARNING LABEL HIT-887175.A3 887175	-
110 - WARNING LABEL HIT-887174.A2 887174	-
111 - PIN HIT-883111.A6 883111	-
112 - MAGAZINE HIT-887957.A0 887957	-
113 - FEEDER SHAFT RING HIT-877826.A14 877826	£1.67	£2.00
114 - MAGAZINE COVER HIT-885194.A0 885194	-
115 - NAME PLATE HIT-000000.A1182 000000	-
116 - CAUTION PLATE (B) HIT-000000.A1183 000000	-
117 - SHAFT RING HIT-880319.A8 880319	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A17 949757	£3.64	£4.37
119 - O-RING (P-4) HIT-874436.A22 874436	£1.67	£2.00
120 - NAIL GUIDE SHAFT HIT-883091.A0 883091	-
121 - NAIL GUIDE HIT-885181.A0 885181	-
122 - GUIDE LOCK HIT-886107.A9 886107	£8.59	£10.31
123 - SPRING HIT-880446.A11 880446	£1.67	£2.00
124 - NAIL STOPPER (A) HIT-885182.A0 885182	-
125 - STOPPER SPRING (B) HIT-883087.A3 883087	-
126 - NAIL STOPPER (B) HIT-883086.A1 883086	-
127 - NAIL GUIDE COVER HIT-885183.A0 885183	-
128 - COVER HIT-885184.A0 885184	-
129 - SLEEVE (B) HIT-882881.A5 882881	-
130 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A0 880630	£1.67	£2.00
131 - RATCHET SPRING HIT-880398.A5 880398	£5.87	£7.04
132 - ROLL PIN D2.5X12 HIT-878791.A0 878791	£1.67	£2.00
133 - HOLDER CAP (A) HIT-881003.A3 881003	£1.67	£2.00
134 - NAIL HOLDER HIT-880503.A3 880503	£7.12	£8.54
135 - HOLDER SHAFT HIT-883324.A2 883324	-
136 - SPRING HIT-881826.A12 881826	£1.67	£2.00
137 - MAGAZINE ASS'Y INCLUD.111-114 HIT-887974.A0 887974	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-883136.A5 883136	-
502 - PROTECTIVE GLASSES HIT-875769.A97 875769	-
503 - CASE HIT-880517.A2 880517	-
601 - GRIP TAPE (A) HIT-881768.A17 881768	-
602A - TAPE (2 PCS.) HIT-888213.A8 888213	-
603 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A14 876212	-
604 - HANGER PARTS SET HIT-887978.A1 887978	-
605 - SINGLE SEQUENTIAL ACTUATION MECHANISMKIT HIT-887952.A0 887952	-
