Hitachi / Hikoki NT65GA Gas Finish Nailer Spare Parts

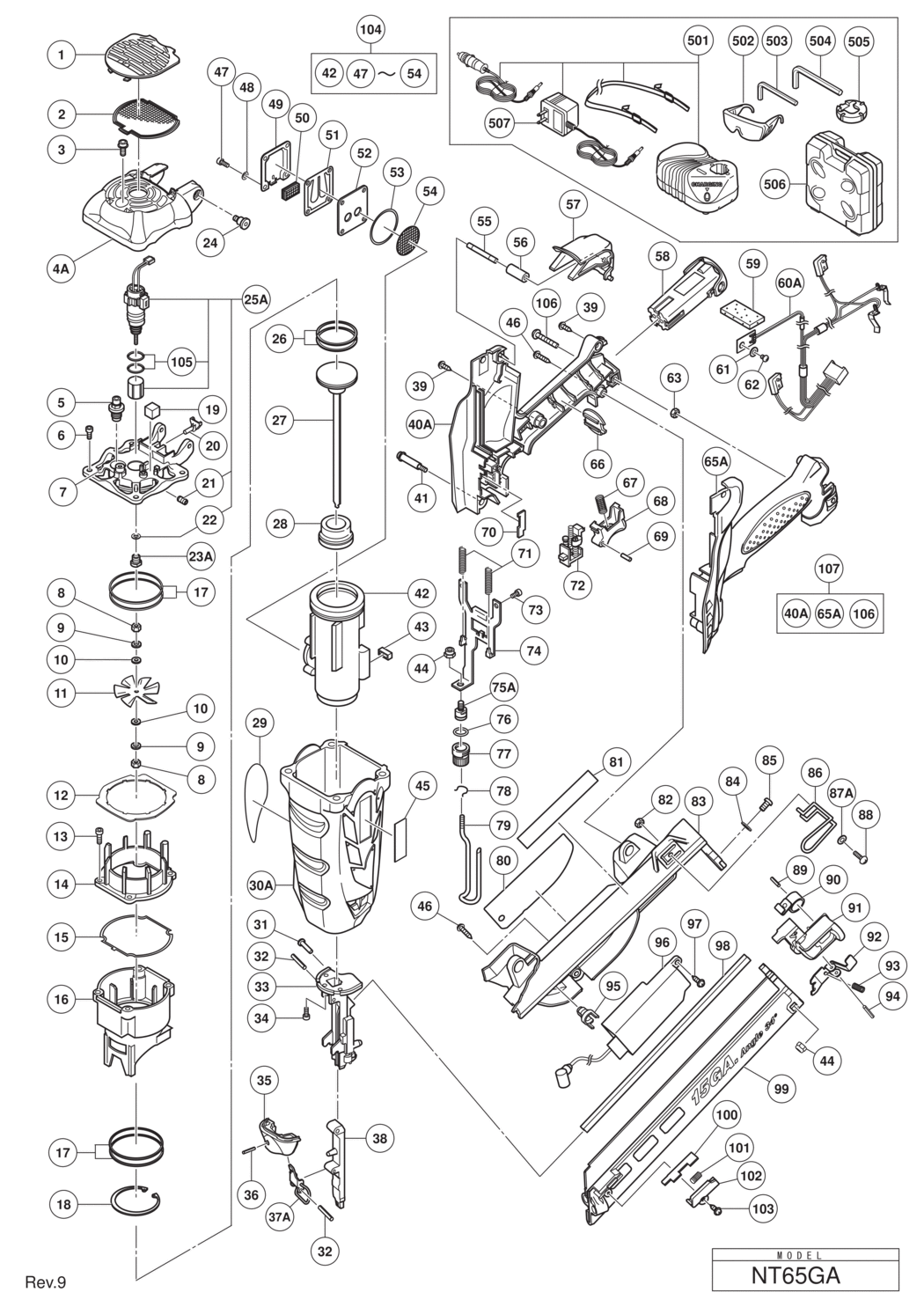

An exploded diagram and spare parts listing for the Hitachi / Hikoki NT65GA Gas Finish Nailer

	Ex VAT	Inc VAT
1 - FILTER COVER HIT-886664.A5 886664	£1.67	£2.00
2 - FILTER MESH HIT-886344.A5 886344	£14.48	£17.38
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-886347.A1 886347	£1.67	£2.00
4 - TOP COVER HIT-886335.A1 886335	£4.61	£5.53
5 - SPARK PLUG (A) HIT-885333.A11 885333	£4.33	£5.20
6 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A11 880630	£1.67	£2.00
7 - CYLINDER HEAD HIT-886661.A2 886661	£25.60	£30.72
8 - NUT M3 (10 PCS.) HIT-949553.A14 949553	£1.67	£2.00
9 - SPRING WASHER M3 (10 PCS.) HIT-949451.A15 949451	£1.67	£2.00
10 - WASHER M3 (10 PCS.) HIT-949422.A2 949422	£1.67	£2.00
11 - FAN HIT-886309.A2 886309	£4.88	£5.85
12 - RUBBER PLATE HIT-886568.A7 886568	£1.67	£2.00
13 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A2 949754	£2.98	£3.57
14 - CHAMBER HEAD HIT-886609.A0 886609	-
15 - GASKET HIT-886296.A7 886296	£1.67	£2.00
16 - CHAMBER HIT-886297.A0 886297	£15.78	£18.93
17 - PISTON RING (B) HIT-886312.A5 886312	£3.23	£3.88
18 - RETAINING RING FOR D40 HOLE HIT-886298.A7 886298	£1.67	£2.00
19 - PACKING HIT-886315.A1 886315	£1.67	£2.00
20 - ADAPTER HIT-886313.A2 886313	£3.51	£4.21
21 - HEX. SOCKET SET SCREW M4X5 HIT-886314.A6 886314	£1.67	£2.00
22 - SHAFT RUBBER WASHER HIT-886567.A0 886567	£1.67	£2.00
23A - SHAFT COVER HIT-887890.A5 887890	£3.83	£4.60
24 - HEX. SHOULDER BOLT M5 HIT-886566.A6 886566	£1.67	£2.00
25A - MOTOR ASS'Y INCLUD.21 HIT-887446.A0 887446	£111.00	£133.20
26 - PISTON RING (A) SOLD SINGLY HIT-886286.A2 886286	£6.38	£7.66
27 - PISTON HIT-886585.A0 886585	-
28 - PISTON BUMPER HIT-886289.A2 886289	£3.04	£3.65
29 - NAME PLATE HIT-888753.A0 888753	-
30A - HOUSING HIT-331425.A2 331425	£16.66	£19.99
31 - GUIDE PIN HIT-886610.A0 886610	-
32 - ROLL PIN D3X16 (10 PCS.) HIT-949496.A8 949496	£3.32	£3.99
33 - BLADE GUIDE HIT-886611.A0 886611	-
34 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-886311.A2 886311	£1.67	£2.00
35 - LOCK LEVER COVER HIT-886587.A0 886587	-
36 - ROLL PIN D3X10 (10 PCS.) HIT-949776.A2 949776	£2.98	£3.57
37A - LOCK LEVER HIT-887466.A0 887466	-
38 - GUIDE PLATE HIT-886612.A0 886612	-
39 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A126 305812	£1.67	£2.00
40A - HANDLE (B) HIT-886317.A2 886317	-
41 - HEX. SHOULDER BOLT M4X32 HIT-886565.A2 886565	£1.67	£2.00
42 - CYLINDER HIT-886584.A0 886584	-
43 - CHAMBER STOP RUBBER HIT-886285.A2 886285	£1.67	£2.00
44 - NYLON NUT M5 HIT-877371.A14 877371	£1.67	£2.00
*45 - BRAND PLATE HIT-886342M.A3 886342M	-
46 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A17 302086	£1.67	£2.00
47 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-886307.A2 886307	£1.67	£2.00
48 - CONICAL SPRING H8 HIT-886319.A10 886319	£1.67	£2.00
49 - BUFFER COVER HIT-886287.A1 886287	£6.45	£7.74
50 - MUFFLER HIT-886288.A6 886288	£2.91	£3.49
51 - REED VALVE HIT-886290.A4 886290	£4.31	£5.17
52 - BUFFER PLATE HIT-886293.A2 886293	£2.91	£3.49
53 - O-RING HIT-886294.A5 886294	£1.67	£2.00
54 - MESH HIT-886292.A5 886292	£4.40	£5.28
55 - CELL PIN HIT-886332.A2 886332	£1.67	£2.00
56 - PIPE RUBBER HIT-886333.A5 886333	£1.67	£2.00
57 - ACTUATOR HIT-886326.A5 886326	£3.21	£3.85
58 - BATTERY EBM 315 (USA CAN) HIT-326263.A2 326263	-
59 - SUPPORT (B) HIT-886316.A5 886316	£1.67	£2.00
60A - INTERNAL WIRE (A) HIT-887635.A4 887635	£76.75	£92.10
61 - WASHER M4 (10 PCS.) HIT-949423.A49 949423	£1.67	£2.00
62 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A45 949216	£1.67	£2.00
63 - LOCK NUT M4 (BLACK) HIT-886330.A2 886330	£1.67	£2.00
65A - HANDLE (A) HIT-886323.A1 886323	-
66 - TERMINAL SUPPORT HIT-326316.A8 326316	£1.67	£2.00
67 - TRIGGER SPRING HIT-886328.A5 886328	£1.67	£2.00
68 - TRIGGER HIT-886327.A2 886327	£1.67	£2.00
69 - PIN D3X20 (10 PCS.) HIT-949890.A12 949890	£2.78	£3.34
70 - CORD COVER PLATE HIT-886324.A2 886324	£1.67	£2.00
71 - CHAMBER SPRING HIT-886301.A6 886301	£1.67	£2.00
72 - TRIGGER STOPPER HIT-886552.A1 886552	£4.84	£5.81
73 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886308.A4 886308	£1.67	£2.00
74 - PUSHING LEVER ARM HIT-886613.A0 886613	-
75A - PUSHING LEVER PIECE HIT-887035.A3 887035	£4.10	£4.92
76 - O-RING (S-8) HIT-992912.A8 992912	£1.67	£2.00
77 - ADJUSTER HIT-886338.A3 886338	£3.12	£3.74
78 - RATCHET SPRING HIT-886331.A13 886331	£1.67	£2.00
79 - PUSHING LEVER(A) HIT-886589.A0 886589	-
80 - WARNING LABEL HIT-888774.A1 888774	-
81 - CAUTION LABEL (A) HIT-888761.A1 888761	-
82 - NUT M4 HIT-886614.A0 886614	-
83 - MAGAZINE COVER HIT-886592.A0 886592	-
84 - BOLT WASHER M5 (10 PCS.) HIT-949431.A9 949431	£1.67	£2.00
85 - MACHINE SCREW M5X15 (BLACK) HIT-885997.A7 885997	£1.67	£2.00
86 - HOOK HIT-886345.A1 886345	£4.86	£5.83
87A - WASHER HIT-887036.A4 887036	£1.67	£2.00
88 - TRUSS HD. SCREW M4 (BLACK) HIT-886346.A0 886346	-
89 - ROLL PIN D3X16 (10 PCS.) HIT-949496.A9 949496	£3.32	£3.99
90 - RIBBON SPRING HIT-881755.A2 881755	£4.62	£5.55
91 - NAIL FEEDER (B) HIT-886340.A2 886340	£4.04	£4.85
92 - NAIL FEEDER (A) HIT-886590.A0 886590	-
93 - STOPPER SPRING (C) HIT-886604.A2 886604	£1.67	£2.00
94 - ROLL PIN D2.5X26 HIT-886605.A1 886605	£1.67	£2.00
95 - PRISM HIT-886322.A5 886322	£1.67	£2.00
96 - CONTROLLER HIT-886320.A1 886320	£64.50	£77.40
97 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A10 325083	£1.67	£2.00
98 - NAIL RAIL HIT-886591.A0 886591	£13.36	£16.03
99 - MAGAZINE HIT-886588.A0 886588	-
100 - PUSHING STOPPER (A) HIT-886615.A0 886615	-
101 - PUSHING STOPPER SPRING HIT-886619.A0 886619	£1.67	£2.00
102 - PUSHING STOPPER COVER HIT-886616.A0 886616	-
103 - TAPPING SCREW (W/FLANGE) D3X10 (BLACK) HIT-306371.A2 306371	£1.67	£2.00
104 - CYLINDER ASS'Y (A) INCLUD.42 HIT-886618.A0 886618	-
105 - O-RING (S-12) HIT-875638.A12 875638	£1.67	£2.00
106 - TRUSS HD. SCREW M4X25 (BLACK) HIT-887034.A4 887034	£1.67	£2.00
107 - HANDLE ASS'Y INCLUD.40A HIT-331424.A1 331424	£22.18	£26.62
501 - CHARGER (MODEL UC 3SML) HIT-000000.A4512 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A42 875769	-
503 - HEX. BAR WRENCH 3MM HIT-943277.A30 943277	£1.67	£2.00
504 - HEX. BAR WRENCH 4MM HIT-944458.A14 944458	£1.67	£2.00
505 - NOSE CAP (A) HIT-886349.A3 886349	£1.67	£2.00
506 - CASE HIT-886617.A0 886617	-
507 - AC-ADAPTER (USA) HIT-370169.A3 370169	-
