Hitachi / Hikoki NT50A5 Brad Nailer Spare Parts

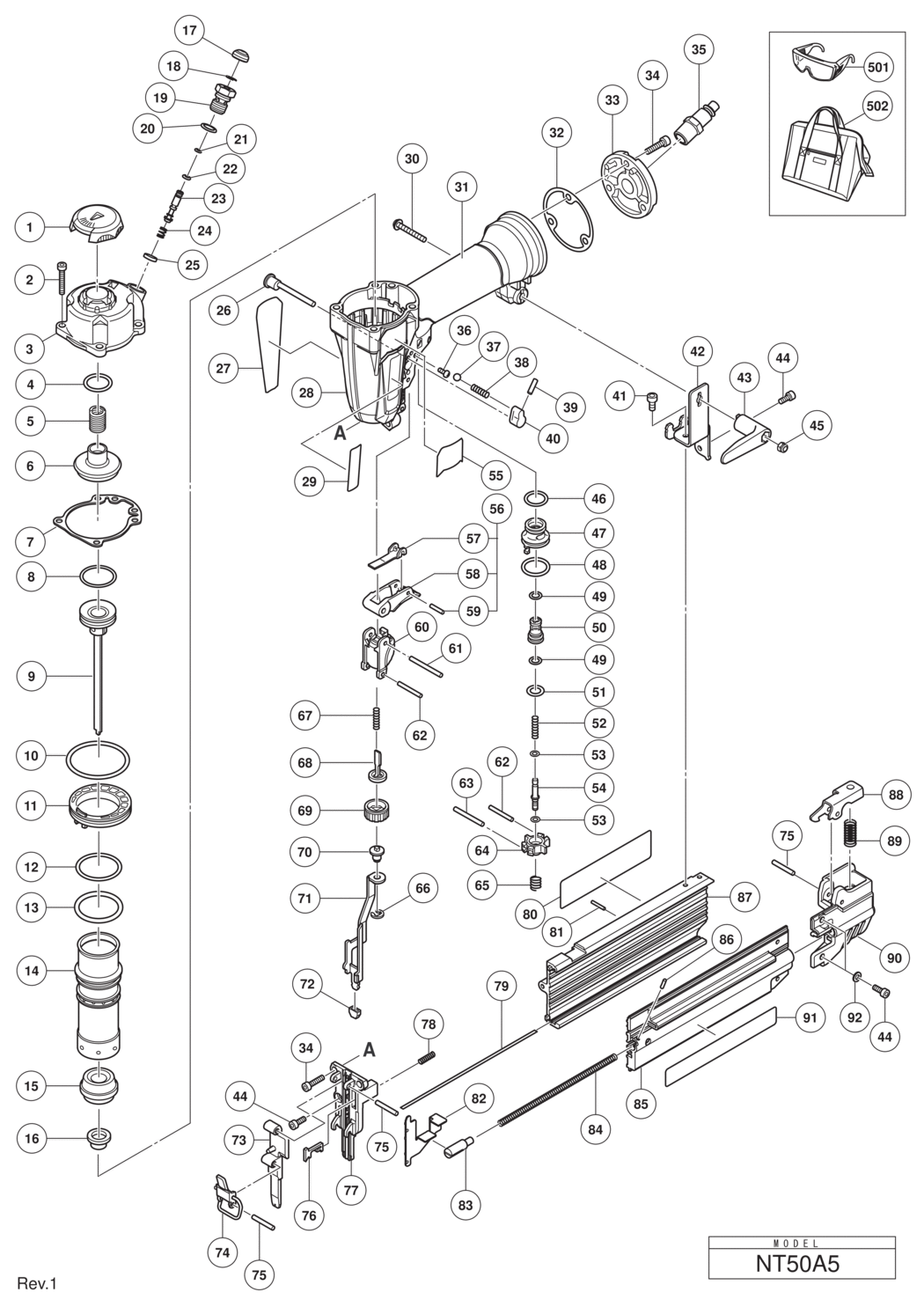

An exploded diagram and spare parts listing for the Hitachi / Hikoki NT50A5 Brad Nailer

	Ex VAT	Inc VAT
1 - TOP COVER HIT-886197.A2 886197	-
2 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A8 949757	£3.64	£4.37
3 - EXHAUST COVER HIT-889494.A1 889494	-
4 - HEAD VALVE O-RING HIT-878600.A4 878600	£1.67	£2.00
5 - HEAD VALVE SPRING HIT-880190.A3 880190	-
6 - HEAD VALVE (A) HIT-880410.A3 880410	£12.78	£15.33
7 - GASKET HIT-885868.A7 885868	-
8 - O-RING (P22.4) HIT-886068.A4 886068	£1.67	£2.00
9 - PISTON HIT-885870.A0 885870	£26.47	£31.76
10 - O-RING (I.D 44.7) HIT-885871.A2 885871	-
11 - CYLINDER PLATE HIT-885872.A3 885872	-
12 - O-RING (S-30) HIT-301684.A3 301684	£1.67	£2.00
13 - O-RING (P-32) HIT-986374.A8 986374	£1.67	£2.00
14 - CYLINDER HIT-885873.A1 885873	-
15 - PISTON BUMPER HIT-885874.A2 885874	£3.37	£4.04
16 - BUMPER PIECE HIT-885875.A1 885875	£1.67	£2.00
17 - KNOB HIT-886743.A3 886743	-
18 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A16 968643	£1.67	£2.00
19 - VALVE BUSHING HIT-887150.A1 887150	-
20 - O-RING (S-10) HIT-987105.A18 987105	£1.67	£2.00
21 - O-RING (S3) HIT-881715.A10 881715	-
22 - O-RING (1AP-3) HIT-873093.A19 873093	£1.67	£2.00
23 - PLUNGER HIT-884333.A0 884333	-
24 - SPRING HIT-887177.A7 887177	-
25 - VALVE PACKING HIT-884338.A5 884338	-
26 - CHANGE ROD (D) HIT-888798.A11 888798	-
27 - LABEL HIT-889538.A0 889538	-
28 - BODY ASS'Y INCLUD.31 HIT-889493.A0 889493	-
*29 - BRAND LABEL FOR HITACHI HIT-889535.A0 889535	-
*29 - BRAND LABEL FOR METABOHPT HIT-889535M.A0 889535M	-
30 - MACHINE SCREW (W/WASHER) M5X40 (BLACK) HIT-887138.A0 887138	-
31 - GRIP RUBBER HIT-000000.A2036 000000	-
32 - GASKET (B) HIT-887171.A1 887171	-
33 - CAP (A) HIT-886734.A3 886734	-
34 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A22 949821	£3.28	£3.93
35 - AIR PLUG NPT 1/4 HIT-890047.A0 890047	-
36 - MACHINE SCREW M3X6 (10 PCS.) HIT-949202.A2 949202	-
37 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A33 959155	£1.67	£2.00
38 - SPRING HIT-887673.A8 887673	-
39 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A3 887458	-
40 - CHANGE KNOB (D) HIT-887684.A5 887684	-
41 - NYLOCK HEX. SOCKET HD. BOLT M4X8 HIT-878614.A1 878614	-
42 - HANDLE ARM HIT-889486.A0 889486	-
43 - HOOK HIT-886940.A1 886940	-
44 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A6 880413	£1.67	£2.00
45 - NYLON NUT M5 HIT-877371.A32 877371	£1.67	£2.00
46 - FEED PISTON O-RING (I.D. 14) HIT-877763.A6 877763	-
47 - VALVE BUSHING (B) HIT-884963.A9 884963	-
48 - O-RING (P-18) HIT-873570.A17 873570	£1.67	£2.00
49 - O-RING (P-7) HIT-889335.A4 889335	-
50 - VALVE PISTON HIT-884964.A4 884964	-
51 - O-RING (1AP-10) HIT-889495.A0 889495	-
52 - PLUNGER SPRING HIT-887178.A0 887178	-
53 - O-RING (I.D. 1.8) HIT-878888.A24 878888	£1.67	£2.00
54 - PLUNGER HIT-887679.A1 887679	-
*55 - NAME PLATE FOR HITACHI HIT-889537.A0 889537	-
*55 - NAME PLATE FOR METABOHPT HIT-889537M.A0 889537M	-
56 - TRIGGER (D) ASS'Y INCLUD.57-59 HIT-887756.A4 887756	-
57 - TRIGGER ARM (D) HIT-887755.A1 887755	-
58 - TRIGGER (D) HIT-887695.A4 887695	-
59 - ROLL PIN D2.5X16 HIT-881951.A6 881951	-
60 - PUSHING LEVER GUIDE (D) HIT-887686.A1 887686	-
61 - ROLL PIN D3X35 HIT-887675.A1 887675	-
62 - ROLL PIN D3X25 HIT-887621.A4 887621	-
63 - ROLL PIN D3X32 HIT-371080.A9 371080	-
64 - VALVE BUSHING (A) HIT-884962.A9 884962	-
65 - TRIGGER ARM SPRING HIT-887752.A4 887752	-
66 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A18 872971	£1.67	£2.00
67 - PUSHING LEVER SPRING (A) HIT-885881.A1 885881	£1.67	£2.00
68 - PUSHING LEVER (D) HIT-889331.A4 889331	-
69 - ADJUSTER HIT-886736.A1 886736	-
70 - PUSHING LEVER (B) HIT-889485.A0 889485	-
71 - PUSHING LEVER (A) HIT-889484.A0 889484	-
72 - NOSE CAP HIT-885887.A2 885887	£1.67	£2.00
73 - GUIDE PLATE HIT-889483.A0 889483	-
74 - LOCK LEVER HIT-885889.A1 885889	-
75 - ROLL PIN D3X18 (10 PCS.) HIT-949518.A0 949518	£1.67	£2.00
76 - LOCK PLATE HIT-889542.A0 889542	-
77 - BLADE GUIDE HIT-889482.A0 889482	-
78 - LOCK SPRING HIT-886305.A5 886305	£1.67	£2.00
79 - NAIL PLATE HIT-889489.A0 889489	-
80 - WARNING LABEL HIT-889541.A0 889541	-
81 - ROLL PIN D1.6 HIT-889488.A0 889488	-
82 - NAIL FEEDER HIT-889491.A0 889491	-
83 - FEED PISTON HIT-889534.A0 889534	-
84 - FEED SPRING HIT-885900.A6 885900	£1.67	£2.00
85 - MAGAZINE COVER ASS'Y INCLUD.86 HIT-889490.A0 889490	-
86 - ROLL PIN D2.5X12 HIT-878791.A6 878791	£1.67	£2.00
87 - MAGAZINE ASS'Y INCLUD.81 HIT-889487.A0 889487	-
88 - STOP LEVER HIT-885894.A1 885894	£1.67	£2.00
89 - SPRING HIT-885895.A6 885895	£1.67	£2.00
90 - MAGAZINE PROTECTOR HIT-889492.A0 889492	-
91 - LABEL (A) HIT-889539.A0 889539	-
92 - WASHER M4 (10 PCS.) HIT-949423.A39 949423	£1.67	£2.00
501 - PROTECTIVE GLASSES HIT-875769.A56 875769	-
*502 - TOOL BAG FOR HITACHI HIT-372210.A1 372210	-
*502 - TOOL BAG FOR METABOHPT HIT-372210M.A0 372210M	-
601 - GRIP TAPE (A) HIT-881768.A7 881768	-
602 - TAPE (2 PCS.) HIT-888213.A37 888213	-

Attribute Name	Value
Brand	Hikoki
