Hitachi / Hikoki NR90GR2 Gas Strip Nailer Spare Parts

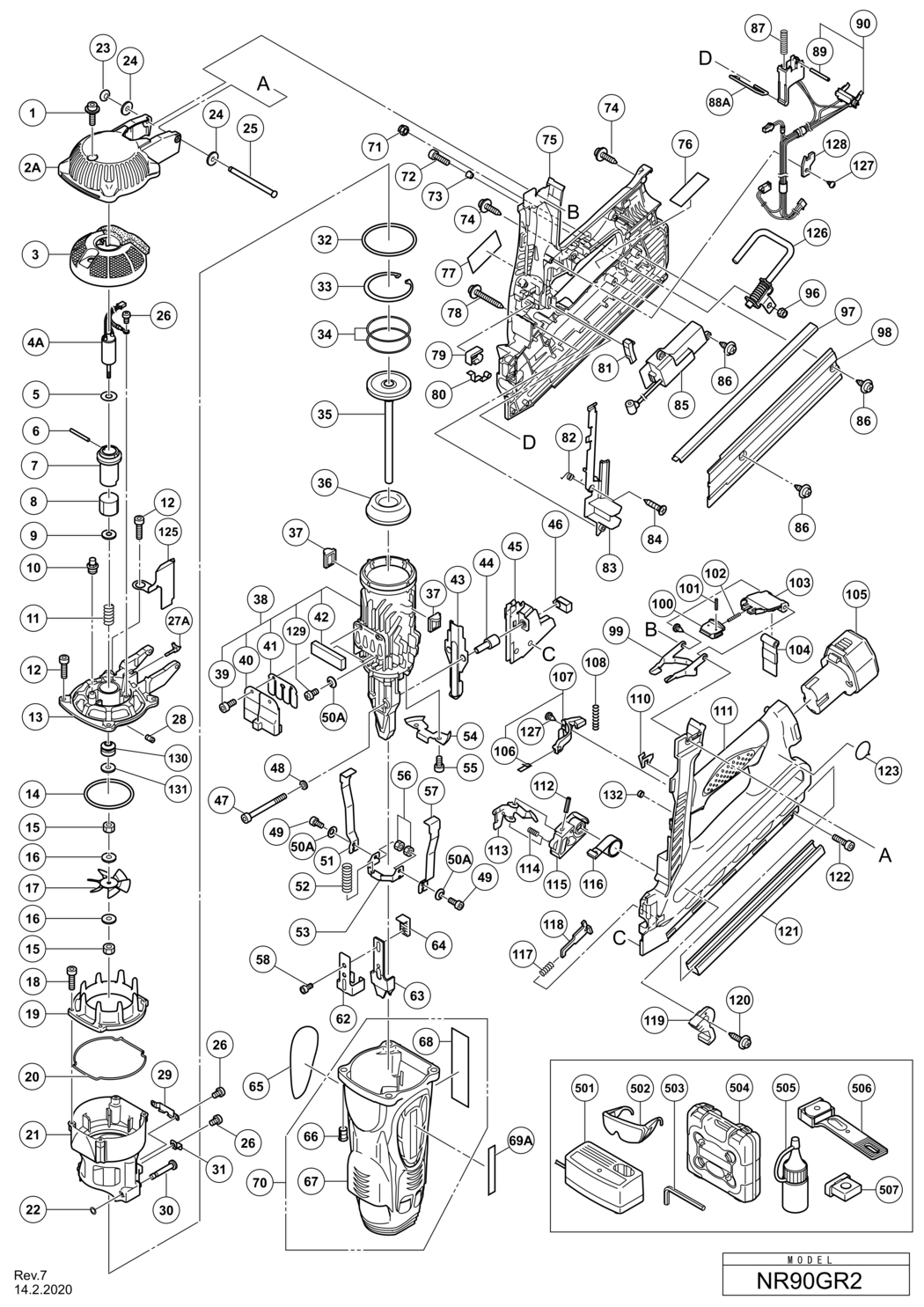

An exploded diagram and spare parts listing for the Hitachi / Hikoki NR90GR2 Gas Strip Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-996399.A9 996399	£1.67	£2.00
2A - TOP COVER HIT-886598.A1 886598	£12.85	£15.42
3 - FILTER HIT-886129.A1 886129	£38.73	£46.48
4A - MOTOR (A) HIT-887735.A2 887735	£110.88	£133.05
5 - RUBBER WASHER HIT-885313.A1 885313	£1.67	£2.00
6 - ROLL PIN D2.5X25 HIT-885318.A3 885318	£1.67	£2.00
7 - MOTOR MOUNT HIT-885310.A1 885310	£9.72	£11.67
8 - MOUNT SLEEVE HIT-885314.A3 885314	£2.49	£2.99
9 - SHAFT WASHER HIT-885320.A3 885320	£1.67	£2.00
10 - SPARK PLUG (A) HIT-885333.A5 885333	£4.33	£5.20
11 - MOTOR SPRING HIT-885319.A1 885319	£1.67	£2.00
12 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A0 949757	£3.64	£4.37
13 - CYLINDER HEAD ASS'Y INCLUD.130 HIT-885308.A3 885308	£37.06	£44.47
14 - O-RING (I.D 59.92) HIT-885316.A1 885316	£6.50	£7.80
15 - NUT M4 (10 PCS.) HIT-949554.A41 949554	£1.67	£2.00
16 - WASHER M4 (10 PCS.) HIT-949423.A21 949423	£1.67	£2.00
17 - FAN HIT-885311.A3 885311	£6.50	£7.80
18 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A11 949754	£2.98	£3.57
19 - CHAMBER HEAD HIT-885294.A3 885294	£18.20	£21.84
20 - GASKET (B) HIT-886133.A2 886133	£1.67	£2.00
21 - CHAMBER HIT-885296.A1 885296	£26.55	£31.86
22 - PLUNGER O-RING HIT-878607.A1 878607	£1.67	£2.00
23 - SHAFT RING HIT-880319.A2 880319	£1.67	£2.00
24 - BOLT WASHER M5 (10 PCS.) HIT-949431.A19 949431	£1.67	£2.00
25 - SHAFT HIT-885277.A1 885277	£4.33	£5.20
26 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A2 949214	£1.67	£2.00
27A - ADAPTER HIT-886313.A7 886313	£3.51	£4.21
28 - HEX. SOCKET SET SCREW M4X5 HIT-961681.A1 961681	£1.67	£2.00
29 - CHAMBER LOCK PLATE HIT-885297.A3 885297	£4.33	£5.20
30 - PIN (A) HIT-886484.A2 886484	£1.67	£2.00
31 - SWITCH PLATE HIT-885306.A3 885306	£1.67	£2.00
32 - O-RING (I.D. 66.27) HIT-885283.A2 885283	£8.66	£10.39
33 - RETAINING RING HIT-885285.A2 885285	£1.67	£2.00
34 - PISTON RING (A) HIT-886132.A0 886132	£13.94	£16.73
35 - PISTON HIT-885619.A0 885619	£61.84	£74.21
36 - PISTON BUMPER (A) HIT-885289.A3 885289	£10.45	£12.54
*37 - CHAMBER STOP RUBBER FOR USA HIT-885284.A2 885284	£1.67	£2.00
38 - CYLINDER ASS'Y INCLUD.39-42 HIT-885618.A0 885618	£112.36	£134.83
39 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886241.A4 886241	£1.67	£2.00
40 - BUFFER COVER (A) HIT-886467.A4 886467	£1.67	£2.00
41 - LEAD VALVE HIT-885290.A1 885290	£1.67	£2.00
42 - MUFFLER (A) HIT-885288.A1 885288	£14.68	£17.62
43 - BLADE GUIDE (A) HIT-885632.A0 885632	-
44 - NOSE SLEEVE HIT-886252.A0 886252	£8.77	£10.52
45 - SIDE PLATE (A) HIT-885622.A0 885622	-
46 - SPECIAL NUT M5 HIT-886544.A1 886544	£10.05	£12.06
47 - NYLOCK HEX.SOCKET HD.BOLT M5X50 HIT-886545.A1 886545	£1.67	£2.00
48 - PLATE SLEEVE HIT-886143.A0 886143	-
49 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886241.A3 886241	£1.67	£2.00
50A - CONICAL SPRING H8 HIT-886319.A7 886319	£1.67	£2.00
51 - PUSHING LEVER ARM (C) HIT-886546.A1 886546	£7.34	£8.81
52 - PUSHING LEVER SPRING (A) HIT-886245.A1 886245	£1.67	£2.00
53 - PUSHING LEVER CONNECTOR HIT-885301.A1 885301	£6.50	£7.80
54 - CYLINDER PLATE (B) HIT-885625.A0 885625	£9.65	£11.58
55 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-980046.A0 980046	£1.67	£2.00
56 - U-NUT M4 HIT-956329.A1 956329	£1.67	£2.00
57 - PUSHING LEVER ARM (D) HIT-886547.A1 886547	£4.12	£4.95
58 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A21 949819	£6.66	£7.99
62 - PUSHING STOPPER HIT-886128.A1 886128	£8.50	£10.20
63 - PUSHING LEVER(A) HIT-886144.A0 886144	£9.21	£11.05
64 - ADJUSTER BUSH (A) HIT-885272.A1 885272	£8.66	£10.39
65 - NAME PLATE HIT-888756.A0 888756	-
66 - SCREW M5 HIT-885304.A1 885304	£1.67	£2.00
67 - HOUSING HIT-886134.A2 886134	£28.62	£34.35
68 - INSULATOR SHEET HIT-885307.A1 885307	£1.67	£2.00
69A - BRAND PLATE HIT-328922.A4 328922	£2.71	£3.25
70 - HOUSING ASS'Y INCLUD.66-68 HIT-886244.A1 886244	£38.53	£46.24
71 - NYLON NUT M4 HIT-876465.A16 876465	£1.67	£2.00
72 - HEX. SOCKET HD. BOLT M5X15 (10 PCS.) HIT-949820.A1 949820	£3.28	£3.93
73 - SLEEVE HIT-878164.A3 878164	£15.19	£18.23
74 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A60 302086	£1.67	£2.00
75 - HANDLE (D) HIT-886139.A0 886139	£45.50	£54.60
76 - CAUTION LABEL HIT-000000.A2977 000000	-
76 - FOR EUROPE HIT-000000.A2978 000000	-
77 - WARNING LABEL HIT-888762.A1 888762	-
78 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A6 301815	£1.67	£2.00
79 - SWITCH MOUNT HIT-885334.A2 885334	£1.67	£2.00
80 - SWITCH ARM HIT-885347.A3 885347	£1.67	£2.00
81 - PRISM (B) HIT-885628.A0 885628	£4.33	£5.20
82 - LOCK BAR SPRING HIT-885337.A2 885337	£1.67	£2.00
83 - WIRING COVER HIT-885339.A1 885339	£4.33	£5.20
84 - FLAT HD. TAPPING SCREW D4X10 HIT-885346.A4 885346	£1.67	£2.00
*85 - CONTROLLER HIT-885331.A1 885331	£69.36	£83.23
*85 - CONTROLLER FOR USA HIT-885595.A1 885595	£82.13	£98.56
86 - TAPPING SCREW (W/FLANGE) D4X14 (BLACK) HIT-309933.A0 309933	£1.67	£2.00
87 - TRIGGER SPRING (A) HIT-885828.A1 885828	£1.67	£2.00
88A - CHAMBER LOCK BAR HIT-887617.A2 887617	-
89 - ROLL PIN D2.5X10 (10 PCS.) HIT-949551.A2 949551	£1.67	£2.00
90 - TRIGGER INTERNAL WIRE (C) SET INCLUD.89 HIT-885799.A0 885799	£33.68	£40.41
96 - NYLON NUT M5 HIT-877371.A60 877371	£1.67	£2.00
97 - NAIL RAIL (A) HIT-885629.A0 885629	£1.67	£2.00
98 - MAGAZINE PLATE (A) HIT-885630.A0 885630	-
99 - CELL LEVER (A) HIT-886141.A3 886141	£8.88	£10.66
100 - LATCH HIT-885280.A1 885280	£1.67	£2.00
101 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A9 949859	£1.67	£2.00
102 - SPRING D3.6 HIT-885281.A2 885281	£1.67	£2.00
103 - CELL COVER HIT-885352.A2 885352	£4.33	£5.20
104 - CELL RUBBER (A) HIT-886131.A3 886131	£2.71	£3.25
*105 - BATTERY EB 714S (EUROPE AUS NZL) HIT-370774.A2 370774	£69.80	£83.76
*105 - BATTERY EB 714S (USA CAN/CLAMSHELL) HIT-325292.A0 325292	-
106 - TENSION PLATE (C) HIT-886257.A1 886257	£4.55	£5.46
107 - SWITCH LEVER ASS'Y INCLUD.106 HIT-886135.A0 886135	£9.65	£11.58
108 - SPRING HIT-885518.A2 885518	£1.67	£2.00
110 - LEVER STOPPER HIT-886138.A0 886138	£4.55	£5.46
111 - HANDLE (C) HIT-886729.A0 886729	-
112 - ROLL PIN D4X28 (10 PCS.) HIT-949506.A2 949506	£3.88	£4.66
113 - NAIL FEEDER HIT-885621.A0 885621	£8.57	£10.28
114 - SPRING HIT-883687.A4 883687	£1.67	£2.00
115 - NAIL FEEDER (B) HIT-885324.A2 885324	£4.33	£5.20
116 - RIBBON SPRING HIT-885325.A2 885325	£9.72	£11.67
117 - SPRING D8 HIT-885328.A1 885328	£1.67	£2.00
118 - PUSHING LEVER STOPPER (A) HIT-885623.A0 885623	-
119 - FEEDER KNOB HIT-886246.A0 886246	£4.86	£5.83
120 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A28 302089	£1.67	£2.00
121 - MAGAZINE GUARD HIT-885354.A1 885354	£10.45	£12.54
122 - HEX. SOCKET HD. BOLT M4X18 HIT-880003.A1 880003	£1.67	£2.00
123 - ROUND HEAD MARK LABEL HIT-000000.A109 000000	-
125 - WIRING PLATE HIT-886253.A1 886253	£1.67	£2.00
126 - HOOK (B) HIT-886255.A1 886255	£11.89	£14.27
127 - TAPPING SCREW D3X8 HIT-885714.A2 885714	£1.67	£2.00
128 - WIRING PLATE (B) HIT-886548.A2 886548	£1.67	£2.00
129 - SEAL LOCK SCREW M4X6 (BLACK) HIT-303631.A4 303631	£1.67	£2.00
130 - SHAFT COVER HIT-886470.A2 886470	£1.67	£2.00
131 - WASHER HIT-886471.A2 886471	£1.67	£2.00
132 - SLEEVE HIT-886543.A0 886543	£4.96	£5.95
501 - CHARGER (MODEL UC 7SD) HIT-000000.A111 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A85 875769	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A143 944458	£1.67	£2.00
504 - CASE HIT-886146.A0 886146	-
505 - LUBRICANT OILER (B) FOR EUROPE HIT-886036.A5 886036	-
506 - RUBBER NOSE ASS'Y INCLUD.507 FOR NOR HIT-885788.A2 885788	£28.14	£33.77
507 - RUBBER NOSE FOR NOR HIT-885791.A1 885791	£6.50	£7.80
*601 - LUBRICANT OILER (A) HIT-885246.A1 885246	£15.83	£19.00
*601 - LUBRICANT OILER (A) FOR USA HIT-885546.A2 885546	-
602 - RUBBER NOSE ASS'Y INCLUD.603 HIT-885788.A3 885788	£28.14	£33.77
603 - RUBBER NOSE HIT-885791.A0 885791	£6.50	£7.80
