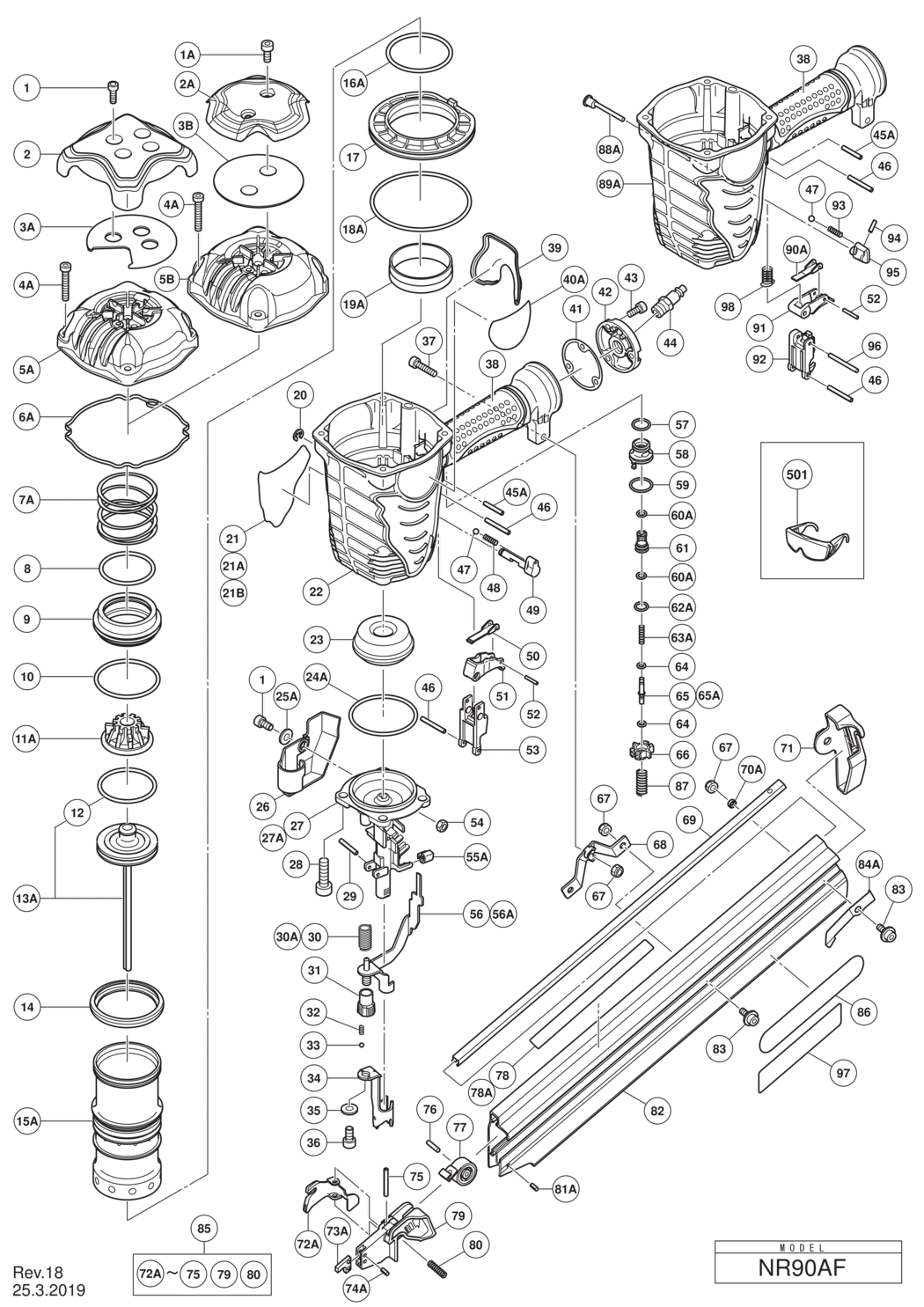

1 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) TILLL 8.2015
HIT-949665.A13
949665
|
£3.15
|
£3.78
|
|
|
1A - HEX. SOCKET HD. BOLT M6X12 SINCE 9.2015 FOR MODEL (S1)
HIT-888792.A0
888792
|
-
|
|
|
|
2 - HEAD GUARD TILL 8.2015
HIT-884952.A2
884952
|
-
|
|
|
|
2A - HEAD GUARD SINCE 9.2015 FOR MODEL (S1)
HIT-888790.A1
888790
|
-
|
|
|
|
3A - SHEET TILL 8.2015
HIT-886454.A3
886454
|
-
|
|
|
|
3B - SHEET SINCE 9.2015 FOR MODEL (S1)
HIT-888794.A0
888794
|
-
|
|
|
|
4A - HEX. SOCKET HD. BOLT M6X30
HIT-888793.A3
888793
|
-
|
|
|
|
5 - EXHAUST COVER TILL 8.2015
HIT-886261.A3
886261
|
-
|
|
|
|
5A - EXHAUST COVER SINCE 9.2015 FOR MODEL (S1)
HIT-888789.A2
888789
|
-
|
|
|
|
6A - GASKET (A) TILL 8.2015
HIT-886455.A0
886455
|
-
|
|
|
|
7A - HEAD VALVE SPRING
HIT-886456.A3
886456
|
-
|
|
|
|
8 - O-RING (I.D 49.4)
HIT-884947.A2
884947
|
-
|
|
|
|
9 - HEAD VALVE
HIT-884946.A2
884946
|
-
|
|
|
|
10 - O-RING (I.D 59.4)
HIT-884948.A5
884948
|
-
|
|
|
|
11A - EXHAUST VALVE RUBBER
HIT-889217.A0
889217
|
-
|
|
|
|
12 - PISTON O-RING
HIT-884958.A5
884958
|
£1.67
|
£2.00
|
|
|
13A - PISTON ASS'Y INCLUD.12
HIT-888768.A0
888768
|
-
|
|
|
|
14 - VALVE RUBBER
HIT-884945.A1
884945
|
-
|
|
|
|
15A - CYLINDER
HIT-886457.A0
886457
|
-
|
|
|
|
16A - O-RING (I.D 59.6)
HIT-886480.A0
886480
|
-
|
|
|
|
17 - CYLINDER PLATE
HIT-884944.A2
884944
|
-
|
|
|
|
18A - O-RING (I.D 94.6)
HIT-886481.A3
886481
|
-
|
|
|
|
19A - CYLINDER RING
HIT-886483.A7
886483
|
-
|
|
|
|
20 - RETAINING RING (E-TYPE) FOR D6 SHAFT
HIT-955479.A20
955479
|
£1.67
|
£2.00
|
|
|
21 - NAME PLATE
HIT-888750.A0
888750
|
-
|
|
|
|
21A - NAME PLATE FOR MODEL (S)
HIT-888751.A0
888751
|
-
|
|
|
|
21B - NAME PLATE FOR MODEL (S1)
HIT-888965.A0
888965
|
-
|
|
|
|
22 - BODY ASS'Y INCLUD.38
HIT-886259.A0
886259
|
-
|
|
|
|
23 - PISTON BUMPER
HIT-884959.A0
884959
|
£22.94
|
£27.53
|
|
|
24A - O-RING (I.D 60)
HIT-886482.A0
886482
|
-
|
|
|
|
25A - WASHER
HIT-889024.A8
889024
|
-
|
|
|
|
26 - PUSHING LEVER COVER
HIT-886269.A0
886269
|
-
|
|
|
|
27 - NOSE
HIT-886264.A0
886264
|
-
|
|
|
|
27A - NOSE FOR MODEL (S)
HIT-887757.A0
887757
|
-
|
|
|
|
28 - NYLOCK HEX. SOCKET HD. BOLT M8X30
HIT-306437.A0
306437
|
£1.67
|
£2.00
|
|
|
29 - ROLL PIN D3X18 (10 PCS.)
HIT-949518.A13
949518
|
£1.67
|
£2.00
|
|
|
30 - PUSHING LEVER SPRING
HIT-886263.A0
886263
|
-
|
|
|
|
30A - PUSHING LEVER SPRING FOR MODEL (S)
HIT-887899.A0
887899
|
-
|
|
|
|
31 - ADJUSTER
HIT-326799.A2
326799
|
-
|
|
|
|
32 - ADJUSTER SPRING
HIT-886281.A0
886281
|
-
|
|
|
|
33 - STEEL BALL D3.175 (10 PCS.)
HIT-959148.A25
959148
|
£1.67
|
£2.00
|
|
|
34 - PUSHING LEVER (A)
HIT-886267.A0
886267
|
-
|
|
|
|
35 - WASHER
HIT-886282.A1
886282
|
-
|
|
|
|
36 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.)
HIT-949657.A5
949657
|
-
|
|
|
|
37 - HEX. SOCKET HD. BOLT M6X22 (10 PCS.)
HIT-949670.A2
949670
|
-
|
|
|
|
38 - GRIP RUBBER (A)
HIT-000000.A2964
000000
|
-
|
|
|
|
39 - GRIP RUBBER (B)
HIT-000000.A2966
000000
|
-
|
|
|
|
40A - BRAND LABEL
HIT-888713.A3
888713
|
-
|
|
|
|
41 - GASKET (B)
HIT-884342.A9
884342
|
-
|
|
|
|
42 - CAP
HIT-881949.A6
881949
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.)
HIT-949821.A10
949821
|
£3.28
|
£3.93
|
|
|
44 - AIR PLUG NPT 3/8
HIT-000000.A2967
000000
|
-
|
|
|
|
45A - ROLL PIN D3X25
HIT-887621.A2
887621
|
-
|
|
|
|
46 - ROLL PIN D3X32
HIT-884975.A2
884975
|
£1.67
|
£2.00
|
|
|
47 - STEEL BALL D3.97 (10 PCS.)
HIT-959155.A38
959155
|
£1.67
|
£2.00
|
|
|
48 - SPRING (C)
HIT-982454.A24
982454
|
£1.67
|
£2.00
|
|
|
49 - CHANGE KNOB (C)
HIT-886265.A0
886265
|
-
|
|
|
|
50 - TRIGGER ARM (C)
HIT-885689.A7
885689
|
-
|
|
|
|
51 - TRIGGER (C) ASS'Y INCLUD.50
HIT-885657.A2
885657
|
-
|
|
|
|
52 - ROLL PIN D2.5X16
HIT-881951.A0
881951
|
-
|
|
|
|
53 - PUSHING LEVER GUIDE
HIT-886266.A0
886266
|
-
|
|
|
|
54 - NYLON NUT M5
HIT-877371.A45
877371
|
£1.67
|
£2.00
|
|
|
55A - NOSE RUBBER
HIT-886458.A2
886458
|
-
|
|
|
|
56 - PUSHING LEVER (B)
HIT-886268.A0
886268
|
-
|
|
|
|
56A - PUSHING LEVER (B) FOR MODEL (S)
HIT-887690.A0
887690
|
-
|
|
|
|
57 - FEED PISTON O-RING (I.D. 14)
HIT-877763.A8
877763
|
-
|
|
|
|
58 - VALVE BUSHING (B)
HIT-884963.A11
884963
|
-
|
|
|
|
59 - O-RING (P-18)
HIT-873570.A14
873570
|
£1.67
|
£2.00
|
|
|
60A - O-RING (P-7)
HIT-889335.A2
889335
|
-
|
|
|
|
61 - VALVE PISTON
HIT-884964.A2
884964
|
-
|
|
|
|
62A - O-RING (1AP-10)
HIT-889495.A3
889495
|
-
|
|
|
|
63A - PLUNGER SPRING
HIT-887178.A4
887178
|
-
|
|
|
|
64 - O-RING (I.D. 1.8)
HIT-878888.A18
878888
|
£1.67
|
£2.00
|
|
|
65 - PLUNGER
HIT-884965.A3
884965
|
-
|
|
|
|
65A - PLUNGER FOR MODEL (S)
HIT-887900.A0
887900
|
-
|
|
|
|
66 - VALVE BUSHING (A)
HIT-884962.A2
884962
|
-
|
|
|
|
67 - NYLON NUT M6
HIT-963837.A15
963837
|
£1.67
|
£2.00
|
|
|
68 - HANDLE ARM
HIT-886279.A0
886279
|
-
|
|
|
|
69 - NAIL RAIL
HIT-886271.A0
886271
|
-
|
|
|
|
70A - SLEEVE
HIT-883499.A3
883499
|
-
|
|
|
|
71 - MAGAZINE COVER
HIT-886272.A0
886272
|
-
|
|
|
|
72A - NAIL FEEDER (A)
HIT-886460.A0
886460
|
-
|
|
|
|
73A - STOPPER
HIT-886459.A0
886459
|
-
|
|
|
|
74A - ROLL PIN D3X10 (10 PCS.)
HIT-887458.A9
887458
|
-
|
|
|
|
75 - ROLL PIN D4X32 (10 PCS.)
HIT-949682.A0
949682
|
-
|
|
|
|
76 - NEEDLE ROLLER D4X20
HIT-943364.A6
943364
|
£1.67
|
£2.00
|
|
|
77 - RIBBON SPRING
HIT-883503.A2
883503
|
£10.95
|
£13.14
|
|
|
78 - LABEL (C)
HIT-887489.A1
887489
|
-
|
|
|
|
78A - LABEL (C) FOR MODEL (S)
HIT-887665.A2
887665
|
-
|
|
|
|
79 - NAIL FEEDER (B)
HIT-886276.A0
886276
|
-
|
|
|
|
80 - FEEDER SPRING
HIT-886278.A0
886278
|
-
|
|
|
|
81A - ROLL PIN D3X8
HIT-887619.A2
887619
|
-
|
|
|
|
82 - MAGAZINE
HIT-886270.A0
886270
|
-
|
|
|
|
83 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X12
HIT-984443.A2
984443
|
-
|
|
|
|
84A - NAIL STOPPER
HIT-888802.A1
888802
|
-
|
|
|
|
85 - NAIL FEEDER ASS'Y INCLUD.72A-75
HIT-886274.A0
886274
|
-
|
|
|
|
86 - LABEL (B)
HIT-000000.A2968
000000
|
-
|
|
|
|
87 - TRIGGER ARM SPRING FOR MODEL (S)
HIT-887682.A4
887682
|
-
|
|
|
|
88A - CHANGE ROD (D) FOR MODEL (S)
HIT-888798.A7
888798
|
-
|
|
|
|
89A - BODY ASS'Y INCLUD.38
HIT-887669.A0
887669
|
-
|
|
|
|
90A - TRIGGER ARM (D) FOR MODEL (S)
HIT-887670.A2
887670
|
-
|
|
|
|
91 - TRIGGER (D) ASS'Y INCLUD.52
HIT-887756.A7
887756
|
-
|
|
|
|
92 - PUSHING LEVER GUIDE (D) FOR MODEL (S)
HIT-887691.A0
887691
|
-
|
|
|
|
93 - SPRING FOR MODEL (S)
HIT-887673.A10
887673
|
-
|
|
|
|
94 - ROLL PIN D3X10 (10 PCS.) FOR MODEL (S)
HIT-887458.A10
887458
|
-
|
|
|
|
95 - CHANGE KNOB (D) FOR MODEL (S)
HIT-887674.A1
887674
|
-
|
|
|
|
96 - ROLL PIN D3X35 FOR MODEL (S)
HIT-887675.A9
887675
|
-
|
|
|
|
97 - LABEL (D) FOR MODEL (S1)
HIT-888791.A0
888791
|
-
|
|
|
|
98 - TRIGGER ARM SPRING FOR MODEL (S)
HIT-887682.A3
887682
|
-
|
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A169
875769
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A35
881768
|
-
|
|
|
|
602A - TAPE (2 PCS.)
HIT-888213.A13
888213
|
-
|
|
|
|
603 - PNEUMATIC TOOL LUBRICANT (30CC)
HIT-877153.A13
877153
|
-
|
|
|
|
604 - PNEUMATIC TOOL LUBRICANT (120CC)
HIT-874042.A8
874042
|
-
|
|
|
|
605 - PNEUMATIC TOOL LUBRICANT (1L)
HIT-876212.A16
876212
|
-
|
|
|
|
606 - GREASE (ATTOLUB NO.2) 500G
HIT-317918.A7
317918
|
£37.06
|
£44.47
|
|
|
607 - O-RING KIT INCLUD.608-615
HIT-884991.A2
884991
|
-
|
|
|
|
608 - GASKET (A)
HIT-884953.A2
884953
|
-
|
|
|
|
609 - O-RING (I.D 49.4)
HIT-884947.A4
884947
|
-
|
|
|
|
610 - O-RING (I.D 59.4)
HIT-884948.A3
884948
|
-
|
|
|
|
611 - PISTON O-RING
HIT-884958.A3
884958
|
£1.67
|
£2.00
|
|
|
612 - O-RING (I.D 59.6)
HIT-884942.A3
884942
|
-
|
|
|
|
613A - CYLINDER RING
HIT-886483.A9
886483
|
-
|
|
|
|
614 - O-RING (I.D 94.6)
HIT-884943.A0
884943
|
£4.89
|
£5.87
|
|
|
615 - INSTRUCTION MANUAL
HIT-000000.A2971
000000
|
-
|
|
|
|
616 - FULL SEQUENTIAL ACTUATION MECHANISM KIT INCLUD.617-619
HIT-886283.A0
886283
|
-
|
|
|
|
617 - TRIGGER(D)
HIT-886357.A0
886357
|
-
|
|
|
|
618 - TRIGGER ARM SPRING
HIT-884994.A4
884994
|
-
|
|
|
|
619 - ROLL PIN D3X18 (10 PCS.)
HIT-949518.A10
949518
|
£1.67
|
£2.00
|
|
|
620 - NOSE CAP (A)
HIT-886401.A0
886401
|
-
|
|
|
|
621 - FULL SEQUENTIAL ACTUATION MECHANISM KIT
HIT-888781.A1
888781
|
-
|
|
|
