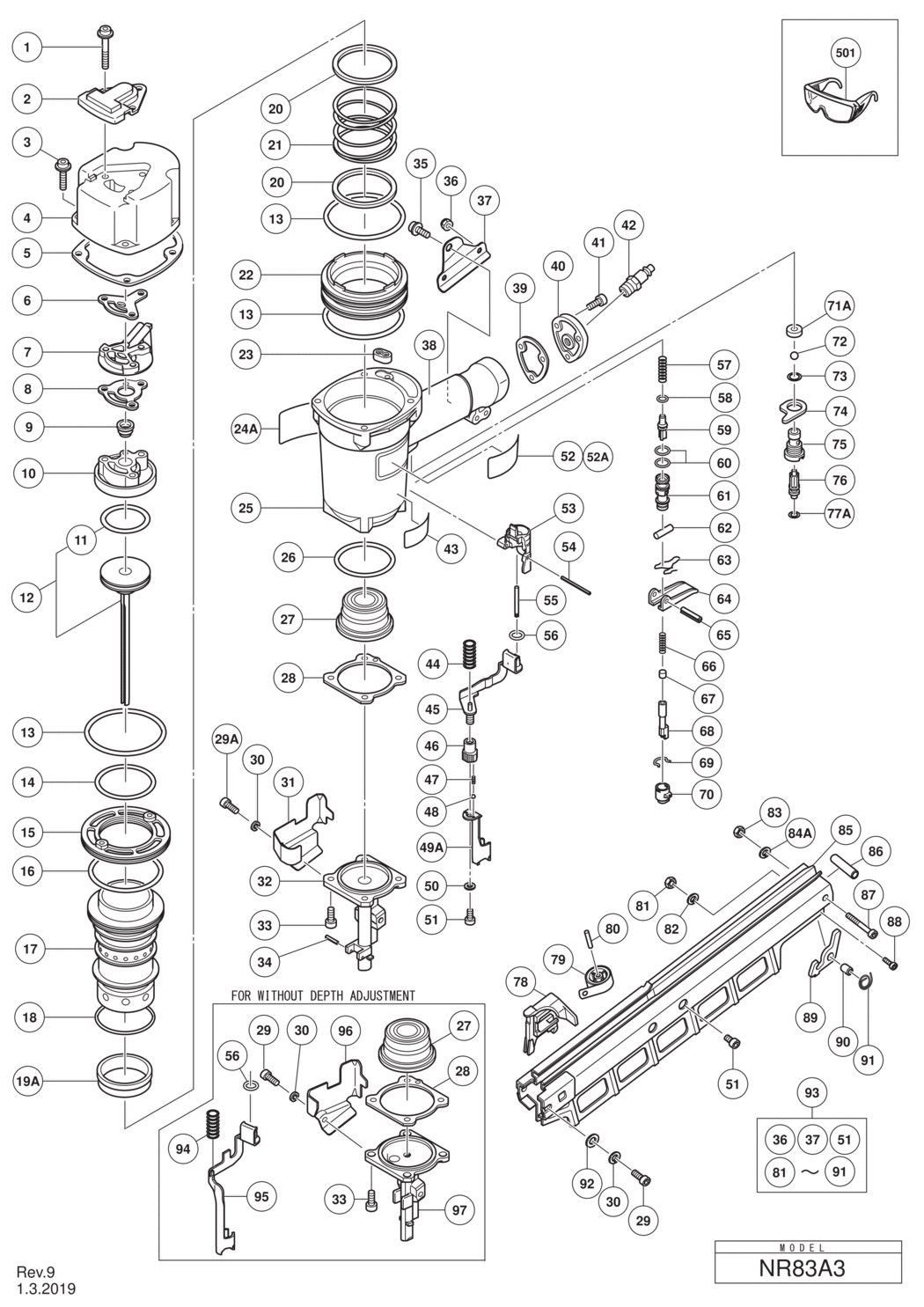

1 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X45
HIT-883509.A4
883509
|
-
|
|
|
|
2 - TOP COVER
HIT-877330.A3
877330
|
£4.78
|
£5.73
|
|
|
3 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M6X25
HIT-883507.A0
883507
|
-
|
|
|
|
4 - EXHAUST COVER
HIT-877324.A0
877324
|
-
|
|
|
|
5 - GASKET (B)
HIT-877325.A4
877325
|
£4.24
|
£5.09
|
|
|
6 - GASKET (F)
HIT-877329.A1
877329
|
£1.67
|
£2.00
|
|
|
7 - EXHAUST PIECE
HIT-877328.A3
877328
|
-
|
|
|
|
8 - GASKET (C)
HIT-877854.A3
877854
|
£1.67
|
£2.00
|
|
|
9 - EXHAUST VALVE
HIT-887774.A0
887774
|
-
|
|
|
|
10 - HEAD CAP AND GASKET SET INCLUD.8
HIT-888138.A1
888138
|
-
|
|
|
|
11 - O-RING (1AP-48)
HIT-877368.A7
877368
|
£1.67
|
£2.00
|
|
|
12 - PISTON ASS'Y INCLUD.11
HIT-885915.A1
885915
|
-
|
|
|
|
13 - O-RING (S-90)
HIT-877316.A1
877316
|
£1.67
|
£2.00
|
|
|
14 - CYLINDER O-RING (I.D 63.1)
HIT-877312.A2
877312
|
£1.67
|
£2.00
|
|
|
15 - CYLINDER PLATE
HIT-877318.A3
877318
|
£26.09
|
£31.31
|
|
|
16 - CYLINDER O-RING (I.D 69.3)
HIT-877314.A1
877314
|
£1.67
|
£2.00
|
|
|
17 - CYLINDER
HIT-888133.A1
888133
|
-
|
|
|
|
18 - O-RING (I.D 59.6/W2.4)
HIT-878376.A3
878376
|
-
|
|
|
|
19A - CYLINDER RING
HIT-886483.A11
886483
|
-
|
|
|
|
20 - BASE WASHER
HIT-877322.A3
877322
|
-
|
|
|
|
21 - CYLINDER SPRING
HIT-877321.A1
877321
|
-
|
|
|
|
22 - CYLINDER GUIDE (C)
HIT-888132.A1
888132
|
-
|
|
|
|
23 - GASKET (G)
HIT-877327.A2
877327
|
-
|
|
|
|
24A - WARNING LABEL
HIT-888957.A8
888957
|
-
|
|
|
|
25 - BODY ASS'Y INCLUD.38
HIT-888137.A0
888137
|
-
|
|
|
|
26 - CYLINDER O-RING (I.D 63.9)
HIT-877315.A6
877315
|
-
|
|
|
|
27 - PISTON BUMPER (B)
HIT-883511.A1
883511
|
£19.17
|
£23.00
|
|
|
28 - GASKET (A)
HIT-877334.A2
877334
|
£1.67
|
£2.00
|
|
|
29A - NYLOCK HEX. SOCKET HD. BOLT M6X18
HIT-888245.A1
888245
|
-
|
|
|
|
30 - SPRING WASHER M6 (10 PCS.)
HIT-949455.A23
949455
|
£1.67
|
£2.00
|
|
|
31 - GUARD (A) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-884061.A1
884061
|
-
|
|
|
|
32 - NOSE FOR WITH DEPTH ADJUSTMENT TYPE
HIT-887770.A1
887770
|
-
|
|
|
|
33 - NYLOCK HEX. SOCKET HD. BOLT M8X22
HIT-883492.A1
883492
|
-
|
|
|
|
34 - ROLL PIN D3X18 (10 PCS.) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-949518.A4
949518
|
£1.67
|
£2.00
|
|
|
35 - NYLOCK BOLT (W/FLANGE) M8X16
HIT-883505.A1
883505
|
-
|
|
|
|
36 - NYLON NUT M6
HIT-963837.A4
963837
|
£1.67
|
£2.00
|
|
|
37 - HANDLE ARM (B)
HIT-884066.A0
884066
|
-
|
|
|
|
38 - GRIP RUBBER
HIT-000000.A4840
000000
|
-
|
|
|
|
39 - GASKET (D)
HIT-877331.A2
877331
|
£1.67
|
£2.00
|
|
|
40 - CAP
HIT-878311.A2
878311
|
£15.42
|
£18.51
|
|
|
41 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.)
HIT-949658.A2
949658
|
£3.28
|
£3.93
|
|
|
42 - AIR PLUG NPT 3/8
HIT-887863.A1
887863
|
-
|
|
|
|
43 - LABEL
HIT-887864.A3
887864
|
-
|
|
|
|
44 - SPRING FOR WITH DEPTH ADJUSTMENT TYPE
HIT-887841.A1
887841
|
-
|
|
|
|
45 - PUSHING LEVER (B) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-887902.A0
887902
|
-
|
|
|
|
46 - ADJUSTER FOR WITH DEPTH ADJUSTMENT TYPE
HIT-326799.A4
326799
|
-
|
|
|
|
47 - ADJUSTER SPRING FOR WITH DEPTH ADJUSTMENT TYPE
HIT-880175.A5
880175
|
£1.67
|
£2.00
|
|
|
48 - STEEL BALL D3.175 (10 PCS.) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-959148.A67
959148
|
£1.67
|
£2.00
|
|
|
49A - PUSHING LEVER (A) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-888256.A0
888256
|
-
|
|
|
|
50 - WASHER FOR WITH DEPTH ADJUSTMENT TYPE
HIT-880081.A7
880081
|
-
|
|
|
|
*51 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) FOR WITH DEPTH ADJUSTMENT TYPE
HIT-949657.A13
949657
|
-
|
|
|
|
*51 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) FOR WITHOUT DEPTH ADJUSTMENT TYPE
HIT-949657.A14
949657
|
-
|
|
|
|
52 - NAME PLATE FOR USA
HIT-888139.A0
888139
|
-
|
|
|
|
52A - NAME PLATE FOR MODEL (S)
HIT-888745.A0
888745
|
-
|
|
|
|
53 - VALVE GUARD
HIT-887862.A3
887862
|
-
|
|
|
|
54 - ROLL PIN D3X45
HIT-887852.A2
887852
|
-
|
|
|
|
55 - ROD (C)
HIT-887732.A3
887732
|
-
|
|
|
|
56 - O-RING (S3)
HIT-881715.A7
881715
|
-
|
|
|
|
57 - PLUNGER SPRING
HIT-887724.A1
887724
|
-
|
|
|
|
58 - O-RING (P-4)
HIT-874436.A12
874436
|
£1.67
|
£2.00
|
|
|
59 - PLUNGER
HIT-887725.A3
887725
|
-
|
|
|
|
60 - O-RING (I.D 10.7)
HIT-884112.A2
884112
|
-
|
|
|
|
61 - VALVE BUSHING
HIT-888135.A2
888135
|
-
|
|
|
|
62 - PIN
HIT-887768.A4
887768
|
-
|
|
|
|
63 - TRIGGER SPRING
HIT-887727.A1
887727
|
-
|
|
|
|
64 - TRIGGER
HIT-876203.A2
876203
|
£1.67
|
£2.00
|
|
|
65 - ROLL PIN D3X30
HIT-887865.A0
887865
|
-
|
|
|
|
66 - ROD SPRING
HIT-887728.A3
887728
|
-
|
|
|
|
67 - ROD (B)
HIT-887729.A1
887729
|
-
|
|
|
|
68 - ROD (A)
HIT-887904.A2
887904
|
-
|
|
|
|
69 - RATCHET SPRING
HIT-886331.A18
886331
|
£1.67
|
£2.00
|
|
|
70 - CHANGE KNOB
HIT-888136.A0
888136
|
-
|
|
|
|
71A - VALVE PACKING
HIT-888151.A1
888151
|
-
|
|
|
|
72 - URETHANE BALL (C) D7.14
HIT-875645.A3
875645
|
£3.70
|
£4.44
|
|
|
73 - O-RING (S-12)
HIT-875638.A9
875638
|
£1.67
|
£2.00
|
|
|
74 - VALVE PLATE
HIT-887771.A0
887771
|
-
|
|
|
|
75 - TRIGGER VALVE BUSHING
HIT-888134.A0
888134
|
-
|
|
|
|
76 - TRIGGER PLUNGER
HIT-887905.A1
887905
|
-
|
|
|
|
77A - O-RING (I.D. 2.8)
HIT-890032.A4
890032
|
-
|
|
|
|
78 - NAIL FEEDER
HIT-877393Z.A1
877393Z
|
-
|
|
|
|
79 - RIBBON SPRING
HIT-878422.A0
878422
|
-
|
|
|
|
80 - NEEDLE ROLLER
HIT-878418.A1
878418
|
£1.67
|
£2.00
|
|
|
81 - NYLON NUT M4
HIT-876465.A5
876465
|
£1.67
|
£2.00
|
|
|
82 - SPRING WASHER M4 (10 PCS.)
HIT-949453.A11
949453
|
£1.67
|
£2.00
|
|
|
83 - NYLON NUT M5
HIT-877371.A7
877371
|
£1.67
|
£2.00
|
|
|
84A - SPRING WASHER M5
HIT-889083.A2
889083
|
-
|
|
|
|
85 - MAGAZINE
HIT-884065.A1
884065
|
-
|
|
|
|
86 - SLEEVE
HIT-876550.A0
876550
|
-
|
|
|
|
87 - HEX. SOCKET HD. BOLT M5X45 (10 PCS.)
HIT-949824.A1
949824
|
-
|
|
|
|
88 - HEX. SOCKET HD. BOLT M4X15 (10 PCS.)
HIT-949650.A0
949650
|
£2.98
|
£3.57
|
|
|
89 - STOP LEVER
HIT-877396Z.A0
877396Z
|
-
|
|
|
|
90 - COLLAR
HIT-877398.A0
877398
|
£2.89
|
£3.47
|
|
|
91 - STOPPER SPRING
HIT-877397.A1
877397
|
£3.40
|
£4.08
|
|
|
92 - WASHER
HIT-877402.A1
877402
|
-
|
|
|
|
93 - MAGAZINE ASS'Y INCLUD.36
HIT-885827.A1
885827
|
-
|
|
|
|
94 - SPRING (A) FOR WITHOUT DEPTH ADJUSTMENT TYPE
HIT-884077.A1
884077
|
-
|
|
|
|
95 - PUSHING LEVER (C) FOR WITHOUT DEPTH ADJUSTMENT TYPE
HIT-887906.A0
887906
|
-
|
|
|
|
96 - GUARD
HIT-884075.A1
884075
|
-
|
|
|
|
97 - NOSE FOR WITHOUT DEPTH ADJUSTMENT TYPE
HIT-887772.A1
887772
|
-
|
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A41
875769
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A10
881768
|
-
|
|
|
|
603 - PNEUMATIC TOOL LUBRICANT (30CC)
HIT-877153.A25
877153
|
-
|
|
|
|
604 - PNEUMATIC TOOL LUBRICANT (120CC)
HIT-874042.A3
874042
|
-
|
|
|
|
605 - PNEUMATIC TOOL LUBRICANT (1L)
HIT-876212.A2
876212
|
-
|
|
|
|
606 - GREASE (ATTOLUB NO.2) 500G
HIT-317918.A13
317918
|
£37.06
|
£44.47
|
|
|
607 - NOSE CAP
HIT-884080.A0
884080
|
-
|
|
|
