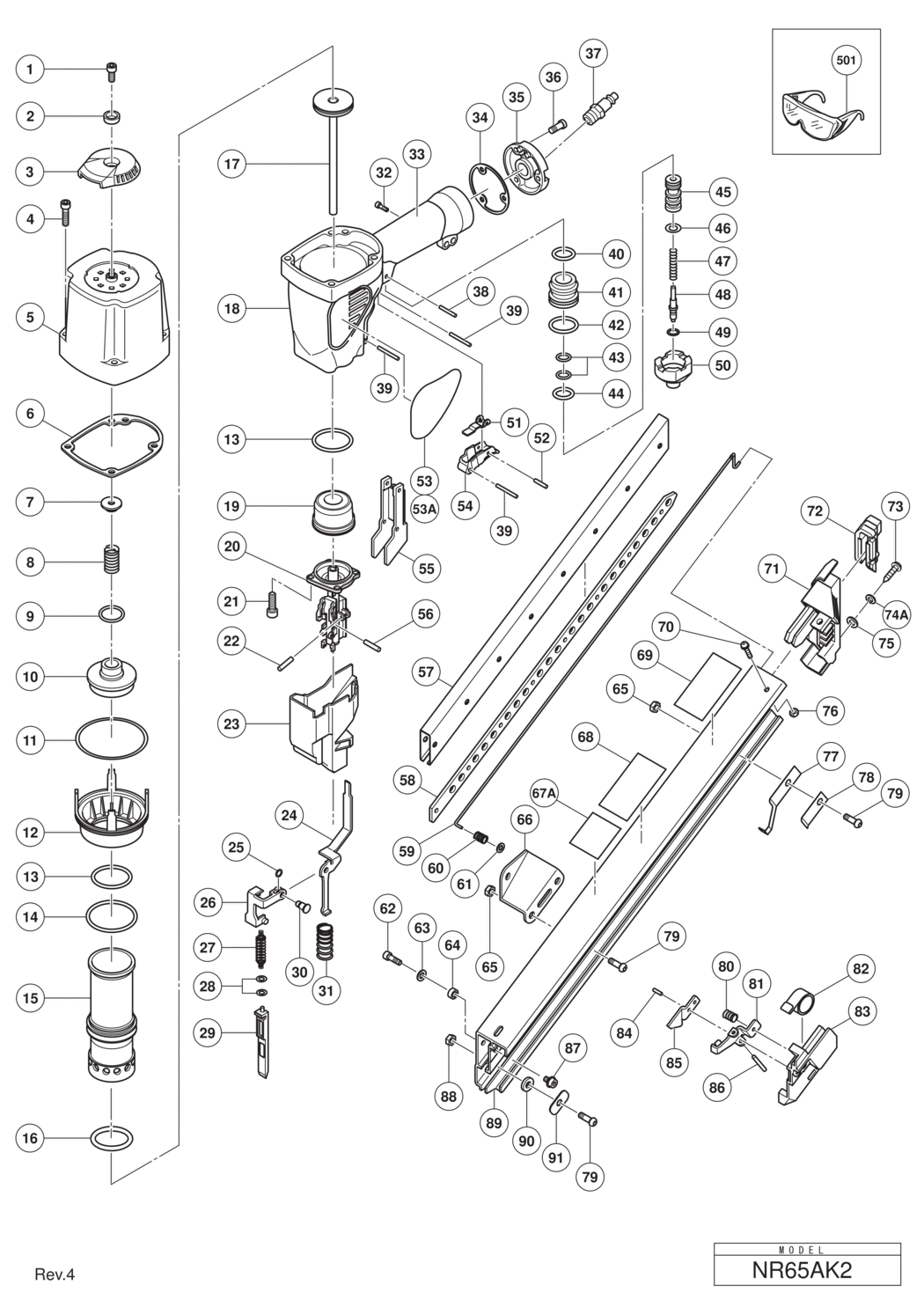

An exploded diagram and spare parts listing for the Hitachi / Hikoki NR65AK2 Strip Nailer
Ex VAT Inc VAT
1 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A12 949657 -
2 - PLATE HIT-880515.A8 880515 £4.92 £5.90
3 - TOP COVER HIT-884332.A5 884332 £6.38 £7.66
4 - HEX. SOCKET HD. BOLT M5X35 (10 PCS.) HIT-949822.A5 949822 -
5 - EXHAUST COVER HIT-883451.A0 883451 -
6 - GASKET (B) HIT-883452.A2 883452 -
7 - HEAD BUMPER HIT-882914.A4 882914 £9.32 £11.19
8 - HEAD VALVE SPRING HIT-882913.A2 882913 -
9 - O-RING (I.D. 20.8) HIT-883992.A5 883992 -
10 - HEAD VALVE (A) HIT-882927.A2 882927 -
11 - O-RING (S-70) HIT-878863.A5 878863 £1.67 £2.00
12 - CYLINDER PLATE HIT-882910.A2 882910 -
13 - O-RING HIT-887176.A3 887176 -
14 - O-RING (1AP-48) HIT-877368.A5 877368 £1.67 £2.00
15 - CYLINDER HIT-883989.A2 883989 -
16 - O-RING (I.D 37) HIT-883431.A2 883431 £1.67 £2.00
17 - PISTON (H) HIT-883471.A0 883471 -
18 - BODY ASS'Y INCLUD.33 HIT-885516.A0 885516 -
19 - PISTON BUMPER HIT-883432.A0 883432 £19.35 £23.22
20 - NOSE HIT-888209.A0 888209 -
21 - NYLOCK HIGH TENSION BOLT M6X20 HIT-880675.A3 880675 -
22 - ROLL PIN D3X12 (10 PCS.) HIT-949535.A0 949535 £2.98 £3.57
23 - GUARD HIT-883447.A0 883447 -
24 - PUSHING LEVER (C) HIT-888210.A0 888210 -
25 - O-RING (1AP-3) HIT-873093.A3 873093 £1.67 £2.00
26 - PUSHING LEVER (B) HIT-883444.A0 883444 £27.92 £33.51
27 - SPRING HIT-883470.A0 883470 -
28 - O-RING (P-4) HIT-874436.A11 874436 £1.67 £2.00
29 - PUSHING LEVER (A) HIT-883635.A0 883635 £25.51 £30.61
30 - PIN (A) HIT-883448.A0 883448 £4.99 £5.99
31 - PUSHING LEVER SPRING HIT-883446.A0 883446 -
32 - NYLOCK BOLT (W/FLANGE) M6X16 HIT-880474.A2 880474 £1.67 £2.00
33 - GRIP RUBBER HIT-000000.A4818 000000 -
34 - GASKET (B) HIT-884342.A3 884342 -
35 - CAP HIT-881949.A0 881949 -
36 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A1 949821 £3.28 £3.93
37 - AIR PLUG NPT 3/8 HIT-887863.A0 887863 -
38 - ROLL PIN D3X22 (10 PCS.) HIT-949864.A5 949864 £3.28 £3.93
39 - ROLL PIN D3X28 HIT-887846.A2 887846 -
40 - HEAD VALVE O-RING (I.D 16.8) HIT-877699.A13 877699 £1.67 £2.00
41 - VALVE BUSHING (B) HIT-878881.A3 878881 £28.02 £33.63
42 - O-RING (S-18) HIT-878885.A6 878885 £1.67 £2.00
43 - O-RING (I.D 8.8) HIT-878925.A9 878925 £1.67 £2.00
44 - O-RING (I.D 11) HIT-878887.A9 878887 £1.67 £2.00
45 - VALVE PISTON (B) HIT-880672.A12 880672 £25.41 £30.49
46 - O-RING (S-4) HIT-981317.A29 981317 £1.67 £2.00
47 - PLUNGER SPRING (B) HIT-883453.A0 883453 -
48 - PLUNGER (A) HIT-880673.A0 880673 £12.74 £15.29
49 - O-RING (I.D. 1.8) HIT-878888.A5 878888 £1.67 £2.00
50 - VALVE BUSHING (A) HIT-882920.A1 882920 -
51 - TRIGGER ARM HIT-883454.A0 883454 -
52 - ROLL PIN D2.5X16 HIT-881951.A16 881951 -
53 - NAME PLATE HIT-888741.A0 888741 -
54 - TRIGGER (E) HIT-888207.A0 888207 -
55 - PUSHING LEVER GUIDE HIT-883455.A0 883455 -
56 - PIN HIT-883438.A1 883438 -
*57 - NAIL RAIL HIT-883458.A0 883458 -
*57 - NAIL RAIL (S) FOR (S) HIT-883639.A0 883639 -
*58 - GUIDE PLATE HIT-883459.A0 883459 -
*58 - GUIDE PLATE (A) FOR (S) HIT-883472.A0 883472 -
*59 - SHAFT HIT-883460.A0 883460 -
*59 - SHAFT FOR (S) HIT-883641.A0 883641 -
60 - SPRING HIT-883467.A0 883467 -
61 - WASHER HIT-883465.A0 883465 -
62 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A10 880630 £1.67 £2.00
63 - WASHER (B) HIT-962569.A10 962569 £1.67 £2.00
64 - SLEEVE HIT-883442.A0 883442 -
*65 - NYLON NUT M6 HIT-963837.A0 963837 £1.67 £2.00
*65 - NYLON NUT M6 FOR (S) HIT-963837.A1 963837 £1.67 £2.00
66 - HANDLE ARM HIT-883464.A0 883464 -
67A - WARNING LABEL HIT-888958.A0 888958 -
68 - WARNING LABEL HIT-883466.A0 883466 -
69 - LABEL HIT-888758.A0 888758 -
70 - MACHINE SCREW (W/WASHER) M5X16 (BLACK) HIT-881772.A0 881772 -
71 - MAGAZINE COVER HIT-883461.A0 883461 -
72 - NAIL GATE HIT-883462.A0 883462 -
73 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A13 302086 £1.67 £2.00
74A - SPRING WASHER M5 HIT-889083.A0 889083 -
75 - WASHER M5 (10 PCS.) HIT-949424.A6 949424 £1.67 £2.00
76 - NYLON NUT M5 HIT-877371.A8 877371 £1.67 £2.00
77 - NAIL STOPPER (A) HIT-883643.A0 883643 -
78 - BACK PLATE HIT-883642.A0 883642 -
*79 - HEX. SOCKET HD. BOLT M6X12 HIT-878647.A0 878647 -
*79 - HEX. SOCKET HD. BOLT M6X12 FOR (S) HIT-878647.A1 878647 -
80 - FEEDER SPRING HIT-883441.A0 883441 -
81 - FEEDER PLATE HIT-883437.A0 883437 -
82 - RIBBON SPRING HIT-883440.A0 883440 -
83 - NAIL FEEDER HIT-883436.A0 883436 -
84 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A20 887458 -
85 - PUSHING LEVER STOPPER HIT-883439.A0 883439 -
86 - PIN HIT-883438.A0 883438 -
*87 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X6 HIT-305735.A0 305735 -
*87 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X6 FOR (S) HIT-305735.A1 305735 -
88 - NYLON NUT M6 HIT-963837.A2 963837 £1.67 £2.00
*89 - MAGAZINE HIT-883457.A0 883457 -
*89 - MAGAZINE (S) FOR (S) HIT-883638.A0 883638 -
90 - MAGAZINE RING HIT-883434.A0 883434 -
91 - MAGAZINE PLATE HIT-883435.A0 883435 -
501 - PROTECTIVE GLASSES HIT-875769.A39 875769 -
601 - GRIP TAPE (A) HIT-881768.A13 881768 -
602A - TAPE (2 PCS.) HIT-888213.A23 888213 -
