Hitachi / Hikoki NC50H High Pressure Concrete Coil Nailer Spare Parts

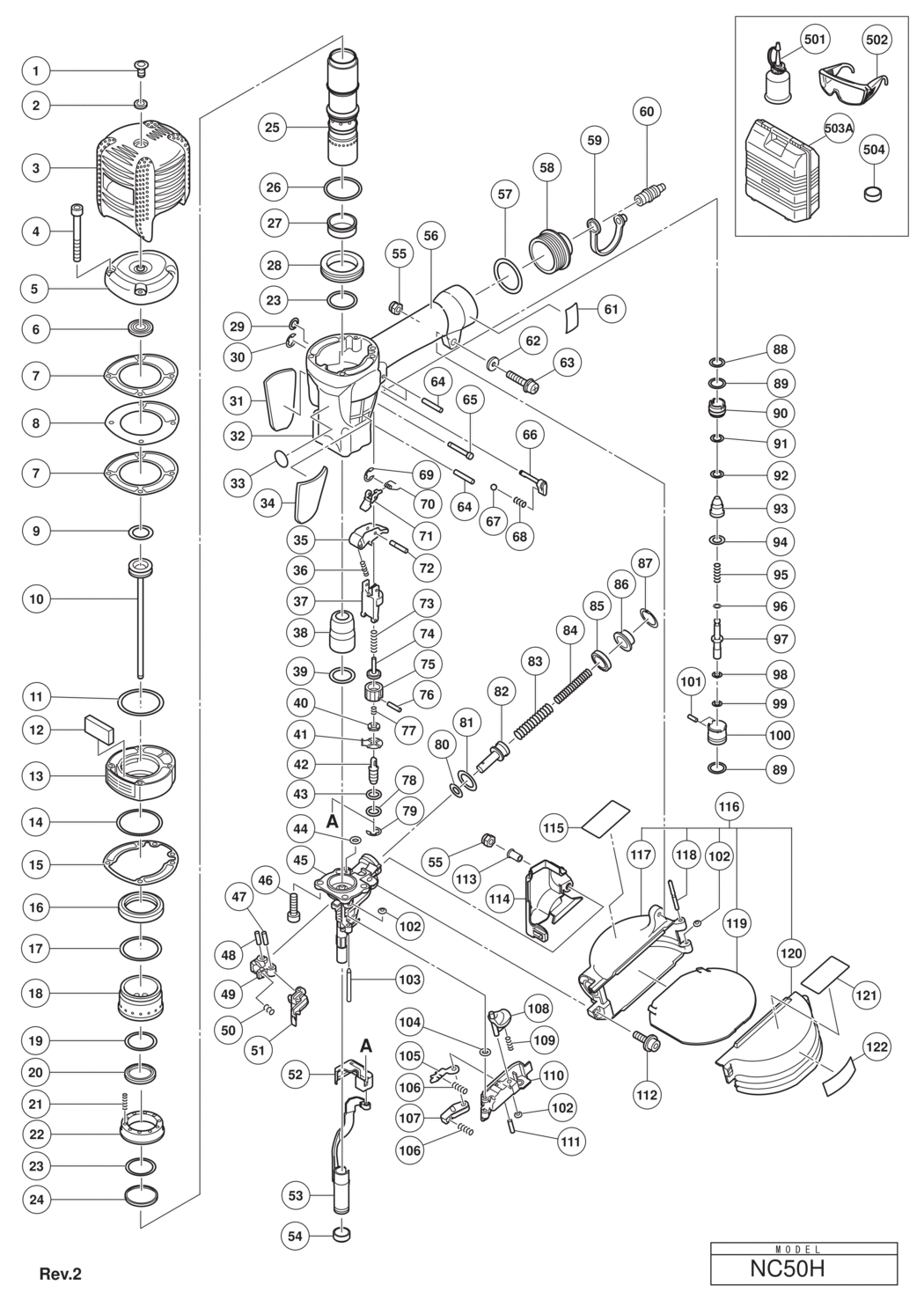

An exploded diagram and spare parts listing for the Hitachi / Hikoki NC50H High Pressure Concrete Coil Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET FLAT HD. SCREW M5X10 HIT-885265.A0 885265	-
2 - WASHER HIT-885264.A1 885264	-
3 - HEAD GUARD HIT-885593.A0 885593	-
4 - NYLOCK BOLT M5X55 HIT-883403.A0 883403	-
5 - UPPER COVER (GOLD) HIT-886632.A1 886632	-
6 - HEAD BUMPER HIT-883423.A0 883423	-
7 - GASKET (B) HIT-883130.A1 883130	-
8 - PLATE HIT-883132.A0 883132	-
9 - PISTON O-RING HIT-885253.A0 885253	-
10 - PISTON (H) HIT-885597.A0 885597	-
11 - O-RING (I.D 45.5) HIT-883401.A0 883401	-
12 - MUFFLER (A) HIT-883402.A0 883402	-
13 - EXHAUST COVER (GOLD) HIT-886634.A0 886634	-
14 - O-RING (S-48) HIT-980715.A1 980715	£3.28	£3.93
15 - GASKET (C) HIT-885188.A1 885188	-
16 - SLEEVE VALVE RUBBER HIT-883121.A1 883121	-
17 - O-RING (I.D 41.5) FKM HIT-885678.A0 885678	-
18 - SLEEVE VALVE HIT-883118.A0 883118	-
19 - O-RING (I.D 35.5) FKM HIT-885679.A0 885679	-
20 - EXHAUST RUBBER HIT-883120.A0 883120	-
21 - SLEEVE VALVE SPRING HIT-883123.A1 883123	-
22 - VALVE PLATE HIT-885861.A0 885861	-
23 - O-RING (I.D 29.7) HIT-880865.A1 880865	-
24 - CYLINDER BUMPER HIT-885862.A0 885862	-
25 - CYLINDER HIT-885863.A0 885863	-
26 - O-RING (I.D 45.5) HIT-883418.A1 883418	-
27 - CYLINDER RING HIT-881244.A2 881244	-
28 - CYLINDER PLATE HIT-883117.A0 883117	-
29 - O-RING (I.D 1.8) HIT-883405.A3 883405	-
30 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A18 968643	£1.67	£2.00
31 - BRAND LABEL (D) HIT-000000.A2130 000000	-
32 - BODY ASS'Y INCLUD.56 HIT-887976.A0 887976	-
33 - WARNING LABEL (A) HIT-883513.A0 883513	-
34 - BRAND LABEL (C) HIT-000000.A2131 000000	-
35 - TRIGGER (S) HIT-886052.A2 886052	-
36 - TRIGGER SPRING HIT-884916.A1 884916	-
37 - PUSHING LEVER GUIDE HIT-886047.A3 886047	-
38 - PISTON BUMPER HIT-885254.A1 885254	-
39 - O-RING (S-34) HIT-980879.A8 980879	£1.67	£2.00
40 - ADJUSTER PLATE (C) HIT-884973.A1 884973	£1.67	£2.00
41 - ADJUSTER PLATE (A) HIT-882886.A1 882886	-
42 - PUSHING LEVER (B) HIT-882888.A1 882888	-
43 - O-RING (S-4) HIT-981317.A0 981317	£1.67	£2.00
44 - O-RING (1AP-3) HIT-873093.A20 873093	£1.67	£2.00
45 - NOSE HIT-886050.A0 886050	-
46 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A2 993040	£2.69	£3.23
47 - PLUNGER (B) HIT-883093.A4 883093	-
48 - ROLL PIN D4X16 (10 PCS.) HIT-949497.A7 949497	£3.28	£3.93
49 - FEEDER ARM (B) HIT-883144.A4 883144	-
50 - FEEDER SPRING HIT-883143.A2 883143	-
51 - FEEDER HIT-885604.A0 885604	-
52 - PUSHING LEVER COVER (B) HIT-883113.A2 883113	-
53 - PUSHING LEVER (A) HIT-886058.A0 886058	-
54 - NOSE CAP HIT-886057.A1 886057	-
55 - NYLON NUT M5 HIT-877371.A25 877371	£1.67	£2.00
56 - GRIP RUBBER (A) HIT-000000.A2132 000000	-
57 - O-RING (I.D 37.2) HIT-880183.A10 880183	£1.67	£2.00
58 - CAP (GOLD) HIT-886426.A2 886426	-
59 - DUST CAP HIT-877914.A7 877914	-
60 - AIR PLUG L-PT 1/4 HIT-883135.A2 883135	-
61 - CAUTION PLATE (C) HIT-000000.A2134 000000	-
62 - SLEEVE (A) HIT-886059.A0 886059	-
63 - MACHINE SCREW (W/WASHERS) M5X35 (BLACK) HIT-885266.A0 885266	-
64 - ROLL PIN D3X28 (10 PCS.) HIT-949865.A11 949865	£3.28	£3.93
65 - TRIGGER PIN HIT-885268.A1 885268	-
66 - LOCK KNOB (A) HIT-885865.A0 885865	-
67 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A13 959148	£1.67	£2.00
68 - LOCK SPRING HIT-882923.A9 882923	-
69 - RETAINING RING (E-TYPE) FOR D1.5 SHAFT HIT-886056.A1 886056	-
70 - SPRING (S) HIT-886054.A1 886054	-
71 - TRIGGER ARM (S) HIT-886053.A1 886053	-
72 - TRIGGER ARM PIN HIT-886055.A1 886055	-
73 - PUSHING LEVER SPRING (A) HIT-883305.A2 883305	-
74 - PUSHING LEVER (C) HIT-882891.A6 882891	-
75 - ADJUSTER HIT-882889.A5 882889	-
76 - ROLL PIN D2X16 HIT-880093.A6 880093	-
77 - ADJUSTER SPRING HIT-882890.A3 882890	-
78 - O-RING (S-5) HIT-872822.A12 872822	£3.19	£3.83
79 - RETAINING RING (E-TYPE) FOR D3 SHAFT HIT-872971.A7 872971	£1.67	£2.00
80 - O-RING (P-9) HIT-872645.A23 872645	£1.67	£2.00
81 - FEED PISTON O-RING (I.D. 14) HIT-877763.A1 877763	-
82 - FEED PISTON HIT-883094.A1 883094	-
83 - FEED SPRING (A) HIT-883095.A2 883095	-
84 - FEED SPRING (B) HIT-883096.A1 883096	-
85 - BUMPER HIT-885681.A0 885681	-
86 - FEED PISTON COVER HIT-883098.A1 883098	-
87 - RETAINING RING FOR D24 HOLE HIT-983748.A2 983748	£1.67	£2.00
88 - O-RING (S-14) HIT-876319.A5 876319	£1.67	£2.00
89 - O-RING (S-16) HIT-876031.A1 876031	£2.98	£3.57
90 - VALVE BUSHING (B) HIT-883100.A1 883100	-
91 - O-RING (P7-U) HIT-883105.A4 883105	-
92 - O-RING (P9-U) HIT-883104.A0 883104	-
93 - VALVE PISTON HIT-883101.A0 883101	-
94 - O-RING (1AP-11) HIT-878764.A3 878764	-
95 - PLUNGER SPRING HIT-883103.A4 883103	-
96 - O-RING (I.D 1.8) HIT-883405.A5 883405	-
97 - PLUNGER (S) HIT-886051.A1 886051	-
98 - O-RING (1AP-5) HIT-873407.A2 873407	-
99 - O-RING (S-6) HIT-997218.A3 997218	-
100 - VALVE BUSHING (A) HIT-883099.A3 883099	-
101 - PIN D2X8 (10 PCS.) HIT-949778.A1 949778	-
102 - SHAFT RING HIT-880319.A9 880319	£1.67	£2.00
103 - NAIL GUIDE SHAFT HIT-885603.A0 885603	-
104 - O-RING (P-4) HIT-874436.A21 874436	£1.67	£2.00
105 - NAIL STOPPER (A) HIT-885601.A0 885601	-
106 - STOPPER SPRING HIT-885602.A0 885602	-
107 - SHEET STOPPER HIT-885600.A0 885600	-
108 - GUIDE LOCK HIT-886107.A10 886107	£8.59	£10.31
109 - SPRING HIT-880446.A10 880446	£1.67	£2.00
110 - NAIL GUIDE HIT-885599.A0 885599	-
111 - ROLL PIN D3X14 (10 PCS.) HIT-949900.A5 949900	£1.67	£2.00
112 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X25 HIT-992253.A0 992253	£1.67	£2.00
113 - SLEEVE HIT-885605.A0 885605	-
114 - PUSHING LEVER COVER (A) HIT-887964.A0 887964	-
115 - WARNING LABEL HIT-887175.A2 887175	-
116 - MAGAZINE ASS'Y INCLUD.102 HIT-885612.A0 885612	-
117 - MAGAZINE HIT-885613.A0 885613	-
118 - PIN HIT-883111.A5 883111	-
119 - NAIL HOLDER HIT-880438.A1 880438	-
120 - MAGAZINE COVER HIT-885614.A0 885614	-
121 - WARNING LABEL HIT-887174.A3 887174	-
122 - NAME PLATE HIT-000000.A1174 000000	-
501 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-883136.A4 883136	-
502 - PROTECTIVE GLASSES HIT-875769.A98 875769	-
503A - CASE HIT-888666.A2 888666	-
504 - NOSE CAP HIT-886057.A0 886057	-
601 - GRIP TAPE (A) HIT-881768.A19 881768	-
602A - TAPE (2 PCS.) HIT-888213.A9 888213	-
603 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A12 876212	-
604 - GRIP GUIDE HIT-887133.A0 887133	-
605 - HANGER PARTS SET HIT-887978.A2 887978	-
