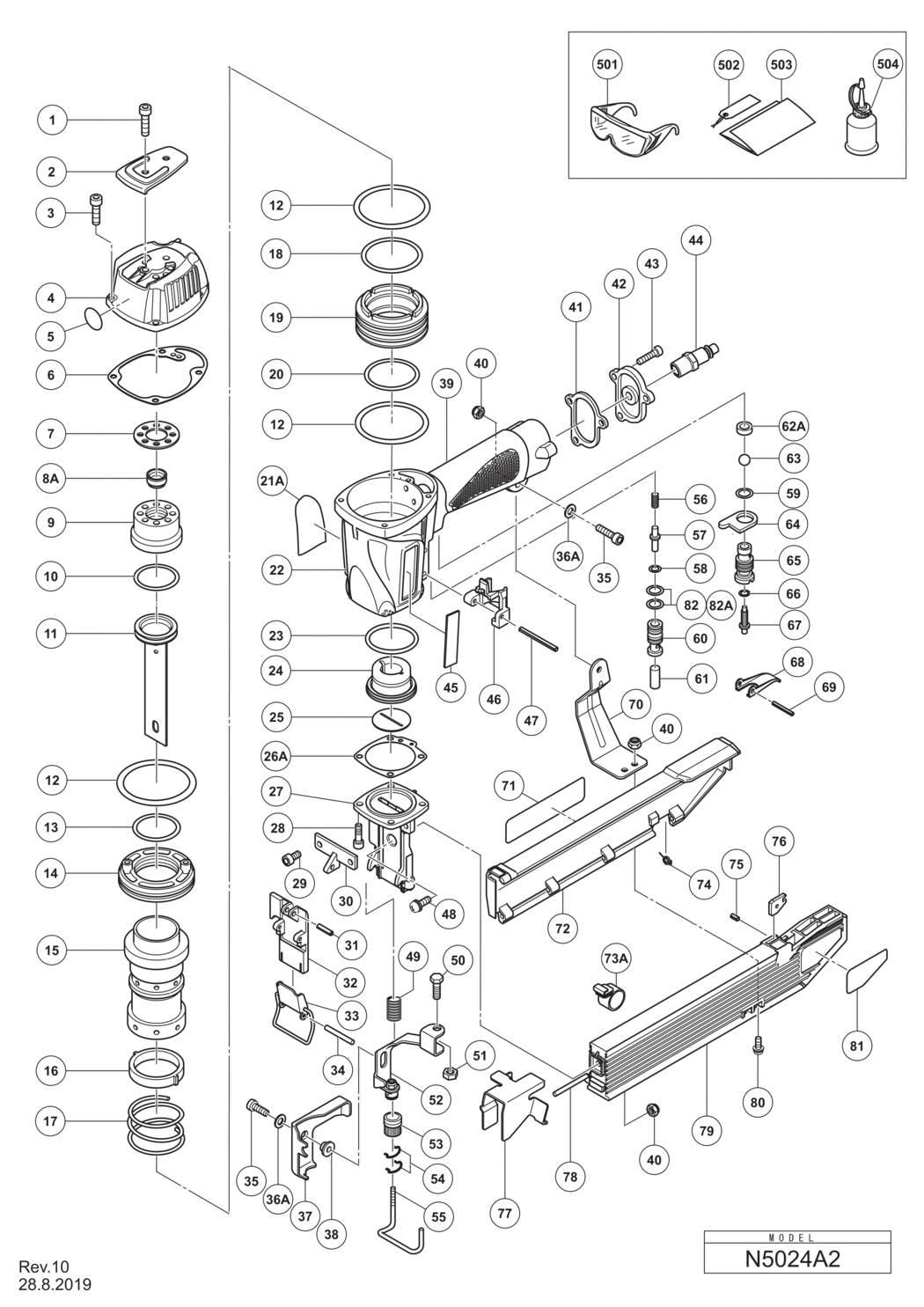

1 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.)
HIT-949662.A22
949662
|
£3.64
|
£4.37
|
|
|
2 - TOP COVER
HIT-876179.A6
876179
|
£1.67
|
£2.00
|
|
|
3 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.)
HIT-949757.A11
949757
|
£3.64
|
£4.37
|
|
|
4 - EXHAUST COVER
HIT-886444.A2
886444
|
-
|
|
|
|
5 - WARNING LABEL (A) EXCEPT FOR USA
HIT-883513.A13
883513
|
-
|
|
|
|
6 - GASKET (F)
HIT-883892.A3
883892
|
-
|
|
|
|
7 - GASKET (C)
HIT-886466.A1
886466
|
-
|
|
|
|
8A - EXHAUST VALVE
HIT-890209.A1
890209
|
-
|
|
|
|
9 - HEAD CAP ASS'Y
HIT-877129.A2
877129
|
-
|
|
|
|
10 - PISTON O-RING
HIT-876174.A3
876174
|
£3.37
|
£4.04
|
|
|
11 - PISTON
HIT-884357.A0
884357
|
-
|
|
|
|
12 - O-RING (I.D. 64.5)
HIT-885793.A2
885793
|
-
|
|
|
|
13 - CYLINDER O-RING (D)
HIT-877126.A0
877126
|
£1.67
|
£2.00
|
|
|
14 - CYLINDER PLATE
HIT-876168.A3
876168
|
£9.70
|
£11.64
|
|
|
15 - CYLINDER
HIT-877486.A1
877486
|
£38.88
|
£46.65
|
|
|
16 - CYLINDER RING
HIT-876167.A4
876167
|
£1.67
|
£2.00
|
|
|
17 - CYLINDER SPRING
HIT-876172.A4
876172
|
£5.73
|
£6.88
|
|
|
18 - CYLINDER O-RING (A)
HIT-877123.A7
877123
|
£1.67
|
£2.00
|
|
|
19 - CYLINDER GUIDE
HIT-877122.A0
877122
|
£20.70
|
£24.84
|
|
|
20 - CYLINDER O-RING (B)
HIT-877124.A0
877124
|
£1.67
|
£2.00
|
|
|
21A - NAME PLATE
HIT-888962.A0
888962
|
-
|
|
|
|
22 - BODY ASS'Y INCLUD.39
HIT-886443.A1
886443
|
-
|
|
|
|
23 - CYLINDER O-RING (C)
HIT-877125.A7
877125
|
£1.67
|
£2.00
|
|
|
24 - PISTON BUMPER
HIT-884350.A0
884350
|
-
|
|
|
|
25 - BUMPER SHEET
HIT-884351.A0
884351
|
-
|
|
|
|
26A - GASKET (A)
HIT-883881.A2
883881
|
£1.67
|
£2.00
|
|
|
27 - NOSE ASS'Y INCLUD.55
HIT-886726.A0
886726
|
-
|
|
|
|
28 - NYLOCK HEX. SOCKET HD. BOLT M5X16
HIT-878181.A4
878181
|
£1.67
|
£2.00
|
|
|
29 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.)
HIT-949819.A16
949819
|
£6.66
|
£7.99
|
|
|
30 - GUIDE PLATE
HIT-884360.A0
884360
|
-
|
|
|
|
31 - ROLL PIN D4X16 (10 PCS.)
HIT-949497.A5
949497
|
£3.28
|
£3.93
|
|
|
32 - BLADE GUIDE
HIT-884361.A1
884361
|
-
|
|
|
|
33 - LOCK LEVER
HIT-884362.A0
884362
|
-
|
|
|
|
34 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A7
949866
|
£4.33
|
£5.20
|
|
|
35 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.)
HIT-949658.A13
949658
|
£3.28
|
£3.93
|
|
|
36A - WASHER
HIT-889024.A4
889024
|
-
|
|
|
|
37 - GUARD
HIT-884364.A0
884364
|
-
|
|
|
|
38 - SLEEVE
HIT-884366.A1
884366
|
-
|
|
|
|
39 - GRIP RUBBER
HIT-000000.A85
000000
|
-
|
|
|
|
40 - NYLON NUT M5
HIT-877371.A59
877371
|
£1.67
|
£2.00
|
|
|
41 - GASKET (D)
HIT-886719.A2
886719
|
-
|
|
|
|
42 - CAP
HIT-885795.A1
885795
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.)
HIT-949821.A23
949821
|
£3.28
|
£3.93
|
|
|
44 - AIR PLUG NPT 1/4
HIT-000000.A87
000000
|
-
|
|
|
|
45 - BRAND PLATE
HIT-886342.A6
886342
|
£1.67
|
£2.00
|
|
|
*45 - BRAND PLATE FOR USA
HIT-886342M.A6
886342M
|
-
|
|
|
|
46 - VALVE GUARD
HIT-884356.A1
884356
|
-
|
|
|
|
47 - ROLL PIN D3X45
HIT-884025.A1
884025
|
-
|
|
|
|
48 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK
HIT-308386.A0
308386
|
£1.67
|
£2.00
|
|
|
49 - HOLDER SPRING
HIT-877894.A3
877894
|
£1.67
|
£2.00
|
|
|
50 - SAFETY BOLT
HIT-875650.A3
875650
|
£1.67
|
£2.00
|
|
|
51 - NUT M5 (10 PCS.)
HIT-949555.A3
949555
|
£1.67
|
£2.00
|
|
|
52 - PUSHING LEVER
HIT-884353.A0
884353
|
-
|
|
|
|
53 - ADJUSTER
HIT-885796.A0
885796
|
-
|
|
|
|
54 - RATCHET SPRING
HIT-881765.A8
881765
|
£3.02
|
£3.63
|
|
|
55 - PUSHING LEVER(A)
HIT-886447.A1
886447
|
-
|
|
|
|
56 - PLUNGER SPRING
HIT-886725.A1
886725
|
-
|
|
|
|
57 - PLUNGER (A)
HIT-878542.A1
878542
|
-
|
|
|
|
58 - PLUNGER O-RING
HIT-877705.A1
877705
|
-
|
|
|
|
59 - O-RING (S-12)
HIT-875638.A21
875638
|
£1.67
|
£2.00
|
|
|
60 - VALVE BUSHING
HIT-877880.A2
877880
|
-
|
|
|
|
61 - PLUNGER (B)
HIT-877882.A1
877882
|
-
|
|
|
|
62A - VALVE PACKING
HIT-888151.A11
888151
|
-
|
|
|
|
63 - URETHANE BALL (C) D7.14
HIT-875645.A7
875645
|
£3.70
|
£4.44
|
|
|
64 - VALVE PLATE
HIT-875644.A3
875644
|
£1.67
|
£2.00
|
|
|
65 - TRIGGER VALVE BUSHING
HIT-877335.A3
877335
|
£14.66
|
£17.59
|
|
|
66 - PLUNGER O-RING
HIT-874820.A3
874820
|
£1.67
|
£2.00
|
|
|
67 - TRIGGER PLUNGER
HIT-878121.A3
878121
|
£9.96
|
£11.95
|
|
|
68 - TRIGGER
HIT-876203.A7
876203
|
£1.67
|
£2.00
|
|
|
69 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A6
949866
|
£4.33
|
£5.20
|
|
|
70 - HANDLE ARM
HIT-884363.A1
884363
|
-
|
|
|
|
71 - WARNING LABEL EXCEPT FOR USA
HIT-886720.A0
886720
|
-
|
|
|
|
72 - MAGAZINE COVER
HIT-883718.A1
883718
|
£11.17
|
£13.40
|
|
|
73A - RIBBON SPRING
HIT-889503.A1
889503
|
-
|
|
|
|
74 - COVER SPRING
HIT-881043.A1
881043
|
-
|
|
|
|
75 - ROLL PIN D3X8 (10 PCS.)
HIT-949749.A5
949749
|
£1.67
|
£2.00
|
|
|
76 - MAGAZINE PIECE
HIT-881039.A3
881039
|
-
|
|
|
|
77 - STAPLE FEEDER
HIT-884359.A0
884359
|
-
|
|
|
|
78 - HINGE PIN
HIT-883719.A2
883719
|
-
|
|
|
|
79 - MAGAZINE ASS'Y INCLUD.75
HIT-884358.A0
884358
|
-
|
|
|
|
80 - MACHINE SCREW (W/WASHERS) M5X14 (BLACK)
HIT-678653.A1
678653
|
-
|
|
|
|
81 - LABEL
HIT-000000.A89
000000
|
-
|
|
|
|
82 - O-RING (S-12) TILL 4.2011
HIT-875638.A22
875638
|
£1.67
|
£2.00
|
|
|
82A - O-RING (I.D 10.7) SINCE 5.2011
HIT-884112.A12
884112
|
-
|
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A82
875769
|
-
|
|
|
|
502 - CAUTION TAG
HIT-882413.A0
882413
|
-
|
|
|
|
503 - LEAFLET FOR USA
HIT-886721.A1
886721
|
-
|
|
|
|
504 - PNEUMATIC TOOL LUBRICANT (30CC) EXCEPT FOR USA
HIT-877153.A7
877153
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A21
881768
|
-
|
|
|
|
602A - TAPE (2 PCS.)
HIT-888213.A2
888213
|
-
|
|
|
|
603 - SEQUENTIAL TRIP MECHANISM KIT
HIT-876762.A5
876762
|
-
|
|
|
|
604 - PNEUMATIC TOOL LUBRICANT (30CC)
HIT-877153.A6
877153
|
-
|
|
|
|
605 - PNEUMATIC TOOL LUBRICANT (120CC)
HIT-874042.A12
874042
|
-
|
|
|
|
606 - PNEUMATIC TOOL LUBRICANT (1L)
HIT-876212.A9
876212
|
-
|
|
|
|
607 - GREASE (ATTOLUB NO.2) 500G
HIT-317918.A5
317918
|
£37.06
|
£44.47
|
|
