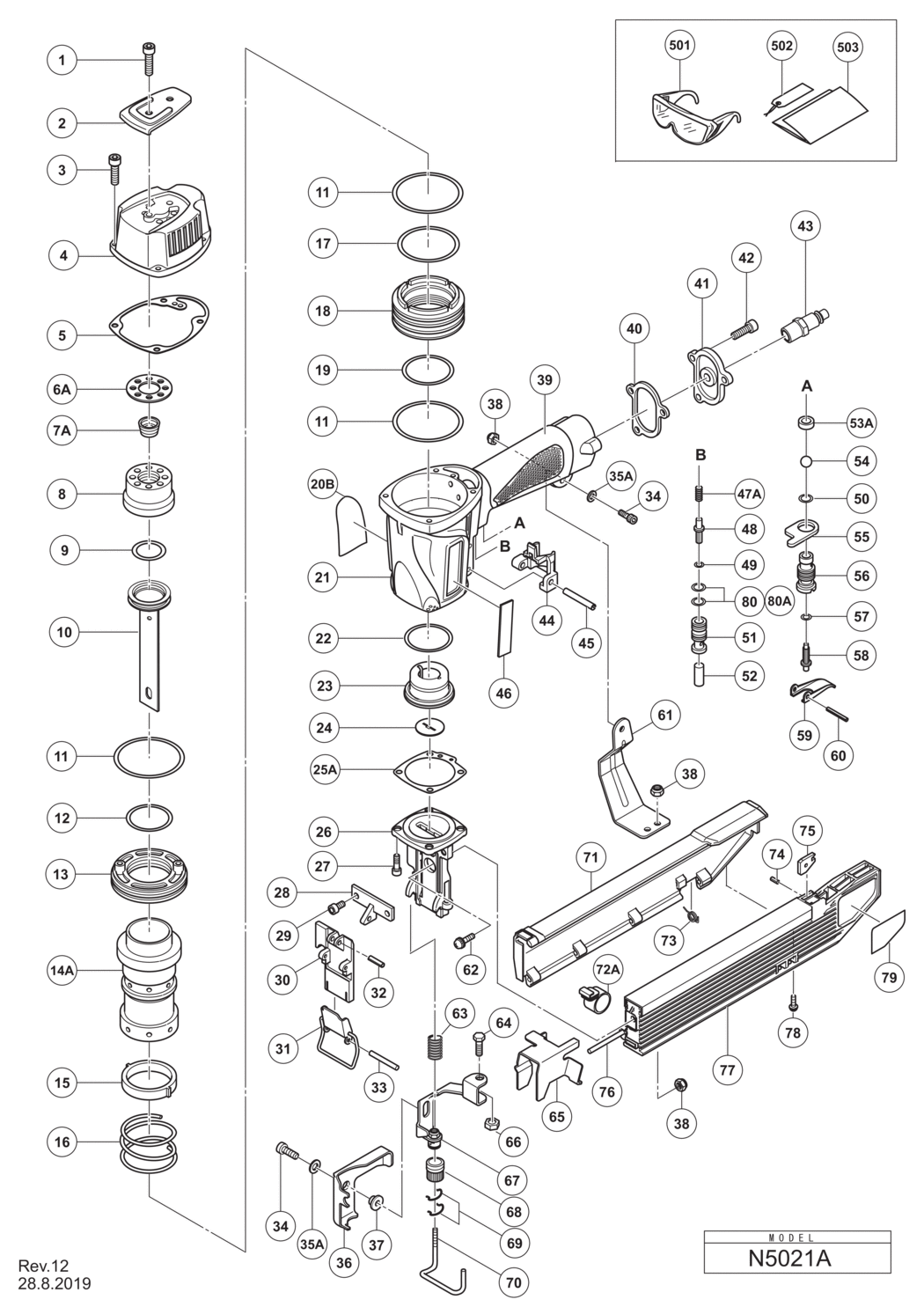

1 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.)
HIT-949662.A21
949662
|
£3.64
|
£4.37
|
|
|
2 - TOP COVER
HIT-876179.A5
876179
|
£1.67
|
£2.00
|
|
|
3 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.)
HIT-949757.A10
949757
|
£3.64
|
£4.37
|
|
|
4 - EXHAUST COVER
HIT-886444.A3
886444
|
-
|
|
|
|
5 - GASKET (F)
HIT-883892.A2
883892
|
-
|
|
|
|
6A - GASKET (C)
HIT-886466.A0
886466
|
-
|
|
|
|
7A - EXHAUST VALVE
HIT-890209.A0
890209
|
-
|
|
|
|
8 - HEAD CAP ASS'Y
HIT-877129.A1
877129
|
-
|
|
|
|
9 - PISTON O-RING
HIT-876174.A2
876174
|
£3.37
|
£4.04
|
|
|
10 - PISTON
HIT-886448.A0
886448
|
-
|
|
|
|
11 - O-RING (I.D. 64.5)
HIT-885793.A3
885793
|
-
|
|
|
|
12 - CYLINDER O-RING (D)
HIT-877126.A1
877126
|
£1.67
|
£2.00
|
|
|
13 - CYLINDER PLATE
HIT-876168.A2
876168
|
£9.70
|
£11.64
|
|
|
14A - CYLINDER
HIT-888212.A0
888212
|
-
|
|
|
|
15 - CYLINDER RING
HIT-876167.A5
876167
|
£1.67
|
£2.00
|
|
|
16 - CYLINDER SPRING
HIT-876172.A5
876172
|
£5.73
|
£6.88
|
|
|
17 - CYLINDER O-RING (A)
HIT-877123.A6
877123
|
£1.67
|
£2.00
|
|
|
18 - CYLINDER GUIDE
HIT-877122.A1
877122
|
£20.70
|
£24.84
|
|
|
19 - CYLINDER O-RING (B)
HIT-877124.A1
877124
|
£1.67
|
£2.00
|
|
|
20B - NAME PLATE
HIT-888963M.A0
888963M
|
-
|
|
|
|
21 - BODY ASS'Y INCLUD.39
HIT-886443.A0
886443
|
-
|
|
|
|
22 - CYLINDER O-RING (C)
HIT-877125.A6
877125
|
£1.67
|
£2.00
|
|
|
23 - PISTON BUMPER
HIT-884350.A1
884350
|
-
|
|
|
|
24 - BUMPER SHEET
HIT-886445.A0
886445
|
-
|
|
|
|
25A - GASKET (A)
HIT-883881.A3
883881
|
£1.67
|
£2.00
|
|
|
26 - NOSE
HIT-886446.A0
886446
|
-
|
|
|
|
27 - NYLOCK HEX. SOCKET HD. BOLT M5X16
HIT-878181.A3
878181
|
£1.67
|
£2.00
|
|
|
28 - GUIDE PLATE
HIT-884360.A1
884360
|
-
|
|
|
|
29 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.)
HIT-949819.A15
949819
|
£6.66
|
£7.99
|
|
|
30 - BLADE GUIDE
HIT-884361.A0
884361
|
-
|
|
|
|
31 - LOCK LEVER
HIT-884362.A1
884362
|
-
|
|
|
|
32 - ROLL PIN D4X16 (10 PCS.)
HIT-949497.A4
949497
|
£3.28
|
£3.93
|
|
|
33 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A3
949866
|
£4.33
|
£5.20
|
|
|
34 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.)
HIT-949658.A11
949658
|
£3.28
|
£3.93
|
|
|
35A - WASHER
HIT-889024.A3
889024
|
-
|
|
|
|
36 - GUARD
HIT-884364.A1
884364
|
-
|
|
|
|
37 - SLEEVE
HIT-884366.A0
884366
|
-
|
|
|
|
38 - NYLON NUT M5
HIT-877371.A57
877371
|
£1.67
|
£2.00
|
|
|
39 - GRIP RUBBER
HIT-000000.A79
000000
|
-
|
|
|
|
40 - GASKET (D)
HIT-877131.A0
877131
|
£1.67
|
£2.00
|
|
|
41 - CAP
HIT-885795.A0
885795
|
-
|
|
|
|
42 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.)
HIT-949821.A24
949821
|
£3.28
|
£3.93
|
|
|
43 - AIR PLUG NPT 1/4
HIT-000000.A81
000000
|
-
|
|
|
|
44 - VALVE GUARD
HIT-884356.A0
884356
|
-
|
|
|
|
45 - ROLL PIN D3X45
HIT-884025.A2
884025
|
-
|
|
|
|
46 - BRAND PLATE
HIT-886342.A5
886342
|
£1.67
|
£2.00
|
|
|
*46 - BRAND PLATE FOR USA
HIT-886342M.A7
886342M
|
-
|
|
|
|
47A - PLUNGER SPRING
HIT-886725.A3
886725
|
-
|
|
|
|
48 - PLUNGER (A)
HIT-878542.A3
878542
|
-
|
|
|
|
49 - PLUNGER O-RING
HIT-877705.A3
877705
|
-
|
|
|
|
50 - O-RING (S-12)
HIT-875638.A19
875638
|
£1.67
|
£2.00
|
|
|
51 - VALVE BUSHING
HIT-877880.A0
877880
|
-
|
|
|
|
52 - PLUNGER (B)
HIT-877882.A3
877882
|
-
|
|
|
|
53A - VALVE PACKING
HIT-888151.A12
888151
|
-
|
|
|
|
54 - URETHANE BALL (C) D7.14
HIT-875645.A6
875645
|
£3.70
|
£4.44
|
|
|
55 - VALVE PLATE
HIT-875644.A4
875644
|
£1.67
|
£2.00
|
|
|
56 - TRIGGER VALVE BUSHING
HIT-877335.A5
877335
|
£14.66
|
£17.59
|
|
|
57 - PLUNGER O-RING
HIT-874820.A4
874820
|
£1.67
|
£2.00
|
|
|
58 - TRIGGER PLUNGER
HIT-878121.A4
878121
|
£9.96
|
£11.95
|
|
|
59 - TRIGGER
HIT-876203.A5
876203
|
£1.67
|
£2.00
|
|
|
60 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A4
949866
|
£4.33
|
£5.20
|
|
|
61 - HANDLE ARM
HIT-884363.A0
884363
|
-
|
|
|
|
62 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK
HIT-308386.A1
308386
|
£1.67
|
£2.00
|
|
|
63 - HOLDER SPRING
HIT-877894.A2
877894
|
£1.67
|
£2.00
|
|
|
64 - SAFETY BOLT
HIT-875650.A4
875650
|
£1.67
|
£2.00
|
|
|
65 - STAPLE FEEDER
HIT-886450.A0
886450
|
-
|
|
|
|
66 - NUT M5 (10 PCS.)
HIT-949555.A4
949555
|
£1.67
|
£2.00
|
|
|
67 - PUSHING LEVER
HIT-884353.A1
884353
|
-
|
|
|
|
68 - ADJUSTER
HIT-885796.A1
885796
|
-
|
|
|
|
69 - RATCHET SPRING
HIT-881765.A7
881765
|
£3.02
|
£3.63
|
|
|
70 - PUSHING LEVER(A)
HIT-886447.A0
886447
|
-
|
|
|
|
71 - MAGAZINE COVER
HIT-883718.A3
883718
|
£11.17
|
£13.40
|
|
|
72A - RIBBON SPRING
HIT-889503.A2
889503
|
-
|
|
|
|
73 - COVER SPRING
HIT-881043.A3
881043
|
-
|
|
|
|
74 - ROLL PIN D3X8 (10 PCS.)
HIT-949749.A3
949749
|
£1.67
|
£2.00
|
|
|
75 - MAGAZINE PIECE
HIT-881039.A1
881039
|
-
|
|
|
|
76 - HINGE PIN
HIT-883719.A0
883719
|
-
|
|
|
|
77 - MAGAZINE ASS'Y INCLUD.74
HIT-886449.A0
886449
|
-
|
|
|
|
78 - MACHINE SCREW (W/WASHERS) M5X14 (BLACK)
HIT-678653.A2
678653
|
-
|
|
|
|
79 - LABEL
HIT-000000.A83
000000
|
-
|
|
|
|
80 - O-RING (S-12) TILL 4.2011
HIT-875638.A20
875638
|
£1.67
|
£2.00
|
|
|
80A - O-RING (I.D 10.7) SINCE 5.2011
HIT-884112.A10
884112
|
-
|
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A80
875769
|
-
|
|
|
|
502 - CAUTION TAG
HIT-882413.A2
882413
|
-
|
|
|
|
503 - LEAFLET
HIT-882414.A5
882414
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A22
881768
|
-
|
|
|
|
602A - TAPE (2 PCS.)
HIT-888213.A1
888213
|
-
|
|
|
|
603 - SEQUENTIAL TRIP MECHANISM KIT
HIT-876762.A3
876762
|
-
|
|
|
|
604 - PNEUMATIC TOOL LUBRICANT (30CC)
HIT-877153.A4
877153
|
-
|
|
|
|
605 - PNEUMATIC TOOL LUBRICANT (120CC)
HIT-874042.A11
874042
|
-
|
|
|
|
606 - PNEUMATIC TOOL LUBRICANT (1L)
HIT-876212.A11
876212
|
-
|
|
|
|
607 - GREASE (ATTOLUB NO.2) 500G
HIT-317918.A3
317918
|
£37.06
|
£44.47
|
|
