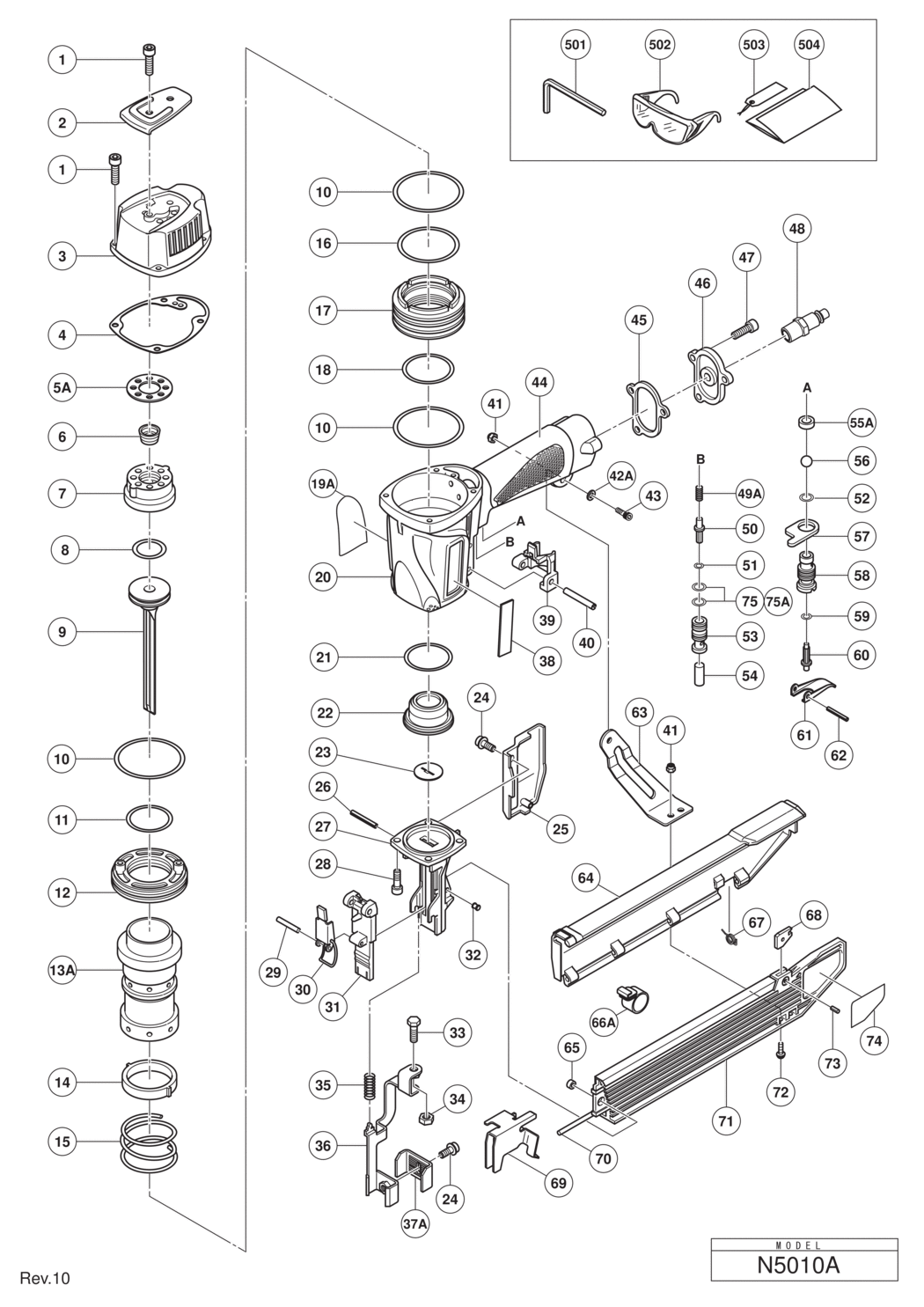

1 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.)
HIT-949757.A14
949757
|
£3.64
|
£4.37
|
|
|
2 - TOP COVER
HIT-876179.A4
876179
|
£1.67
|
£2.00
|
|
|
3 - EXHAUST COVER
HIT-886444.A1
886444
|
-
|
|
|
|
4 - GASKET (F)
HIT-883892.A4
883892
|
-
|
|
|
|
5A - GASKET (C)
HIT-886466.A2
886466
|
-
|
|
|
|
6 - EXHAUST VALVE
HIT-878539.A1
878539
|
£6.28
|
£7.53
|
|
|
7 - HEAD CAP
HIT-878026.A0
878026
|
£53.39
|
£64.07
|
|
|
8 - PISTON O-RING
HIT-876174.A4
876174
|
£3.37
|
£4.04
|
|
|
9 - PISTON
HIT-886437.A0
886437
|
-
|
|
|
|
10 - O-RING (I.D. 64.5)
HIT-885793.A1
885793
|
-
|
|
|
|
11 - CYLINDER O-RING (D)
HIT-877126.A2
877126
|
£1.67
|
£2.00
|
|
|
12 - CYLINDER PLATE
HIT-876168.A4
876168
|
£9.70
|
£11.64
|
|
|
13A - CYLINDER
HIT-885792.A0
885792
|
-
|
|
|
|
14 - CYLINDER RING
HIT-876167.A3
876167
|
£1.67
|
£2.00
|
|
|
15 - CYLINDER SPRING
HIT-876172.A3
876172
|
£5.73
|
£6.88
|
|
|
16 - CYLINDER O-RING (A)
HIT-877123.A5
877123
|
£1.67
|
£2.00
|
|
|
17 - CYLINDER GUIDE
HIT-877122.A2
877122
|
£20.70
|
£24.84
|
|
|
18 - CYLINDER O-RING (B)
HIT-877124.A2
877124
|
£1.67
|
£2.00
|
|
|
19A - NAME PLATE
HIT-888961.A0
888961
|
-
|
|
|
|
20 - BODY ASS'Y INCLUD.44
HIT-886443.A2
886443
|
-
|
|
|
|
21 - CYLINDER O-RING (C)
HIT-877125.A5
877125
|
£1.67
|
£2.00
|
|
|
22 - PISTON BUMPER
HIT-886434.A1
886434
|
-
|
|
|
|
23 - BUMPER SHEET
HIT-886435.A0
886435
|
-
|
|
|
|
24 - NYLOCK BOLT (W/FLANGE) M5X8
HIT-878540.A0
878540
|
-
|
|
|
|
25 - GUARD
HIT-883724.A1
883724
|
-
|
|
|
|
26 - ROLL PIN D4X36 (10 PCS.)
HIT-949547.A1
949547
|
-
|
|
|
|
27 - NOSE
HIT-886436.A0
886436
|
-
|
|
|
|
28 - NYLOCK HEX. SOCKET HD. BOLT M5X16
HIT-878181.A5
878181
|
£1.67
|
£2.00
|
|
|
29 - ROLL PIN D3X20 (10 PCS.)
HIT-949685.A6
949685
|
£1.67
|
£2.00
|
|
|
30 - LOCK LEVER
HIT-886441.A0
886441
|
-
|
|
|
|
31 - BLADE GUIDE
HIT-886440.A0
886440
|
-
|
|
|
|
32 - PIN
HIT-881044.A0
881044
|
-
|
|
|
|
33 - SAFETY BOLT
HIT-875650.A5
875650
|
£1.67
|
£2.00
|
|
|
34 - NUT M5 (10 PCS.)
HIT-949555.A5
949555
|
£1.67
|
£2.00
|
|
|
35 - SPRING (B)
HIT-877873.A1
877873
|
-
|
|
|
|
36 - PUSHING LEVER
HIT-883714.A1
883714
|
£28.14
|
£33.77
|
|
|
37A - PUSHING LEVER PIECE
HIT-889337.A1
889337
|
-
|
|
|
|
38 - BRAND PLATE
HIT-886342.A7
886342
|
£1.67
|
£2.00
|
|
|
*38 - BRAND PLATE FOR USA
HIT-886342M.A5
886342M
|
-
|
|
|
|
39 - VALVE GUARD
HIT-884356.A2
884356
|
-
|
|
|
|
40 - ROLL PIN D3X45
HIT-884025.A0
884025
|
-
|
|
|
|
41 - NYLON NUT M5
HIT-877371.A58
877371
|
£1.67
|
£2.00
|
|
|
42A - WASHER
HIT-889024.A2
889024
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.)
HIT-949658.A12
949658
|
£3.28
|
£3.93
|
|
|
44 - GRIP RUBBER
HIT-000000.A36
000000
|
-
|
|
|
|
45 - GASKET (D)
HIT-877131.A1
877131
|
£1.67
|
£2.00
|
|
|
46 - CAP
HIT-885795.A2
885795
|
-
|
|
|
|
47 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.)
HIT-949821.A27
949821
|
£3.28
|
£3.93
|
|
|
48 - AIR PLUG NPT 1/4
HIT-000000.A75
000000
|
-
|
|
|
|
49A - PLUNGER SPRING
HIT-886725.A2
886725
|
-
|
|
|
|
50 - PLUNGER (A)
HIT-878542.A2
878542
|
-
|
|
|
|
51 - PLUNGER O-RING
HIT-877705.A2
877705
|
-
|
|
|
|
52 - O-RING (S-12)
HIT-875638.A17
875638
|
£1.67
|
£2.00
|
|
|
53 - VALVE BUSHING
HIT-877880.A1
877880
|
-
|
|
|
|
54 - PLUNGER (B)
HIT-877882.A2
877882
|
-
|
|
|
|
55A - VALVE PACKING
HIT-888151.A13
888151
|
-
|
|
|
|
56 - URETHANE BALL (C) D7.14
HIT-875645.A5
875645
|
£3.70
|
£4.44
|
|
|
57 - VALVE PLATE
HIT-875644.A5
875644
|
£1.67
|
£2.00
|
|
|
58 - TRIGGER VALVE BUSHING
HIT-877335.A4
877335
|
£14.66
|
£17.59
|
|
|
59 - PLUNGER O-RING
HIT-874820.A5
874820
|
£1.67
|
£2.00
|
|
|
60 - TRIGGER PLUNGER
HIT-878121.A5
878121
|
£9.96
|
£11.95
|
|
|
61 - TRIGGER
HIT-876203.A6
876203
|
£1.67
|
£2.00
|
|
|
62 - ROLL PIN D3X30 (10 PCS.)
HIT-949866.A5
949866
|
£4.33
|
£5.20
|
|
|
63 - HANDLE ARM
HIT-886442.A0
886442
|
-
|
|
|
|
64 - MAGAZINE COVER
HIT-883718.A2
883718
|
£11.17
|
£13.40
|
|
|
65 - SHAFT RING
HIT-881045.A1
881045
|
-
|
|
|
|
66A - RIBBON SPRING
HIT-889503.A3
889503
|
-
|
|
|
|
67 - COVER SPRING
HIT-881043.A2
881043
|
-
|
|
|
|
68 - MAGAZINE PIECE
HIT-881039.A2
881039
|
-
|
|
|
|
69 - STAPLE FEEDER
HIT-886439.A0
886439
|
-
|
|
|
|
70 - HINGE PIN
HIT-883719.A1
883719
|
-
|
|
|
|
71 - MAGAZINE ASS'Y INCLUD.68
HIT-886438.A0
886438
|
-
|
|
|
|
72 - MACHINE SCREW (W/WASHERS) M5X14 (BLACK)
HIT-678653.A3
678653
|
-
|
|
|
|
73 - ROLL PIN D3X8 (10 PCS.)
HIT-949749.A4
949749
|
£1.67
|
£2.00
|
|
|
74 - LABEL
HIT-000000.A76
000000
|
-
|
|
|
|
75 - O-RING (S-12) TILL 4.2011
HIT-875638.A18
875638
|
£1.67
|
£2.00
|
|
|
75A - O-RING (I.D 10.7) SINCE 5.2011
HIT-884112.A11
884112
|
-
|
|
|
|
501 - HEX. BAR WRENCH 4MM
HIT-944458.A144
944458
|
£1.67
|
£2.00
|
|
|
502 - PROTECTIVE GLASSES
HIT-875769.A81
875769
|
-
|
|
|
|
503 - CAUTION TAG
HIT-882413.A1
882413
|
-
|
|
|
|
504 - LEAFLET
HIT-882414.A6
882414
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A23
881768
|
-
|
|
|
|
602A - TAPE (2 PCS.)
HIT-888213.A0
888213
|
-
|
|
|
|
603 - SEQUENTIAL TRIP MECHANISM KIT
HIT-876762.A4
876762
|
-
|
|
|
|
604 - PNEUMATIC TOOL LUBRICANT (30CC)
HIT-877153.A5
877153
|
-
|
|
|
|
605 - PNEUMATIC TOOL LUBRICANT (120CC)
HIT-874042.A10
874042
|
-
|
|
|
|
606 - PNEUMATIC TOOL LUBRICANT (1L)
HIT-876212.A10
876212
|
-
|
|
|
|
607 - GREASE (ATTOLUB NO.2) 500G
HIT-317918.A4
317918
|
£37.06
|
£44.47
|
|
