Hitachi / Hikoki N5008AC2 2inch Stapler Spare Parts

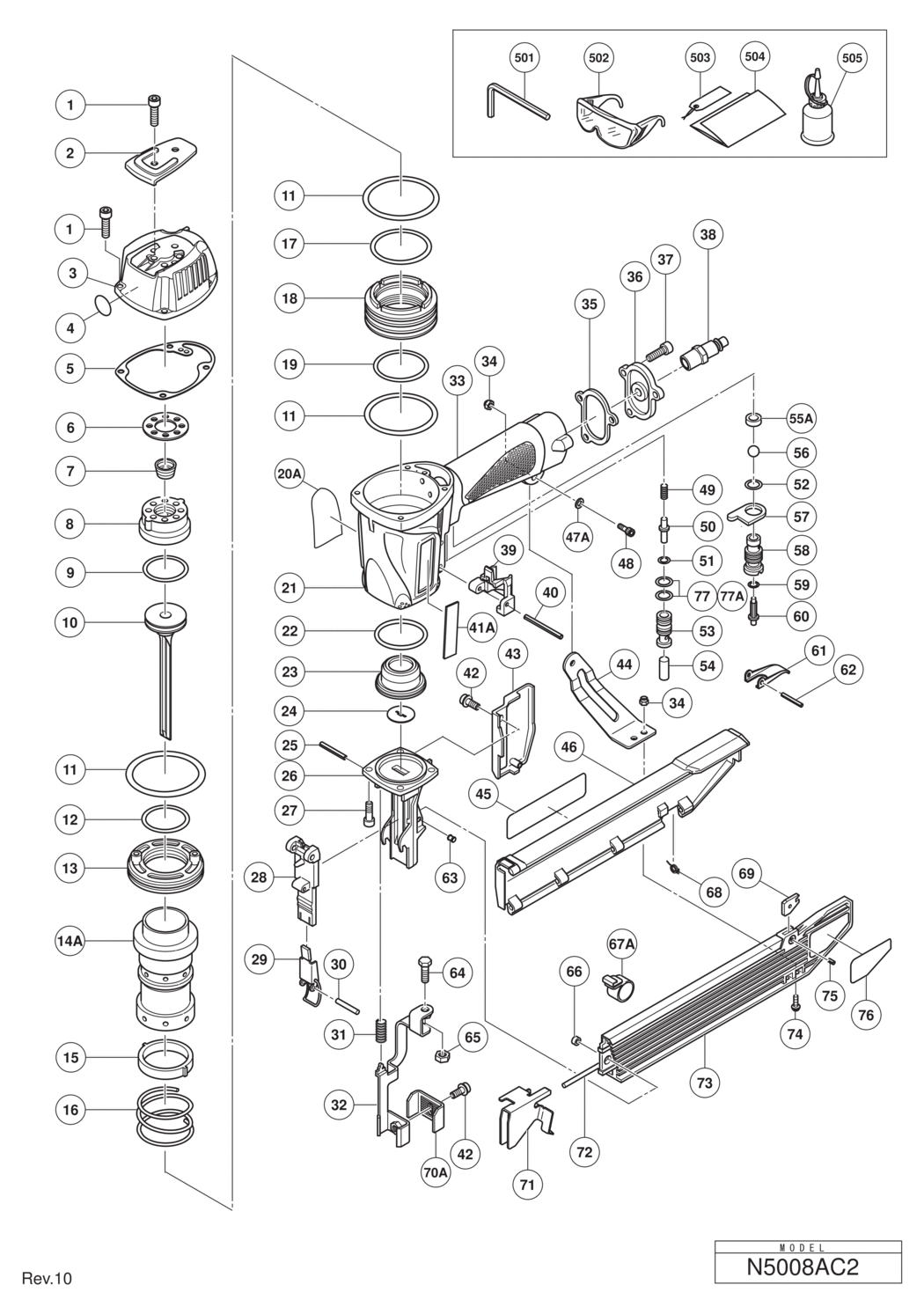

An exploded diagram and spare parts listing for the Hitachi / Hikoki N5008AC2 2inch Stapler

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A12 949757	£3.64	£4.37
2 - TOP COVER HIT-876179.A7 876179	£1.67	£2.00
3 - EXHAUST COVER HIT-886444.A0 886444	-
4 - WARNING LABEL (A) EXCEPT FOR USA HIT-883513.A14 883513	-
5 - GASKET (F) HIT-883892.A5 883892	-
6 - GASKET (C) HIT-886466.A3 886466	-
7 - EXHAUST VALVE HIT-878539.A0 878539	£6.28	£7.53
8 - HEAD CAP HIT-878026.A1 878026	£53.39	£64.07
9 - PISTON O-RING HIT-876174.A0 876174	£3.37	£4.04
10 - PISTON HIT-883716.A0 883716	-
11 - O-RING (I.D. 64.5) HIT-885793.A0 885793	-
12 - CYLINDER O-RING (D) HIT-877126.A6 877126	£1.67	£2.00
13 - CYLINDER PLATE HIT-876168.A0 876168	£9.70	£11.64
14A - CYLINDER HIT-885792.A1 885792	-
15 - CYLINDER RING HIT-876167.A7 876167	£1.67	£2.00
16 - CYLINDER SPRING HIT-876172.A7 876172	£5.73	£6.88
17 - CYLINDER O-RING (A) HIT-877123.A1 877123	£1.67	£2.00
18 - CYLINDER GUIDE HIT-877122.A6 877122	£20.70	£24.84
19 - CYLINDER O-RING (B) HIT-877124.A7 877124	£1.67	£2.00
20A - NAME PLATE HIT-888960.A0 888960	-
21 - BODY ASS'Y INCLUD.33 HIT-886443.A3 886443	-
22 - CYLINDER O-RING (C) HIT-877125.A1 877125	£1.67	£2.00
23 - PISTON BUMPER HIT-886434.A0 886434	-
24 - BUMPER SHEET HIT-883712.A0 883712	-
25 - ROLL PIN D4X36 (10 PCS.) HIT-949547.A2 949547	-
26 - NOSE HIT-886717.A0 886717	-
27 - NYLOCK HEX. SOCKET HD. BOLT M5X16 HIT-878181.A6 878181	£1.67	£2.00
28 - BLADE GUIDE HIT-886718.A0 886718	-
29 - LOCK LEVER HIT-886441.A1 886441	-
30 - ROLL PIN D3X20 (10 PCS.) HIT-949685.A9 949685	£1.67	£2.00
31 - SPRING (B) HIT-877873.A0 877873	-
32 - PUSHING LEVER HIT-883714.A0 883714	£28.14	£33.77
33 - GRIP RUBBER HIT-000000.A4804 000000	-
34 - NYLON NUT M5 HIT-877371.A11 877371	£1.67	£2.00
35 - GASKET (D) HIT-886719.A0 886719	-
36 - CAP HIT-885795.A3 885795	-
37 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.) HIT-949821.A0 949821	£3.28	£3.93
38 - AIR PLUG NPT 1/4 HIT-000000.A4806 000000	-
39 - VALVE GUARD HIT-884356.A3 884356	-
40 - ROLL PIN D3X45 HIT-884025.A4 884025	-
41A - BRAND PLATE HIT-886342.A11 886342	£1.67	£2.00
*41A - BRAND PLATE FOR USA HIT-886342M.A1 886342M	-
42 - NYLOCK BOLT (W/FLANGE) M5X8 HIT-878540.A2 878540	-
43 - GUARD HIT-883724.A0 883724	-
44 - HANDLE ARM HIT-883723.A0 883723	-
45 - WARNING LABEL EXCEPT FOR USA HIT-886720.A1 886720	-
46 - MAGAZINE COVER HIT-883718.A0 883718	£11.17	£13.40
47A - WASHER HIT-889024.A10 889024	-
48 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.) HIT-949658.A5 949658	£3.28	£3.93
49 - PLUNGER SPRING HIT-886725.A0 886725	-
50 - PLUNGER (A) HIT-878542.A0 878542	-
51 - PLUNGER O-RING HIT-877705.A0 877705	-
52 - O-RING (S-12) HIT-875638.A5 875638	£1.67	£2.00
53 - VALVE BUSHING HIT-877880.A3 877880	-
54 - PLUNGER (B) HIT-877882.A0 877882	-
55A - VALVE PACKING HIT-888151.A3 888151	-
56 - URETHANE BALL (C) D7.14 HIT-875645.A1 875645	£3.70	£4.44
57 - VALVE PLATE HIT-875644.A7 875644	£1.67	£2.00
58 - TRIGGER VALVE BUSHING HIT-877335.A1 877335	£14.66	£17.59
59 - PLUNGER O-RING HIT-874820.A2 874820	£1.67	£2.00
60 - TRIGGER PLUNGER HIT-878121.A7 878121	£9.96	£11.95
61 - TRIGGER HIT-876203.A0 876203	£1.67	£2.00
62 - ROLL PIN D3X30 (10 PCS.) HIT-949866.A14 949866	£4.33	£5.20
63 - PIN HIT-881044.A1 881044	-
64 - SAFETY BOLT HIT-875650.A6 875650	£1.67	£2.00
65 - NUT M5 (10 PCS.) HIT-949555.A26 949555	£1.67	£2.00
66 - SHAFT RING HIT-881045.A0 881045	-
67A - RIBBON SPRING HIT-889503.A0 889503	-
68 - COVER SPRING HIT-881043.A0 881043	-
69 - MAGAZINE PIECE HIT-881039.A0 881039	-
70A - PUSHING LEVER PIECE HIT-889337.A0 889337	-
71 - STAPLE FEEDER HIT-886724.A0 886724	-
72 - HINGE PIN HIT-883719.A3 883719	-
73 - MAGAZINE ASS'Y INCLUD.69 HIT-883717.A0 883717	-
74 - MACHINE SCREW (W/WASHERS) M5X14 (BLACK) HIT-678653.A0 678653	-
75 - ROLL PIN D3X6 HIT-881040.A0 881040	-
76 - LABEL HIT-000000.A4807 000000	-
77 - O-RING (S-12) TILL 4.2011 HIT-875638.A6 875638	£1.67	£2.00
77A - O-RING (I.D 10.7) SINCE 5.2011 HIT-884112.A1 884112	-
501 - HEX. BAR WRENCH 4MM HIT-944458.A8 944458	£1.67	£2.00
502 - PROTECTIVE GLASSES HIT-875769.A36 875769	-
503 - CAUTION TAG FOR USA HIT-882413.A6 882413	-
504 - LEAFLET FOR USA HIT-886721.A0 886721	-
505 - PNEUMATIC TOOL LUBRICANT (30CC) EXCEPT FOR USA HIT-877153.A23 877153	-
601 - GRIP TAPE (A) HIT-881768.A14 881768	-
602A - TAPE (2 PCS.) HIT-888213.A25 888213	-
603 - SEQUENTIAL TRIP MECHANISM KIT HIT-876762.A1 876762	-
604 - PNEUMATIC TOOL LUBRICANT (30CC) HIT-877153.A22 877153	-
605 - PNEUMATIC TOOL LUBRICANT (120CC) HIT-874042.A5 874042	-
606 - PNEUMATIC TOOL LUBRICANT (1L) HIT-876212.A4 876212	-
607 - GREASE (ATTOLUB NO.2) 500G HIT-317918.A10 317918	£37.06	£44.47
