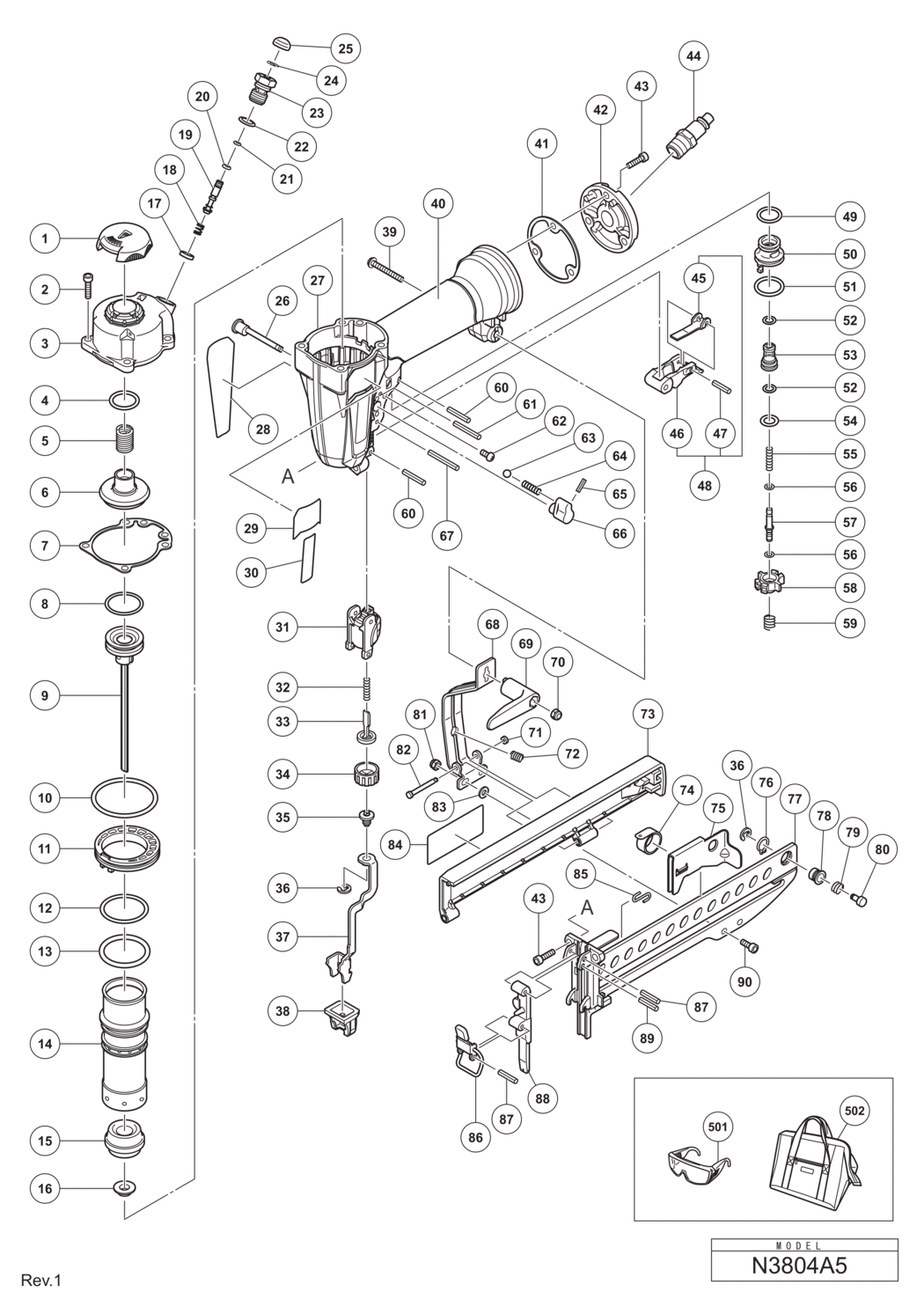

1 - TOP COVER
HIT-886197.A0
886197
|
-
|
|
|
|
2 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.)
HIT-949757.A15
949757
|
£3.64
|
£4.37
|
|
|
3 - EXHAUST COVER
HIT-889494.A0
889494
|
-
|
|
|
|
4 - HEAD VALVE O-RING
HIT-878600.A3
878600
|
£1.67
|
£2.00
|
|
|
5 - HEAD VALVE SPRING
HIT-880190.A2
880190
|
-
|
|
|
|
6 - HEAD VALVE (A)
HIT-880410.A5
880410
|
£12.78
|
£15.33
|
|
|
7 - GASKET
HIT-885868.A4
885868
|
-
|
|
|
|
8 - O-RING (P22.4)
HIT-886068.A2
886068
|
£1.67
|
£2.00
|
|
|
9 - PISTON
HIT-890204.A0
890204
|
-
|
|
|
|
10 - O-RING (I.D 44.7)
HIT-885871.A5
885871
|
-
|
|
|
|
11 - CYLINDER PLATE
HIT-885872.A1
885872
|
-
|
|
|
|
12 - O-RING (S-30)
HIT-301684.A0
301684
|
£1.67
|
£2.00
|
|
|
13 - O-RING (P-32)
HIT-986374.A4
986374
|
£1.67
|
£2.00
|
|
|
14 - CYLINDER
HIT-885873.A2
885873
|
-
|
|
|
|
15 - PISTON BUMPER
HIT-885874.A1
885874
|
£3.37
|
£4.04
|
|
|
16 - BUMPER PIECE
HIT-885968.A1
885968
|
-
|
|
|
|
17 - VALVE PACKING
HIT-884338.A7
884338
|
-
|
|
|
|
18 - SPRING
HIT-887177.A6
887177
|
-
|
|
|
|
19 - PLUNGER
HIT-884333.A1
884333
|
-
|
|
|
|
20 - O-RING (1AP-3)
HIT-873093.A11
873093
|
£1.67
|
£2.00
|
|
|
21 - O-RING (S3)
HIT-881715.A12
881715
|
-
|
|
|
|
22 - O-RING (S-10)
HIT-987105.A20
987105
|
£1.67
|
£2.00
|
|
|
23 - VALVE BUSHING
HIT-887150.A0
887150
|
-
|
|
|
|
24 - RETAINING RING (E-TYPE) FOR D4 SHAFT
HIT-968643.A23
968643
|
£1.67
|
£2.00
|
|
|
25 - KNOB
HIT-886743.A2
886743
|
-
|
|
|
|
26 - CHANGE ROD (D)
HIT-888798.A13
888798
|
-
|
|
|
|
27 - BODY ASS'Y INCLUD.40
HIT-889493.A1
889493
|
-
|
|
|
|
28 - LABEL
HIT-889538.A1
889538
|
-
|
|
|
|
29 - NAME PLATE
HIT-890195M.A0
890195M
|
-
|
|
|
|
30 - BRAND LABEL
HIT-889535M.A1
889535M
|
-
|
|
|
|
31 - PUSHING LEVER GUIDE (E)
HIT-890193.A0
890193
|
-
|
|
|
|
32 - PUSHING LEVER SPRING (A)
HIT-885881.A4
885881
|
£1.67
|
£2.00
|
|
|
33 - PUSHING LEVER (D)
HIT-889331.A2
889331
|
-
|
|
|
|
34 - ADJUSTER
HIT-886736.A4
886736
|
-
|
|
|
|
35 - PUSHING LEVER (B)
HIT-885885.A3
885885
|
-
|
|
|
|
36 - RETAINING RING (E-TYPE) FOR D3 SHAFT
HIT-872971.A12
872971
|
£1.67
|
£2.00
|
|
|
37 - PUSHING LEVER (A)
HIT-885972.A1
885972
|
-
|
|
|
|
38 - NOSE CAP
HIT-885969.A0
885969
|
-
|
|
|
|
39 - MACHINE SCREW (W/WASHER) M5X40 (BLACK)
HIT-887138.A1
887138
|
-
|
|
|
|
40 - GRIP RUBBER
HIT-000000.A32
000000
|
-
|
|
|
|
41 - GASKET (B)
HIT-887171.A2
887171
|
-
|
|
|
|
42 - CAP (A)
HIT-886734.A1
886734
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT M5X16 (10 PCS.)
HIT-949821.A28
949821
|
£3.28
|
£3.93
|
|
|
44 - AIR PLUG NPT 1/4
HIT-890047.A1
890047
|
-
|
|
|
|
45 - TRIGGER ARM (D)
HIT-887755.A2
887755
|
-
|
|
|
|
46 - TRIGGER (D)
HIT-887695.A5
887695
|
-
|
|
|
|
47 - ROLL PIN D2.5X16
HIT-881951.A10
881951
|
-
|
|
|
|
48 - TRIGGER (D) ASS'Y INCLUD.45-47
HIT-887756.A2
887756
|
-
|
|
|
|
49 - FEED PISTON O-RING (I.D. 14)
HIT-877763.A4
877763
|
-
|
|
|
|
50 - VALVE BUSHING (B)
HIT-884963.A6
884963
|
-
|
|
|
|
51 - O-RING (P-18)
HIT-873570.A21
873570
|
£1.67
|
£2.00
|
|
|
52 - O-RING (P-7)
HIT-889335.A6
889335
|
-
|
|
|
|
53 - VALVE PISTON
HIT-884964.A7
884964
|
-
|
|
|
|
54 - O-RING (1AP-10)
HIT-889495.A6
889495
|
-
|
|
|
|
55 - PLUNGER SPRING
HIT-887178.A5
887178
|
-
|
|
|
|
56 - O-RING (I.D. 1.8)
HIT-878888.A28
878888
|
£1.67
|
£2.00
|
|
|
57 - PLUNGER
HIT-887679.A3
887679
|
-
|
|
|
|
58 - VALVE BUSHING (A)
HIT-884962.A7
884962
|
-
|
|
|
|
59 - TRIGGER ARM SPRING
HIT-887752.A1
887752
|
-
|
|
|
|
60 - ROLL PIN D3X25
HIT-887621.A1
887621
|
-
|
|
|
|
61 - ROLL PIN D3X32
HIT-371080.A2
371080
|
-
|
|
|
|
62 - MACHINE SCREW M3X6 (10 PCS.)
HIT-949202.A6
949202
|
-
|
|
|
|
63 - STEEL BALL D3.97 (10 PCS.)
HIT-959155.A29
959155
|
£1.67
|
£2.00
|
|
|
64 - SPRING
HIT-887673.A13
887673
|
-
|
|
|
|
65 - ROLL PIN D3X10 (10 PCS.)
HIT-887458.A13
887458
|
-
|
|
|
|
66 - CHANGE KNOB (D)
HIT-887684.A7
887684
|
-
|
|
|
|
67 - ROLL PIN D3X35
HIT-887675.A11
887675
|
-
|
|
|
|
68 - HANDLE ARM
HIT-890194.A0
890194
|
-
|
|
|
|
69 - HOOK
HIT-886940.A0
886940
|
-
|
|
|
|
70 - NYLON NUT M5
HIT-877371.A61
877371
|
£1.67
|
£2.00
|
|
|
71 - RUBBER RING
HIT-888104.A1
888104
|
-
|
|
|
|
72 - SPRING
HIT-885983.A0
885983
|
-
|
|
|
|
73 - MAGAZINE COVER
HIT-886737.A0
886737
|
-
|
|
|
|
74 - RIBBON SPRING
HIT-885981.A0
885981
|
-
|
|
|
|
75 - STAPLE FEEDER
HIT-885980.A1
885980
|
-
|
|
|
|
76 - RETAINING RING
HIT-885977.A0
885977
|
-
|
|
|
|
77 - MAGAZINE
HIT-885970.A1
885970
|
-
|
|
|
|
78 - STOPPER SLEEVE
HIT-885975.A0
885975
|
-
|
|
|
|
79 - STOPPER SPRING
HIT-885976.A1
885976
|
-
|
|
|
|
80 - FEEDER STOPPER
HIT-885974.A1
885974
|
-
|
|
|
|
81 - NYLON NUT M4
HIT-876465.A11
876465
|
£1.67
|
£2.00
|
|
|
82 - HINGE PIN
HIT-890205.A0
890205
|
-
|
|
|
|
83 - WASHER
HIT-885985.A2
885985
|
-
|
|
|
|
84 - WARNING LABEL
HIT-890196.A0
890196
|
-
|
|
|
|
85 - SPRING HOOK
HIT-885982.A1
885982
|
-
|
|
|
|
86 - LOCK LEVER
HIT-885889.A3
885889
|
-
|
|
|
|
87 - ROLL PIN D3X18 (10 PCS.)
HIT-949518.A23
949518
|
£1.67
|
£2.00
|
|
|
88 - GUIDE PLATE
HIT-885971.A0
885971
|
-
|
|
|
|
89 - ROLL PIN D3.2X19
HIT-886193.A1
886193
|
-
|
|
|
|
90 - HEX. SOCKET HD. BOLT M4X12 (10 PCS.)
HIT-949813.A1
949813
|
£2.78
|
£3.34
|
|
|
501 - PROTECTIVE GLASSES
HIT-875769.A78
875769
|
-
|
|
|
|
502 - TOOL BAG
HIT-372210M.A2
372210M
|
-
|
|
|
|
601 - GRIP TAPE (A)
HIT-881768.A25
881768
|
-
|
|
|
|
602 - TAPE (2 PCS.)
HIT-888213.A4
888213
|
-
|
|
|
