Hitachi / Hikoki M8V2 Router Spare Parts

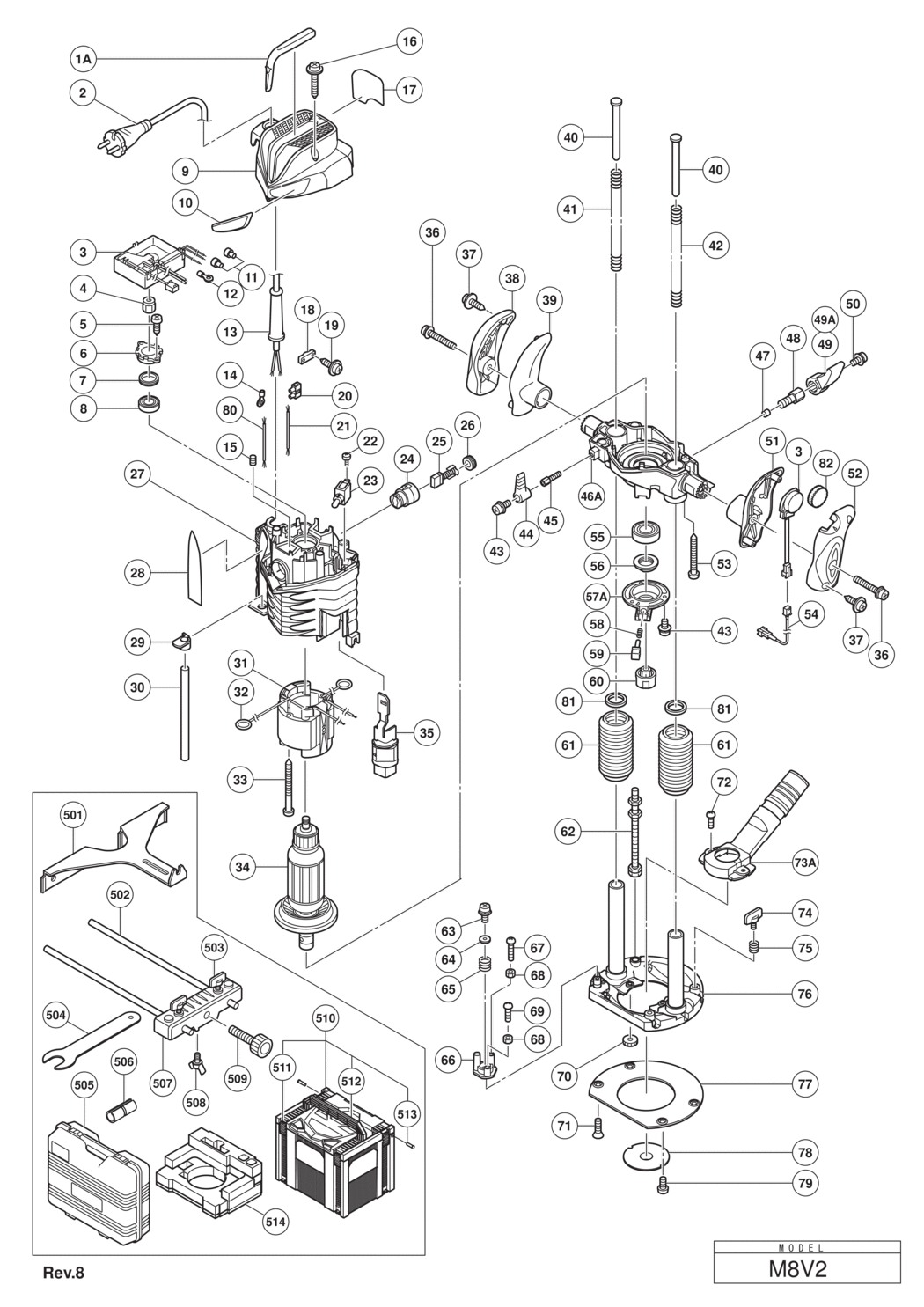

An exploded diagram and spare parts listing for the Hitachi / Hikoki M8V2 Router

	Ex VAT	Inc VAT
1A - BRAND LABEL (B) BLACK HIT-000000.A4713 000000	-
*2 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A54 500435Z	£14.14	£16.97
*2 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A56 500461Z	£15.56	£18.67
*3 - CONTROLLER PACKAGE 100V-120V INCLUD.82 HIT-326086.A0 326086	£59.41	£71.29
*3 - CONTROLLER PACKAGE 230V-240V INCLUD.82 HIT-326092.A0 326092	£83.70	£100.44
4 - MAGNET HIT-307093.A3 307093	£15.83	£19.00
5 - TAPPING SCREW D4X12 HIT-954017.A2 954017	£1.67	£2.00
6 - BEARING BUSHING HIT-326079.A0 326079	-
7 - RUBBER RING HIT-323420.A1 323420	£1.67	£2.00
8 - BALL BEARING 608VVC2PS2L HIT-608VVM.A59 608VVM	£5.70	£6.84
9 - HEAD COVER HIT-326085.A0 326085	-
10 - BRAND LABEL (A) HIT-000000.A4714 000000	-
11 - CONNECTOR 50091 (10 PCS.) HIT-959140.A72 959140	£4.98	£5.97
12 - TERMINAL M4.0 (10 PCS.) HIT-930804.A29 930804	£3.64	£4.37
13 - CORD ARMOR D8.8 HIT-953327.A14 953327	£1.67	£2.00
*14 - TERMINAL HIT-980063.A116 980063	£1.67	£2.00
15 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A117 938477	£1.67	£2.00
16 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A4 307028	£1.67	£2.00
17 - NAME PLATE HIT-000000.A4715 000000	-
18 - CORD CLIP HIT-937631.A118 937631	£1.67	£2.00
19 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A23 984750	£1.67	£2.00
*20 - PILLAR TERMINAL HIT-938307.A78 938307	£3.28	£3.93
*21 - INTERNAL WIRE (BLUE) HIT-326177.A0 326177	-
*21 - INTERNAL WIRE (BLUE) FOR GBR (110V) HIT-326180.A0 326180	-
22 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-307887.A12 307887	£1.67	£2.00
23 - SWITCH (1P SOLDER TYPE) HIT-314603.A18 314603	£15.38	£18.45
24 - BRUSH HOLDER HIT-981586.A2 981586	£7.62	£9.15
25 - CARBON BRUSH (1 PAIR) HIT-999043.A38 999043	£5.54	£6.65
26 - BRUSH CAP HIT-961781.A1 961781	£3.15	£3.78
27 - HOUSING ASS'Y INCLUD.15 HIT-326093.A0 326093	£55.17	£66.20
*28 - SCALE HIT-326090.A0 326090	-
29 - MARKER HIT-326084.A1 326084	£1.67	£2.00
30 - STOPPER POLE (A) HIT-325196.A5 325196	£7.01	£8.41
*31 - STATOR ASS'Y 110V-120V INCLUD.32 HIT-340675C.A0 340675C	£62.65	£75.18
*31 - STATOR ASS'Y 230V INCLUD.32 HIT-340675E.A0 340675E	£75.33	£90.40
32 - BRUSH TERMINAL HIT-930703.A52 930703	£3.28	£3.93
33 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A11 960251	£1.67	£2.00
*34 - ARMATURE ASS'Y 110V-120V INCLUD.8 HIT-360773U.A0 360773U	£82.22	£98.66
*34 - ARMATURE 230V-240V HIT-360773E.A0 360773E	£67.40	£80.88
35 - LEVER HIT-326083.A0 326083	-
36 - MACHINE SCREW (W/WASHERS) M6X30 (BLACK) HIT-307443.A4 307443	£1.67	£2.00
37 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A133 305812	£1.67	£2.00
38 - HANDLE (L) B HIT-325220.A1 325220	£13.51	£16.21
39 - HANDLE (L) A HIT-325171.A1 325171	£4.65	£5.58
40 - SPRING GUIDE HIT-325180.A5 325180	£3.02	£3.63
41 - SPRING HIT-303316.A0 303316	£3.82	£4.58
42 - SPRING HIT-303317.A3 303317	£3.64	£4.37
43 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A20 935196	£1.67	£2.00
44 - LEVER (C) HIT-325174.A1 325174	£2.08	£2.50
45 - LOCK SCREW M6 HIT-325175.A0 325175	£3.02	£3.63
46A - END BRACKET HIT-335498.A0 335498	-
47 - LOCK PIECE HIT-971848.A4 971848	£1.67	£2.00
48 - LOCK SCREW M10 HIT-325187.A1 325187	£8.66	£10.39
*49A - LEVER (A) HIT-323923.A3 323923	£1.67	£2.00
50 - MACHINE SCREW (W/WASHERS) M6X10 HIT-997314.A5 997314	£1.67	£2.00
51 - HANDLE (R) A HIT-325172.A2 325172	£4.57	£5.48
52 - HANDLE (R) B HIT-325962.A1 325962	£9.23	£11.08
53 - TAPPING SCREW D5X50 HIT-307100.A0 307100	-
54 - CORD (A) HIT-325202.A1 325202	£14.31	£17.17
55 - BALL BEARING 6004TIXVV HIT-6004T1.A1 6004T1	£13.15	£15.78
56 - THRUST NUT HIT-325186.A4 325186	£8.66	£10.39
57A - BEARING COVER HIT-325185.A1 325185	£16.46	£19.75
58 - LOCK SPRING (A) HIT-325183.A0 325183	£1.67	£2.00
59 - PUSHING BUTTON HIT-325182.A5 325182	£3.02	£3.63
*60 - COLLET CHUCK 1/4 FOR NZL HIT-323293.A11 323293	£12.57	£15.08
61 - BELLOWS (A) HIT-325207.A0 325207	£14.91	£17.89
62 - SCREW M8 HIT-302315.A0 302315	£5.88	£7.06
63 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A0 317200	£1.67	£2.00
64 - WASHER (B) HIT-962569.A9 962569	£1.67	£2.00
65 - SPRING (A) HIT-971858.A7 971858	£1.67	£2.00
66 - STOPPER BLOCK HIT-326081.A1 326081	£4.02	£4.83
67 - MACHINE SCREW M5X25 (BLACK) HIT-302316.A2 302316	£1.67	£2.00
68 - NUT M5 (BLACK) HIT-302012.A2 302012	£1.67	£2.00
69 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A0 302317	£1.67	£2.00
*70 - KNOB NUT FOR EUROPE HIT-997467.A2 997467	£5.27	£6.32
71 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A7 992013	£1.67	£2.00
*72 - MACHINE SCREW M5X12 (10 PCS.) FOR EUROPE HIT-949237.A17 949237	£1.67	£2.00
*73A - DUST COLLECTION ADAPTER SET INCLUD.70 HIT-339380.A0 339380	£44.42	£53.30
74 - WING BOLT M6X15 HIT-301806.A53 301806	£1.67	£2.00
75 - LOCK SPRING HIT-947859.A22 947859	£1.67	£2.00
76 - BASE HIT-326089.A0 326089	£54.52	£65.43
77 - SUB BASE HIT-326080.A0 326080	£5.88	£7.06
78 - TEMPLATE GUIDE D18 HIT-956790.A5 956790	£6.38	£7.66
79 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A0 949234	£1.67	£2.00
81 - FELT HIT-323426.A6 323426	£2.71	£3.25
82 - DIAL HIT-371931.A0 371931	-
501 - STRAIGHT GUIDE HIT-956797.A0 956797	£8.66	£10.39
502 - GUIDE BAR HIT-971622.A0 971622	£5.98	£7.18
503 - WING BOLT M6X15 HIT-301806.A52 301806	£1.67	£2.00
504 - WRENCH 23MM HIT-323295.A7 323295	£3.21	£3.85
*505 - CASE EXCEPT FOR AUT HIT-326095.A0 326095	-
507 - BAR HOLDER HIT-326091.A1 326091	£16.36	£19.63
508 - WING BOLT M6X10 (10 PCS.) HIT-949394.A1 949394	£8.55	£10.26
509 - FEED SCREW HIT-956793.A1 956793	£6.06	£7.27
601A - DUST COLLECTION ADAPTER SET INCLUD.602 HIT-339380.A1 339380	£44.42	£53.30
602 - KNOB NUT HIT-997467.A3 997467	£5.27	£6.32
603 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A18 949237	£1.67	£2.00
604 - TRIMMER GUIDE HIT-956794.A4 956794	£8.66	£10.39
605 - NO LONGER AVAILABLE HIT-318304.A0 318304	-
606 - SQUARE NUT HIT-318350.A1 318350	£3.88	£4.66
607 - SLEEVE HIT-317300.A1 317300	£5.88	£7.06
608 - WASHER (B) HIT-956046.A0 956046	£1.67	£2.00
609 - SPRING (A) HIT-971858.A8 971858	£1.67	£2.00
*610 - STRAIGHT BIT (TCT) D8X8 HIT-956808.A2 956808	-
*610 - STRAIGHT BIT (TCT) D1/4X1/4 FOR NZL HIT-971878.A0 971878	-
619 - TEMPLATE GUIDE D9.5 HIT-303347.A2 303347	£13.34	£16.01
620 - TEMPLATE GUIDE D10 HIT-303348.A0 303348	£13.34	£16.01
621 - TEMPLATE GUIDE D11.1 HIT-303349.A3 303349	£13.34	£16.01
622 - TEMPLATE GUIDE D12 HIT-303350.A0 303350	£13.34	£16.01
623 - TEMPLATE GUIDE D12.7 HIT-303351.A3 303351	£13.34	£16.01
624 - TEMPLATE GUIDE D14 HIT-303352.A0 303352	£13.34	£16.01
625 - TEMPLATE GUIDE D16 HIT-303353.A3 303353	£13.34	£16.01
626 - TEMPLATE GUIDE D24 HIT-303354.A0 303354	£13.34	£16.01
627 - TEMPLATE GUIDE D40 HIT-303355.A3 303355	£13.34	£16.01
