Hitachi / Hikoki M12V2 Router Spare Parts

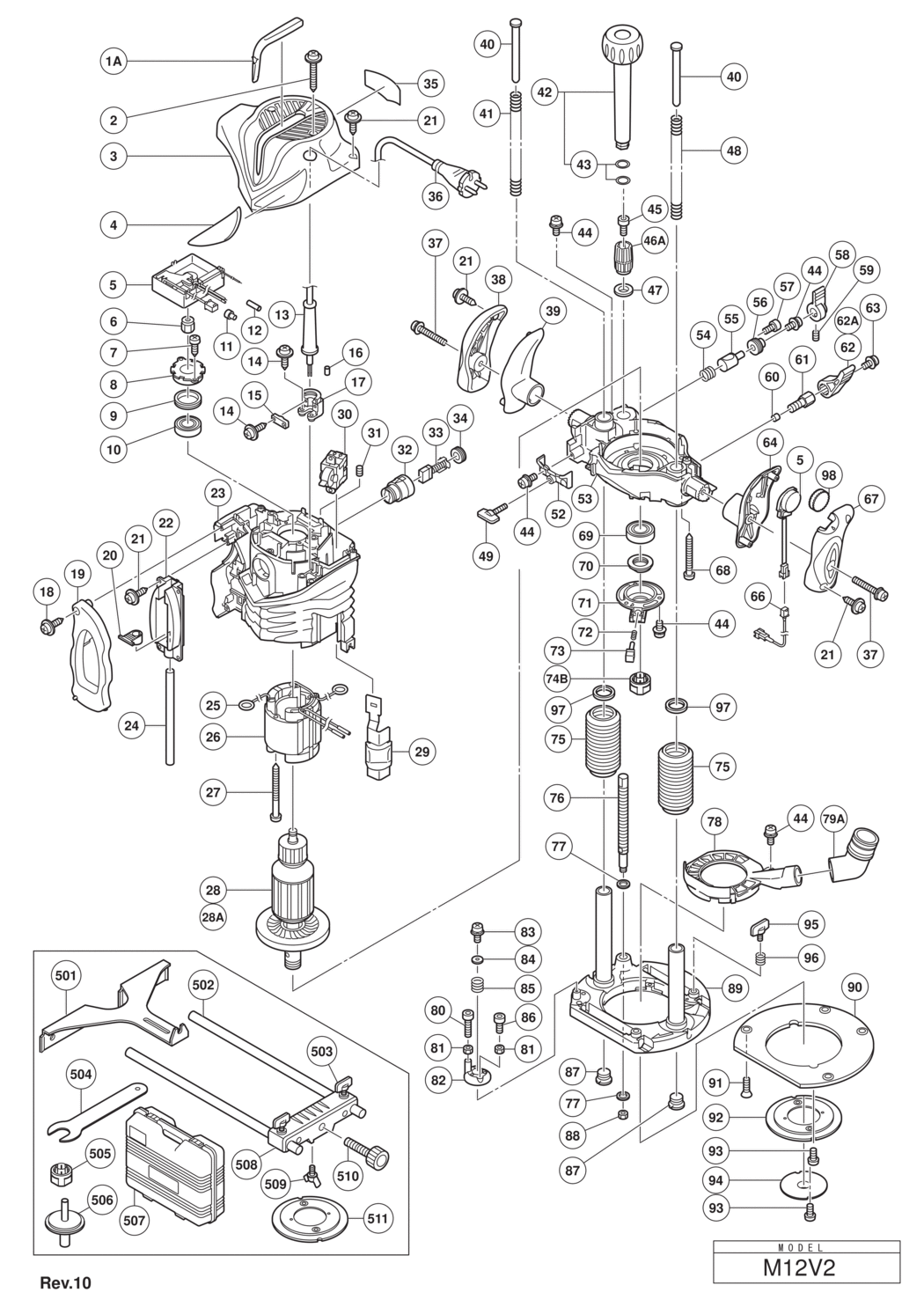

An exploded diagram and spare parts listing for the Hitachi / Hikoki M12V2 Router

	Ex VAT	Inc VAT
1A - BRAND LABEL (B) BLACK HIT-000000.A46 000000	-
2 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A25 305490	£1.67	£2.00
3 - HEAD COVER HIT-325168.A1 325168	-
4 - BRAND LABEL (A) HIT-000000.A47 000000	-
*5 - CONTROLLER CIRCUIT (C) DIAL SET 100-120V INCLUD.98 HIT-325200.A0 325200	£87.80	£105.36
*5 - CONTROLLER CIRCUIT (A) DIAL SET 230V INCLUD.98 HIT-325368.A0 325368	£72.49	£86.99
*5 - CONTROLLER CIRCUIT (A) DIAL SET 230-240V INCLUD.98 FOR SIN HIT-325218.A0 325218	-
*5 - CONTROLLER CIRCUIT (C) DIAL SET 127V INCLUD.98 HIT-328664.A0 328664	-
6 - MAGNET HIT-301797.A2 301797	£8.28	£9.94
7 - TAPPING SCREW D4X12 HIT-954017.A9 954017	£1.67	£2.00
8 - BEARING BUSHING HIT-325169.A0 325169	£10.95	£13.14
9 - RUBBER RING HIT-325184.A1 325184	£1.67	£2.00
10 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A34 6200VV	£7.36	£8.83
11 - CONNECTOR 50092 (10 PCS.) HIT-959141.A115 959141	£7.12	£8.54
12 - TUBE (D) HIT-961820.A7 961820	£1.67	£2.00
*13 - CORD ARMOR D8.8 HIT-953327.A169 953327	£1.67	£2.00
*13 - CORD ARMOR D10.1 HIT-938051.A48 938051	£1.67	£2.00
14 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A166 984750	£1.67	£2.00
15 - CORD CLIP HIT-937631.A54 937631	£1.67	£2.00
*16 - TUBE (D) HIT-981373.A2 981373	£1.67	£2.00
*16 - TUBE (D) FOR USA HIT-961820.A8 961820	£1.67	£2.00
17 - CORD HOLDER HIT-325203.A1 325203	£1.67	£2.00
18 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A48 302086	£1.67	£2.00
19 - FRONT COVER (B) HIT-325170.A0 325170	£6.18	£7.41
20 - MARKER HIT-325198.A0 325198	£1.67	£2.00
21 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A65 305812	£1.67	£2.00
22 - POLE HOLDER HIT-325197.A1 325197	£3.02	£3.63
23 - HOUSING ASS'Y INCLUD.31 HIT-325219.A0 325219	£73.68	£88.41
24 - STOPPER POLE (A) HIT-325196.A0 325196	£7.01	£8.41
25 - BRUSH TERMINAL HIT-958032.A4 958032	£1.67	£2.00
*26 - STATOR ASS'Y 120V INCLUD.25 HIT-340659C.A0 340659C	£54.47	£65.36
*26 - STATOR ASS'Y 230V INCLUD.25 HIT-340659G.A0 340659G	£62.25	£74.70
*26 - STATOR ASS'Y 230V INCLUD.25 FOR SIN HIT-340659E.A0 340659E	-
*26 - STATOR ASS'Y 240V INCLUD.25 HIT-340659F.A0 340659F	-
*26 - STATOR ASS'Y 240V INCLUD.25 FOR AUS HIT-340659H.A0 340659H	-
27 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A5 961400	£1.67	£2.00
*28 - ARMATURE ASS'Y 110V-120V INCLUD.10 HIT-360748U.A0 360748U	£111.61	£133.93
28A - ARMATURE 230V-240V HIT-360748F.A0 360748F	-
29 - LEVER HIT-325960.A2 325960	£6.18	£7.41
30 - SWITCH (2P PILLAR TYPE) W/O LOCK HIT-301821.A1 301821	£20.54	£24.65
31 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A27 938477	£1.67	£2.00
32 - BRUSH HOLDER HIT-980487.A3 980487	£9.03	£10.84
33 - CARBON BRUSH (1 PAIR) HIT-999044.A21 999044	£5.54	£6.65
34 - BRUSH CAP HIT-940540.A2 940540	£1.67	£2.00
35 - NAME PLATE HIT-000000.A48 000000	-
*36 - CORD (CORD ARMOR D8.8) HIT-500234Z.A28 500234Z	-
*36 - CORD (CORD ARMOR D10.1) FOR FIN HIT-500247Z.A43 500247Z	-
*36 - CORD AUT HIT-500247Z.A44 500247Z	-
*36 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500423Z.A41 500423Z	-
*36 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500439Z.A45 500439Z	-
*36 - CORD (CORD ARMOR D10.1) FOR USA HIT-500242Z.A0 500242Z	-
*36 - CORD (CORD ARMOR D10.1) FOR SUI HIT-500248Z.A0 500248Z	-
*36 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A13 500435Z	£14.14	£16.97
*36 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500396Z.A1 500396Z	-
37 - MACHINE SCREW (W/WASHERS) M6X30 (BLACK) HIT-307443.A3 307443	£1.67	£2.00
38 - HANDLE (L) B HIT-325220.A2 325220	£13.51	£16.21
39 - HANDLE (L) A HIT-325171.A2 325171	£4.65	£5.58
40 - SPRING GUIDE HIT-325180.A2 325180	£3.02	£3.63
41 - PLUNGE SPRING (R) HIT-325177.A1 325177	£3.02	£3.63
42 - KNOB (B) ASS'Y INCLUD.43 HIT-325214.A0 325214	£6.82	£8.18
43 - O-RING (1AP-10) HIT-872654.A1 872654	£1.67	£2.00
44 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A50 935196	£1.67	£2.00
45 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A29 984509	£1.67	£2.00
46A - KNOB (C) HIT-325194.A0 325194	£1.67	£2.00
47 - GUIDE SLEEVE HIT-325195.A1 325195	£1.67	£2.00
48 - PLUNGE SPRING (L) HIT-325176.A0 325176	£3.02	£3.63
49 - WING BOLT M6X27 HIT-301801.A1 301801	£1.67	£2.00
52 - FRONT COVER (C) HIT-325173.A1 325173	£7.57	£9.08
*53 - END BRACKET HIT-325205.A0 325205	£63.18	£75.81
*53 - END BRACKET FOR USA HIT-326043.A0 326043	-
54 - SPRING HIT-325193.A1 325193	£1.67	£2.00
55 - SPECIAL NUT TR12 HIT-325192.A0 325192	£11.77	£14.12
56 - SPECIAL BOLT M20 HIT-325191.A1 325191	£4.57	£5.48
57 - HEX. SOCKET HD. BOLT M4X8 (10 PCS.) HIT-949811.A0 949811	£2.86	£3.43
58 - LEVER (B) HIT-325190.A0 325190	£6.82	£8.18
59 - HEX. SOCKET SET SCREW M6X6 HIT-985033.A0 985033	£1.67	£2.00
60 - LOCK PIECE HIT-971848.A0 971848	£1.67	£2.00
61 - LOCK SCREW M10 HIT-325187.A4 325187	£8.66	£10.39
*62 - LEVER (A) FOR AUS HIT-326042.A0 326042	£10.05	£12.06
62A - LEVER (A) HIT-323923.A7 323923	£1.67	£2.00
63 - MACHINE SCREW (W/WASHERS) M6X10 HIT-997314.A1 997314	£1.67	£2.00
64 - HANDLE (R) A HIT-325172.A1 325172	£4.57	£5.48
66 - CORD (A) HIT-325202.A0 325202	£14.31	£17.17
67 - HANDLE (R) B HIT-325962.A0 325962	£9.23	£11.08
68 - TAPPING SCREW D5X50 HIT-307100.A4 307100	-
69 - BALL BEARING 6004VVCMPS2L HIT-6004VV.A3 6004VV	£9.03	£10.84
70 - THRUST NUT HIT-325186.A1 325186	£8.66	£10.39
71 - BEARING COVER HIT-325185.A4 325185	£16.46	£19.75
72 - LOCK SPRING (A) HIT-325183.A5 325183	£1.67	£2.00
73 - PUSHING BUTTON HIT-325182.A0 325182	£3.02	£3.63
*74B - COLLET CHUCK 12MM HIT-325199.A3 325199	£13.15	£15.78
*74B - COLLET CHUCK 1/2 FOR NZL HIT-323421.A3 323421	£12.76	£15.31
75 - BELLOWS (A) HIT-325207.A1 325207	£14.91	£17.89
76 - SPECIAL BOLT TR12 HIT-325189.A1 325189	£11.77	£14.12
77 - WASHER HIT-325188.A0 325188	£1.67	£2.00
78 - DUST GUIDE HIT-325210.A0 325210	£8.24	£9.89
79A - DUST GUIDE ADAPTER HIT-339381.A0 339381	-
80 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A23 949662	£3.64	£4.37
81 - NUT M5 (BLACK) HIT-302012.A49 302012	£1.67	£2.00
82 - STOPPER BLOCK HIT-325181.A1 325181	£7.57	£9.08
83 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A14 317200	£1.67	£2.00
84 - WASHER (B) HIT-962569.A5 962569	£1.67	£2.00
85 - SPRING (A) HIT-971858.A3 971858	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X12 (10 PCS.) HIT-949765.A0 949765	£3.28	£3.93
87 - STOPPER BOLT HIT-325178.A0 325178	£6.18	£7.41
88 - NUT M8 (10 PCS.) HIT-949558.A9 949558	£1.67	£2.00
*89 - BASE HIT-325342.A0 325342	£54.47	£65.36
*89 - BASE FOR USA HIT-325206.A0 325206	£52.45	£62.94
90 - SUB BASE HIT-325179.A1 325179	£10.05	£12.06
91 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A26 992013	£1.67	£2.00
92 - TEMPLATE GUIDE ADAPTER HIT-325211.A1 325211	£16.72	£20.06
93 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A4 949234	£1.67	£2.00
94 - TEMPLATE GUIDE D18 HIT-956790.A0 956790	£6.38	£7.66
95 - WING BOLT M6X15 HIT-301806.A33 301806	£1.67	£2.00
96 - LOCK SPRING HIT-947859.A15 947859	£1.67	£2.00
97 - FELT FOR USA HIT-323426.A3 323426	£2.71	£3.25
98 - DIAL HIT-371931.A1 371931	-
501 - STRAIGHT GUIDE HIT-956797.A3 956797	£8.66	£10.39
502 - GUIDE BAR (A) HIT-325216.A1 325216	£11.61	£13.93
503 - WING BOLT M6X15 HIT-301806.A32 301806	£1.67	£2.00
504 - WRENCH 23MM HIT-323295.A4 323295	£3.21	£3.85
*505 - COLLET CHUCK 8MM HIT-325212.A0 325212	£13.15	£15.78
*505 - COLLET CHUCK 1/4 FOR NZL HIT-323293.A4 323293	£12.57	£15.08
*506 - CENTERING GAUGE HIT-325213.A0 325213	£12.36	£14.83
*506 - CENTERING GAUGE FOR NZL HIT-325223.A0 325223	£10.63	£12.76
507 - CASE EXCEPT FOR USA HIT-325222.A0 325222	£39.86	£47.83
508 - BAR HOLDER HIT-325217.A0 325217	£16.75	£20.10
509 - WING BOLT M6X10 (10 PCS.) HIT-949394.A4 949394	£8.55	£10.26
510 - FEED SCREW HIT-956793.A5 956793	£6.06	£7.27
511 - TEMPLATE GUIDE ADAPTER FOR USA HIT-325224.A0 325224	-
601 - NO LONGER AVAILABLE HIT-313765.A0 313765	-
602 - COLLET CHUCK 1/2 EXCEPT FOR NZL HIT-323421.A7 323421	£12.76	£15.31
603 - COLLET CHUCK 1/4 EXCEPT FOR NZL HIT-323293.A3 323293	£12.57	£15.08
604 - TEMPLATE GUIDE ADAPTER FOR NZL HIT-325369.A0 325369	£17.60	£21.12
605 - TEMPLATE GUIDE D7.9 FOR USA HIT-323298.A2 323298	-
606 - TEMPLATE GUIDE D9.5 FOR USA HIT-323299.A0 323299	-
607 - TEMPLATE GUIDE D11.1 FOR USA HIT-323300.A2 323300	-
608 - TEMPLATE GUIDE D12.7 FOR USA HIT-323301.A0 323301	-
609 - TEMPLATE GUIDE D15.9 FOR USA HIT-323302.A2 323302	-
610 - TEMPLATE GUIDE D19.1 FOR USA HIT-323303.A0 323303	-
611 - TEMPLATE GUIDE D20.2 FOR USA HIT-323304.A2 323304	-
612 - LOCK NUT FOR USA HIT-323305.A0 323305	-
613 - TRIMMER GUIDE HIT-956794.A0 956794	£8.66	£10.39
614 - DOUBLE FLUSH TRIMMING BIT (TCT) D12X12 HIT-956803.A0 956803	-
615 - DOUBLE FLUSH TRIMMING BIT (TCT) D8X8 HIT-956802.A1 956802	-
616 - DOUBLE FLUSH TRIMMING BIT (TCT) D6X6 HIT-956801.A0 956801	-
617 - FLUSH TRIMMING BIT (TCT) D12X12 HIT-956806.A1 956806	-
618 - FLUSH TRIMMING BIT (TCT) D8X8 HIT-956805.A0 956805	-
619 - FLUSH TRIMMING BIT (TCT) D6X6 HIT-956804.A1 956804	-
620 - STRAIGHT BIT (TCT) D12X12 HIT-956810.A0 956810	-
621 - STRAIGHT BIT (TCT) D12X10 HIT-956809.A0 956809	-
622 - STRAIGHT BIT (TCT) D6X6 HIT-312273.A1 312273	-
623 - ROUND OVER BIT (TCT) D12XR8X24 HIT-956813.A1 956813	-
624 - ROUND OVER BIT (TCT) D12XR6X20 HIT-956812.A0 956812	-
625 - ROUND OVER BIT (TCT) D12XR4.5X19 HIT-956811.A1 956811	-
626 - CHAMFERING BIT (TCT) 45? D6X20 HIT-956814.A0 956814	-
627 - DOVETAIL BIT (TCT) D8X15 HIT-956816.A0 956816	-
628 - DOVETAIL BIT (TCT) D6X12 HIT-956815.A1 956815	-
629 - CHUCK SLEEVE 1/2X3/8 HIT-956928Z.A0 956928Z	£8.66	£10.39
630 - CHUCK SLEEVE 1/2X10 HIT-956931Z.A1 956931Z	£7.02	£8.42
631 - CHUCK SLEEVE 1/2X8 HIT-956759.A0 956759	£8.66	£10.39
632 - TEMPLATE GUIDE D9.5 HIT-303347.A0 303347	£13.34	£16.01
633 - TEMPLATE GUIDE D10 HIT-303348.A3 303348	£13.34	£16.01
634 - TEMPLATE GUIDE D11.1 HIT-303349.A0 303349	£13.34	£16.01
635 - TEMPLATE GUIDE D12 HIT-303350.A3 303350	£13.34	£16.01
636 - TEMPLATE GUIDE D12.7 HIT-303351.A0 303351	£13.34	£16.01
637 - TEMPLATE GUIDE D14 HIT-303352.A3 303352	£13.34	£16.01
638 - TEMPLATE GUIDE D16 HIT-303353.A0 303353	£13.34	£16.01
639 - TEMPLATE GUIDE D20 HIT-956932.A0 956932	£6.38	£7.66
640 - TEMPLATE GUIDE D24 HIT-303354.A3 303354	£13.34	£16.01
641 - TEMPLATE GUIDE D27 HIT-956933.A1 956933	£6.38	£7.66
642 - TEMPLATE GUIDE D30 HIT-956934.A0 956934	£8.82	£10.59
643 - TEMPLATE GUIDE D40 HIT-303355.A0 303355	£13.34	£16.01
