Hitachi / Hikoki M12SE Router Spare Parts

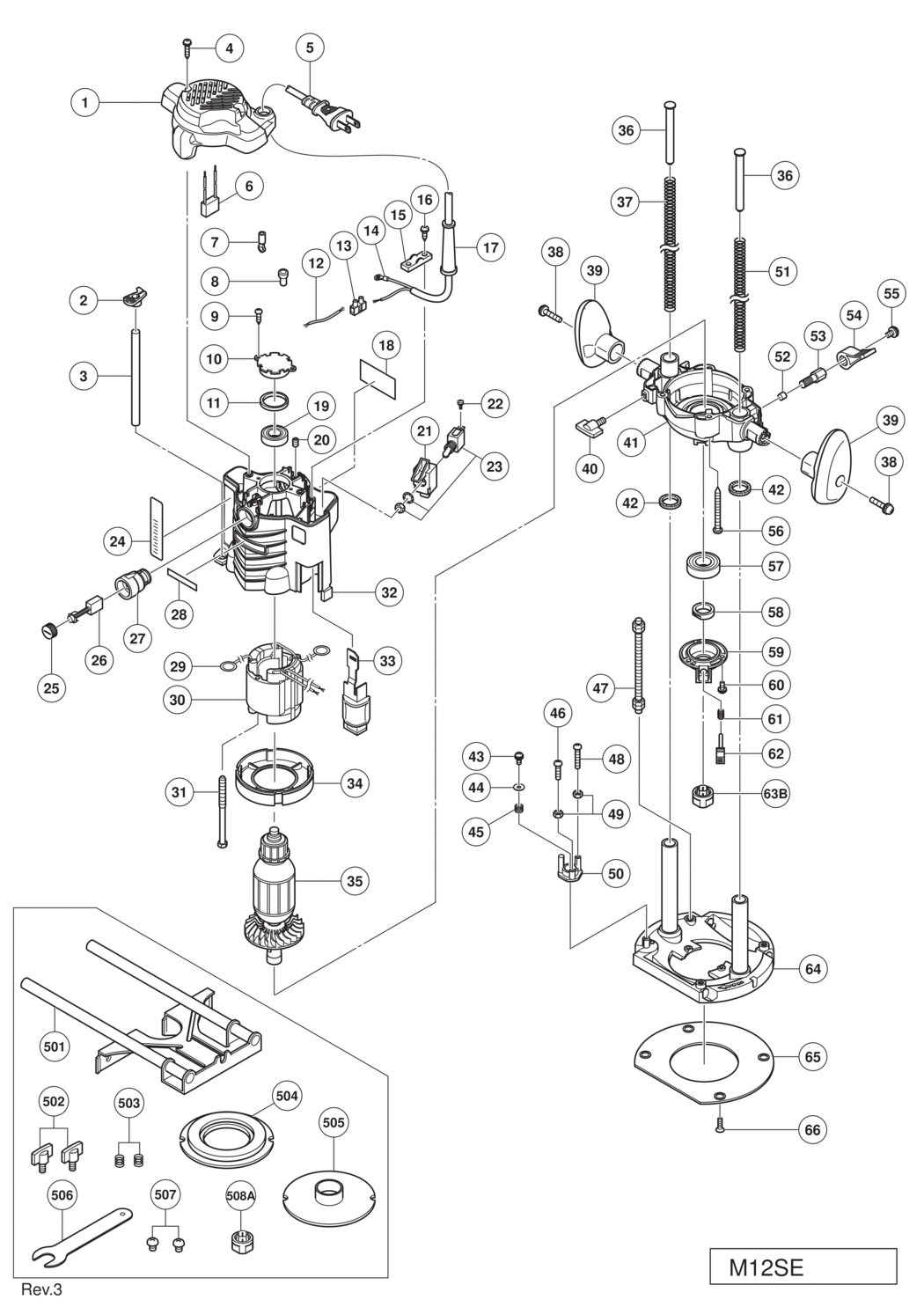

An exploded diagram and spare parts listing for the Hitachi / Hikoki M12SE Router

	Ex VAT	Inc VAT
1 - TOP COVER HIT-331829.A0 331829	-
2 - MARKER HIT-331823.A1 331823	£1.67	£2.00
3 - STOPPER POLE (A) HIT-325196.A1 325196	£7.01	£8.41
4 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A178 301653	£1.67	£2.00
*5 - CORD (CORD ARMOR D8.8) HIT-500234Z.A27 500234Z	-
*5 - CORD (CORD ARMOR D8.8) FOR AUT HIT-500247Z.A42 500247Z	-
*5 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500463Z.A4 500463Z	£21.37	£25.64
*5 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A8 500435Z	£14.14	£16.97
*5 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500248Z.A1 500248Z	-
*5 - CORD (CORD ARMOR D10.1) FOR MEX HIT-500242Z.A1 500242Z	-
*5 - CORD (CORD ARMOR D8.8) FOR BRA HIT-500237Z.A5 500237Z	£14.33	£17.20
*5 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A49 500439Z	-
*5 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500455Z.A2 500455Z	-
*5 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500423Z.A42 500423Z	-
*5 - CORD (CORD ARMOR D8.8) FOR KOR HIT-500234Z.A26 500234Z	-
*5 - CORD (CORD ARMOR D10.1) FOR TPE HIT-500474Z.A3 500474Z	-
*6 - NOISE SUPPRESSOR FOR EUROPE HIT-930039.A17 930039	£3.85	£4.62
7 - TERMINAL M4.0 (10 PCS.) FOR CORD HIT-930804.A17 930804	£3.64	£4.37
8 - CONNECTOR 50092 (10 PCS.) HIT-959141.A118 959141	£7.12	£8.54
9 - TAPPING SCREW D4X12 HIT-954017.A10 954017	£1.67	£2.00
10 - BEARING BUSHING HIT-325226.A0 325226	-
11 - RUBBER RING HIT-325184.A2 325184	£1.67	£2.00
*12 - INTERNAL WIRE (BLUE) HIT-331989.A1 331989	-
*12 - INTERNAL WIRE (WHITE) FOR MEX HIT-331979.A1 331979	-
13 - PILLAR TERMINAL HIT-938307.A46 938307	£3.28	£3.93
14 - TERMINAL HIT-980063.A23 980063	£1.67	£2.00
15 - CORD CLIP HIT-937631.A53 937631	£1.67	£2.00
16 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A167 984750	£1.67	£2.00
*17 - CORD ARMOR D8.8 HIT-953327.A168 953327	£1.67	£2.00
*17 - CORD ARMOR D10.1 HIT-938051.A49 938051	£1.67	£2.00
18 - NAME PLATE HIT-000000.A38 000000	-
19 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A33 6200VV	£7.36	£8.83
20 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A26 938477	£1.67	£2.00
21 - SWITCH HOLDER HIT-331813.A0 331813	-
22 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-307887.A1 307887	£1.67	£2.00
*23 - SWITCH (1P SCREW TYPE) HIT-331812.A1 331812	£4.68	£5.62
*23 - SWITCH (1P SCREW TYPE) FOR GBR (110V) HIT-331986.A0 331986	£8.05	£9.66
*24 - SCALE HIT-331820.A1 331820	£1.67	£2.00
25 - BRUSH CAP HIT-945161.A32 945161	£1.67	£2.00
26 - CARBON BRUSH (1 PAIR) HIT-999038.A5 999038	£5.54	£6.65
27 - BRUSH HOLDER HIT-938241.A10 938241	£8.28	£9.94
28 - BRAND LABEL HIT-000000.A39 000000	-
29 - BRUSH TERMINAL HIT-937623.A12 937623	£1.67	£2.00
*30 - STATOR ASS'Y 110V-120V INCLUD.30 HIT-340668D.A0 340668D	-
*30 - STATOR ASS'Y 220V-230V INCLUD.30 HIT-340668L.A0 340668L	-
*30 - STATOR ASS'Y 220V-230V INCLUD.30 FOR BRA HIT-340668J.A0 340668J	-
*30 - STATOR ASS'Y 240V INCLUD.30 HIT-340668M.A0 340668M	-
*30 - STATOR ASS'Y 240V INCLUD.30 FOR MAL HIT-340668K.A0 340668K	-
31 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A6 961400	£1.67	£2.00
32 - HOUSING ASS'Y INCLUD.20 HIT-331814.A1 331814	£32.22	£38.66
33 - LEVER HIT-325960.A3 325960	£6.18	£7.41
34 - FAN GUIDE HIT-331980.A0 331980	£2.99	£3.59
*35 - ARMATURE ASS'Y 110V-120V INCLUD.18 HIT-360886U.A1 360886U	£62.36	£74.83
*35 - ARMATURE 220V-230V HIT-360888E.A0 360888E	-
*35 - ARMATURE 240V HIT-360888F.A0 360888F	-
36 - SPRING GUIDE HIT-325180.A3 325180	£3.02	£3.63
37 - SPRING HIT-303316.A3 303316	£3.82	£4.58
38 - MACHINE SCREW (W/WASHERS) M6X30 (BLACK) HIT-307443.A2 307443	£1.67	£2.00
39 - HANDLE (A).(B) SET HIT-331819.A0 331819	£5.23	£6.28
40 - WING BOLT M6X15 HIT-301806.A3 301806	£1.67	£2.00
41 - END BRACKET HIT-331817.A0 331817	£40.68	£48.81
42 - FELT HIT-323426.A1 323426	£2.71	£3.25
43 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A8 317200	£1.67	£2.00
44 - WASHER (B) HIT-962569.A1 962569	£1.67	£2.00
45 - SPRING (A) HIT-971858.A4 971858	£1.67	£2.00
46 - MACHINE SCREW M5X20 (BLACK) HIT-302196.A1 302196	£1.67	£2.00
47 - SCREW M8 HIT-331824.A0 331824	£7.68	£9.21
48 - MACHINE SCREW M5X35 (BLACK) HIT-302197.A3 302197	£1.67	£2.00
49 - NUT M5 (BLACK) HIT-302012.A33 302012	£1.67	£2.00
50 - STOPPER BLOCK HIT-331826.A1 331826	£4.28	£5.13
51 - SPRING HIT-303317.A0 303317	£3.64	£4.37
52 - LOCK PIECE HIT-971848.A3 971848	£1.67	£2.00
53 - LOCK SCREW M10 HIT-325187.A2 325187	£8.66	£10.39
54 - LEVER (A) HIT-323923.A9 323923	£1.67	£2.00
55 - MACHINE SCREW (W/WASHERS) M6X10 HIT-997314.A3 997314	£1.67	£2.00
56 - TAPPING SCREW D5X50 HIT-307100.A6 307100	-
57 - BALL BEARING 6004VVCMPS2L HIT-6004VV.A9 6004VV	£9.03	£10.84
58 - THRUST NUT HIT-325186.A3 325186	£8.66	£10.39
59 - BEARING COVER HIT-325185.A2 325185	£16.46	£19.75
60 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A51 935196	£1.67	£2.00
61 - LOCK SPRING (A) HIT-325183.A2 325183	£1.67	£2.00
62 - PUSHING BUTTON HIT-325182.A3 325182	£3.02	£3.63
*63B - COLLET CHUCK 12MM (TILL 9.2012 FOR CHN) HIT-325199.A0 325199	£13.15	£15.78
*63B - COLLET CHUCK 1/2 FOR GBR HIT-323421.A1 323421	£12.76	£15.31
64 - BASE HIT-331818.A1 331818	£38.04	£45.65
65 - SUB BASE HIT-301810.A1 301810	£7.90	£9.48
66 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A12 992013	£1.67	£2.00
501 - PARALLEL GUIDE HIT-331816.A1 331816	£13.19	£15.83
502 - WING BOLT M6X15 HIT-301806.A2 301806	£1.67	£2.00
503 - LOCK SPRING HIT-947859.A2 947859	£1.67	£2.00
504 - NO LONGER AVAILABLE HIT-956756.A0 956756	-
505 - TEMPLATE GUIDE D18 HIT-956790.A3 956790	£6.38	£7.66
506 - WRENCH 23MM HIT-323295.A2 323295	£3.21	£3.85
507 - MACHINE SCREW M5X6 (10 PCS.) HIT-949234.A6 949234	£1.67	£2.00
508A - COLLET CHUCK 1/4 FOR GBR HIT-323293.A1 323293	£12.57	£15.08
*601 - COLLET CHUCK 1/2 EXCEPT FOR GBR HIT-323421.A6 323421	£12.76	£15.31
*602 - COLLET CHUCK 1/4 EXCEPT FOR GBR HIT-323293.A2 323293	£12.57	£15.08
603A - DUST COLLECTION ADAPTER SET HIT-339380.A2 339380	£44.42	£53.30
604 - TRIMMER GUIDE HIT-956794.A3 956794	£8.66	£10.39
605 - CASE HIT-331815.A0 331815	£30.61	£36.73
606 - NO LONGER AVAILABLE HIT-318304.A3 318304	-
