Hitachi / Hikoki JDH26 26mm Hammer Drill Spare Parts

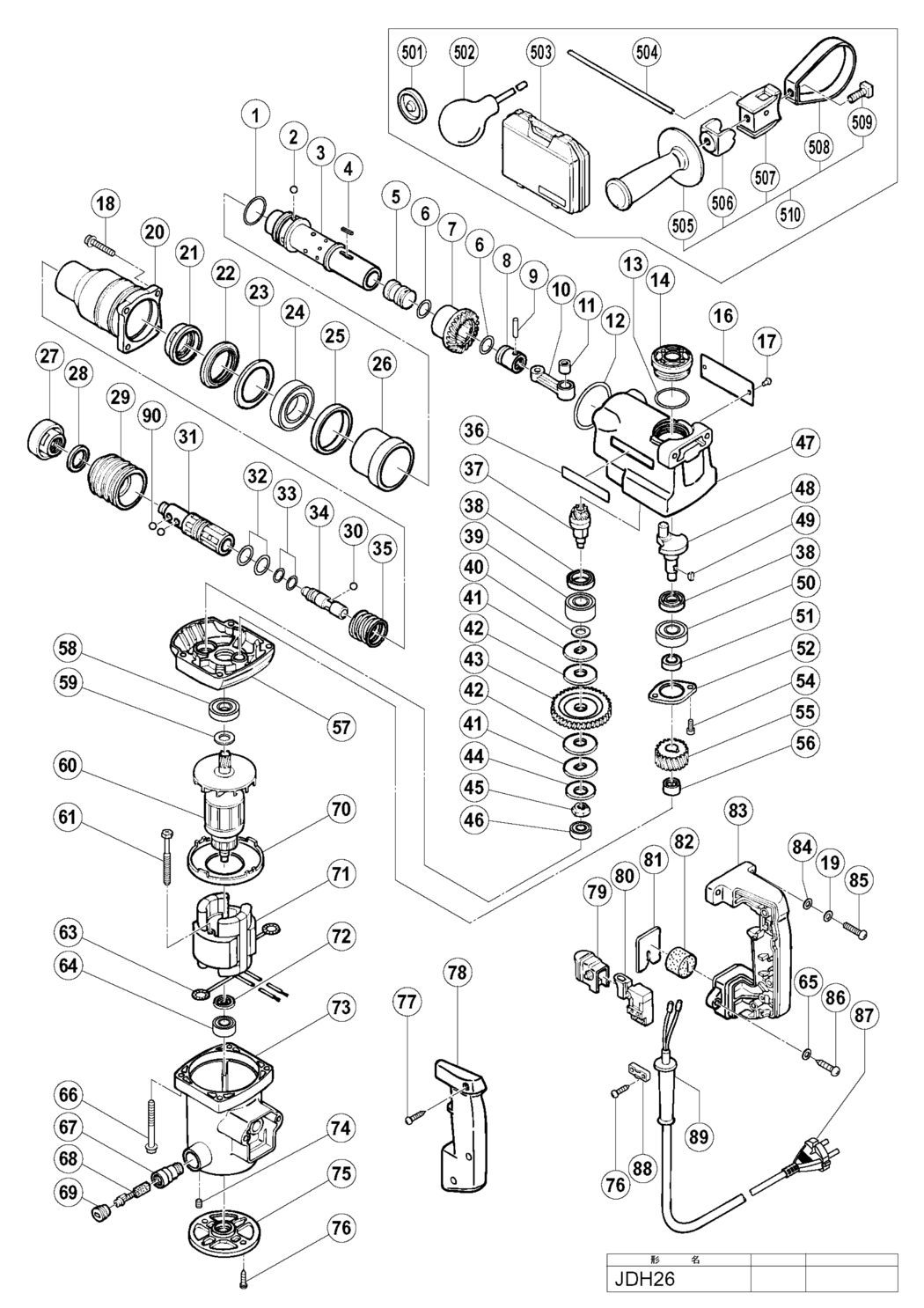

An exploded diagram and spare parts listing for the Hitachi / Hikoki JDH26 26mm Hammer Drill

	Ex VAT	Inc VAT
1 - O-RING (S-32) HIT-872767.A2 872767	£1.67	£2.00
2 - STEEL BALL D7.94 HIT-944941.A0 944941	£1.67	£2.00
3 - CYLINDER HIT-400161.A0 400161	-
4 - FEATHER KEY 3X3X15 HIT-982696.A2 982696	£1.67	£2.00
5 - STRIKER HIT-400163.A0 400163	-
6 - O-RING HIT-400164.A0 400164	-
7 - THIRD GEAR HIT-400165.A0 400165	-
8 - PISTON HIT-400166.A0 400166	-
9 - PISTON PIN HIT-400167.A0 400167	-
10 - CONNECTING ROD ASS'Y INCLUD.11 HIT-400124.A0 400124	-
11 - NEEDLE BEARING (NTN 8Q-HK08 10D) HIT-956406.A0 956406	-
12 - O-RING (S-55) HIT-980744.A2 980744	£3.28	£3.93
13 - O-RING (S-38) HIT-980717.A1 980717	£1.67	£2.00
14 - OIL CAP ASS'Y INCLUD.13 HIT-990945.A2 990945	£4.79	£5.75
16 - NAME PLATE HIT-000000.A4220 000000	-
17 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A5 949510	£1.67	£2.00
18 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X25 HIT-992253.A3 992253	£1.67	£2.00
19 - SPRING WASHER M5 (10 PCS.) HIT-949454.A88 949454	£1.67	£2.00
20 - CYLINDER CASE HIT-400125.A0 400125	-
21 - CYLINDER CAP HIT-400126.A0 400126	-
22 - OIL SEAL HIT-400127.A0 400127	-
23 - WASHER (B) HIT-400128.A0 400128	-
24 - BALL BEARING 6907 HIT-6907BB.A0 6907BB	£18.92	£22.71
25 - URETHANE RING HIT-400129.A0 400129	-
26 - PIPE HIT-400130.A0 400130	-
27 - FRONT CAP HIT-400131.A0 400131	-
28 - URETHANE WASHER HIT-400132.A0 400132	-
29 - SLIDE GRIP HIT-400159.A0 400159	-
30 - STEEL BALL D7.14 (10 PCS.) HIT-959151.A4 959151	£1.67	£2.00
31 - RETAINER SLEEVE (B) HIT-400162.A0 400162	-
32 - O-RING (A) HIT-400160.A0 400160	-
33 - O-RING (B) HIT-982653.A0 982653	£1.67	£2.00
34 - SECOND HAMMER HIT-400168.A0 400168	-
35 - SPRING HIT-400136.A0 400136	-
36 - HITMIN LABEL HIT-000000.A4221 000000	-
37 - THIRD PINION SLEEVE HIT-400157.A0 400157	-
38 - OIL SEAL (B) HIT-400109.A0 400109	-
39 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A0 6002VV	£9.32	£11.19
40 - WASHER HIT-400156.A0 400156	-
41 - SLIP PLATE HIT-400115.A0 400115	-
42 - CLUTCH PLATE HIT-400116.A0 400116	-
43 - SECOND GEAR HIT-400117.A0 400117	-
44 - BELLEVILLE SPRING HIT-400118.A0 400118	-
45 - SPECIAL NUT M10 HIT-400119.A0 400119	-
46 - BALL BEARING 627VVC2PS2L HIT-627VVM.A1 627VVM	£7.30	£8.76
47 - CRANK CASE HIT-400158.A0 400158	-
48 - CRANK SHAFT HIT-400108.A0 400108	-
49 - WOODRUFF KEY 3X10 HIT-932819.A5 932819	£1.67	£2.00
50 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A29 6202VV	£7.02	£8.42
51 - DISTANCE COLLAR HIT-400110.A0 400110	-
52 - BEARING COVER HIT-400111.A0 400111	-
54 - HEX. SOCKET HD. BOLT M4X12 (10 PCS.) HIT-949813.A3 949813	£2.78	£3.34
55 - FIRST GEAR HIT-400112.A0 400112	-
56 - NEEDLE BEARING (NTN 8Q-HK08 10D) HIT-956406.A1 956406	-
57 - GEAR COVER HIT-400098.A0 400098	-
58 - BALL BEARING 6001VV HIT-6001VV.A23 6001VV	£8.68	£10.42
59 - WASHER (B) HIT-400099.A0 400099	-
60 - ARMATURE 220V HIT-400153.A0 400153	-
61 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A14 961501	£1.67	£2.00
63 - BRUSH TERMINAL HIT-930630.A4 930630	£1.67	£2.00
64 - BALL BEARING 608VVC2PS2L HIT-608VVM.A20 608VVM	£5.70	£6.84
65 - WASHER M5 (10 PCS.) HIT-949424.A9 949424	£1.67	£2.00
66 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X50 HIT-992254.A0 992254	-
67 - BRUSH HOLDER HIT-400106.A0 400106	-
68 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999070.A0 999070	£18.85	£22.62
69 - BRUSH CAP HIT-937847.A1 937847	£2.86	£3.43
70 - FAN GUIDE HIT-400103.A0 400103	-
71 - STATOR ASS'Y 220V INCLUD.63 HIT-400154.A0 400154	-
72 - WASHER (A) HIT-400101.A0 400101	-
73 - HOUSING ASS'Y INCLUD.67 HIT-400155.A0 400155	-
74 - HEX. SOCKET SET SCREW M5X8 HIT-400255.A1 400255	-
75 - TAIL COVER HIT-400105.A0 400105	-
76 - TAPPING SCREW (W/WASHER) D4X16 HIT-930446.A1 930446	£1.67	£2.00
77 - TAPPING SCREW (W/WASHER) D4X25 HIT-956636.A0 956636	-
78 - HANDLE COVER HIT-400137.A0 400137	-
79 - SWITCH RUBBER COVER HIT-400138.A0 400138	-
80 - SWITCH HIT-400139.A0 400139	-
81 - PLATE HIT-400140.A0 400140	-
82 - HANDLE PACKING HIT-400141.A0 400141	-
83 - HANDLE HIT-400142.A0 400142	-
84 - BOLT WASHER M5 (10 PCS.) HIT-949431.A17 949431	£1.67	£2.00
85 - MACHINE SCREW M5X25 (10 PCS.) HIT-949243.A2 949243	£1.67	£2.00
86 - TAPPING SCREW D5X25 HIT-937807.A1 937807	-
87 - CORD (CORD ARMOR D8.8) HIT-500235Z.A3 500235Z	-
88 - CORD CLIP HIT-960266.A95 960266	£1.67	£2.00
89 - CORD ARMOR D8.8 HIT-953327.A61 953327	£1.67	£2.00
90 - STEEL BALL D7.14 (10 PCS.) HIT-959151.A3 959151	£1.67	£2.00
501 - DUST CUP HIT-971787.A27 971787	£4.40	£5.28
502 - SYRINGE HIT-400144.A0 400144	-
503 - CASE HIT-400145.A0 400145	-
504 - STOPPER ROD HIT-400146.A0 400146	-
505 - SIDE HANDLE HIT-400148.A0 400148	-
506 - ROD HOLDER HIT-400149.A0 400149	-
507 - SIDE HANDLE HOLDER HIT-400150.A0 400150	-
508 - BAND HIT-400151.A0 400151	-
509 - SQUARE BOLT M8 HIT-400152.A0 400152	-
510 - SIDE HANDLE ASS'Y INCLUD.505-509 HIT-400147.A0 400147	-
