Hitachi / Hikoki HTD-2522PFB Engine Hedge Trimmer Spare Parts

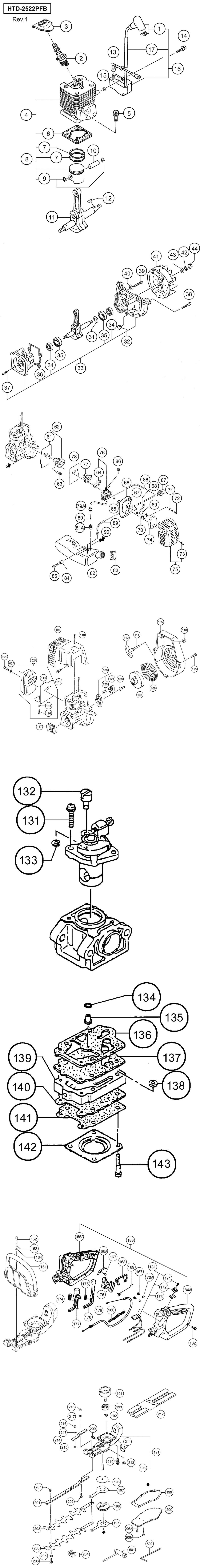

An exploded diagram and spare parts listing for the Hitachi / Hikoki HTD-2522PFB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - PLUG CAP HIT-6684894.A2 6684894	£7.75	£9.30
2 - SPARK PLUG ASS'Y CJ8Y HIT-6699325.A2 6699325	-
3 - SPARK PLUG RUBBER COVER HIT-6688334.A1 6688334	-
4 - CYLINDER SET HIT-6685462.A3 6685462	£93.84	£112.61
5 - HEX.HOLE BOLT M5X18/S HIT-6684586.A102 6684586	-
6 - CYLINDER GASKET HIT-6685728.A1 6685728	-
7 - PISTON RING HIT-6684588.A23 6684588	£6.38	£7.66
8 - PISTON SET HIT-6685877.A0 6685877	-
9 - CIRCLIP HIT-6685078.A8 6685078	-
10 - PISTON PIN HIT-6686016.A10 6686016	-
11 - CRANK SHAFT COMP. HIT-6686176.A4 6686176	-
12 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A77 6684899	-
13 - CORD 1 HIT-6687840.A0 6687840	-
14 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A17 6684599	-
15 - WASHER T1.6 HIT-6684600.A56 6684600	-
16 - IGNITION COIL ASS'Y HIT-6687704.A0 6687704	-
17 - INSULATOR TUBE HIT-6688316.A3 6688316	-
*31 - GEAR SHAFT SHIM 0.20 HIT-6684604.A73 6684604	-
*31 - GEAR SHAFT SHIM 0.30 HIT-6684605.A8 6684605	-
32 - GROMMET HIT-6688047.A3 6688047	-
33 - CRANK CASE ASS'Y HIT-6686529.A1 6686529	-
34 - OIL SEAL TB 12227 HIT-6684607.A38 6684607	£4.07	£4.88
35 - BALL BEARING 6001 C3 HIT-6684608.A159 6684608	£5.70	£6.84
36 - CRANK CASE GASKET HIT-6686705.A3 6686705	-
37 - STUD BOLT 6X22 HIT-6686771.A15 6686771	-
38 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A89 6684786	£1.67	£2.00
39 - HEX. HOLE BOLT 5X45 HIT-6695055.A10 6695055	£1.67	£2.00
40 - SPRING WASHER 5 HIT-6684834.A8 6684834	£1.67	£2.00
41 - MAGNETO ROTOR COMP. HIT-6687418.A0 6687418	-
42 - S.WASHER 8 HIT-6684971.A37 6684971	-
43 - BOLT WASHER M8 HIT-6684611.A112 6684611	-
44 - HEX. NUT M8 HIT-6684612.A3 6684612	-
61 - INTAKE MANIFOLD GASKET HIT-6689874.A1 6689874	-
62 - INSULATOR SET 1 HIT-6689937.A3 6689937	-
63 - HEX. HOLE BOLT M5X25WS HIT-6695515.A1 6695515	£1.67	£2.00
64 - CARBURETOR GASKET HIT-6684615.A46 6684615	£1.67	£2.00
65 - O-RING P-15 HIT-6698966.A4 6698966	£1.67	£2.00
66 - CLEANER BODY COMP. HIT-6690122.A1 6690122	-
67 - COLLAR 7.5 HIT-6690804.A21 6690804	£1.67	£2.00
68 - CHOKE VALVE HIT-6691261.A1 6691261	-
69 - WAVE WASHER 8 HIT-6684658.A10 6684658	£1.67	£2.00
70 - BLOW OVER CHECK BOARD HIT-6690843.A37 6690843	£1.67	£2.00
71 - S.WASHER 5 HIT-6684662.A16 6684662	£1.67	£2.00
72 - SCREW M5X60 HIT-6684660.A2 6684660	-
73 - SPECIAL SCREW HIT-6689737.A33 6689737	-
74 - CLEANER SPONGE HIT-6690364.A8 6690364	£1.67	£2.00
75 - CLEANER COVER ASS'Y HIT-6690415.A8 6690415	£5.70	£6.84
76 - CARBURETOR SET WYL139A HIT-6690463.A0 6690463	-
77 - THROTTLE WIRE FIXING PLATE HIT-6684629.A21 6684629	-
78 - CARBURETOR GASKET HIT-6689828.A0 6689828	-
79A - SHIELD TUBE ASS'Y HIT-6601195.A0 6601195	-
80 - CLIP D6 HIT-6685198.A11 6685198	-
81A - PUMP FILTER BODY COMP HIT-66A3864.A44 66A3864	-
82 - TANK HIT-6697187.A1 6697187	-
83 - TANK CAP D ASS'Y HIT-6691748.A19 6691748	£6.04	£7.25
84 - COLLAR 5.8 HIT-6692244.A72 6692244	£1.67	£2.00
85 - HEX. HOLE BOLT 5X18PS HIT-6695505.A29 6695505	-
86 - SWIVEL CAP HIT-6691337.A80 6691337	£1.67	£2.00
87 - PRIMING PUMP COMP. HIT-6685139.A29 6685139	£10.67	£12.80
88 - FUEL PIPE 2.5X4X80 HIT-6692347.A10 6692347	£1.67	£2.00
89 - FUEL PIPE 2.5X4X70 HIT-6692346.A11 6692346	£1.67	£2.00
90 - RETURN GROMMET HIT-6697846.A75 6697846	£1.68	£2.01
101 - MUFFLER PROTECTOR HIT-6692772.A0 6692772	-
102A - MUFFLER ASS'Y INCLUD 114.115.116 HIT-6601160.A3 6601160	-
103A - CLUTCH WASHER (B) HIT-6696547.A40 6696547	£1.67	£2.00
104 - HEX. HOLE SCREW 6X55 HIT-6695086.A4 6695086	-
105 - FAN CASE COMP. HIT-6686957.A3 6686957	£38.90	£46.68
106 - RECOIL SPRING HIT-6684675.A146 6684675	£8.82	£10.58
107 - STARTER ROPE REEL HIT-6693066.A15 6693066	£5.17	£6.20
108 - SET SCREW HIT-6693633.A38 6693633	£1.67	£2.00
109 - STARTER PULLEY ASS'Y HIT-6693405.A0 6693405	£7.75	£9.30
110 - PRIMARY CORD GROMMET HIT-6688049.A1 6688049	-
111 - ROPE HIT-6693168.A8 6693168	£2.82	£3.39
112 - STARTER HANDLE HIT-6693237.A0 6693237	£4.55	£5.46
113 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A55 6684682	£1.67	£2.00
114 - MUFFLER COVER A COMP. HIT-6692718.A4 6692718	-
115 - WASHER 5 HIT-6684661.A97 6684661	£1.67	£2.00
116 - SCREW 5X8/S HIT-6695332.A1 6695332	-
117 - CLUTCH HIT-6688494.A9 6688494	£14.82	£17.78
118 - TAPPING SCREW 4.5X10 HIT-6695104.A0 6695104	-
119 - BOLT 4X12PS HIT-6695441.A11 6695441	-
120 - STARTER PAWL SPRING HIT-6684684.A111 6684684	£3.29	£3.95
121 - STARTER PAWL HIT-6693319.A9 6693319	£3.29	£3.95
131 - THROTTLE SET SCREW HIT-6684698.A63 6684698	-
132 - SWIVEL HIT-6684697.A12 6684697	-
133 - STOP RING HIT-6684696.A207 6684696	-
134 - O-RING HIT-6684695.A10 6684695	£1.67	£2.00
135 - MAIN JET #35 HIT-6691873.A0 6691873	-
136 - PUMP GASKET HIT-6691457.A89 6691457	£8.48	£10.18
137 - PUMP DIAPHRAGM HIT-6684693.A194 6684693	£5.70	£6.84
138 - INLET SCREEN HIT-6684700.A238 6684700	-
139 - PUMP BODY COMP. HIT-6691435.A0 6691435	-
140 - DIAPHRAGM PACKING-METERING HIT-6685220.A96 6685220	£2.81	£3.37
141 - METERING DIAPHRAGM COMP. HIT-6690830.A61 6690830	£14.58	£17.50
142 - DIAPHRAGM COVER-METERING HIT-6685222.A83 6685222	£5.70	£6.84
143 - SET SCREW HIT-6691312.A47 6691312	-
161 - HANDLE HIT-6688097.A0 6688097	-
162 - HEX. HOLE BOLT 5X40 HIT-6695054.A3 6695054	£1.67	£2.00
163 - SPRING WASHER 5 HIT-6684834.A9 6684834	£1.67	£2.00
164 - BRAKE SHAFT WASHER HIT-6689680.A15 6689680	£1.67	£2.00
165A - HANDLE A SINCE K001001 HIT-6698868.A6 6698868	-
166A - EARTH TERMINAL HIT-6696350.A0 6696350	-
167 - TAPPIN SCREW D3X6 HIT-6697609.A1 6697609	-
168 - TRIGGER LOCKOUT HIT-6696344.A0 6696344	£2.84	£3.41
169 - THROTTLE LEVER SPRING HIT-6696345.A32 6696345	£2.84	£3.41
170A - TAB TERMINAL HIT-6696355.A6 6696355	-
171 - SCREW 3X10 HIT-6684913.A10 6684913	£1.67	£2.00
172 - BUTTON STOP HIT-6688366.A24 6688366	£1.67	£2.00
173 - STOP BUTTON MARK HIT-6694588.A22 6694588	£2.98	£3.57
174 - SPRING (A) HIT-6696348.A0 6696348	-
175 - SPRING (B) HIT-6696349.A11 6696349	-
176 - THROTTLE LEVER HIT-6696343.A11 6696343	£2.84	£3.41
177 - LOCK LEVER HIT-6696346.A0 6696346	-
178 - RELEASE LEVER HIT-6696347.A11 6696347	-
179 - THROTTLE WIRE COMP HIT-6697188.A0 6697188	-
180 - PROTECTION TUBE 150L HIT-6687524.A6 6687524	-
181 - STOP SWITCH ASS'Y HIT-6697189.A0 6697189	-
182 - TAPPING SCREW D4 HIT-6697190.A6 6697190	£1.67	£2.00
183 - NO LONGER AVAILABLE HIT-6698870.A5 6698870	-
184A - HANDLE B SINCE K001001 HIT-6698869.A6 6698869	-
191 - GEAR CASE (A) HIT-6699126.A2 6699126	-
192 - STOP RING C-15 1 HIT-6695285.A54 6695285	£1.67	£2.00
193 - BALL BEARING 6002 C3 HIT-6697745.A13 6697745	-
194 - CLUTCH DRUM COMP. HIT-6688570.A16 6688570	£22.90	£27.48
195 - GEAR SHAFT HIT-6688960.A0 6688960	£2.81	£3.37
196 - GUIDE PLATE HIT-6686612.A6 6686612	£1.67	£2.00
197 - CAM ROD HIT-6686811.A7 6686811	£15.71	£18.85
198 - GEAR 2 HIT-6688974.A1 6688974	£55.81	£66.97
199 - GEAR CASE GASKET HIT-6688909.A8 6688909	£1.67	£2.00
200 - NO LONGER AVAILABLE HIT-6692100.A3 6692100	-
201 - CUTTER GUIDE 625.5L M6 HIT-6687137.A1 6687137	£27.59	£33.11
202 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A20 6695075	£1.67	£2.00
203 - CUTTER A (591.5L) HIT-6687084.A1 6687084	£42.70	£51.24
204 - GREASE SEAL A HIT-6686654.A6 6686654	£1.67	£2.00
205 - WASHER 7 BLACK HIT-6687187.A16 6687187	£1.67	£2.00
206 - FIXING BOLT A M6 HIT-6687158.A16 6687158	£1.67	£2.00
207 - FLANGE NUT 6 HIT-6695170.A72 6695170	£1.67	£2.00
208A - HEX HOLE BOLT 4X10/S HIT-6695485.A4 6695485	-
209 - GREASE NIPPLE COMP. HIT-6688643.A26 6688643	£1.67	£2.00
210 - HEX. HOLE BOLT 6X18/S HIT-6695495.A1 6695495	-
211 - CLIP HIT-6696359.A28 6696359	£2.84	£3.41
212 - CUTTER COVER HIT-6687301.A1 6687301	-
213 - SPRING NUT 6 HIT-6695475.A24 6695475	-
214 - SUPPORT PLATE HIT-6690764.A2 6690764	£4.72	£5.66
215 - SPECIAL WASHER B HIT-6684822.A10 6684822	£1.67	£2.00
216 - LOCK NUT 6 UPS-P HIT-6695175.A50 6695175	£1.67	£2.00
217 - BOLT WASHER 6 HIT-6684639.A177 6684639	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A5 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A83 6684813	-
