Hitachi / Hikoki H90SG Demolition Hammer Spare Parts

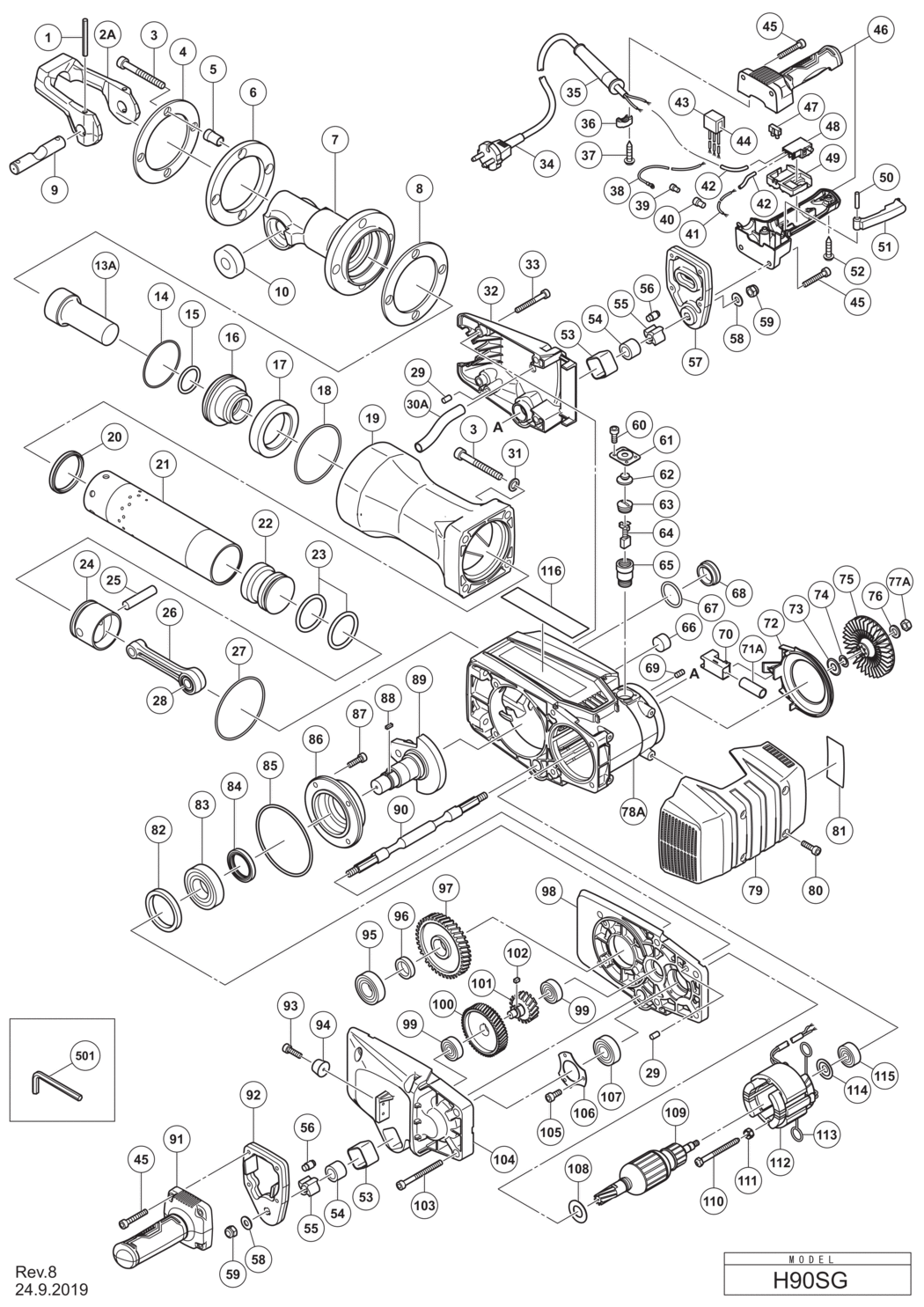

An exploded diagram and spare parts listing for the Hitachi / Hikoki H90SG Demolition Hammer

	Ex VAT	Inc VAT
1 - ROLL PIN D6X55 HIT-994416.A3 994416	£1.67	£2.00
2A - RETAINER HIT-375987.A0 375987	-
3 - NYLOCK HEX. SOCKET HD. BOLT M12X65 HIT-337028.A0 337028	-
4 - DAMPER PLATE HIT-337037.A0 337037	-
5 - COLLAR HIT-337036.A0 337036	£7.22	£8.66
6 - FRONT DAMPER (A) HIT-337035.A0 337035	£12.68	£15.22
7 - FRONT COVER HIT-337030.A0 337030	£261.15	£313.38
8 - FRONT DAMPER (B) HIT-337034.A0 337034	£8.55	£10.26
9 - LEVER PIN HIT-337041.A0 337041	£34.92	£41.90
10 - RETAINER DAMPER (A) HIT-337039.A1 337039	-
13A - SECOND HAMMER HIT-370004.A0 370004	£149.61	£179.53
14 - O-RING (D) HIT-992865.A3 992865	£9.67	£11.60
15 - O-RING (A) HIT-337032.A0 337032	£12.27	£14.72
16 - HAMMER HOLDER HIT-337031.A0 337031	-
17 - DAMPER HIT-992859.A3 992859	£28.42	£34.10
18 - O-RING (C) HIT-337029.A0 337029	-
19 - CYLINDER CASE HIT-337026.A0 337026	-
20 - CYLINDER DAMPER HIT-337025.A0 337025	-
21 - CYLINDER HIT-337023.A0 337023	-
22 - STRIKER HIT-337024.A0 337024	-
23 - O-RING HIT-337021.A0 337021	£22.22	£26.66
24 - PISTON HIT-337020.A0 337020	-
25 - PISTON PIN HIT-337022.A0 337022	-
26 - CONNECTING ROD ASS'Y HIT-337019.A0 337019	-
27 - O-RING HIT-319685.A2 319685	£6.94	£8.33
28 - NEEDLE BEARING (NSK RLM2220) HIT-956485.A3 956485	£17.23	£20.68
29 - PIN D8X14 (10 PCS.) HIT-949480.A4 949480	-
30A - VINYL TUBE HIT-319363.A2 319363	-
31 - WASHER D12 HIT-337027.A0 337027	-
32 - FAN COVER ASS'Y HIT-337012.A0 337012	-
33 - SEAL LOCK BOLT M10X40 HIT-985226.A0 985226	-
*34 - CORD (CORD ARMOR D10.7) FOR SIN HIT-337366.A0 337366	-
*34 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500467Z.A8 500467Z	£63.83	£76.60
*35 - CORD ARMOR D10.7 HIT-337050.A0 337050	-
*36 - CORD CLIP HIT-960266.A17 960266	£1.67	£2.00
37 - TAPPING SCREW (W/WASHER) D4X25 HIT-956636.A4 956636	-
*38 - INTERNAL WIRE L350 FOR GBR HIT-337056.A0 337056	-
*39 - CONNECTOR 50091 (10 PCS.) FOR GBR HIT-959140.A56 959140	£4.98	£5.97
*40 - CONNECTOR 50092 (10 PCS.) FOR GBR HIT-959141.A68 959141	£7.12	£8.54
*41 - INTERNAL WIRE (BLACK) EXCEPT FOR UAE (110V) HIT-337055.A2 337055	-
*41 - INTERNAL WIRE (WHITE) FOR UAE (110V) HIT-337054.A0 337054	-
42 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A8 996438	-
*43 - SUPPORT (B) FOR GBR HIT-930153.A0 930153	£1.67	£2.00
*44 - NOISE SUPPRESSOR FOR GBR HIT-317491.A4 317491	£9.43	£11.32
45 - SEAL LOCK HEX. SOCKET HD. BOLT M6X30 HIT-993496.A2 993496	£1.67	£2.00
46 - HANDLE (A).(B) SET HIT-337057.A0 337057	£24.60	£29.52
*47 - PILLAR TERMINAL FOR GBR HIT-938307.A9 938307	£3.28	£3.93
48 - SWITCH HIT-337051.A0 337051	£15.71	£18.85
49 - SUPPORT HIT-337052.A2 337052	-
50 - PIN D6X28 HIT-337363.A0 337363	£8.82	£10.58
51 - SWITCH LEVER HIT-337058.A0 337058	£1.67	£2.00
52 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A53 307028	£1.67	£2.00
53 - HOLDER (B) HIT-337013.A0 337013	-
54 - HANDLE DAMPER (B) HIT-337042.A0 337042	-
55 - HOLDER (A) HIT-337044.A0 337044	-
56 - HANDLE DAMPER (A) HIT-337045.A0 337045	-
57 - HANDLE HOLDER (B) HIT-337046.A0 337046	-
58 - BOLT WASHER M10 (10 PCS.) HIT-949434.A5 949434	£1.67	£2.00
59 - LOCK NUT (NYLON INSERT) M10 HIT-337048.A0 337048	-
60 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-878356.A3 878356	£1.67	£2.00
61 - CAP COVER HIT-337017.A0 337017	-
62 - CAP RUBBER HIT-992894.A1 992894	£5.27	£6.32
63 - BRUSH CAP HIT-937949.A4 937949	£1.67	£2.00
64 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A7 999086	£18.59	£22.31
65 - BRUSH HOLDER HIT-305597.A0 305597	-
66 - FELT PACKING HIT-336997.A0 336997	-
67 - O-RING (S-38) HIT-980717.A8 980717	£1.67	£2.00
68 - OIL CAP ASS'Y INCLUD.67 HIT-990945.A6 990945	£4.79	£5.75
69 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A31 938477	£1.67	£2.00
70 - SLEEVE HIT-336999.A0 336999	-
71A - VINYL TUBE L55 HIT-322530.A1 322530	£1.67	£2.00
72 - FAN GUIDE HIT-337010.A0 337010	-
73 - DUST WASHER (FW) HIT-337387.A0 337387	-
74 - RUBBER WASHER (FW) HIT-337386.A0 337386	-
75 - FAN HIT-337011.A0 337011	-
76 - BOLT WASHER M8 (BLACK) HIT-323212.A53 323212	£1.67	£2.00
77A - NUT M8 HIT-327325.A1 327325	£1.67	£2.00
78A - HOUSING ASS'Y INCLUD.65 HIT-336996.A0 336996	-
79 - HOUSING COVER HIT-337018.A0 337018	-
80 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-990935.A5 990935	-
81 - NAME PLATE HIT-000000.A1728 000000	-
82 - DISTANCE RING (C) HIT-337003.A0 337003	-
83 - BALL BEARING 6207VVCMPS2S HIT-6207VV.A0 6207VV	-
84 - OIL SEAL HIT-337364.A0 337364	-
85 - O-RING HIT-337004.A0 337004	-
86 - BEARING BOSS HIT-337002.A0 337002	-
87 - SEAL LOCK HEX. SOCKET HD. BOLT M8X18 HIT-305603.A2 305603	-
88 - FEATHER KEY 4X4X12 HIT-931008.A2 931008	-
89 - CRANK SHAFT HIT-337005.A0 337005	-
90 - HANDLE SHAFT HIT-337043.A0 337043	-
91 - SIDE HANDLE HIT-337059.A0 337059	£20.26	£24.31
92 - HANDLE HOLDER (A) HIT-337047.A0 337047	-
93 - SEAL LOCK HEX. SOCKET HD. BOLT M4X20 HIT-333320.A0 333320	-
94 - STOPPER HIT-305629.A2 305629	-
95 - BALL BEARING 6205VVCMPS2L HIT-6205VV.A3 6205VV	£10.95	£13.14
96 - DISTANCE RING (A) HIT-337007.A0 337007	-
97 - FINAL GEAR HIT-337006.A0 337006	-
98 - INNER COVER HIT-337000.A0 337000	-
99 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A7 6301VV	£9.32	£11.19
100 - FIRST GEAR HIT-337015.A0 337015	-
101 - SECOND GEAR HIT-337014.A0 337014	-
102 - FEATHER KEY 5X5X8 HIT-984487.A0 984487	-
103 - SEAL LOCK HEX. SOCKET HD. BOLT M10X60 HIT-992851.A2 992851	-
104 - GEAR COVER ASS'Y INCLUD.53 HIT-337016.A0 337016	-
105 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A0 991690	£1.67	£2.00
106 - BEARING COVER (A) HIT-337001.A0 337001	-
107 - BALL BEARING 6204DD HIT-6204DD.A10 6204DD	£11.46	£13.75
108 - BEARING WASHER (A) HIT-337008.A0 337008	-
*109 - ARMATURE 110V HIT-360974C.A0 360974C	£100.94	£121.13
*109 - ARMATURE 220V-230V HIT-360974E.A0 360974E	-
110 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A7 961501	£1.67	£2.00
111 - SPECIAL WASHER HIT-956764.A10 956764	-
*112 - STATOR ASS'Y 110V INCLUD.113 HIT-340876C.A0 340876C	£54.72	£65.66
*112 - STATOR ASS'Y 220V-230V INCLUD.113 HIT-340876E.A0 340876E	-
113 - BRUSH TERMINAL HIT-945932.A0 945932	£1.67	£2.00
114 - BEARING WASHER (B) HIT-337009.A0 337009	-
115 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A12 6301DD	£9.27	£11.12
116 - BRAND LABEL HIT-000000.A1729 000000	-
501 - HEX. BAR WRENCH 5MM HIT-944459.A5 944459	£1.67	£2.00
601 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A23 980927	£55.68	£66.81
602 - WRENCH HIT-313692.A0 313692	-
603 - BULL POINT 20-1/2 (HEX. SHANK TYPE) HIT-985230.A1 985230	-
604 - BULL POINT 410MM (HEX. SHANK TYPE) HIT-996372.A0 996372	-
605 - COLD CHISEL 520MM (HEX. SHANK TYPE) HIT-985231.A1 985231	-
606 - CUTTER W75X520MM (HEX. SHANK TYPE) HIT-985232.A4 985232	-
607 - SCOOP 546L (HEX. SHANK TYPE) HIT-985233.A1 985233	£130.96	£157.15
608 - RAMMER 200MM HIT-305880.A1 305880	-
609 - SHANK HIT-308092.A2 308092	-
610A - SERVICE KIT (H 90SG) INCLUD.3 HIT-338319.A0 338319	-
