Hitachi / Hikoki H90SC Hammer Spare Parts

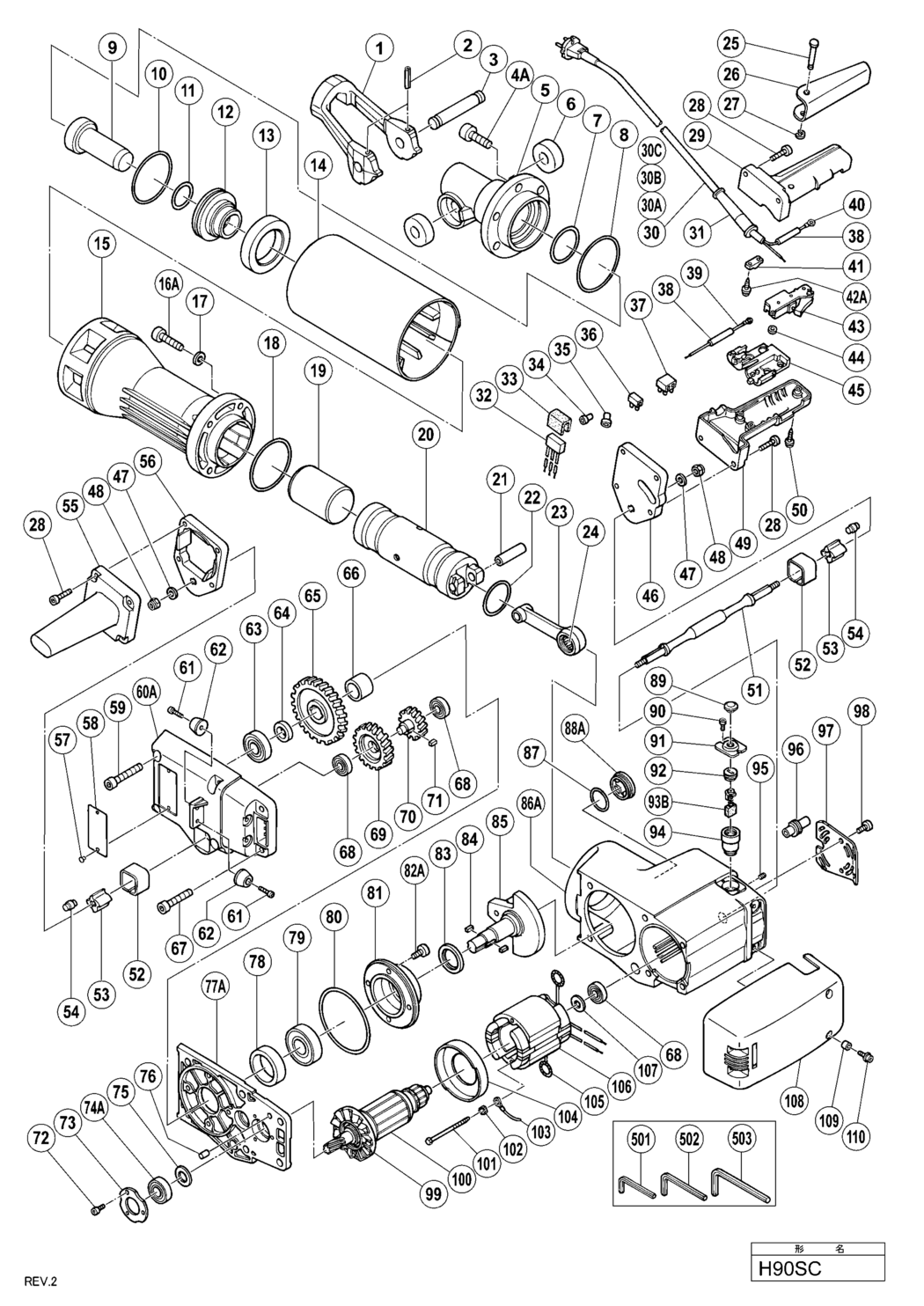

An exploded diagram and spare parts listing for the Hitachi / Hikoki H90SC Hammer

	Ex VAT	Inc VAT
1 - RETAINER HIT-305618.A0 305618	-
2 - ROLL PIN D6X36 (10 PCS.) HIT-949874.A1 949874	-
3 - LEVER PIN HIT-305620.A0 305620	£27.08	£32.49
4A - NYLOCK HIGH TENSION BOLT M12X40 HIT-306373.A0 306373	-
5 - FRONT COVER HIT-305619.A0 305619	-
6 - RETAINER DAMPER HIT-305621.A0 305621	£21.78	£26.14
7 - O-RING HIT-993188.A3 993188	£15.96	£19.15
8 - O-RING (S-90) HIT-877316.A3 877316	£1.67	£2.00
9 - SECOND HAMMER HIT-305617.A0 305617	-
10 - O-RING (D) HIT-992865.A4 992865	£9.67	£11.60
11 - O-RING (A) HIT-956503.A3 956503	£7.30	£8.76
12 - HAMMER HOLDER HIT-305616.A0 305616	-
13 - DAMPER HIT-992859.A4 992859	£28.42	£34.10
15 - CYLINDER CASE HIT-305615.A0 305615	-
16A - NYLOCK BOLT M10X45 HIT-306372.A1 306372	-
17 - WASHER M10 (10 PCS.) HIT-949445.A5 949445	-
18 - O-RING HIT-993195.A3 993195	£1.67	£2.00
19 - STRIKER HIT-305612.A1 305612	£55.44	£66.53
20 - PISTON HIT-305611.A0 305611	-
21 - PISTON PIN HIT-305614.A1 305614	-
22 - O-RING (P-46) HIT-878716.A2 878716	£1.67	£2.00
23 - CONNECTING ROD ASS'Y INCLUD.24 HIT-305613.A0 305613	-
24 - NEEDLE BEARING (NSK RLM2220) HIT-956485.A4 956485	£17.23	£20.68
25 - PIN HIT-992870.A1 992870	£5.98	£7.18
26 - SWITCH LEVER HIT-992869.A4 992869	£9.67	£11.60
27 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A5 968643	£1.67	£2.00
28 - SEAL LOCK HEX. SOCKET HD. BOLT M6X30 HIT-993496.A3 993496	£1.67	£2.00
29 - HANDLE (A) HIT-305636.A0 305636	£23.31	£27.97
*30A - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500466Z.A2 500466Z	£31.12	£37.34
*30B - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A9 500450Z	£35.67	£42.80
*31 - CORD ARMOR D10.7 HIT-940778.A69 940778	£3.15	£3.78
*32 - NOISE SUPPRESSOR HIT-994273.A43 994273	£7.30	£8.76
*33 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-930153.A17 930153	£1.67	£2.00
*34 - CONNECTOR 50091 (10 PCS.) FOR NOISE SUPPRESSOR HIT-959140.A104 959140	£4.98	£5.97
*35 - CONNECTOR 50092 (10 PCS.) FOR EUROPE(EXCEPT FOR FIN HIT-959141.A10 959141	£7.12	£8.54
*36 - PILLAR TERMINAL FOR EUROPE (EXCEPT FOR GRE) HIT-938307.A70 938307	£3.28	£3.93
38 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A0 996438	-
*39 - INTERNAL WIRE 110V-115V HIT-306681.A2 306681	-
*40 - TERMINAL FOR CORD HIT-992810.A1 992810	-
*40 - TERMINAL FOR CORD HIT-980063.A76 980063	£1.67	£2.00
*41 - CORD CLIP HIT-960266.A81 960266	£1.67	£2.00
42A - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A9 982095	£1.67	£2.00
*43 - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A4 992891	£23.25	£27.90
*44 - WASHER M4 (10 PCS.) FOR EUROPE(EXCEPT FOR GRE) HIT-949423.A45 949423	£1.67	£2.00
*45 - SUPPORT (E) HIT-990082.A7 990082	-
46 - HANDLE HOLDER (B) HIT-305634.A1 305634	-
47 - WASHER M8 (10 PCS.) HIT-949426.A7 949426	£1.67	£2.00
48 - LOCK NUT M8 (NYLON INSERT) HIT-305632.A1 305632	£1.67	£2.00
49 - HANDLE (B) HIT-305631.A0 305631	£23.31	£27.97
50 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A128 301653	£1.67	£2.00
51 - HANDLE SHAFT HIT-305624.A0 305624	£120.10	£144.12
52 - HOLDER (B) HIT-305598.A0 305598	-
53 - HOLDER (A) HIT-305623.A1 305623	-
54 - HANDLE DAMPER HIT-305622.A0 305622	£1.67	£2.00
55 - SIDE HANDLE HIT-305633.A0 305633	£28.65	£34.38
56 - HANDLE HOLDER (A) HIT-305625.A1 305625	-
57 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A4 949510	£1.67	£2.00
58 - NAME PLATE HIT-000000.A4097 000000	-
59 - SEAL LOCK HEX. SOCKET HD. BOLT M10X60 HIT-992851.A3 992851	-
60A - GEAR COVER ASS'Y (METALLIC SILVER GREEN) INCLUD.52 HIT-336338.A1 336338	-
61 - HEX. SOCKET HD. BOLT M4X20 (10 PCS.) HIT-949699.A0 949699	-
62 - STOPPER HIT-305629.A0 305629	-
63 - BALL BEARING 6204VVCMPS2L HIT-6204VV.A2 6204VV	£9.03	£10.84
64 - DISTANCE RING (A) HIT-305609.A0 305609	-
65 - FINAL GEAR HIT-305608.A1 305608	-
66 - DISTANCE RING (B) HIT-305607.A0 305607	-
67 - SEAL LOCK HEX. SOCKET HD. BOLT M10X55 HIT-996433.A2 996433	-
68 - BALL BEARING 6201VV HIT-6201VV.A9 6201VV	£8.30	£9.96
69 - FIRST GEAR HIT-305605.A0 305605	-
70 - SECOND GEAR HIT-305604.A1 305604	-
71 - FEATHER KEY 4X4X10 HIT-930511.A12 930511	£2.78	£3.34
72 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A25 991690	£1.67	£2.00
73 - BEARING COVER (A) HIT-305600.A1 305600	-
74A - BALL BEARING 6203DDCMPS2L HIT-6203DD.A12 6203DD	£8.64	£10.37
75 - BEARING WASHER HIT-992841.A1 992841	£1.67	£2.00
76 - PIN D8X14 (10 PCS.) HIT-949480.A0 949480	-
77A - INNER COVER (METALLIC SILVER GREEN) HIT-336337.A0 336337	-
78 - DISTANCE RING (C) HIT-305602.A1 305602	-
79 - BALL BEARING 6305VVCMPS2S HIT-6305VV.A2 6305VV	-
80 - O-RING (A) HIT-992847.A1 992847	-
81 - BEARING BOSS HIT-305601.A0 305601	-
82A - SEAL LOCK HEX. SOCKET HD. BOLT M8X18 HIT-305603.A0 305603	-
83 - OIL SEAL HIT-992846.A2 992846	-
84 - FEATHER KEY 4X4X12 HIT-931008.A8 931008	-
85 - CRANK SHAFT HIT-305606.A1 305606	-
86A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.52 HIT-336339.A0 336339	-
87 - O-RING (S-38) HIT-980717.A2 980717	£1.67	£2.00
88A - OIL CAP ASS'Y INCLUD.87 HIT-990945.A0 990945	£4.79	£5.75
89 - CAP RUBBER HIT-992894.A3 992894	£5.27	£6.32
90 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-878356.A0 878356	£1.67	£2.00
91 - CAP COVER HIT-305635.A0 305635	£7.71	£9.25
92 - BRUSH CAP HIT-937949.A1 937949	£1.67	£2.00
93B - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A5 999086	£18.59	£22.31
94 - BRUSH HOLDER HIT-305597.A2 305597	-
95 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A83 938477	£1.67	£2.00
96 - INTERNAL WIRE HOLDER HIT-305627.A0 305627	£5.64	£6.77
97 - TAIL COVER HIT-305630.A1 305630	-
98 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-990935.A3 990935	-
99 - FAN HIT-996370.A5 996370	£14.12	£16.95
*100 - ARMATURE ASS'Y 110V-115V INCLUD.99 HIT-360262C.A0 360262C	-
*100 - ARMATURE ASS'Y 220V-230V INCLUD.99 HIT-360262E.A0 360262E	£182.95	£219.54
101 - HEX. HD. TAPPING SCREW D5X85 HIT-993185.A0 993185	-
102 - SPECIAL WASHER HIT-956764.A2 956764	-
*103 - INTERNAL WIRE FOR EUROPE(EXCEPT FOR GRE) HIT-305798.A0 305798	£1.67	£2.00
104 - FAN GUIDE HIT-305610.A1 305610	£16.32	£19.58
105 - BRUSH TERMINAL HIT-945932.A4 945932	£1.67	£2.00
*106 - STATOR ASS'Y 110V-115V INCLUD.105 HIT-340238C.A1 340238C	£61.52	£73.83
*106 - STATOR ASS'Y 220V-230V INCLUD.105 HIT-340238E.A0 340238E	-
107 - BEARING WASHER HIT-944954.A15 944954	£1.67	£2.00
108 - HOUSING COVER HIT-305628.A1 305628	£34.31	£41.17
109 - COLLAR HIT-996437.A2 996437	£1.67	£2.00
110 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X16 HIT-301582.A1 301582	£1.67	£2.00
501 - HEX. BAR WRENCH 3MM HIT-943277.A21 943277	£1.67	£2.00
502 - HEX. BAR WRENCH 5MM HIT-944459.A12 944459	£1.67	£2.00
503 - HEX. BAR WRENCH 10MM HIT-993740.A3 993740	-
601 - BULL POINT 520MM HIT-993180.A0 993180	-
602 - COLD CHISEL 520MM HIT-993181.A0 993181	-
603 - CUTTER W75X520L HIT-993182.A0 993182	-
604 - SCOOP HIT-993183.A0 993183	-
605 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A34 980927	£55.68	£66.81
606 - WRENCH HIT-936728.A0 936728	-
607 - RAMMER 200MM HIT-305880.A3 305880	-
608 - SHANK 521L (FOR RAMMER) HIT-305881.A0 305881	-
609 - BULL POINT 410MM HIT-993204.A0 993204	£34.64	£41.57
