Hitachi / Hikoki H90SB Hammer Spare Parts

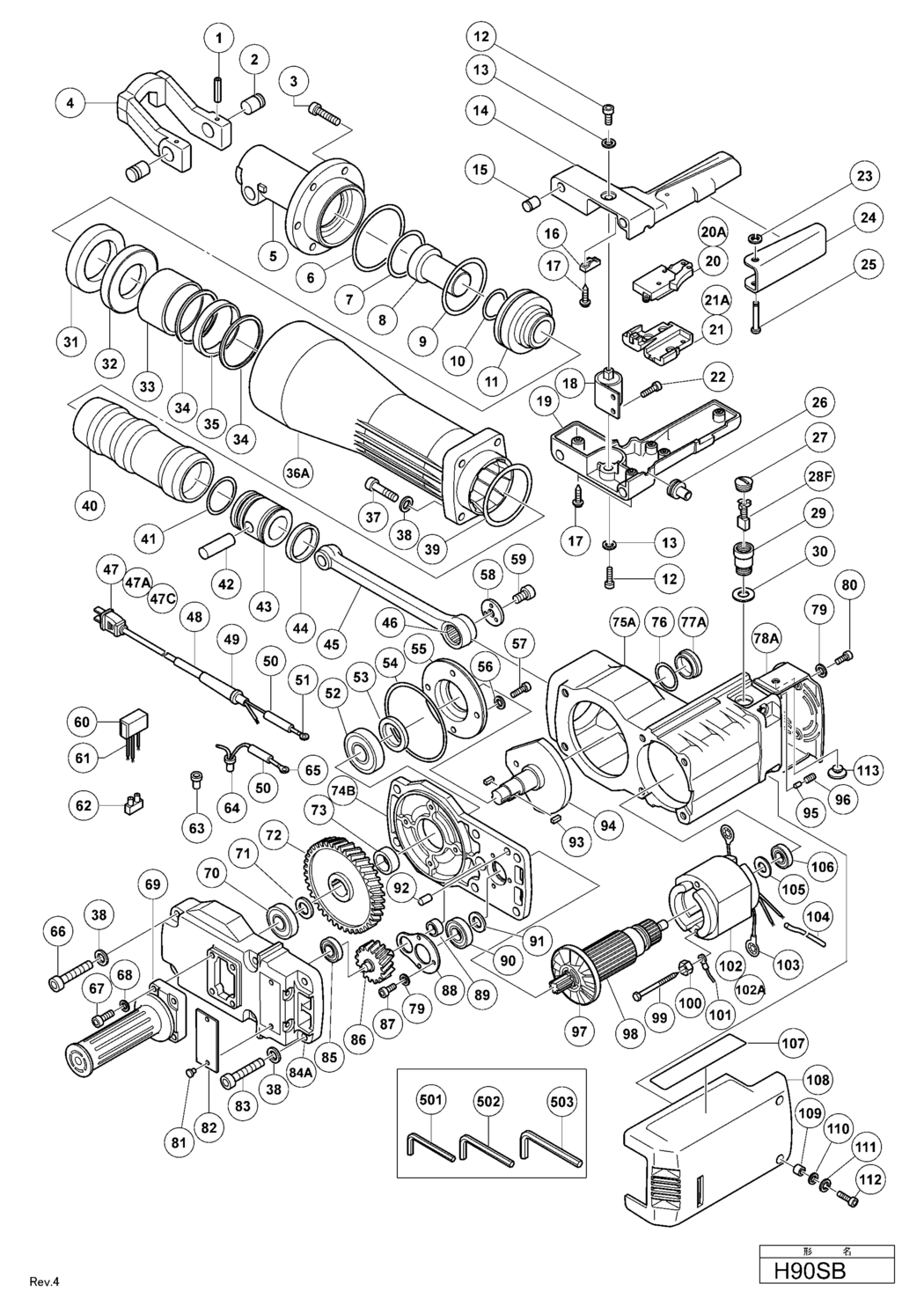

An exploded diagram and spare parts listing for the Hitachi / Hikoki H90SB Hammer

	Ex VAT	Inc VAT
1 - ROLL PIN D6X36 (10 PCS.) HIT-949874.A3 949874	-
2 - LEVER PIN HIT-985224.A0 985224	-
3 - SEAL LOCK BOLT M12X40 HIT-992889.A1 992889	-
4 - RETAINER HIT-985225.A0 985225	-
5 - FRONT COVER HIT-996434.A0 996434	-
6 - O-RING (S-90) HIT-877316.A5 877316	£1.67	£2.00
7 - O-RING HIT-993188.A0 993188	£15.96	£19.15
8 - SECOND HAMMER HIT-992878.A0 992878	£53.92	£64.70
9 - O-RING (D) HIT-992865.A1 992865	£9.67	£11.60
10 - O-RING (A) HIT-956503.A0 956503	£7.30	£8.76
11 - HAMMER HOLDER HIT-992860.A0 992860	-
12 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-990935.A4 990935	-
13 - STOPPER WASHER HIT-982001Z.A0 982001Z	£1.67	£2.00
14 - HANDLE (A) HIT-993190.A0 993190	£30.18	£36.21
15 - RUBBER LEG HIT-993191.A0 993191	£1.90	£2.28
16 - CORD CLIP HIT-960266.A25 960266	£1.67	£2.00
17 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A13 982095	£1.67	£2.00
18 - HANDLE RUBBER HIT-993192.A0 993192	-
19 - HANDLE (B) HIT-993194.A0 993194	£29.42	£35.30
20 - SWITCH (2P PILLAR TYPE) W/O LOCK FOR AUS HIT-981533Z.A1 981533Z	£29.24	£35.09
20A - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A0 992891	£23.25	£27.90
21 - SUPPORT TILL 7.1988 HIT-981869.A4 981869	-
*21 - SUPPORT (A) FOR AUS HIT-981986Z.A0 981986Z	-
21A - SUPPORT (E) SINCE 8.1988 HIT-990082.A1 990082	-
22 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-993199.A0 993199	-
23 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A14 968643	£1.67	£2.00
24 - SWITCH LEVER HIT-992869.A1 992869	£9.67	£11.60
25 - PIN HIT-992870.A4 992870	£5.98	£7.18
26 - INTERNAL WIRE HOLDER HIT-993193.A0 993193	-
27 - BRUSH CAP HIT-937949.A3 937949	£1.67	£2.00
28F - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A9 999086	£18.59	£22.31
29 - BRUSH HOLDER HIT-993742.A0 993742	-
30 - STOP PLATE HIT-956683.A0 956683	-
31 - DAMPER HIT-992859.A1 992859	£28.42	£34.10
32 - DAMPER PLATE HIT-992858.A0 992858	-
33 - MOUTH HIT-992857.A1 992857	-
34 - MOUTH WASHER HIT-992855.A1 992855	-
35 - URETHANE RING HIT-992856.A0 992856	-
36A - CYLINDER CASE (METALLIC SILVER GREEN) HIT-336333.A0 336333	-
37 - SEAL LOCK BOLT M10X45 HIT-993198.A1 993198	-
38 - WASHER M10 (10 PCS.) HIT-949445.A2 949445	-
39 - O-RING HIT-993195.A0 993195	£1.67	£2.00
40 - STRIKER HIT-993187.A0 993187	-
41 - O-RING (B) HIT-992853.A1 992853	-
42 - PISTON PIN HIT-956491.A1 956491	-
43 - PISTON HIT-992852.A0 992852	-
44 - OIL SEAL (A) HIT-992877.A1 992877	-
45 - CONNECTING ROD ASS'Y INCLUD.46 HIT-956484.A0 956484	-
46 - NEEDLE BEARING (NSK RLM2220) HIT-956485.A1 956485	£17.23	£20.68
47 - CORD (CORD ARMOR D12.3) HIT-500214Z.A0 500214Z	-
*47 - CORD (CORD ARMOR D12.3) FOR INA HIT-500235Z.A11 500235Z	-
*47 - CORD (CORD ARMOR D12.3) FOR SAF HIT-500237Z.A0 500237Z	£14.33	£17.20
*47 - CORD (CORD ARMOR D12.3) FOR AUS HIT-500408Z.A2 500408Z	-
*47 - CORD (CORD ARMOR D12.3) FOR NZL HIT-500439Z.A29 500439Z	-
*47 - CORD (CORD ARMOR D12.3) FOR SYR HIT-500394Z.A1 500394Z	-
47A - CORD (CORD ARMOR D12.3) FOR CAN HIT-500437Z.A0 500437Z	-
*47A - CORD (CORD ARMOR D12.3) FOR SIN HIT-500423Z.A35 500423Z	-
47C - CORD (CORD ARMOR D12.3) FOR USA HIT-500434Z.A7 500434Z	-
48 - TUBE (D) HIT-992866.A0 992866	-
49 - CORD ARMOR D12.3 HIT-930217.A0 930217	£3.64	£4.37
50 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A6 996438	-
51 - TERMINAL M4.0 (10 PCS.) FOR CORD HIT-930804.A13 930804	£3.64	£4.37
52 - BALL BEARING 6305VVCMPS2S HIT-6305VV.A3 6305VV	-
53 - OIL SEAL HIT-992846.A0 992846	-
54 - O-RING (A) HIT-992847.A3 992847	-
55 - BEARING BOSS HIT-992845.A1 992845	-
56 - SPRING WASHER M6 (10 PCS.) HIT-949455.A98 949455	£1.67	£2.00
57 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A6 992803	£1.67	£2.00
58 - CRANK WASHER HIT-956486.A0 956486	-
59 - SEAL LOCK HEX. SOCKET HD. BOLT M10X16 HIT-992850.A0 992850	£1.67	£2.00
60 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-930153.A5 930153	£1.67	£2.00
61 - NOISE SUPPRESSOR FOR NZL HIT-971828.A0 971828	£8.64	£10.37
*61 - NOISE SUPPRESSOR FOR AUS HIT-994273.A6 994273	£7.30	£8.76
62 - PILLAR TERMINAL FOR USA HIT-938307.A22 938307	£3.28	£3.93
63 - CONNECTOR 50091 (10 PCS.) FOR NZL HIT-959140.A30 959140	£4.98	£5.97
64 - CONNECTOR 50092 (10 PCS.) HIT-959141.A83 959141	£7.12	£8.54
65 - INTERNAL WIRE FOR NZL HIT-981974.A8 981974	£1.67	£2.00
*65 - INTERNAL WIRE FOR AUS HIT-318275.A0 318275	-
66 - SEAL LOCK HEX. SOCKET HD. BOLT M10X60 HIT-992851.A1 992851	-
67 - SEAL LOCK HEX. SOCKET HD. BOLT M8X30 HIT-986894.A0 986894	£1.67	£2.00
68 - SPRING WASHER M8 (10 PCS.) HIT-949457.A9 949457	£1.67	£2.00
69 - SIDE HANDLE HIT-956527.A1 956527	-
70 - BALL BEARING 6204VVCMPS2L HIT-6204VV.A5 6204VV	£9.03	£10.84
71 - DISTANCE WASHER HIT-956482.A1 956482	-
72 - FINAL GEAR HIT-992848.A0 992848	-
73 - DISTANCE RING (B) HIT-956480.A0 956480	-
74B - INNER COVER (METALLIC SILVER GREEN) HIT-336331.A0 336331	-
75A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.29 HIT-336336.A0 336336	-
76 - O-RING (S-38) HIT-980717.A10 980717	£1.67	£2.00
77A - OIL CAP ASS'Y INCLUD.76 HIT-990945.A7 990945	£4.79	£5.75
78A - TAIL COVER ASS'Y INCLUD.113 HIT-992893.A1 992893	-
79 - SPRING WASHER M5 (10 PCS.) HIT-949454.A53 949454	£1.67	£2.00
80 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A13 877839	£1.67	£2.00
81 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A26 949510	£1.67	£2.00
82 - NAME PLATE HIT-000000.A2713 000000	-
83 - SEAL LOCK HEX. SOCKET HD. BOLT M10X55 HIT-996433.A0 996433	-
84A - GEAR COVER (METALLIC SILVER GREEN) HIT-336335.A0 336335	-
85 - BALL BEARING 6201VV HIT-6201VV.A36 6201VV	£8.30	£9.96
86 - COUNTER GEAR HIT-992843.A1 992843	-
87 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A18 984509	£1.67	£2.00
88 - BEARING COVER (A) HIT-992842.A0 992842	-
89 - NEEDLE BEARING (BK1312V1) HIT-992844.A0 992844	-
90 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A0 6203VV	£9.32	£11.19
91 - BEARING WASHER HIT-992841.A5 992841	£1.67	£2.00
92 - PIN D8X14 (10 PCS.) HIT-949480.A3 949480	-
93 - FEATHER KEY 4X4X15 HIT-948919.A3 948919	£1.67	£2.00
94 - CRANK SHAFT HIT-992849.A1 992849	-
95 - FRICTION PIECE HIT-931857.A0 931857	-
96 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A57 938477	£1.67	£2.00
97 - FAN HIT-996370.A8 996370	£14.12	£16.95
*98 - ARMATURE ASS'Y 115V INCLUD.90 HIT-360073U.A0 360073U	-
*98 - ARMATURE ASS'Y 220V-230V INCLUD.97 HIT-360073E.A0 360073E	-
*98 - ARMATURE ASS'Y 240V INCLUD.97 HIT-360073F.A0 360073F	-
*98 - ARMATURE ASS'Y 127V INCLUD.90 HIT-360812F.A0 360812F	-
99 - HEX. HD. TAPPING SCREW D5X85 HIT-993185.A2 993185	-
100 - SPECIAL WASHER HIT-956764.A8 956764	-
101 - INTERNAL WIRE FOR NZL HIT-990861.A6 990861	£1.67	£2.00
*102 - STATOR ASS'Y 115V INCLUD.103 HIT-340110C.A0 340110C	-
*102 - STATOR ASS'Y 220V-230V INCLUD.103 HIT-340110E.A0 340110E	-
*102 - STATOR ASS'Y 220V-230V INCLUD.103 FOR NZL HIT-340014E.A0 340014E	-
*102 - STATOR ASS'Y 127V INCLUD.103 HIT-340110D.A0 340110D	-
102A - STATOR ASS'Y 240V INCLUD.103 HIT-340014F.A0 340014F	-
103 - BRUSH TERMINAL HIT-945932.A1 945932	£1.67	£2.00
104 - VINYL TUBE (B) (I.D.4XT0.4X80) HIT-996439.A0 996439	-
105 - BEARING WASHER HIT-944954.A1 944954	£1.67	£2.00
106 - BALL BEARING 6201VV HIT-6201VV.A38 6201VV	£8.30	£9.96
107 - BRAND LABEL HIT-996435.A0 996435	-
108 - HOUSING COVER HIT-996436.A0 996436	-
109 - COLLAR HIT-996437.A0 996437	£1.67	£2.00
110 - BOLT WASHER M6 (10 PCS.) HIT-949432.A44 949432	£1.67	£2.00
111 - SPRING WASHER M6 (10 PCS.) HIT-949455.A96 949455	£1.67	£2.00
112 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A8 992803	£1.67	£2.00
113 - CAP RUBBER HIT-992894.A0 992894	£5.27	£6.32
501 - HEX. BAR WRENCH 4MM HIT-944458.A81 944458	£1.67	£2.00
502 - HEX. BAR WRENCH 6MM HIT-872422.A0 872422	£1.67	£2.00
503 - HEX. BAR WRENCH 10MM HIT-993740.A0 993740	-
601 - BULL POINT 20-1/2 (HEX. SHANK TYPE) HIT-985230.A2 985230	-
602 - COLD CHISEL 520MM (HEX. SHANK TYPE) HIT-985231.A0 985231	-
603 - CUTTER W75X520MM (HEX. SHANK TYPE) HIT-985232.A5 985232	-
604 - SCOOP 546L (HEX. SHANK TYPE) HIT-985233.A0 985233	£130.96	£157.15
605 - WRENCH HIT-936728.A4 936728	-
606 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A16 980927	£55.68	£66.81
608 - SERVICE KIT (H 90SB) INCLUD.3 HIT-996440.A0 996440	-
608S - SERVICE KIT (H 90SB) FOR USA HIT-996440.A1 996440	-
609 - RAMMER 200MM HIT-305880.A0 305880	-
610 - SHANK HIT-308092.A1 308092	-
