Hitachi / Hikoki H90 Hammer Spare Parts

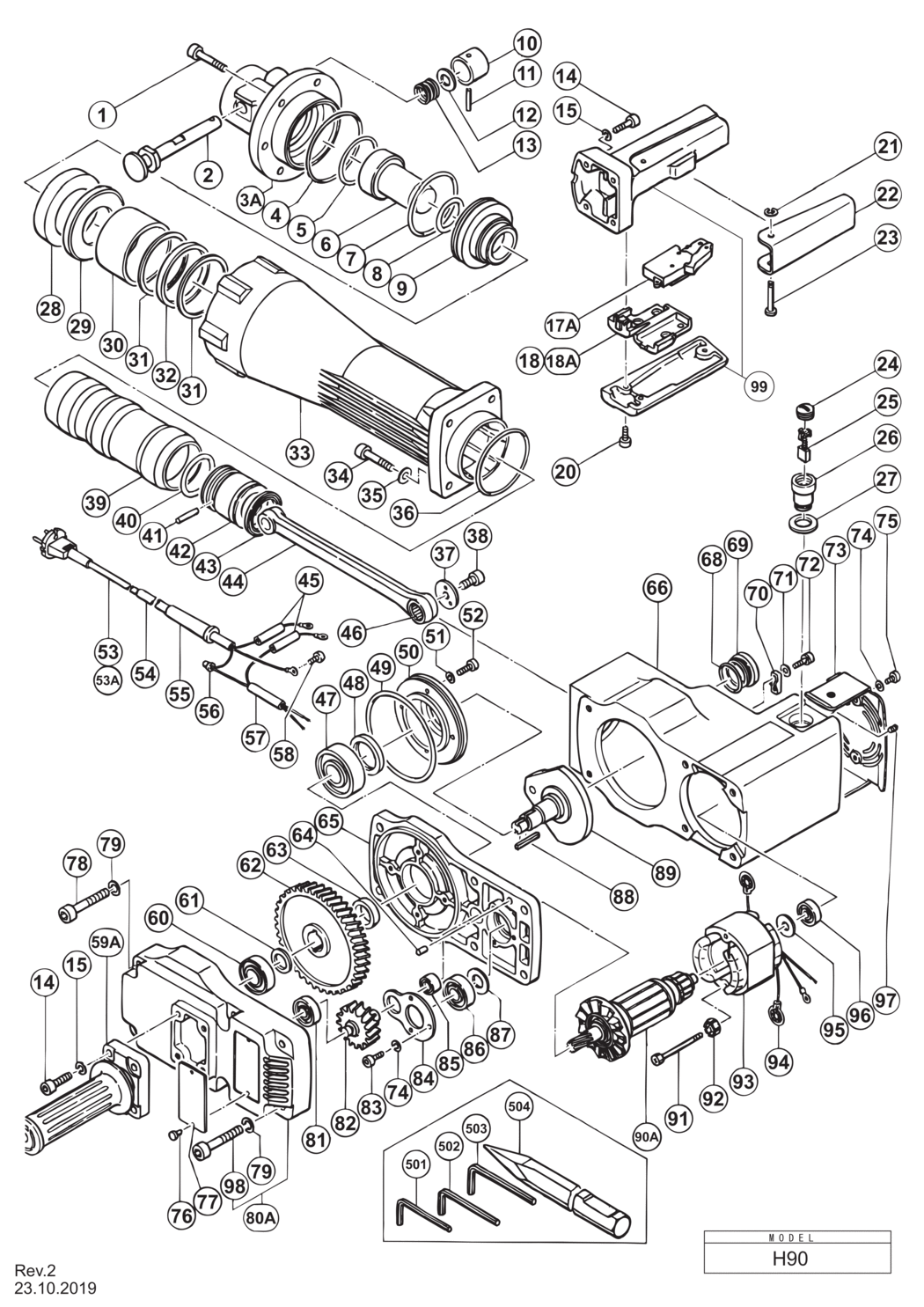

An exploded diagram and spare parts listing for the Hitachi / Hikoki H90 Hammer

	Ex VAT	Inc VAT
1 - SEAL LOCK BOLT M12X40 HIT-992889.A0 992889	-
2 - STOP LEVER HIT-992886.A0 992886	-
3A - FRONT COVER HIT-992861.A0 992861	-
4 - O-RING (S-90) HIT-877316.A6 877316	£1.67	£2.00
5 - O-RING HIT-993188.A1 993188	£15.96	£19.15
6 - SECOND HAMMER HIT-992878.A1 992878	£53.92	£64.70
7 - O-RING (D) HIT-992865.A0 992865	£9.67	£11.60
8 - O-RING (A) HIT-956503.A1 956503	£7.30	£8.76
9 - HAMMER HOLDER HIT-992860.A1 992860	-
10 - SPRING CASE HIT-992862.A0 992862	-
11 - NEEDLE (D) HIT-980256.A0 980256	-
12 - STOPPER WASHER HIT-992864.A0 992864	-
13 - STOPPER SPRING HIT-992863.A0 992863	-
14 - SEAL LOCK HEX. SOCKET HD. BOLT M8X30 HIT-986894.A1 986894	£1.67	£2.00
15 - SPRING WASHER M8 (10 PCS.) HIT-949457.A10 949457	£1.67	£2.00
17A - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A1 992891	£23.25	£27.90
18 - SUPPORT TILL 11.1986 HIT-981869.A3 981869	-
18A - SUPPORT (E) SINCE 12.1986 HIT-990082.A0 990082	-
20 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A31 990079	£1.67	£2.00
21 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A15 968643	£1.67	£2.00
22 - SWITCH LEVER HIT-992869.A0 992869	£9.67	£11.60
23 - PIN HIT-992870.A5 992870	£5.98	£7.18
24 - BRUSH CAP HIT-937949.A2 937949	£1.67	£2.00
25 - CARBON BRUSH (1 PAIR) HIT-999044.A11 999044	£5.54	£6.65
26 - BRUSH HOLDER HIT-993742.A1 993742	-
27 - STOP PLATE HIT-956683.A1 956683	-
28 - DAMPER HIT-992859.A0 992859	£28.42	£34.10
29 - DAMPER PLATE HIT-992858.A1 992858	-
30 - MOUTH HIT-992857.A0 992857	-
31 - MOUTH WASHER HIT-992855.A0 992855	-
32 - URETHANE RING HIT-992856.A1 992856	-
34 - SEAL LOCK BOLT M10X45 HIT-993198.A0 993198	-
35 - WASHER M10 (10 PCS.) HIT-949445.A1 949445	-
36 - O-RING HIT-993195.A1 993195	£1.67	£2.00
37 - CRANK WASHER HIT-956486.A1 956486	-
38 - SEAL LOCK HEX. SOCKET HD. BOLT M10X16 HIT-992850.A1 992850	£1.67	£2.00
39 - STRIKER HIT-992854.A0 992854	-
40 - O-RING (B) HIT-992853.A0 992853	-
41 - PISTON PIN HIT-956491.A0 956491	-
42 - PISTON HIT-992852.A1 992852	-
43 - OIL SEAL (A) HIT-992877.A0 992877	-
44 - CONNECTING ROD ASS'Y INCLUD.46 HIT-956484.A1 956484	-
45 - VINYL TUBE (B) (I.D.7XT0.5X75) HIT-000000.A2708 000000	-
46 - NEEDLE BEARING (NSK RLM2220) HIT-956485.A0 956485	£17.23	£20.68
47 - BALL BEARING 6305VVCMPS2S HIT-6305VV.A4 6305VV	-
48 - OIL SEAL HIT-992846.A1 992846	-
49 - O-RING (A) HIT-992847.A2 992847	-
50 - BEARING BOSS HIT-992845.A0 992845	-
51 - SPRING WASHER M6 (10 PCS.) HIT-949455.A97 949455	£1.67	£2.00
52 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A7 992803	£1.67	£2.00
53 - CORD HIT-500202Z.A5 500202Z	-
53 - CORD FOR INA HIT-500398Z.A0 500398Z	-
53A - CORD (CORD ARMOR D8.2) FOR SIN HIT-500428Z.A1 500428Z	-
54 - TUBE (B) FOR INA HIT-956514.A0 956514	-
54 - TUBE (D) HIT-992866.A1 992866	-
55 - CORD ARMOR D12.3 HIT-930217.A1 930217	£3.64	£4.37
56 - CONNECTOR 50092 (10 PCS.) HIT-959141.A84 959141	£7.12	£8.54
57 - VINYL TUBE (A)(I.D.7XT0.5X80) HIT-000000.A2709 000000	-
58 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A13 949292	-
59 - SIDE HANDLE HIT-956527.A0 956527	-
60 - BALL BEARING 6204VVCMPS2L HIT-6204VV.A4 6204VV	£9.03	£10.84
61 - DISTANCE WASHER HIT-956482.A0 956482	-
62 - FINAL GEAR HIT-992848.A1 992848	-
63 - DISTANCE RING (B) HIT-956480.A1 956480	-
64 - PIN D8X14 (10 PCS.) HIT-949480.A2 949480	-
68 - O-RING (S-34) HIT-980879.A4 980879	£1.67	£2.00
69 - OIL CAP HIT-980880.A2 980880	£1.67	£2.00
70 - CORD CLIP HIT-937631.A5 937631	£1.67	£2.00
71 - WASHER M4 (10 PCS.) HIT-949423.A23 949423	£1.67	£2.00
72 - MACHINE SCREW (W/SP. WASHER) M4X14 HIT-951122.A1 951122	-
73 - TAIL COVER ASS'Y HIT-992893.A0 992893	-
74 - SPRING WASHER M5 (10 PCS.) HIT-949454.A54 949454	£1.67	£2.00
75 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A12 877839	£1.67	£2.00
76 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A27 949510	£1.67	£2.00
77 - NAME PLATE HIT-000000.A2710 000000	-
78 - SEAL LOCK HEX. SOCKET HD. BOLT M10X60 2PCS.FOR GEAR COVER TILL 8.1987 HIT-992851.A0 992851	-
79 - SPRING WASHER M10 (10 PCS.) HIT-949458.A22 949458	£1.67	£2.00
80A - GEAR COVER ASS'Y INCLUD.98 HIT-992892.A0 992892	-
81 - BALL BEARING 6201VV HIT-6201VV.A35 6201VV	£8.30	£9.96
82 - COUNTER GEAR HIT-992843.A0 992843	-
83 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A19 984509	£1.67	£2.00
84 - BEARING COVER (A) HIT-992842.A1 992842	-
85 - NEEDLE BEARING (BK1312V1) HIT-992844.A1 992844	-
86 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A1 6203VV	£9.32	£11.19
87 - BEARING WASHER HIT-992841.A4 992841	£1.67	£2.00
88 - FEATHER KEY 4X4X15 HIT-948919.A4 948919	£1.67	£2.00
89 - CRANK SHAFT HIT-992849.A0 992849	-
90A - ARMATURE 110V-115V HIT-992876C.A0 992876C	-
90A - ARMATURE 220V-230V HIT-992876E.A0 992876E	-
90A - ARMATURE 240V HIT-992876F.A0 992876F	-
91 - BOLT (+HD.) M5X80 HIT-937925.A0 937925	-
92 - SPECIAL WASHER HIT-956764.A7 956764	-
93 - STATOR ASS'Y 110V-115V INCLUD.94 HIT-992883C.A0 992883C	-
93 - STATOR ASS'Y 220V-230V INCLUD.94 HIT-992883E.A0 992883E	-
93 - STATOR ASS'Y 240V INCLUD.94 HIT-992883F.A0 992883F	-
94 - BRUSH TERMINAL HIT-945932.A2 945932	£1.67	£2.00
95 - BEARING WASHER HIT-944954.A2 944954	£1.67	£2.00
96 - BALL BEARING 6201VV HIT-6201VV.A37 6201VV	£8.30	£9.96
97 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A58 938477	£1.67	£2.00
98 - SEAL LOCK HEX. SOCKET HD. BOLT M10X55 SINCE 9.1987 HIT-996433.A1 996433	-
99 - HANDLE SET HIT-376001.A0 376001	-
501 - HEX. BAR WRENCH 4MM HIT-944458.A80 944458	£1.67	£2.00
502 - HEX. BAR WRENCH 6MM HIT-872422.A2 872422	£1.67	£2.00
503 - HEX. BAR WRENCH 10MM HIT-993740.A1 993740	-
504 - BULL POINT 325MM HIT-956460.A0 956460	-
601 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A15 980927	£55.68	£66.81
602A - RAMMER AND SHANK SET 200MMX200L HIT-311444.A0 311444	-
604 - CUTTER HIT-956462.A0 956462	-
605 - COLD CHISEL 325MM HIT-956464.A0 956464	-
606 - SCOOP 375L HIT-992881.A0 992881	-
607 - WRENCH HIT-936728.A5 936728	-
608 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A44 308471	£16.21	£19.45

Attribute Name	Value
Brand	Hikoki
