Hitachi / Hikoki H70SD Hammer Spare Parts

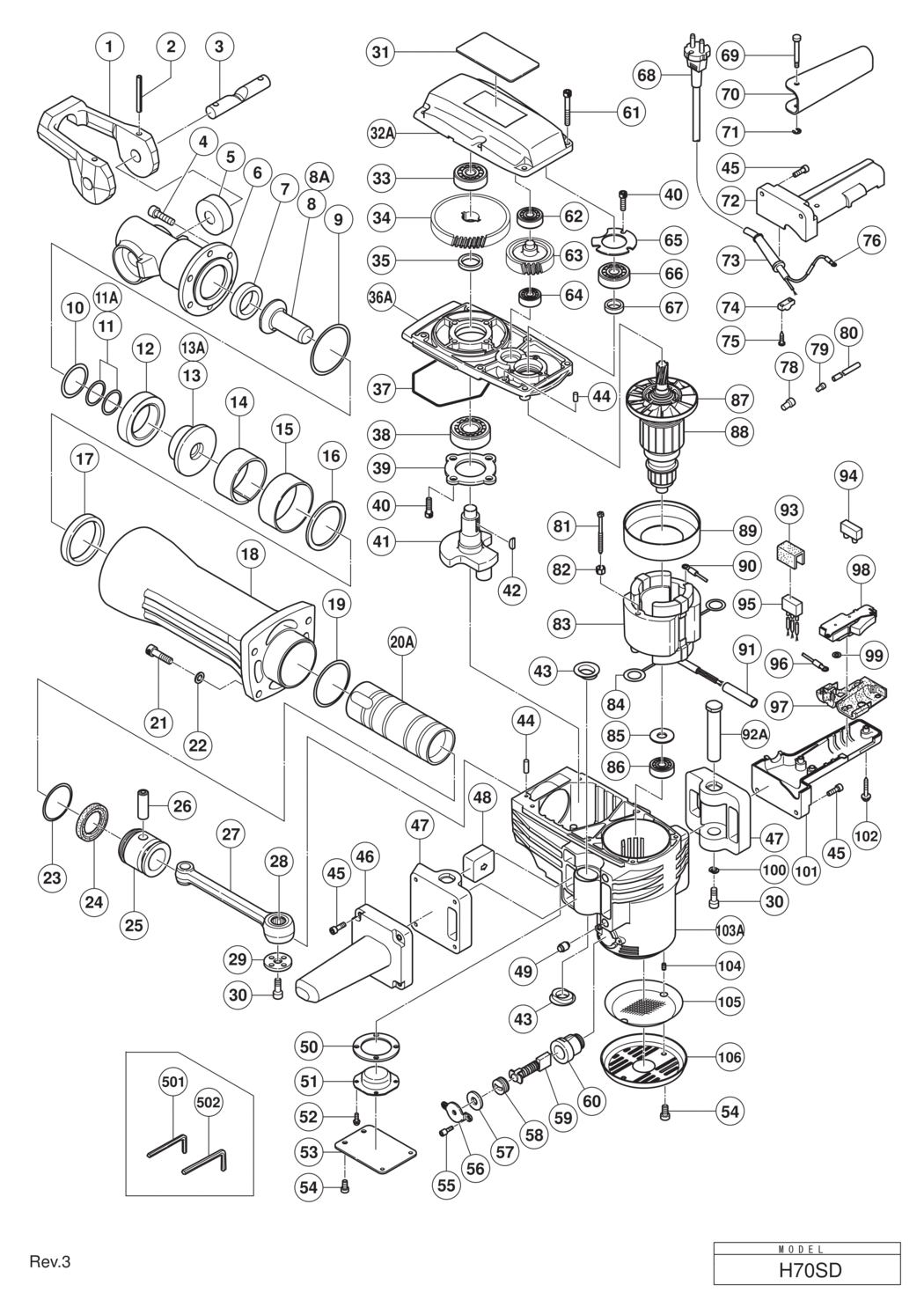

An exploded diagram and spare parts listing for the Hitachi / Hikoki H70SD Hammer

	Ex VAT	Inc VAT
1 - RETAINER HIT-318221.A0 318221	£418.64	£502.37
2 - ROLL PIN D6X55 HIT-994416.A4 994416	£1.67	£2.00
3 - LEVER PIN HIT-318222.A1 318222	£27.65	£33.18
4 - NYLOCK HEX. SOCKET HD. BOLT M8X30 HIT-306437.A5 306437	£1.67	£2.00
5 - RETAINER DAMPER HIT-305621.A1 305621	£21.78	£26.14
6 - FRONT COVER HIT-318223.A0 318223	£288.15	£345.78
7 - DAMPER (B) HIT-996369.A0 996369	£14.78	£17.73
8 - SECOND HAMMER (TILL 6.2005) HIT-996367.A0 996367	£53.99	£64.79
8A - SECOND HAMMER SINCE 7.2005 HIT-324601.A0 324601	£61.57	£73.88
9 - O-RING (C) HIT-998428.A3 998428	£2.91	£3.49
10 - O-RING (B) HIT-998427.A2 998427	£1.67	£2.00
11 - O-RING (E) (TILL 6.2005) HIT-998419.A1 998419	£1.67	£2.00
11A - O-RING (I.D 26.5) SINCE 7.2005 HIT-323731.A1 323731	£1.67	£2.00
12 - DAMPER (A) HIT-998433.A3 998433	£15.38	£18.45
13 - SHANK SLEEVE (TILL 6.2005) HIT-998418.A0 998418	£32.14	£38.57
13A - SHANK SLEEVE SINCE 7.2005 HIT-323730.A2 323730	£40.25	£48.30
14 - MOUTH HIT-956963.A3 956963	£35.45	£42.54
15 - MOUTH COVER HIT-956962.A1 956962	£2.91	£3.49
16 - MOUTH WASHER HIT-956961.A0 956961	£2.91	£3.49
17 - URETHANE RING HIT-956960.A1 956960	£10.98	£13.18
18 - CYLINDER CASE HIT-320489.A0 320489	£141.38	£169.65
19 - O-RING (1AS-60) HIT-956996.A0 956996	£3.82	£4.58
20A - STRIKER HIT-323724.A1 323724	£120.02	£144.02
21 - NYLOCK HEX. SOCKET HD. BOLT M8X35 HIT-306163.A2 306163	£1.67	£2.00
22 - BOLT WASHER M8 (10 PCS.) HIT-949433.A25 949433	£1.67	£2.00
23 - O-RING (A) HIT-998414.A4 998414	£13.75	£16.50
24 - OIL SEAL (A) HIT-998415.A1 998415	£8.80	£10.56
25 - PISTON HIT-998413.A1 998413	£59.18	£71.02
26 - PISTON PIN HIT-944928.A3 944928	£16.52	£19.83
27 - CONNECTING ROD ASS'Y INCLUD.28 HIT-998434.A2 998434	£46.51	£55.81
28 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A2 944921	£22.07	£26.48
29 - CRANK WASHER HIT-956955.A5 956955	£4.08	£4.90
30 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A3 996364	£1.67	£2.00
31 - NAME PLATE HIT-000000.A4092 000000	-
32A - GEAR COVER (METALLIC SILVER GREEN) HIT-336267.A1 336267	£91.63	£109.96
33 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A17 6302VV	£9.67	£11.60
34 - FINAL GEAR HIT-944916.A2 944916	£41.35	£49.62
35 - DISTANCE RING (B) HIT-944915.A3 944915	£4.40	£5.28
36A - INNER COVER (METALLIC SILVER GREEN) HIT-332181.A0 332181	-
37 - SEAL RING (A) HIT-957143.A1 957143	£4.08	£4.90
38 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A2 6205DD	£13.75	£16.50
39 - BEARING COVER HIT-956949.A0 956949	-
40 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A17 990079	£1.67	£2.00
41 - CRANK SHAFT HIT-998430.A2 998430	-
42 - WOODRUFF KEY 4X16 HIT-956850.A2 956850	£1.67	£2.00
43 - DAMPER (B) HIT-318655.A1 318655	-
44 - PIN D5X15.8 HIT-944918.A3 944918	-
45 - SEAL LOCK HEX. SOCKET HD. BOLT M6X30 HIT-993496.A4 993496	£1.67	£2.00
46 - SIDE HANDLE HIT-305633.A1 305633	£28.65	£34.38
47 - HANDLE HOLDER HIT-319365.A1 319365	-
48 - HANDLE DAMPER (B) HIT-319364.A0 319364	-
49 - HANDLE DAMPER HIT-310124.A10 310124	£6.18	£7.41
50 - HOLDER SEAL HIT-956969.A1 956969	-
51 - HOLDER HIT-998416.A0 998416	-
52 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A5 987203	£1.67	£2.00
53 - COVER PLATE HIT-998417.A1 998417	-
54 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A26 991690	£1.67	£2.00
55 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A8 983162	£1.67	£2.00
56 - CAP COVER HIT-956972.A0 956972	£1.67	£2.00
57 - CAP RUBBER HIT-944960.A3 944960	£1.67	£2.00
58 - BRUSH CAP HIT-940540.A15 940540	£1.67	£2.00
59 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A6 999086	£18.59	£22.31
60 - BRUSH HOLDER HIT-956984.A10 956984	£11.55	£13.86
61 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A13 986940	£1.67	£2.00
62 - BALL BEARING 6201VV HIT-6201VV.A11 6201VV	£8.30	£9.96
63 - COUNTER GEAR HIT-956948.A2 956948	£32.14	£38.57
64 - BALL BEARING 6001VV HIT-6001VV.A26 6001VV	£8.68	£10.42
65 - BEARING COVER (A) HIT-944911.A1 944911	£1.67	£2.00
66 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A10 6203DD	£8.64	£10.37
67 - DISTANCE RING (A) HIT-944907.A2 944907	£2.91	£3.49
*68 - CORD (CORD ARMOR D10.2) FOR GBR (110V) HIT-500466Z.A3 500466Z	£31.12	£37.34
*68 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A8 500450Z	£35.67	£42.80
69 - PIN HIT-992870.A2 992870	£5.98	£7.18
70 - SWITCH LEVER HIT-992869.A3 992869	£9.67	£11.60
71 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A6 968643	£1.67	£2.00
72 - HANDLE (A) HIT-305636.A1 305636	£23.31	£27.97
*73 - CORD ARMOR D10.7 HIT-940778.A68 940778	£3.15	£3.78
74 - CORD CLIP HIT-960266.A80 960266	£1.67	£2.00
75 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A8 982095	£1.67	£2.00
*76 - TERMINAL HIT-980063.A75 980063	£1.67	£2.00
*76 - TERMINAL M4.0 (10 PCS.) FOR GBR (110V) HIT-930804.A38 930804	£3.64	£4.37
78 - CONNECTOR 50092 (10 PCS.) HIT-959141.A11 959141	£7.12	£8.54
79 - CONNECTOR 50091 (10 PCS.) HIT-959140.A103 959140	£4.98	£5.97
80 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A1 996438	-
81 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A13 960251	£1.67	£2.00
82 - SPECIAL WASHER HIT-956764.A0 956764	-
*83 - STATOR ASS'Y 110V INCLUD.84 HIT-340488C.A0 340488C	£46.68	£56.02
*83 - STATOR ASS'Y 230V INCLUD.84 HIT-340488E.A1 340488E	£46.68	£56.02
84 - BRUSH TERMINAL HIT-945932.A6 945932	£1.67	£2.00
85 - BEARING WASHER HIT-944954.A14 944954	£1.67	£2.00
86 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A34 6201DD	£8.64	£10.37
87 - FAN HIT-996370.A4 996370	£14.12	£16.95
*88 - ARMATURE ASS'Y 110V-115V INCLUD.87 HIT-360286C.A1 360286C	£147.22	£176.67
*88 - ARMATURE ASS'Y 220V-230V INCLUD.87 HIT-360286E.A1 360286E	£135.18	£162.22
89 - FAN GUIDE HIT-306098.A1 306098	£7.34	£8.81
90 - INTERNAL WIRE HIT-986277.A3 986277	-
91 - VINYL TUBE HIT-319363.A0 319363	-
92A - HANDLE PIN HIT-371932.A0 371932	-
93 - SUPPORT (B) HIT-930153.A16 930153	£1.67	£2.00
*94 - PILLAR TERMINAL EXCEPT FOR SAF HIT-938307.A69 938307	£3.28	£3.93
95 - NOISE SUPPRESSOR HIT-317491.A12 317491	£9.43	£11.32
*96 - INTERNAL WIRE FOR GBR HIT-306681.A1 306681	-
97 - SUPPORT (E) HIT-990082.A6 990082	-
98 - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A3 992891	£23.25	£27.90
99 - WASHER M4 (10 PCS.) HIT-949423.A44 949423	£1.67	£2.00
100 - WASHER HIT-319367.A1 319367	-
101 - HANDLE (B) HIT-305631.A1 305631	£23.31	£27.97
102 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A129 301653	£1.67	£2.00
103A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.60 HIT-336268.A1 336268	-
104 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A82 938477	£1.67	£2.00
105 - MESH HIT-319362.A1 319362	£7.26	£8.71
106 - TAIL COVER HIT-306099.A0 306099	£13.75	£16.50
501 - HEX. BAR WRENCH 3MM HIT-943277.A19 943277	£1.67	£2.00
502 - HEX. BAR WRENCH 6MM HIT-872422.A33 872422	£1.67	£2.00
601 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-996373.A2 996373	-
602 - COLD CHISEL 520MM (HEX. SHANK TYPE) HIT-985231.A3 985231	-
603 - CUTTER W75X410MM (HEX. SHANK TYPE) HIT-996374.A0 996374	-
604 - CUTTER W75X520MM (HEX. SHANK TYPE) HIT-985232.A2 985232	-
605 - SCOOP 546L (HEX. SHANK TYPE) HIT-985233.A3 985233	£130.96	£157.15
606 - BULL POINT 410MM (HEX. SHANK TYPE) HIT-996372.A2 996372	-
607 - SERVICE KIT (H 65SB) INCLUD.4 HIT-306441.A1 306441	£74.38	£89.25
607A - SERVICE KIT (H 65SA) INCLUD.4 HIT-324729.A0 324729	£124.07	£148.88
608 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A36 980927	£55.68	£66.81
609 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A14 981840	£8.22	£9.87
610 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A9 308471	£16.21	£19.45
611 - GREASE (SEP-3A) (100G) HIT-930035.A1 930035	£15.15	£18.18
