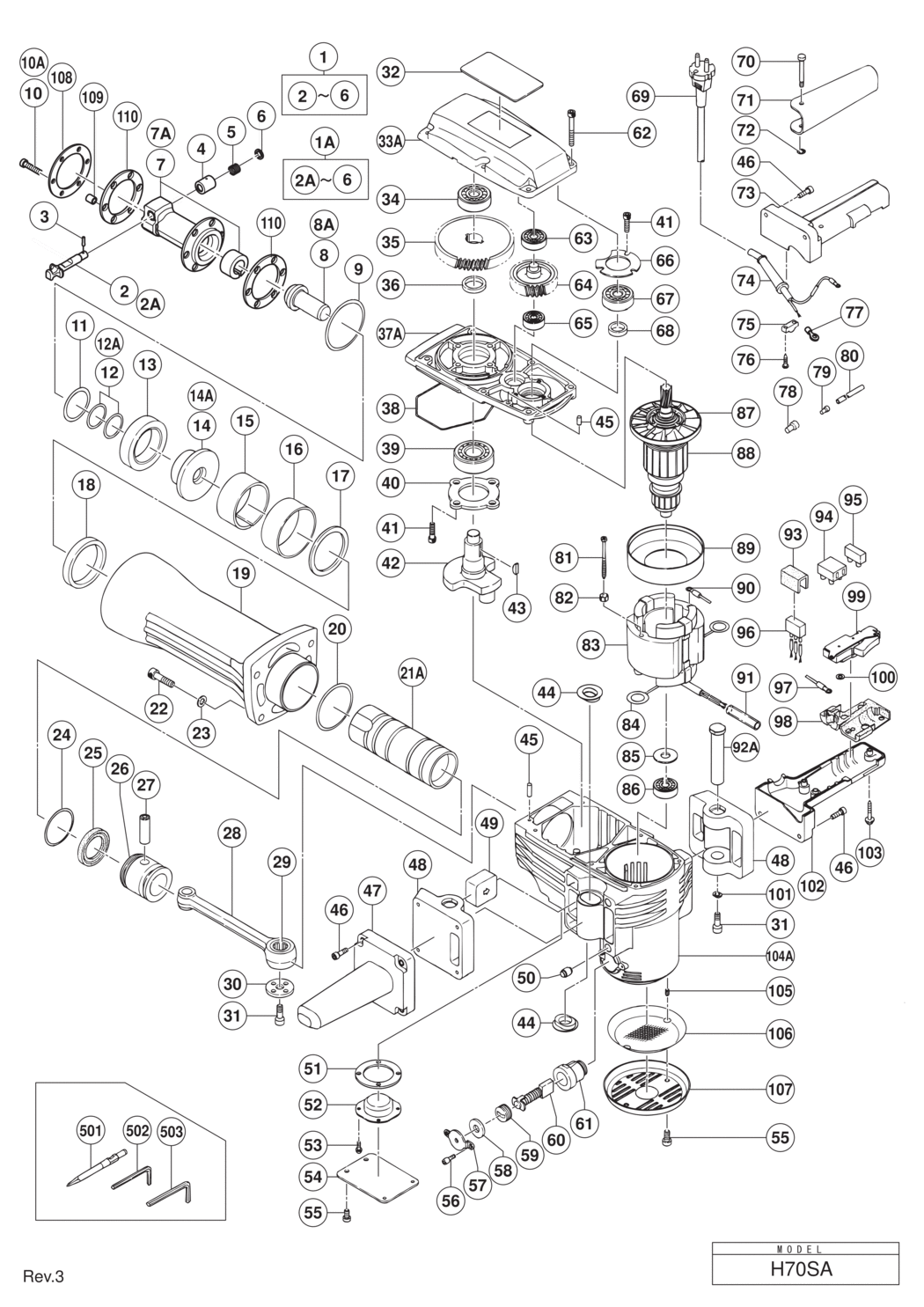

An exploded diagram and spare parts listing for the Hitachi / Hikoki H70SA Hammer
Ex VAT Inc VAT
1 - STOP LEVER ASS'Y INCLUD.2 HIT-318656.A0 318656 £77.54 £93.05
1A - STOP LEVER ASS'Y INCLUD.2A-6 SINCE 7.2005 HIT-323747.A1 323747 -
2 - STOP LEVER TILL 6.2005 HIT-998423.A0 998423 £41.35 £49.62
2A - STOP LEVER SINCE 7.2005 HIT-323748.A0 323748 -
3 - NEEDLE ROLLER HIT-998426.A1 998426 £1.67 £2.00
4 - SPRING CASE HIT-998424.A0 998424 £14.42 £17.31
5 - LEVER SPRING HIT-956975.A0 956975 £1.67 £2.00
6 - DAMPER (B) HIT-998425.A1 998425 £5.87 £7.04
7 - FRONT COVER TILL 6.2005 HIT-998435.A0 998435 -
7A - FRONT COVER SINCE 7.2005 HIT-323733.A1 323733 -
8 - SECOND HAMMER TILL 6.2005 HIT-998420.A0 998420 £38.58 £46.29
8A - SECOND HAMMER SINCE 7.2005 HIT-323732.A0 323732 -
9 - O-RING (C) HIT-998428.A4 998428 £2.91 £3.49
10 - NYLOCK HEX. SOCKET HD. BOLT M8X30 TILL 6.2005 HIT-306437.A6 306437 £1.67 £2.00
10A - NYLOCK HEX. SOCKET HD. BOLT M8X40 SINCE 7.2005 HIT-323734.A0 323734 -
11 - O-RING (B) HIT-998427.A1 998427 £1.67 £2.00
12 - O-RING (E) TILL 6.2005 HIT-998419.A0 998419 £1.67 £2.00
12A - O-RING (I.D 26.5) SINCE 7.2005 HIT-323731.A2 323731 £1.67 £2.00
13 - DAMPER (A) HIT-998433.A4 998433 £15.38 £18.45
14 - SHANK SLEEVE TILL 6.2005 HIT-998418.A1 998418 £32.14 £38.57
14A - SHANK SLEEVE SINCE 7.2005 HIT-323730.A1 323730 £40.25 £48.30
15 - MOUTH HIT-956963.A4 956963 £35.45 £42.54
16 - MOUTH COVER HIT-956962.A0 956962 £2.91 £3.49
17 - MOUTH WASHER HIT-956961.A1 956961 £2.91 £3.49
18 - URETHANE RING HIT-956960.A0 956960 £10.98 £13.18
19 - CYLINDER CASE HIT-319359.A0 319359 -
20 - O-RING (1AS-60) HIT-956996.A3 956996 £3.82 £4.58
21 - STRIKER TILL 6.2005 HIT-956958.A0 956958 £90.95 £109.14
21A - STRIKER HIT-323724.A2 323724 £120.02 £144.02
22 - NYLOCK HEX. SOCKET HD. BOLT M8X35 HIT-306163.A1 306163 £1.67 £2.00
23 - BOLT WASHER M8 (10 PCS.) HIT-949433.A26 949433 £1.67 £2.00
24 - O-RING (A) HIT-998414.A5 998414 £13.75 £16.50
25 - OIL SEAL (A) HIT-998415.A0 998415 £8.80 £10.56
26 - PISTON HIT-998413.A0 998413 £59.18 £71.02
27 - PISTON PIN HIT-944928.A4 944928 £16.52 £19.83
28 - CONNECTING ROD ASS'Y INCLUD.29 HIT-998434.A1 998434 £46.51 £55.81
29 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A1 944921 £22.07 £26.48
30 - CRANK WASHER HIT-956955.A4 956955 £4.08 £4.90
31 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A4 996364 £1.67 £2.00
32 - NAME PLATE HIT-000000.A4086 000000 -
33A - GEAR COVER (METALLIC SILVER GREEN) HIT-336267.A0 336267 £91.63 £109.96
34 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A18 6302VV £9.67 £11.60
35 - FINAL GEAR HIT-944916.A1 944916 £41.35 £49.62
36 - DISTANCE RING (B) HIT-944915.A4 944915 £4.40 £5.28
37A - INNER COVER (METALLIC SILVER GREEN) HIT-332181.A1 332181 -
38 - SEAL RING (A) HIT-957143.A0 957143 £4.08 £4.90
39 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A3 6205DD £13.75 £16.50
40 - BEARING COVER HIT-956949.A1 956949 -
41 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A16 990079 £1.67 £2.00
42 - CRANK SHAFT HIT-998430.A1 998430 -
43 - WOODRUFF KEY 4X16 HIT-956850.A1 956850 £1.67 £2.00
44 - DAMPER (B) HIT-318655.A2 318655 -
45 - PIN D5X15.8 HIT-944918.A4 944918 -
46 - SEAL LOCK HEX. SOCKET HD. BOLT M6X30 HIT-993496.A5 993496 £1.67 £2.00
47 - SIDE HANDLE HIT-305633.A3 305633 £28.65 £34.38
48 - HANDLE HOLDER HIT-319365.A0 319365 -
49 - HANDLE DAMPER (B) HIT-319364.A1 319364 -
50 - HANDLE DAMPER HIT-310124.A11 310124 £6.18 £7.41
51 - HOLDER SEAL HIT-956969.A0 956969 -
52 - HOLDER HIT-998416.A1 998416 -
53 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A6 987203 £1.67 £2.00
54 - COVER PLATE HIT-998417.A0 998417 -
55 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A22 991690 £1.67 £2.00
56 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A9 983162 £1.67 £2.00
57 - CAP COVER HIT-956972.A1 956972 £1.67 £2.00
58 - CAP RUBBER HIT-944960.A4 944960 £1.67 £2.00
59 - BRUSH CAP HIT-940540.A13 940540 £1.67 £2.00
60 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A4 999086 £18.59 £22.31
61 - BRUSH HOLDER HIT-956984.A9 956984 £11.55 £13.86
62 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A12 986940 £1.67 £2.00
63 - BALL BEARING 6201VV HIT-6201VV.A10 6201VV £8.30 £9.96
64 - COUNTER GEAR HIT-956948.A3 956948 £32.14 £38.57
65 - BALL BEARING 6001VV HIT-6001VV.A25 6001VV £8.68 £10.42
66 - BEARING COVER (A) HIT-944911.A2 944911 £1.67 £2.00
67 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A11 6203DD £8.64 £10.37
68 - DISTANCE RING (A) HIT-944907.A1 944907 £2.91 £3.49
*69 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500466Z.A4 500466Z £31.12 £37.34
*69 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A7 500450Z £35.67 £42.80
70 - PIN HIT-992870.A0 992870 £5.98 £7.18
71 - SWITCH LEVER HIT-992869.A5 992869 £9.67 £11.60
72 - RETAINING RING (E-TYPE) FOR D4 SHAFT HIT-968643.A4 968643 £1.67 £2.00
73 - HANDLE (A) HIT-305636.A2 305636 £23.31 £27.97
*74 - CORD ARMOR D10.7 HIT-940778.A67 940778 £3.15 £3.78
*75 - CORD CLIP HIT-960266.A82 960266 £1.67 £2.00
76 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A7 982095 £1.67 £2.00
*77 - TERMINAL FOR CORD HIT-980063.A77 980063 £1.67 £2.00
*78 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR FIN HIT-959141.A12 959141 £7.12 £8.54
*79 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR FIN HIT-959140.A102 959140 £4.98 £5.97
80 - VINYL TUBE (I.D7XT0.5X50) HIT-000000.A4087 000000 -
81 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A12 960251 £1.67 £2.00
82 - SPECIAL WASHER HIT-956764.A1 956764 -
*83 - STATOR ASS'Y 110V INCLUD.84 HIT-340488C.A1 340488C £46.68 £56.02
*83 - STATOR ASS'Y 230V INCLUD.84 HIT-340488E.A0 340488E £46.68 £56.02
84 - BRUSH TERMINAL HIT-945932.A5 945932 £1.67 £2.00
85 - BEARING WASHER HIT-944954.A13 944954 £1.67 £2.00
86 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A33 6201DD £8.64 £10.37
87 - FAN HIT-996370.A3 996370 £14.12 £16.95
*88 - ARMATURE ASS'Y 110V-115V INCLUD.87 HIT-360286C.A2 360286C £147.22 £176.67
*88 - ARMATURE ASS'Y 220V-230V INCLUD.87 HIT-360286E.A0 360286E £135.18 £162.22
89 - FAN GUIDE HIT-306098.A0 306098 £7.34 £8.81
90 - INTERNAL WIRE HIT-986277.A4 986277 -
91 - VINYL TUBE HIT-319363.A1 319363 -
92A - HANDLE PIN HIT-371932.A1 371932 -
93 - SUPPORT (B) HIT-930153.A15 930153 £1.67 £2.00
*95 - PILLAR TERMINAL EXCEPT FOR NZL.SAF HIT-938307.A71 938307 £3.28 £3.93
96 - NOISE SUPPRESSOR HIT-994273.A42 994273 £7.30 £8.76
*97 - INTERNAL WIRE FOR GBR HIT-306681.A3 306681 -
98 - SUPPORT (E) HIT-990082.A5 990082 -
99 - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A5 992891 £23.25 £27.90
*100 - WASHER M4 (10 PCS.) EXCEPT FOR NZL HIT-949423.A46 949423 £1.67 £2.00
101 - WASHER HIT-319367.A0 319367 -
102 - HANDLE (B) HIT-305631.A2 305631 £23.31 £27.97
103 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A130 301653 £1.67 £2.00
104A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.61 HIT-336268.A0 336268 -
105 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A81 938477 £1.67 £2.00
106 - MESH HIT-319362.A0 319362 £7.26 £8.71
107 - TAIL COVER HIT-306099.A1 306099 £13.75 £16.50
108 - DAMPER PLATE SINCE 7.2005 HIT-323736.A0 323736 -
109 - COLLAR SINCE 7.2005 HIT-323737.A1 323737 -
110 - FRONT DAMPER SINCE 7.2005 HIT-323735.A1 323735 £13.78 £16.53
501 - BULL POINT 410MM HIT-944961.A1 944961 -
502 - HEX. BAR WRENCH 3MM HIT-943277.A20 943277 £1.67 £2.00
503 - HEX. BAR WRENCH 6MM HIT-872422.A34 872422 £1.67 £2.00
601 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-944962.A1 944962 -
602 - CUTTER W75X410L (ROUND SHANK TYPE) HIT-944964.A1 944964 £59.14 £70.97
603 - RAMMER SHANK (HAMMER) HIT-944966.A1 944966 £52.31 £62.77
604 - RAMMER 200MM HIT-944965.A1 944965 -
605 - SCOOP 380L (ROUND SHANK TYPE) HIT-319298.A0 319298 -
606 - SERVICE KIT (H 65SB) INCLUD.9 HIT-306441.A0 306441 £74.38 £89.25
606A - SERVICE KIT (H 70SA) INCLUD.9 HIT-324728.A0 324728 -
607 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A15 981840 £8.22 £9.87
608 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A8 308471 £16.21 £19.45
609 - GREASE (SEP-3A) (100G) HIT-930035.A2 930035 £15.15 £18.18
610 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A35 980927 £55.68 £66.81
