Hitachi / Hikoki H65SD3 Demolition Hammer Spare Parts

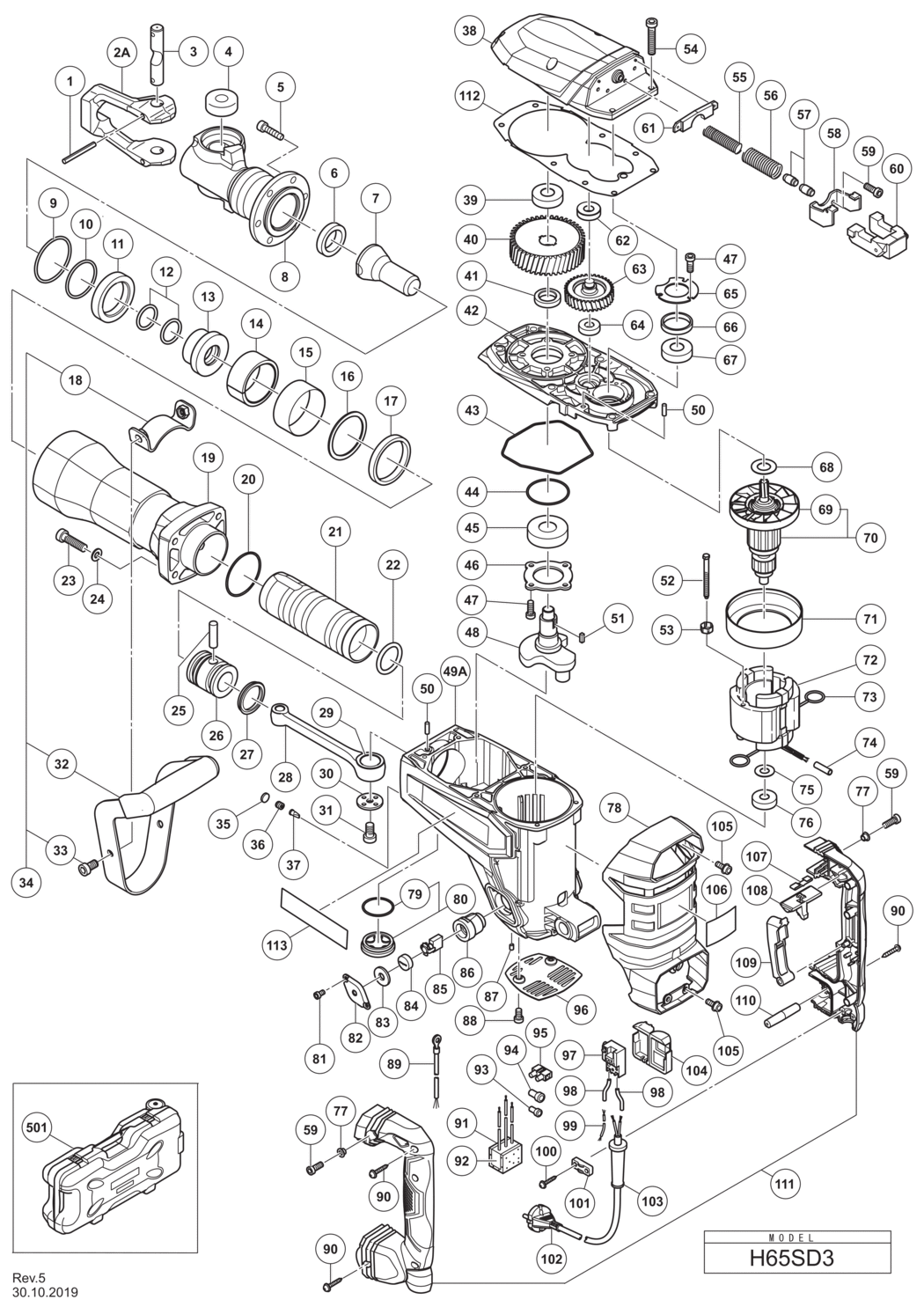

An exploded diagram and spare parts listing for the Hitachi / Hikoki H65SD3 Demolition Hammer

	Ex VAT	Inc VAT
1 - ROLL PIN D6X55 HIT-994416.A2 994416	£1.67	£2.00
2A - RETAINER HIT-375988.A0 375988	-
3 - LEVER PIN HIT-337041.A1 337041	£34.92	£41.90
4 - RETAINER DAMPER (A) HIT-337039.A0 337039	-
5 - NYLOCK HEX. SOCKET HD. BOLT M8X30 HIT-306437.A8 306437	£1.67	£2.00
6 - DAMPER (B) HIT-996369.A2 996369	£14.78	£17.73
7 - SECOND HAMMER HIT-339702.A0 339702	-
8 - FRONT COVER HIT-339701.A0 339701	-
9 - O-RING (C) HIT-998428.A2 998428	£2.91	£3.49
10 - O-RING (B) HIT-339684.A1 339684	-
11 - DAMPER (A) HIT-998433.A2 998433	£15.38	£18.45
12 - O-RING HIT-339681.A1 339681	-
13 - SHANK SLEEVE HIT-339680.A0 339680	-
14 - MOUTH HIT-339679.A0 339679	-
15 - MOUTH COVER HIT-956962.A3 956962	£2.91	£3.49
16 - MOUTH WASHER (A) HIT-370894.A1 370894	-
17 - URETHANE RING (A) HIT-370893.A0 370893	-
18 - HANDLE STAY (W/NUT) HIT-320374.A0 320374	£8.66	£10.39
19 - CYLINDER CASE HIT-339678.A0 339678	-
20 - O-RING (1AS-60) HIT-956996.A7 956996	£3.82	£4.58
21 - STRIKER HIT-339677.A0 339677	-
22 - O-RING (A) HIT-998414.A3 998414	£13.75	£16.50
23 - NYLOCK HEX. SOCKET HD. BOLT M8X40 HIT-323734.A2 323734	-
24 - BOLT WASHER M8 (BLACK) HIT-323212.A19 323212	£1.67	£2.00
25 - PISTON PIN HIT-944928.A2 944928	£16.52	£19.83
26 - PISTON HIT-339676.A0 339676	-
27 - OIL SEAL (A) HIT-998415.A2 998415	£8.80	£10.56
28 - CONNECTING ROD ASS'Y INCLUD.29 HIT-998434.A3 998434	£46.51	£55.81
29 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A3 944921	£22.07	£26.48
30 - CRANK WASHER HIT-956955.A2 956955	£4.08	£4.90
31 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A1 996364	£1.67	£2.00
32 - GRIP HIT-306166.A2 306166	£65.50	£78.60
33 - NYLOCK HEX. SOCKET HD. BOLT M8X16 HIT-320375.A3 320375	£1.67	£2.00
34 - SIDE HANDLE ASS'Y INCLUD.18 HIT-306165.A1 306165	£69.32	£83.18
35 - FELT PACKING (B) HIT-324544.A8 324544	£1.67	£2.00
36 - CAP SCREW HIT-338313.A5 338313	-
37 - VALVE HIT-995396.A10 995396	-
38 - GEAR COVER HIT-339674.A0 339674	-
39 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A15 6302VV	£9.67	£11.60
40 - FINAL GEAR HIT-339672.A0 339672	-
41 - DISTANCE RING (B) HIT-944915.A0 944915	£4.40	£5.28
42 - INNER COVER HIT-339669.A1 339669	-
43 - SEAL RING HIT-323725.A3 323725	£6.29	£7.55
44 - O-RING HIT-331244.A1 331244	-
45 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A7 6205DD	£13.75	£16.50
46 - BEARING COVER HIT-956949.A3 956949	-
47 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A7 990079	£1.67	£2.00
48 - CRANK SHAFT HIT-339671.A1 339671	-
49A - HOUSING ASS'Y INCLUD.86 HIT-339665.A1 339665	-
50 - PIN D5X15.8 HIT-944918.A2 944918	-
51 - FEATHER KEY 4X4X12 HIT-931008.A5 931008	-
52 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A15 960251	£1.67	£2.00
53 - SPECIAL WASHER HIT-956764.A6 956764	-
54 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40 HIT-322494.A4 322494	-
55 - HANDLE SPRING (B) HIT-339697.A0 339697	-
56 - HANDLE SPRING (A) HIT-339696.A1 339696	-
57 - HANDLE DAMPER HIT-310124.A21 310124	£6.18	£7.41
58 - HANDLE GUIDE HIT-339695.A0 339695	-
59 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A6 990079	£1.67	£2.00
60 - HANDLE WEIGHT HIT-339698.A1 339698	-
61 - HANDLE STOPPER HIT-339694.A1 339694	-
62 - BALL BEARING 6201VV HIT-6201VV.A13 6201VV	£8.30	£9.96
63 - COUNTER GEAR HIT-339673.A1 339673	-
64 - BALL BEARING 6001VV HIT-6001VV.A32 6001VV	£8.68	£10.42
65 - BEARING COVER (A) HIT-944911.A5 944911	£1.67	£2.00
66 - DISTANCE RING (A) HIT-339670.A0 339670	-
67 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A2 6203DD	£8.64	£10.37
68 - BEARING WASHER HIT-333222.A2 333222	-
69 - FAN HIT-333196.A1 333196	-
*70 - ARMATURE ASS'Y 110V INCLUD.69 HIT-361024C.A0 361024C	-
*70 - ARMATURE ASS'Y 220V-230V INCLUD.69 HIT-361024E.A1 361024E	-
71 - FAN GUIDE HIT-339668.A0 339668	-
*72 - STATOR ASS'Y 110V INCLUD.73 HIT-340928C.A0 340928C	-
*72 - STATOR ASS'Y 220V-230V INCLUD.73 HIT-340928E.A1 340928E	-
73 - BRUSH TERMINAL HIT-945932.A13 945932	£1.67	£2.00
74 - VINYL TUBE L55 HIT-322530.A3 322530	£1.67	£2.00
75 - BEARING WASHER HIT-944954.A16 944954	£1.67	£2.00
76 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A30 6201DD	£8.64	£10.37
77 - DISTANCE PIECE (B) HIT-991711.A15 991711	£1.67	£2.00
78 - BACK COVER HIT-339692.A1 339692	-
79 - O-RING (S-38) HIT-980717.A5 980717	£1.67	£2.00
80 - OIL CAP ASS'Y INCLUD.79 HIT-990945.A5 990945	£4.79	£5.75
81 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A5 877838	£1.67	£2.00
82 - CAP COVER HIT-323727.A2 323727	£1.67	£2.00
83 - CAP RUBBER HIT-944960.A2 944960	£1.67	£2.00
84 - BRUSH CAP HIT-940540.A9 940540	£1.67	£2.00
85 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A1 999086	£18.59	£22.31
86 - BRUSH HOLDER HIT-956984.A5 956984	£11.55	£13.86
87 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A73 938477	£1.67	£2.00
88 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A8 991690	£1.67	£2.00
*89 - INTERNAL WIRE FOR EUROPE HIT-994190.A0 994190	£1.67	£2.00
90 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A14 307028	£1.67	£2.00
*91 - SUPPORT (B) FOR EUROPE HIT-930153.A13 930153	£1.67	£2.00
*92 - NOISE SUPPRESSOR FOR EUROPE HIT-370895.A0 370895	-
*93 - CONNECTOR 50091 (10 PCS.) FOR EUROPE HIT-959140.A82 959140	£4.98	£5.97
*94 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA HIT-959141.A27 959141	£7.12	£8.54
*95 - PILLAR TERMINAL EXCEPT FOR BRA HIT-938307.A58 938307	£3.28	£3.93
96 - TAIL COVER HIT-339675.A1 339675	-
97 - SWITCH HIT-337051.A2 337051	£15.71	£18.85
98 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A3 996438	-
*99 - INTERNAL WIRE (BLACK) FOR EUROPE HIT-337055.A0 337055	-
*99 - INTERNAL WIRE (WHITE) FOR GBR (110V) HIT-337054.A2 337054	-
100 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A114 984750	£1.67	£2.00
101 - CORD CLIP HIT-960266.A73 960266	£1.67	£2.00
*102 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A19 500446Z	£33.79	£40.55
*102 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500467Z.A3 500467Z	£63.83	£76.60
*103 - CORD ARMOR D10.7 HIT-940778.A59 940778	£3.15	£3.78
104 - SUPPORT HIT-337052.A0 337052	-
105 - NYLOCK BOLT (W/FLANGE) M5 HIT-339693.A0 339693	-
106 - NAME PLATE HIT-000000.A3830 000000	-
107 - LEAF SPRING HIT-339691.A0 339691	-
108 - PUSHING BUTTON HIT-339690.A1 339690	-
109 - SWITCH LEVER HIT-337058.A2 337058	£1.67	£2.00
110 - HANDLE SHAFT HIT-338175.A6 338175	-
111 - HANDLE (A).(B) SET HIT-339699.A0 339699	£16.64	£19.97
112 - SEAL PACKING HIT-370913.A1 370913	-
113 - BRAND LABEL HIT-000000.A3832 000000	-
501 - CASE (PLASTIC) HIT-339664.A0 339664	-
601 - COLD CHISEL 520MM (HEX. SHANK TYPE) HIT-985231.A5 985231	-
602 - CUTTER W75X520MM (HEX. SHANK TYPE) HIT-985232.A0 985232	-
603 - SCOOP 546L (HEX. SHANK TYPE) HIT-985233.A5 985233	£130.96	£157.15
604 - BULL POINT 410MM (HEX. SHANK TYPE) HIT-996372.A4 996372	-
605 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-996373.A0 996373	-
606 - CUTTER W75X410MM (HEX. SHANK TYPE) HIT-996374.A2 996374	-
607 - WHEEL SET HIT-336375.A0 336375	-
608 - WHEEL SHAFT SET HIT-337337.A2 337337	-
609 - LATCH SET (2 PCS.) HIT-337338.A1 337338	-
610 - HAMMER TROLLEY HIT-402616.A1 402616	-
611 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A48 980927	£55.68	£66.81
612 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A27 981840	£8.22	£9.87
613 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A22 308471	£16.21	£19.45
