Hitachi / Hikoki H65SD2 Demolition Hammer Spare Parts

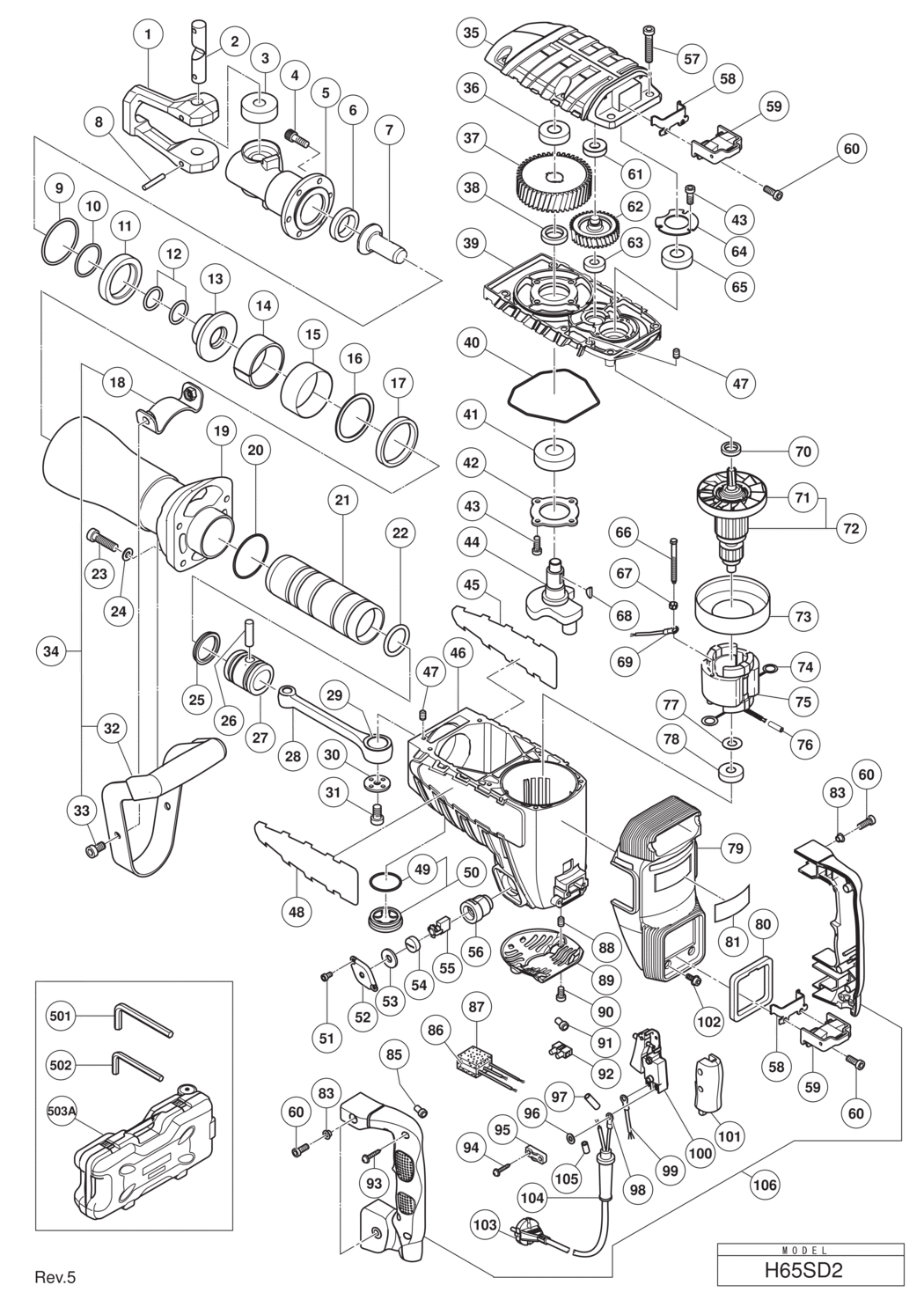

An exploded diagram and spare parts listing for the Hitachi / Hikoki H65SD2 Demolition Hammer

	Ex VAT	Inc VAT
1 - RETAINER HIT-318221.A1 318221	£418.64	£502.37
2 - LEVER PIN HIT-318222.A0 318222	£27.65	£33.18
3 - RETAINER DAMPER HIT-305621.A2 305621	£21.78	£26.14
4 - NYLOCK HEX. SOCKET HD. BOLT M8X30 HIT-306437.A7 306437	£1.67	£2.00
5 - FRONT COVER HIT-318223.A1 318223	£288.15	£345.78
6 - DAMPER (B) HIT-996369.A1 996369	£14.78	£17.73
7 - SECOND HAMMER HIT-324601.A1 324601	£61.57	£73.88
8 - ROLL PIN D6X55 HIT-994416.A1 994416	£1.67	£2.00
9 - O-RING (C) HIT-998428.A0 998428	£2.91	£3.49
10 - O-RING (B) HIT-998427.A3 998427	£1.67	£2.00
11 - DAMPER (A) HIT-998433.A0 998433	£15.38	£18.45
12 - O-RING (I.D 26.5) HIT-323731.A3 323731	£1.67	£2.00
13 - SHANK SLEEVE HIT-323730.A0 323730	£40.25	£48.30
14 - MOUTH HIT-956963.A2 956963	£35.45	£42.54
15 - MOUTH COVER HIT-956962.A2 956962	£2.91	£3.49
16 - MOUTH WASHER HIT-323729.A1 323729	£8.42	£10.11
17 - URETHANE RING HIT-956960.A2 956960	£10.98	£13.18
18 - HANDLE STAY (W/NUT) HIT-320374.A2 320374	£8.66	£10.39
19 - CYLINDER CASE HIT-323728.A0 323728	£168.54	£202.25
20 - O-RING (1AS-60) HIT-956996.A6 956996	£3.82	£4.58
21 - STRIKER HIT-323724.A0 323724	£120.02	£144.02
22 - O-RING (A) HIT-998414.A1 998414	£13.75	£16.50
23 - NYLOCK HEX. SOCKET HD. BOLT M8X35 HIT-306163.A3 306163	£1.67	£2.00
24 - BOLT WASHER M8 (BLACK) HIT-323212.A18 323212	£1.67	£2.00
25 - OIL SEAL (A) HIT-998415.A4 998415	£8.80	£10.56
26 - PISTON PIN HIT-944928.A0 944928	£16.52	£19.83
27 - PISTON HIT-998413.A2 998413	£59.18	£71.02
28 - CONNECTING ROD ASS'Y INCLUD.29 HIT-998434.A5 998434	£46.51	£55.81
29 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A5 944921	£22.07	£26.48
30 - CRANK WASHER HIT-956955.A3 956955	£4.08	£4.90
31 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A2 996364	£1.67	£2.00
32 - GRIP HIT-306166.A3 306166	£65.50	£78.60
33 - NYLOCK HEX. SOCKET HD. BOLT M8X16 HIT-320375.A1 320375	£1.67	£2.00
34 - SIDE HANDLE ASS'Y INCLUD.18 HIT-306165.A0 306165	£69.32	£83.18
35 - GEAR COVER HIT-323723.A1 323723	£62.07	£74.48
36 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A14 6302VV	£9.67	£11.60
37 - FINAL GEAR HIT-944916.A3 944916	£41.35	£49.62
38 - DISTANCE RING (B) HIT-944915.A2 944915	£4.40	£5.28
39 - INNER COVER HIT-323722.A0 323722	£58.66	£70.39
40 - SEAL RING HIT-323725.A1 323725	£6.29	£7.55
41 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A5 6205DD	£13.75	£16.50
42 - BEARING COVER HIT-956949.A2 956949	-
43 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A2 990079	£1.67	£2.00
44 - CRANK SHAFT HIT-998430.A3 998430	-
45 - BRAND LABEL HIT-000000.A3858 000000	-
46 - HOUSING ASS'Y INCLUD.56 HIT-323721.A1 323721	£180.23	£216.28
47 - PIN D5X15.8 HIT-944918.A0 944918	-
48 - BRAND LABEL HIT-000000.A3859 000000	-
49 - O-RING (S-38) HIT-980717.A7 980717	£1.67	£2.00
50 - OIL CAP ASS'Y INCLUD.49 HIT-990945.A3 990945	£4.79	£5.75
51 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A7 877838	£1.67	£2.00
52 - CAP COVER HIT-323727.A1 323727	£1.67	£2.00
53 - CAP RUBBER HIT-944960.A0 944960	£1.67	£2.00
54 - BRUSH CAP HIT-940540.A12 940540	£1.67	£2.00
55 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A0 999086	£18.59	£22.31
56 - BRUSH HOLDER HIT-956984.A6 956984	£11.55	£13.86
57 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A20 986940	£1.67	£2.00
58 - GUIDE PLATE HIT-980750.A0 980750	£16.77	£20.12
59 - HANDLE RUBBER HIT-980727.A7 980727	£15.32	£18.38
60 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A1 990079	£1.67	£2.00
61 - BALL BEARING 6201VV HIT-6201VV.A16 6201VV	£8.30	£9.96
62 - COUNTER GEAR HIT-956948.A1 956948	£32.14	£38.57
63 - BALL BEARING 6001VV HIT-6001VV.A31 6001VV	£8.68	£10.42
64 - BEARING COVER (A) HIT-944911.A3 944911	£1.67	£2.00
65 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A0 6203DD	£8.64	£10.37
66 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A16 960251	£1.67	£2.00
67 - SPECIAL WASHER HIT-956764.A4 956764	-
68 - WOODRUFF KEY 4X16 HIT-956850.A0 956850	£1.67	£2.00
69 - INTERNAL WIRE EXCEPT FOR USA HIT-994190.A2 994190	£1.67	£2.00
70 - DISTANCE RING (A) HIT-944907.A0 944907	£2.91	£3.49
71 - FAN HIT-996370.A1 996370	£14.12	£16.95
*72 - ARMATURE ASS'Y 110V-120V INCLUD.65 HIT-360286U.A0 360286U	£121.29	£145.55
*72 - ARMATURE ASS'Y 220V-230V INCLUD.71 HIT-360286E.A2 360286E	£135.18	£162.22
73 - FAN GUIDE HIT-306098.A2 306098	£7.34	£8.81
74 - BRUSH TERMINAL HIT-945932.A9 945932	£1.67	£2.00
*75 - STATOR ASS'Y 110V INCLUD.74 HIT-340259J.A0 340259J	-
*75 - STATOR ASS'Y 115V-120V INCLUD.74 HIT-340259G.A0 340259G	-
*75 - STATOR ASS'Y 230V INCLUD.74 HIT-340259K.A0 340259K	£84.23	£101.08
*75 - STATOR ASS'Y 220V-230V INCLUD.74 FOR PAN HIT-340259E.A1 340259E	£54.93	£65.92
76 - VINYL TUBE L55 HIT-322530.A4 322530	£1.67	£2.00
77 - BEARING WASHER HIT-944954.A21 944954	£1.67	£2.00
78 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A22 6201DD	£8.64	£10.37
79 - BACK COVER HIT-323740.A0 323740	£32.54	£39.05
80 - HANDLE PACKING HIT-323741.A1 323741	£4.12	£4.95
81 - NAME PLATE HIT-000000.A3860 000000	-
83 - DISTANCE PIECE (B) HIT-991711.A8 991711	£1.67	£2.00
85 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA HIT-959141.A25 959141	£7.12	£8.54
86 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-994273.A46 994273	£7.30	£8.76
87 - SUPPORT (B) EXCEPT FOR USA HIT-930153.A10 930153	£1.67	£2.00
88 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A70 938477	£1.67	£2.00
89 - TAIL COVER HIT-323726.A0 323726	£6.29	£7.55
90 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A14 991690	£1.67	£2.00
91 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR USA HIT-959140.A88 959140	£4.98	£5.97
92 - PILLAR TERMINAL HIT-938307.A51 938307	£3.28	£3.93
93 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A10 307028	£1.67	£2.00
94 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A127 984750	£1.67	£2.00
*95 - CORD CLIP HIT-960266.A65 960266	£1.67	£2.00
*95 - CORD CLIP FOR SUI HIT-981987Z.A3 981987Z	-
96 - WASHER M4 (10 PCS.) EXCEPT FOR USA HIT-949423.A36 949423	£1.67	£2.00
97 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A5 996438	-
*98 - TERMINAL FOR CORD HIT-980063.A95 980063	£1.67	£2.00
*98 - TERMINAL M4.0 (10 PCS.) FOR CORD HIT-930804.A34 930804	£3.64	£4.37
*99 - INTERNAL WIRE EXCEPT FOR GBR HIT-981974.A7 981974	£1.67	£2.00
*99 - INTERNAL WIRE FOR GBR HIT-306681.A6 306681	-
100 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A2 306143	£19.10	£22.92
101 - SUPPORT HIT-323742.A0 323742	£8.42	£10.11
102 - NYLOCK BOLT (W/FLANGE) M5X12 HIT-322142.A4 322142	£1.67	£2.00
*103 - CORD (CORD ARMOR D10.7) HIT-500390Z.A17 500390Z	-
*103 - CORD (CORD ARMOR D10.7) FOR USA HIT-500453Z.A6 500453Z	-
*103 - CORD (CORD ARMOR D10.7) FOR SUI HIT-500391Z.A2 500391Z	-
*103 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500466Z.A5 500466Z	£31.12	£37.34
*103 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A11 500450Z	£35.67	£42.80
*103 - CORD (CORD ARMOR D8.2) FOR BRA HIT-500487Z.A4 500487Z	-
104 - CORD ARMOR D10.7 HIT-940778.A54 940778	£3.15	£3.78
105 - TUBE (D) FOR CORD HIT-981373.A134 981373	£1.67	£2.00
106 - HANDLE (A).(B) SET HIT-339262.A0 339262	£26.69	£32.03
501 - HEX. BAR WRENCH 6MM HIT-872422.A32 872422	£1.67	£2.00
502 - HEX. BAR WRENCH 3MM HIT-943277.A25 943277	£1.67	£2.00
503A - CASE (PLASTIC) HIT-333356.A0 333356	£167.06	£200.47
601 - COLD CHISEL 520MM (HEX. SHANK TYPE) HIT-985231.A4 985231	-
602 - CUTTER W75X520MM (HEX. SHANK TYPE) HIT-985232.A1 985232	-
603 - SCOOP 546L (HEX. SHANK TYPE) HIT-985233.A4 985233	£130.96	£157.15
604 - BULL POINT 410MM (HEX. SHANK TYPE) HIT-996372.A3 996372	-
605 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-996373.A1 996373	-
606 - CUTTER W75X410MM (HEX. SHANK TYPE) HIT-996374.A1 996374	-
607 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A37 980927	£55.68	£66.81
608 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A17 981840	£8.22	£9.87
609 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A10 308471	£16.21	£19.45
610 - WHEEL SET HIT-336375.A2 336375	-
611 - WHEEL SHAFT SET HIT-337337.A1 337337	-
612 - LATCH SET (2 PCS.) HIT-337338.A2 337338	-
