Hitachi / Hikoki H65SB3 Demolition Hammer Spare Parts

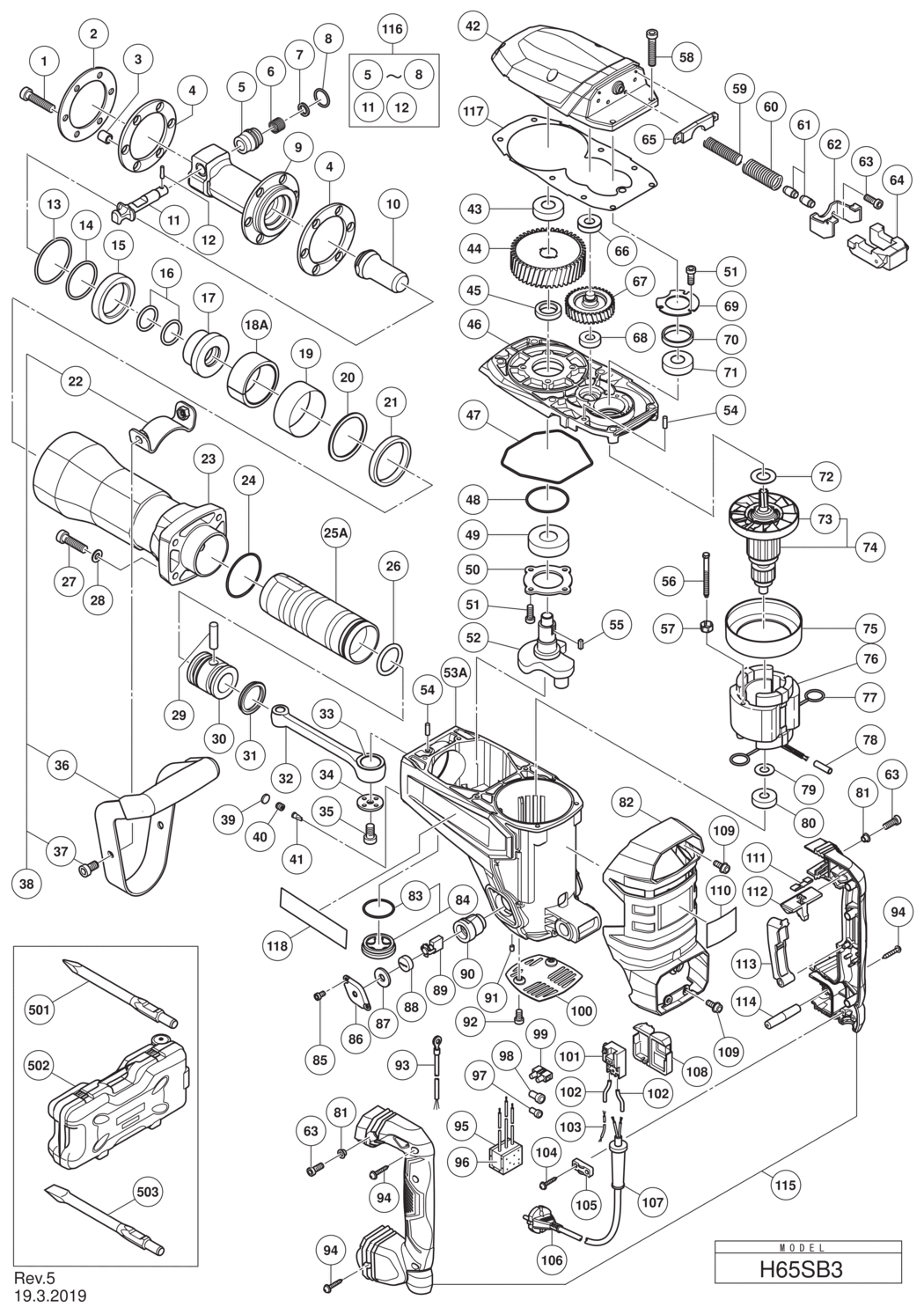

An exploded diagram and spare parts listing for the Hitachi / Hikoki H65SB3 Demolition Hammer

	Ex VAT	Inc VAT
1 - NYLOCK HEX. SOCKET HD. BOLT M8X40 HIT-323734.A3 323734	-
2 - DAMPER PLATE HIT-339686.A0 339686	-
3 - COLLAR HIT-323737.A2 323737	-
4 - FRONT DAMPER HIT-339685.A0 339685	-
5 - SPRING CASE HIT-339688.A0 339688	-
6 - LEVER SPRING HIT-956975.A1 956975	£1.67	£2.00
7 - DAMPER (B) HIT-998425.A2 998425	£5.87	£7.04
8 - RING HIT-339689.A0 339689	-
9 - FRONT COVER HIT-339683.A0 339683	-
10 - SECOND HAMMER HIT-339682.A0 339682	-
11 - STOP LEVER HIT-339687.A0 339687	-
12 - NEEDLE ROLLER HIT-998426.A0 998426	£1.67	£2.00
13 - O-RING (C) HIT-998428.A1 998428	£2.91	£3.49
14 - O-RING (B) HIT-339684.A0 339684	-
15 - DAMPER (A) HIT-998433.A1 998433	£15.38	£18.45
16 - O-RING HIT-339681.A0 339681	-
17 - SHANK SLEEVE HIT-339680.A1 339680	-
18A - MOUTH HIT-956963.A1 956963	£35.45	£42.54
19 - MOUTH COVER HIT-956962.A4 956962	£2.91	£3.49
20 - MOUTH WASHER (A) HIT-370894.A0 370894	-
21 - URETHANE RING (A) HIT-370893.A1 370893	-
22 - HANDLE STAY (W/NUT) HIT-320374.A1 320374	£8.66	£10.39
23 - CYLINDER CASE HIT-339678.A1 339678	-
24 - O-RING (1AS-60) HIT-956996.A8 956996	£3.82	£4.58
25A - STRIKER HIT-374786.A0 374786	-
26 - O-RING (A) HIT-998414.A2 998414	£13.75	£16.50
27 - NYLOCK HEX. SOCKET HD. BOLT M8X40 HIT-323734.A1 323734	-
28 - BOLT WASHER M8 (BLACK) HIT-323212.A20 323212	£1.67	£2.00
29 - PISTON PIN HIT-944928.A1 944928	£16.52	£19.83
30 - PISTON HIT-339676.A1 339676	-
31 - OIL SEAL (A) HIT-998415.A3 998415	£8.80	£10.56
32 - CONNECTING ROD ASS'Y INCLUD.33 HIT-998434.A4 998434	£46.51	£55.81
33 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A4 944921	£22.07	£26.48
34 - CRANK WASHER HIT-956955.A1 956955	£4.08	£4.90
35 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A0 996364	£1.67	£2.00
36 - GRIP HIT-306166.A1 306166	£65.50	£78.60
37 - NYLOCK HEX. SOCKET HD. BOLT M8X16 HIT-320375.A2 320375	£1.67	£2.00
38 - SIDE HANDLE ASS'Y INCLUD.22 HIT-306165.A2 306165	£69.32	£83.18
39 - FELT PACKING (B) HIT-324544.A9 324544	£1.67	£2.00
40 - CAP SCREW HIT-338313.A4 338313	-
41 - VALVE HIT-995396.A11 995396	-
42 - GEAR COVER HIT-339674.A1 339674	-
43 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A16 6302VV	£9.67	£11.60
44 - FINAL GEAR HIT-339672.A1 339672	-
45 - DISTANCE RING (B) HIT-944915.A1 944915	£4.40	£5.28
46 - INNER COVER HIT-339669.A0 339669	-
47 - SEAL RING HIT-323725.A2 323725	£6.29	£7.55
48 - O-RING HIT-331244.A0 331244	-
49 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A6 6205DD	£13.75	£16.50
50 - BEARING COVER HIT-956949.A4 956949	-
51 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A8 990079	£1.67	£2.00
52 - CRANK SHAFT HIT-339671.A0 339671	-
53A - HOUSING ASS'Y INCLUD.90 HIT-339665.A0 339665	-
54 - PIN D5X15.8 HIT-944918.A1 944918	-
55 - FEATHER KEY 4X4X12 HIT-931008.A6 931008	-
56 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A14 960251	£1.67	£2.00
57 - SPECIAL WASHER HIT-956764.A5 956764	-
58 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40 HIT-322494.A5 322494	-
59 - HANDLE SPRING (B) HIT-339697.A1 339697	-
60 - HANDLE SPRING (A) HIT-339696.A0 339696	-
61 - HANDLE DAMPER HIT-310124.A20 310124	£6.18	£7.41
62 - HANDLE GUIDE HIT-339695.A1 339695	-
63 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A9 990079	£1.67	£2.00
64 - HANDLE WEIGHT HIT-339698.A0 339698	-
65 - HANDLE STOPPER HIT-339694.A0 339694	-
66 - BALL BEARING 6201VV HIT-6201VV.A14 6201VV	£8.30	£9.96
67 - COUNTER GEAR HIT-339673.A0 339673	-
68 - BALL BEARING 6001VV HIT-6001VV.A33 6001VV	£8.68	£10.42
69 - BEARING COVER (A) HIT-944911.A4 944911	£1.67	£2.00
70 - DISTANCE RING (A) HIT-339670.A1 339670	-
71 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A3 6203DD	£8.64	£10.37
72 - BEARING WASHER HIT-333222.A1 333222	-
73 - FAN HIT-333196.A2 333196	-
*74 - ARMATURE ASS'Y 110V INCLUD.73 HIT-361024C.A1 361024C	-
*74 - ARMATURE ASS'Y 220V-230V INCLUD.73 HIT-361024E.A0 361024E	-
75 - FAN GUIDE HIT-339668.A1 339668	-
*76 - STATOR ASS'Y 110V INCLUD.77 HIT-340928C.A1 340928C	-
*76 - STATOR ASS'Y 220V-230V INCLUD.77 HIT-340928E.A0 340928E	-
77 - BRUSH TERMINAL HIT-945932.A12 945932	£1.67	£2.00
78 - VINYL TUBE L55 HIT-322530.A2 322530	£1.67	£2.00
79 - BEARING WASHER HIT-944954.A17 944954	£1.67	£2.00
80 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A29 6201DD	£8.64	£10.37
81 - DISTANCE PIECE (B) HIT-991711.A14 991711	£1.67	£2.00
82 - BACK COVER HIT-339692.A0 339692	-
83 - O-RING (S-38) HIT-980717.A6 980717	£1.67	£2.00
84 - OIL CAP ASS'Y INCLUD.83 HIT-990945.A4 990945	£4.79	£5.75
85 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A4 877838	£1.67	£2.00
86 - CAP COVER HIT-323727.A3 323727	£1.67	£2.00
87 - CAP RUBBER HIT-944960.A1 944960	£1.67	£2.00
88 - BRUSH CAP HIT-940540.A8 940540	£1.67	£2.00
89 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A2 999086	£18.59	£22.31
90 - BRUSH HOLDER HIT-956984.A4 956984	£11.55	£13.86
91 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A74 938477	£1.67	£2.00
92 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A9 991690	£1.67	£2.00
*93 - INTERNAL WIRE FOR EUROPE HIT-994190.A1 994190	£1.67	£2.00
94 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A13 307028	£1.67	£2.00
*95 - SUPPORT (B) FOR EUROPE HIT-930153.A12 930153	£1.67	£2.00
*96 - NOISE SUPPRESSOR FOR EUROPE HIT-370895.A1 370895	-
*97 - CONNECTOR 50091 (10 PCS.) FOR EUROPE HIT-959140.A81 959140	£4.98	£5.97
98 - CONNECTOR 50092 (10 PCS.) HIT-959141.A28 959141	£7.12	£8.54
*99 - PILLAR TERMINAL FOR EUROPE HIT-938307.A57 938307	£3.28	£3.93
100 - TAIL COVER HIT-339675.A0 339675	-
101 - SWITCH HIT-337051.A1 337051	£15.71	£18.85
102 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A4 996438	-
*103 - INTERNAL WIRE (BLACK) FOR EUROPE HIT-337055.A1 337055	-
*103 - INTERNAL WIRE (WHITE) FOR GBR (110V) HIT-337054.A1 337054	-
104 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A113 984750	£1.67	£2.00
105 - CORD CLIP HIT-960266.A74 960266	£1.67	£2.00
*106 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A20 500446Z	£33.79	£40.55
*106 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500467Z.A2 500467Z	£63.83	£76.60
*107 - CORD ARMOR D10.7 HIT-940778.A60 940778	£3.15	£3.78
108 - SUPPORT HIT-337052.A1 337052	-
109 - NYLOCK BOLT (W/FLANGE) M5 HIT-339693.A1 339693	-
110 - NAME PLATE HIT-000000.A3825 000000	-
111 - LEAF SPRING HIT-339691.A1 339691	-
112 - PUSHING BUTTON HIT-339690.A0 339690	-
113 - SWITCH LEVER HIT-337058.A1 337058	£1.67	£2.00
114 - HANDLE SHAFT HIT-338175.A7 338175	-
115 - HANDLE (A).(B) SET HIT-339699.A1 339699	£16.64	£19.97
116 - STOP LEVER ASS'Y INCLUD.5-8 HIT-339700.A0 339700	-
117 - SEAL PACKING HIT-370913.A0 370913	-
118 - BRAND LABEL HIT-000000.A3826 000000	-
501 - BULL POINT 410MM HIT-944961.A2 944961	-
502 - CASE (PLASTIC) HIT-339664.A1 339664	-
601 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-944962.A0 944962	-
602 - CUTTER W75X410L (ROUND SHANK TYPE) HIT-944964.A2 944964	£59.14	£70.97
603 - RAMMER SHANK (HAMMER) HIT-944966.A2 944966	£52.31	£62.77
604 - RAMMER 200MM HIT-944965.A0 944965	-
605 - SCOOP 380L (ROUND SHANK TYPE) HIT-957154.A0 957154	£140.32	£168.38
606 - WHEEL SET HIT-336375.A1 336375	-
607 - WHEEL SHAFT SET HIT-337337.A3 337337	-
608 - LATCH SET (2 PCS.) HIT-337338.A0 337338	-
609 - HAMMER TROLLEY HIT-402616.A0 402616	-
610 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A28 981840	£8.22	£9.87
611 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A23 308471	£16.21	£19.45
612 - GREASE (SEP-3A) (100G) HIT-930035.A3 930035	£15.15	£18.18
613 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A47 980927	£55.68	£66.81
614 - SERVICE KIT (H 65SB3) INCLUD.1 HIT-371002.A0 371002	-
