Hitachi / Hikoki H65SB2 Hammer Spare Parts

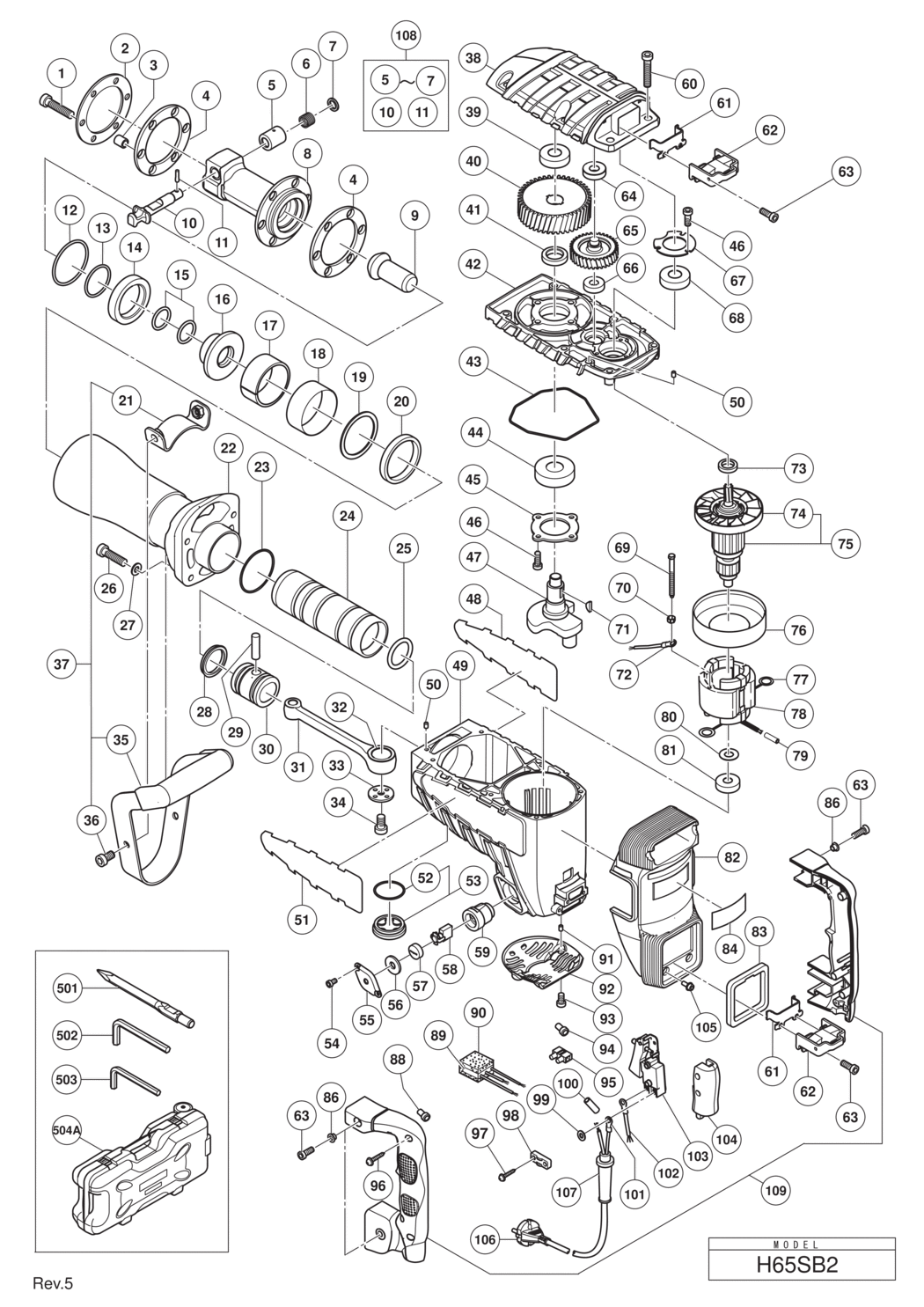

An exploded diagram and spare parts listing for the Hitachi / Hikoki H65SB2 Hammer

	Ex VAT	Inc VAT
1 - NYLOCK HEX. SOCKET HD. BOLT M8X40 HIT-323734.A4 323734	-
2 - DAMPER PLATE HIT-323736.A1 323736	-
3 - COLLAR HIT-323737.A0 323737	-
4 - FRONT DAMPER HIT-323735.A0 323735	£13.78	£16.53
5 - SPRING CASE HIT-998424.A1 998424	£14.42	£17.31
6 - LEVER SPRING HIT-956975.A2 956975	£1.67	£2.00
7 - DAMPER (B) HIT-998425.A0 998425	£5.87	£7.04
8 - FRONT COVER HIT-323733.A0 323733	-
9 - SECOND HAMMER HIT-323732.A1 323732	-
10 - STOP LEVER HIT-323748.A1 323748	-
11 - NEEDLE ROLLER HIT-998426.A5 998426	£1.67	£2.00
12 - O-RING (C) HIT-998428.A5 998428	£2.91	£3.49
13 - O-RING (B) HIT-998427.A0 998427	£1.67	£2.00
14 - DAMPER (A) HIT-998433.A5 998433	£15.38	£18.45
15 - O-RING (I.D 26.5) HIT-323731.A0 323731	£1.67	£2.00
16 - SHANK SLEEVE HIT-323730.A3 323730	£40.25	£48.30
17 - MOUTH HIT-956963.A0 956963	£35.45	£42.54
18 - MOUTH COVER HIT-956962.A5 956962	£2.91	£3.49
19 - MOUTH WASHER HIT-323729.A0 323729	£8.42	£10.11
20 - URETHANE RING HIT-956960.A3 956960	£10.98	£13.18
21 - HANDLE STAY (W/NUT) HIT-320374.A3 320374	£8.66	£10.39
22 - CYLINDER CASE HIT-323728.A1 323728	£168.54	£202.25
23 - O-RING (1AS-60) HIT-956996.A18 956996	£3.82	£4.58
24 - STRIKER HIT-323724.A3 323724	£120.02	£144.02
25 - O-RING (A) HIT-998414.A0 998414	£13.75	£16.50
26 - NYLOCK HEX. SOCKET HD. BOLT M8X35 HIT-306163.A0 306163	£1.67	£2.00
27 - BOLT WASHER M8 (10 PCS.) HIT-949433.A31 949433	£1.67	£2.00
28 - OIL SEAL (A) HIT-998415.A5 998415	£8.80	£10.56
29 - PISTON PIN HIT-944928.A5 944928	£16.52	£19.83
30 - PISTON HIT-998413.A3 998413	£59.18	£71.02
31 - CONNECTING ROD ASS'Y INCLUD.32 HIT-998434.A0 998434	£46.51	£55.81
32 - NEEDLE BEARING (NTN 8E-NK 18/20 RDO) HIT-944921.A0 944921	£22.07	£26.48
33 - CRANK WASHER HIT-956955.A0 956955	£4.08	£4.90
34 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-996364.A5 996364	£1.67	£2.00
35 - GRIP HIT-306166.A0 306166	£65.50	£78.60
36 - NYLOCK HEX. SOCKET HD. BOLT M8X16 HIT-320375.A0 320375	£1.67	£2.00
37 - SIDE HANDLE ASS'Y INCLUD.21 HIT-306165.A3 306165	£69.32	£83.18
38 - GEAR COVER HIT-323723.A0 323723	£62.07	£74.48
39 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A9 6302VV	£9.67	£11.60
40 - FINAL GEAR HIT-944916.A0 944916	£41.35	£49.62
41 - DISTANCE RING (B) HIT-944915.A5 944915	£4.40	£5.28
42 - INNER COVER HIT-323722.A1 323722	£58.66	£70.39
43 - SEAL RING HIT-323725.A0 323725	£6.29	£7.55
44 - BALL BEARING 6205DDCMPS2L HIT-6205DD.A0 6205DD	£13.75	£16.50
45 - BEARING COVER HIT-956949.A5 956949	-
46 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A30 990079	£1.67	£2.00
47 - CRANK SHAFT HIT-998430.A0 998430	-
48 - BRAND LABEL HIT-000000.A2702 000000	-
49 - HOUSING ASS'Y INCLUD.59 HIT-323721.A0 323721	£180.23	£216.28
50 - PIN D5X15.8 HIT-944918.A5 944918	-
51 - BRAND LABEL HIT-000000.A2703 000000	-
52 - O-RING (S-38) HIT-980717.A9 980717	£1.67	£2.00
53 - OIL CAP ASS'Y INCLUD.52 HIT-990945.A8 990945	£4.79	£5.75
54 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A0 877838	£1.67	£2.00
55 - CAP COVER HIT-323727.A0 323727	£1.67	£2.00
56 - CAP RUBBER HIT-944960.A5 944960	£1.67	£2.00
57 - BRUSH CAP HIT-940540.A7 940540	£1.67	£2.00
58 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999086.A8 999086	£18.59	£22.31
59 - BRUSH HOLDER HIT-956984.A0 956984	£11.55	£13.86
60 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A4 986940	£1.67	£2.00
61 - GUIDE PLATE HIT-980750.A3 980750	£16.77	£20.12
62 - HANDLE RUBBER HIT-980727.A0 980727	£15.32	£18.38
63 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A29 990079	£1.67	£2.00
64 - BALL BEARING 6201VV HIT-6201VV.A39 6201VV	£8.30	£9.96
65 - COUNTER GEAR HIT-956948.A0 956948	£32.14	£38.57
66 - BALL BEARING 6001VV HIT-6001VV.A1 6001VV	£8.68	£10.42
67 - BEARING COVER (A) HIT-944911.A0 944911	£1.67	£2.00
68 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A35 6203DD	£8.64	£10.37
69 - HEX. HD. TAPPING SCREW D5X65 HIT-960251.A6 960251	£1.67	£2.00
70 - SPECIAL WASHER HIT-956764.A9 956764	-
71 - WOODRUFF KEY 4X16 HIT-956850.A3 956850	£1.67	£2.00
72 - INTERNAL WIRE FOR NZL HIT-994190.A4 994190	£1.67	£2.00
*72 - INTERNAL WIRE DEN HIT-994190.A5 994190	£1.67	£2.00
73 - DISTANCE RING (A) HIT-944907.A3 944907	£2.91	£3.49
74 - FAN HIT-996370.A7 996370	£14.12	£16.95
*75 - ARMATURE ASS'Y 110V-115V INCLUD.74 HIT-360286C.A0 360286C	£147.22	£176.67
*75 - ARMATURE ASS'Y 220V-230V INCLUD.74 HIT-360286E.A3 360286E	£135.18	£162.22
*75 - ARMATURE ASS'Y 240V INCLUD.74 HIT-360286F.A0 360286F	£147.22	£176.67
76 - FAN GUIDE HIT-306098.A3 306098	£7.34	£8.81
77 - BRUSH TERMINAL HIT-945932.A3 945932	£1.67	£2.00
*78 - STATOR ASS'Y 110V-115V INCLUD.77 HIT-340259C.A0 340259C	£54.93	£65.92
*78 - STATOR ASS'Y 220V-230V INCLUD.77 HIT-340259E.A0 340259E	£54.93	£65.92
*78 - STATOR ASS'Y 240V INCLUD.77 HIT-340259F.A0 340259F	-
*78 - STATOR ASS'Y 240V INCLUD.77 FOR AUS HIT-340259H.A0 340259H	-
79 - VINYL TUBE L55 HIT-322530.A0 322530	£1.67	£2.00
80 - BEARING WASHER HIT-944954.A0 944954	£1.67	£2.00
81 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A11 6201DD	£8.64	£10.37
82 - BACK COVER HIT-323740.A1 323740	£32.54	£39.05
83 - HANDLE PACKING HIT-323741.A0 323741	£4.12	£4.95
84 - NAME PLATE HIT-000000.A2704 000000	-
86 - DISTANCE PIECE (B) HIT-991711.A24 991711	£1.67	£2.00
*88 - CONNECTOR 50092 (10 PCS.) HIT-959141.A87 959141	£7.12	£8.54
*88 - CONNECTOR 50092 (10 PCS.) FOR AUS HIT-959141.A88 959141	£7.12	£8.54
*88 - CONNECTOR 50092 (10 PCS.) AUT HIT-959141.A89 959141	£7.12	£8.54
*89 - NOISE SUPPRESSOR FOR NZL HIT-994273.A4 994273	£7.30	£8.76
*89 - NOISE SUPPRESSOR FOR GBR HIT-317491.A8 317491	£9.43	£11.32
90 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-930153.A4 930153	£1.67	£2.00
91 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A56 938477	£1.67	£2.00
92 - TAIL COVER HIT-323726.A1 323726	£6.29	£7.55
93 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A2 991690	£1.67	£2.00
94 - CONNECTOR 50091 (10 PCS.) FOR NZL HIT-959140.A27 959140	£4.98	£5.97
*94 - CONNECTOR 50091 (10 PCS.) DEN HIT-959140.A28 959140	£4.98	£5.97
95 - PILLAR TERMINAL FOR AUS HIT-938307.A23 938307	£3.28	£3.93
*95 - PILLAR TERMINAL AUT HIT-938307.A24 938307	£3.28	£3.93
96 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A42 307028	£1.67	£2.00
97 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A242 984750	£1.67	£2.00
*98 - CORD CLIP HIT-960266.A24 960266	£1.67	£2.00
*98 - CORD CLIP FOR SUI HIT-981987Z.A8 981987Z	-
99 - WASHER M4 (10 PCS.) FOR AUS HIT-949423.A24 949423	£1.67	£2.00
*99 - WASHER M4 (10 PCS.) SUI HIT-949423.A25 949423	£1.67	£2.00
100 - VINYL TUBE (A) (I.D.7XT0.5X50) HIT-996438.A7 996438	-
*101 - TERMINAL FOR CORD HIT-980063.A61 980063	£1.67	£2.00
*101 - TERMINAL M4.0 (10 PCS.) FOR CORD HIT-930804.A12 930804	£3.64	£4.37
*102 - INTERNAL WIRE HIT-981974.A9 981974	£1.67	£2.00
*102 - INTERNAL WIRE FOR VEN HIT-306681.A0 306681	-
103 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A5 306143	£19.10	£22.92
104 - SUPPORT HIT-323742.A1 323742	£8.42	£10.11
105 - NYLOCK BOLT (W/FLANGE) M5X12 HIT-322142.A0 322142	£1.67	£2.00
*106 - CORD (CORD ARMOR D10.7) HIT-500206Z.A0 500206Z	-
*106 - CORD (CORD ARMOR D10.7) FOR SYR HIT-500394Z.A0 500394Z	-
*106 - CORD (CORD ARMOR D8.2) FOR INA HIT-500235Z.A12 500235Z	-
*106 - CORD (CORD ARMOR D8.2) FOR KUW HIT-500424Z.A7 500424Z	-
*106 - CORD (CORD ARMOR D10.7) FOR EUROPE HIT-500390Z.A8 500390Z	-
*106 - CORD NOR HIT-500390Z.A9 500390Z	-
*106 - CORD (CORD ARMOR D8.2) FOR NZL HIT-500408Z.A1 500408Z	-
*106 - CORD (CORD ARMOR D10.7) FOR SUI HIT-500391Z.A9 500391Z	-
*106 - CORD (CORD ARMOR D10.7) FOR SAF HIT-500247Z.A34 500247Z	-
*106 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500466Z.A1 500466Z	£31.12	£37.34
*106 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500450Z.A21 500450Z	£35.67	£42.80
*107 - CORD ARMOR D8.2 HIT-958049.A21 958049	£1.67	£2.00
*107 - CORD ARMOR D10.7 HIT-940778.A8 940778	£3.15	£3.78
108 - STOP LEVER ASS'Y INCLUD.5-7 HIT-323747.A0 323747	-
109 - HANDLE (A).(B) SET HIT-339262.A1 339262	£26.69	£32.03
501 - BULL POINT 410MM HIT-944961.A0 944961	-
502 - HEX. BAR WRENCH 6MM HIT-872422.A1 872422	£1.67	£2.00
503 - HEX. BAR WRENCH 3MM HIT-943277.A8 943277	£1.67	£2.00
504A - CASE (PLASTIC) HIT-333356.A1 333356	£167.06	£200.47
601 - COLD CHISEL 410MM (HEX. SHANK TYPE) HIT-944962.A2 944962	-
602 - CUTTER W75X410L (ROUND SHANK TYPE) HIT-944964.A0 944964	£59.14	£70.97
603 - RAMMER SHANK (HAMMER) HIT-944966.A0 944966	£52.31	£62.77
604 - RAMMER 200MM HIT-944965.A2 944965	-
605 - SCOOP 380L (ROUND SHANK TYPE) HIT-957154.A1 957154	£140.32	£168.38
606 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A36 981840	£8.22	£9.87
607 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A43 308471	£16.21	£19.45
608 - GREASE (SEP-3A) (100G) HIT-930035.A4 930035	£15.15	£18.18
609 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A14 980927	£55.68	£66.81
610 - SERVICE KIT (H 65SB2) INCLUD.1 HIT-323745.A0 323745	-
611 - WHEEL SET HIT-336375.A3 336375	-
612 - WHEEL SHAFT SET HIT-337337.A0 337337	-
613 - LATCH SET (2 PCS.) HIT-337338.A3 337338	-
