Hitachi / Hikoki H60MRV Demolition Hammer Spare Parts

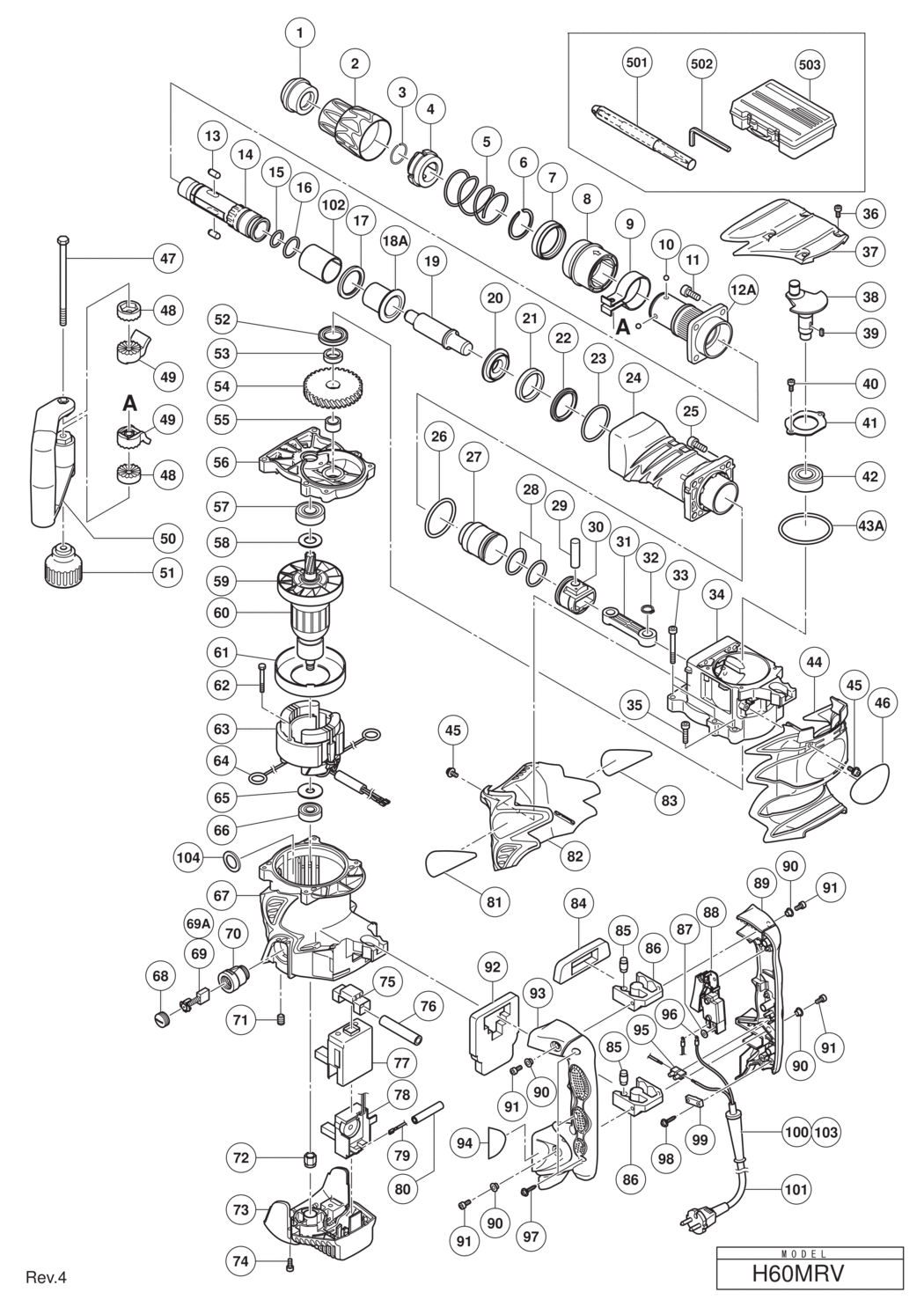

An exploded diagram and spare parts listing for the Hitachi / Hikoki H60MRV Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-315529.A3 315529	£3.85	£4.62
2 - GRIP (A) HIT-324025.A0 324025	£10.45	£12.54
3 - RING HIT-320803.A5 320803	£1.67	£2.00
4 - NEEDLE HOLDER HIT-320804.A0 320804	£33.68	£40.41
5 - SPRING (A) HIT-324027.A0 324027	£8.77	£10.52
6 - RETAINING RING D42 HIT-317088.A0 317088	£4.10	£4.92
7 - BALL HOLDER HIT-320810.A4 320810	£16.07	£19.28
8 - GRIP (B) HIT-324028.A1 324028	£8.77	£10.52
9 - BAND HIT-320635.A2 320635	£8.22	£9.87
10 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A38 959150	£1.67	£2.00
11 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A5 985479	£3.15	£3.78
12A - FRONT COVER HIT-324029.A0 324029	-
13 - NEEDLE ROLLER D8X20 HIT-313421.A1 313421	£6.32	£7.59
14 - RETAINER SLEEVE HIT-324026.A1 324026	£141.98	£170.37
15 - O-RING (S-26) HIT-872470.A7 872470	£1.67	£2.00
16 - O-RING (S-32) HIT-872767.A7 872767	£1.67	£2.00
17 - DAMPER (B) HIT-317094.A0 317094	£7.59	£9.11
18A - HAMMER HOLDER (B) HIT-324030.A1 324030	-
19 - SECOND HAMMER HIT-324031.A0 324031	£53.82	£64.59
20 - HAMMER HOLDER (A) HIT-317091.A1 317091	£22.83	£27.40
21 - DAMPER (A) HIT-324032.A1 324032	£6.80	£8.16
22 - DAMPER WASHER HIT-317095.A1 317095	£15.04	£18.05
23 - O-RING (S-56) HIT-317119.A0 317119	£1.67	£2.00
24 - CYLINDER CASE HIT-324034.A1 324034	£192.83	£231.40
25 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X30 HIT-995400.A2 995400	-
26 - O-RING (1AS-60) HIT-956996.A5 956996	£3.82	£4.58
27 - STRIKER HIT-324033.A0 324033	£43.22	£51.86
28 - O-RING (A) (FPM810) HIT-985454.A3 985454	£8.59	£10.31
29 - PISTON PIN HIT-301509.A2 301509	£8.19	£9.83
30 - PISTON HIT-317084.A4 317084	£14.64	£17.57
31 - CONNECTING ROD HIT-317082.A0 317082	£10.98	£13.17
32 - RETAINING RING FOR D14 SHAFT (10 PCS.) HIT-939543.A1 939543	£3.12	£3.74
33 - SEAL LOCK HEX. SOCKET HD. BOLT M6X55 HIT-301567.A1 301567	£4.26	£5.11
34 - CRANK CASE HIT-324035.A0 324035	-
35 - SEAL LOCK HEX. SOCKET HD. BOLT M6X35 HIT-324056.A0 324056	-
36 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A3 990079	£1.67	£2.00
37 - CRANK COVER HIT-324037.A0 324037	-
38 - CRANK SHAFT HIT-317078.A0 317078	£46.12	£55.34
39 - FEATHER KEY 3X3X10 HIT-940533.A3 940533	£1.67	£2.00
40 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A11 984509	£1.67	£2.00
41 - BEARING COVER HIT-985443.A0 985443	£5.27	£6.32
42 - BALL BEARING 6204DD HIT-6204DD.A5 6204DD	£11.46	£13.75
43A - O-RING (I.D 74.5) HIT-326257.A1 326257	£4.62	£5.55
44 - BACK COVER HIT-324038.A1 324038	-
45 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A11 998471	£1.67	£2.00
46 - NAME PLATE HIT-000000.A3850 000000	-
47 - BOLT M8 HIT-317107.A3 317107	£4.10	£4.92
48 - HANDLE HOLDER (B) HIT-317106.A0 317106	£4.10	£4.92
49 - HANDLE HOLDER (A) HIT-317105.A3 317105	£6.09	£7.31
50 - SIDE HANDLE ASS'Y INCLUD.9 HIT-317103.A0 317103	£40.59	£48.71
51 - GRIP HIT-317108.A0 317108	£11.98	£14.37
52 - OIL SEAL HIT-995403.A2 995403	£4.10	£4.92
53 - DISTANCE RING (C) HIT-995402.A0 995402	£13.51	£16.21
54 - FIRST GEAR HIT-317080.A1 317080	£42.08	£50.49
55 - NEEDLE BEARING (A) (BK1512) HIT-985442.A3 985442	£8.39	£10.07
56 - GEAR COVER ASS'Y INCLUD.55 HIT-324048.A0 324048	-
57 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A1 6203DD	£8.64	£10.37
58 - BEARING WASHER HIT-992841.A2 992841	£1.67	£2.00
59 - FAN HIT-996370.A2 996370	£14.12	£16.95
*60 - ARMATURE ASS'Y 110V INCLUD.59 HIT-360691C.A0 360691C	-
*60 - ARMATURE ASS'Y 120V INCLUD.57-59 HIT-360691U.A0 360691U	-
*60 - ARMATURE ASS'Y 230V INCLUD.59 HIT-360691E.A0 360691E	-
*60 - ARMATURE ASS'Y 240V INCLUD.59 HIT-360691F.A0 360691F	-
61 - FAN GUIDE HIT-305610.A2 305610	£16.32	£19.58
62 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A7 953121	-
*63 - STATOR ASS'Y (B) 110V INCLUD.64 HIT-340610C.A0 340610C	-
*63 - STATOR ASS'Y (B) 120V INCLUD.64 HIT-340610G.A0 340610G	-
*63 - STATOR ASS'Y (B) 230V INCLUD.64 HIT-340610E.A0 340610E	-
*63 - STATOR ASS'Y (B) 240V INCLUD.64 HIT-340610F.A0 340610F	-
64 - BRUSH TERMINAL HIT-945932.A10 945932	£1.67	£2.00
65 - BEARING WASHER HIT-944954.A20 944954	£1.67	£2.00
66 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A24 6201DD	£8.64	£10.37
67 - HOUSING ASS'Y INCLUD.70 HIT-324040.A0 324040	-
68 - BRUSH CAP HIT-940540.A11 940540	£1.67	£2.00
69 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A4 999074	£20.63	£24.76
69A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) EXCEPT FOR USA HIT-999077.A0 999077	£18.28	£21.94
70 - BRUSH HOLDER HIT-956984.A7 956984	£11.55	£13.86
71 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A72 938477	£1.67	£2.00
72 - MAGNET HIT-317087.A0 317087	£20.95	£25.14
73 - TAIL COVER HIT-324041.A0 324041	£20.62	£24.74
74 - SEAL LOCK HEX. SOCKET HD. BOLT M5X22 HIT-317245.A1 317245	£1.67	£2.00
75 - SLEEVE (B) HIT-324045.A1 324045	-
76 - VINYL TUBE L55 HIT-322530.A5 322530	£1.67	£2.00
77 - CASE (B) HIT-317100.A0 317100	£8.34	£10.01
*78 - CONTROLLER CIRCUIT 100V-110V HIT-324050.A0 324050	£171.18	£205.41
*78 - CONTROLLER CIRCUIT 120V HIT-324051.A0 324051	-
*78 - CONTROLLER CIRCUIT 230V-240V HIT-324052.A0 324052	-
79 - INTERNAL WIRE EXCEPT FOR SIN HIT-317113.A2 317113	£4.12	£4.95
80 - VINYL TUBE (I.D.7XT0.5X30) HIT-000000.A3851 000000	-
81 - BRAND LABEL HIT-000000.A3853 000000	-
82 - CRANK CASE COVER HIT-324036.A1 324036	£29.70	£35.64
83 - BRAND LABEL HIT-000000.A3854 000000	-
84 - HANDLE PACKING (A) HIT-324046.A0 324046	£6.80	£8.16
85 - HANDLE DAMPER HIT-310124.A17 310124	£6.18	£7.41
86 - TRANSATORY UNIT HIT-310123.A5 310123	£11.82	£14.18
87 - WASHER M4 (10 PCS.) EXCEPT FOR SIN HIT-949423.A38 949423	£1.67	£2.00
88 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A0 306143	£19.10	£22.92
89 - HANDLE (A) HIT-324042.A1 324042	£29.58	£35.49
90 - DISTANCE PIECE (B) HIT-991711.A7 991711	£1.67	£2.00
91 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A15 991690	£1.67	£2.00
92 - HANDLE PACKING (B) HIT-324047.A1 324047	£15.68	£18.82
93 - HANDLE (B) HIT-324043.A0 324043	£33.17	£39.80
94 - SDS MAX LABEL HIT-000000.A3855 000000	-
95 - PILLAR TERMINAL HIT-938307.A49 938307	£3.28	£3.93
*96 - TERMINAL HIT-980063.A100 980063	£1.67	£2.00
*96 - TERMINAL M4.0 (10 PCS.) FOR USA HIT-930804.A35 930804	£3.64	£4.37
97 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A11 307028	£1.67	£2.00
98 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A126 984750	£1.67	£2.00
*99 - CORD CLIP HIT-960266.A62 960266	£1.67	£2.00
*99 - CORD CLIP FOR SUI HIT-981987Z.A5 981987Z	-
100 - CORD ARMOR D8.8 HIT-953327.A73 953327	£1.67	£2.00
*101 - CORD (CORD ARMOR D8.8) HIT-500390Z.A15 500390Z	-
*101 - CORD (CORD ARMOR D8.8) FOR NZL HIT-500408Z.A13 500408Z	-
*101 - CORD (CORD ARMOR D8.8) FOR USA HIT-500434Z.A3 500434Z	-
*101 - CORD (CORD ARMOR D8.8) FOR SIN HIT-500424Z.A12 500424Z	-
*101 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500467Z.A1 500467Z	£63.83	£76.60
*101 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A17 500446Z	£33.79	£40.55
*101 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500391Z.A4 500391Z	-
*101 - CORD (CORD ARMOR D8.8) FOR IND HIT-500235Z.A4 500235Z	-
102 - DAMPER (C) HIT-324130.A1 324130	-
103 - CORD ARMOR D10.1 HIT-938051.A28 938051	£1.67	£2.00
104 - STOP PLATE FOR AUS HIT-956683.A3 956683	-
501 - BULL POINT (SDS MAX) 280L HIT-313471.A26 313471	-
502 - HEX. BAR WRENCH 6MM HIT-872422.A30 872422	£1.67	£2.00
503 - CASE (PLASTIC) HIT-324049.A1 324049	£96.72	£116.06
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A19 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A12 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR USA HIT-980927.A38 980927	£55.68	£66.81
604 - BULL POINT (SDS MAX) 280L HIT-313471.A27 313471	-
605 - BULL POINT (SDS MAX) 400L HIT-313472.A0 313472	-
606 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A21 313473	-
607 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A0 313474	-
608 - CUTTER (SDS MAX) W50X400L HIT-313475.A21 313475	-
609 - SCOOP (SDS MAX) 400L HIT-313476.A0 313476	-
610 - BUSHING TOOL (SDS MAX) HIT-313477.A20 313477	-
611 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A0 313478	-
612 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A21 313479	-
