Hitachi / Hikoki H60MR Demolition Hammer Spare Parts

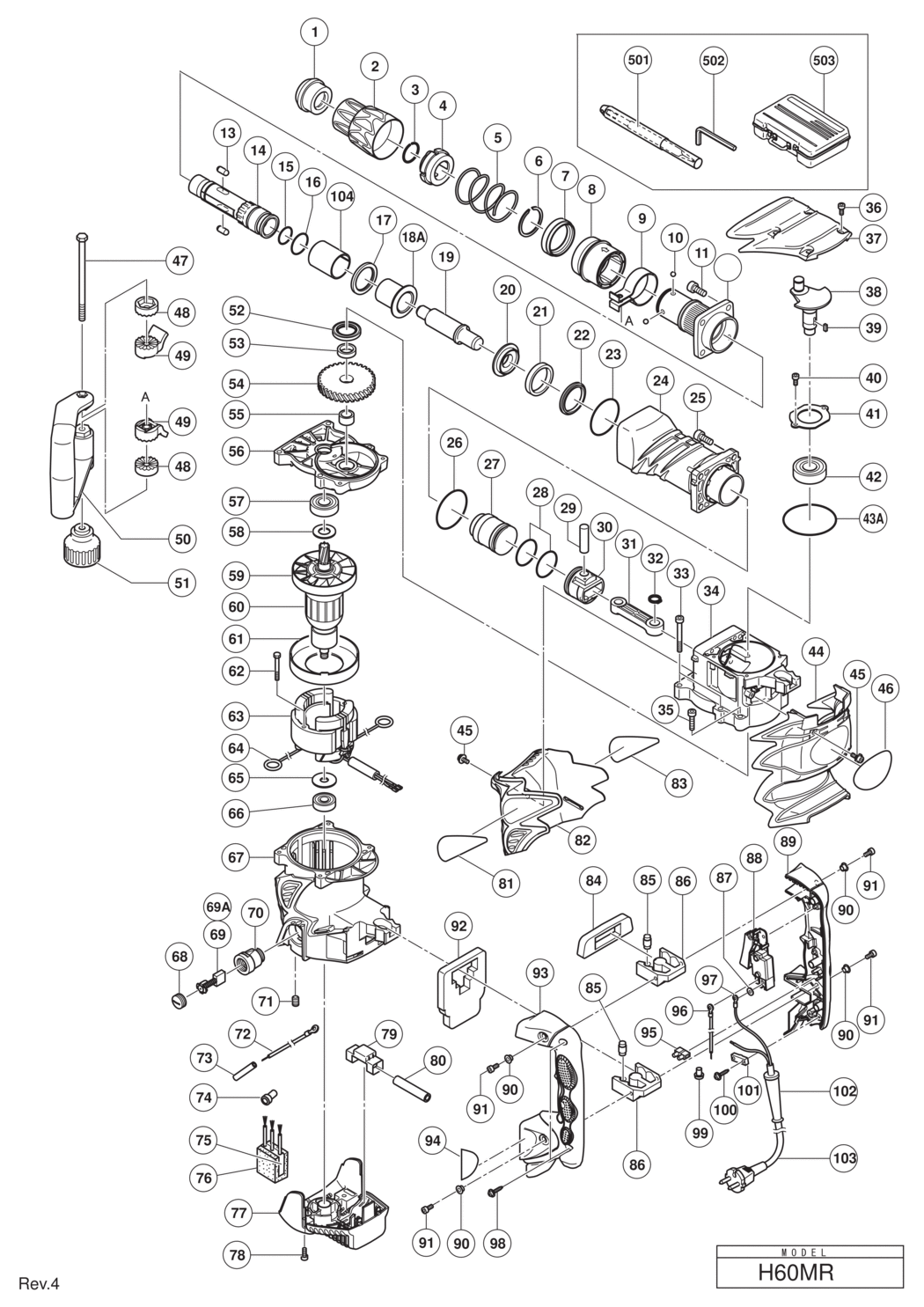

An exploded diagram and spare parts listing for the Hitachi / Hikoki H60MR Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-315529.A2 315529	£3.85	£4.62
2 - GRIP (A) HIT-324025.A1 324025	£10.45	£12.54
3 - RING HIT-320803.A2 320803	£1.67	£2.00
4 - NEEDLE HOLDER HIT-320804.A1 320804	£33.68	£40.41
5 - SPRING (A) HIT-324027.A1 324027	£8.77	£10.52
6 - RETAINING RING D42 HIT-317088.A1 317088	£4.10	£4.92
7 - BALL HOLDER HIT-320810.A3 320810	£16.07	£19.28
8 - GRIP (B) HIT-324028.A0 324028	£8.77	£10.52
9 - BAND HIT-320635.A3 320635	£8.22	£9.87
10 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A36 959150	£1.67	£2.00
11 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A6 985479	£3.15	£3.78
12A - FRONT COVER HIT-324029.A1 324029	-
13 - NEEDLE ROLLER D8X20 HIT-313421.A2 313421	£6.32	£7.59
14 - RETAINER SLEEVE HIT-324026.A0 324026	£141.98	£170.37
15 - O-RING (S-26) HIT-872470.A9 872470	£1.67	£2.00
16 - O-RING (S-32) HIT-872767.A6 872767	£1.67	£2.00
17 - DAMPER (B) HIT-317094.A1 317094	£7.59	£9.11
18A - HAMMER HOLDER (B) HIT-324030.A0 324030	-
19 - SECOND HAMMER HIT-324031.A1 324031	£53.82	£64.59
20 - HAMMER HOLDER (A) HIT-317091.A0 317091	£22.83	£27.40
21 - DAMPER (A) HIT-324032.A0 324032	£6.80	£8.16
22 - DAMPER WASHER HIT-317095.A0 317095	£15.04	£18.05
23 - O-RING (S-56) HIT-317119.A1 317119	£1.67	£2.00
24 - CYLINDER CASE HIT-324034.A0 324034	£192.83	£231.40
25 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X30 HIT-995400.A1 995400	-
26 - O-RING (1AS-60) HIT-956996.A9 956996	£3.82	£4.58
27 - STRIKER HIT-324033.A1 324033	£43.22	£51.86
28 - O-RING (A) (FPM810) HIT-985454.A2 985454	£8.59	£10.31
29 - PISTON PIN HIT-301509.A3 301509	£8.19	£9.83
30 - PISTON HIT-317084.A3 317084	£14.64	£17.57
31 - CONNECTING ROD HIT-317082.A1 317082	£10.98	£13.17
32 - RETAINING RING FOR D14 SHAFT (10 PCS.) HIT-939543.A0 939543	£3.12	£3.74
33 - SEAL LOCK HEX. SOCKET HD. BOLT M6X55 HIT-301567.A2 301567	£4.26	£5.11
34 - CRANK CASE HIT-324035.A1 324035	-
35 - SEAL LOCK HEX. SOCKET HD. BOLT M6X35 HIT-324056.A1 324056	-
36 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A5 990079	£1.67	£2.00
37 - CRANK COVER HIT-324037.A1 324037	-
38 - CRANK SHAFT HIT-317078.A1 317078	£46.12	£55.34
39 - FEATHER KEY 3X3X10 HIT-940533.A7 940533	£1.67	£2.00
40 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A16 984509	£1.67	£2.00
41 - BEARING COVER HIT-985443.A1 985443	£5.27	£6.32
42 - BALL BEARING 6204DD HIT-6204DD.A2 6204DD	£11.46	£13.75
43A - O-RING (I.D 74.5) HIT-326257.A0 326257	£4.62	£5.55
44 - BACK COVER HIT-324038.A0 324038	-
45 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A12 998471	£1.67	£2.00
46 - NAME PLATE HIT-000000.A3841 000000	-
47 - BOLT M8 HIT-317107.A2 317107	£4.10	£4.92
48 - HANDLE HOLDER (B) HIT-317106.A1 317106	£4.10	£4.92
49 - HANDLE HOLDER (A) HIT-317105.A2 317105	£6.09	£7.31
50 - SIDE HANDLE ASS'Y INCLUD.9 HIT-317103.A1 317103	£40.59	£48.71
51 - GRIP HIT-317108.A1 317108	£11.98	£14.37
52 - OIL SEAL HIT-995403.A3 995403	£4.10	£4.92
53 - DISTANCE RING (C) HIT-995402.A1 995402	£13.51	£16.21
54 - FIRST GEAR HIT-317080.A0 317080	£42.08	£50.49
55 - NEEDLE BEARING (A) (BK1512) HIT-985442.A2 985442	£8.39	£10.07
56 - GEAR COVER ASS'Y INCLUD.55 HIT-324048.A1 324048	-
57 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A4 6203DD	£8.64	£10.37
58 - BEARING WASHER HIT-992841.A3 992841	£1.67	£2.00
59 - FAN HIT-996370.A0 996370	£14.12	£16.95
*60 - ARMATURE ASS'Y 120V INCLUD.57-59 HIT-360691U.A1 360691U	-
*60 - ARMATURE ASS'Y 230V INCLUD.59 HIT-360691E.A1 360691E	-
61 - FAN GUIDE HIT-305610.A3 305610	£16.32	£19.58
62 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A6 953121	-
*63 - STATOR ASS'Y 120V INCLUD.64 HIT-340608G.A0 340608G	-
*63 - STATOR ASS'Y 230V INCLUD.64 HIT-340608E.A0 340608E	£43.34	£52.01
64 - BRUSH TERMINAL HIT-945932.A11 945932	£1.67	£2.00
65 - BEARING WASHER HIT-944954.A19 944954	£1.67	£2.00
66 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A25 6201DD	£8.64	£10.37
67 - HOUSING ASS'Y INCLUD.70 HIT-324055.A0 324055	-
68 - BRUSH CAP HIT-940540.A10 940540	£1.67	£2.00
69 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A3 999074	£20.63	£24.76
69A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) EXCEPT FOR USA HIT-999077.A1 999077	£18.28	£21.94
70 - BRUSH HOLDER HIT-956984.A8 956984	£11.55	£13.86
71 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A71 938477	£1.67	£2.00
72 - INTERNAL WIRE 235L EXCEPT FOR USA HIT-324122.A0 324122	-
73 - VINYL TUBE (I.D.7XT0.5X30) HIT-000000.A3842 000000	-
74 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR USA HIT-959140.A89 959140	£4.98	£5.97
75 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-994273.A45 994273	£7.30	£8.76
76 - SUPPORT (B) EXCEPT FOR USA HIT-317492.A4 317492	£1.67	£2.00
77 - TAIL COVER HIT-324041.A1 324041	£20.62	£24.74
78 - SEAL LOCK HEX. SOCKET HD. BOLT M5X22 HIT-317245.A0 317245	£1.67	£2.00
79 - SLEEVE (B) HIT-324045.A0 324045	-
80 - VINYL TUBE (I.D.9.5XT0.56X85) HIT-000000.A3844 000000	-
81 - BRAND LABEL HIT-000000.A3845 000000	-
82 - CRANK CASE COVER HIT-324036.A0 324036	£29.70	£35.64
83 - BRAND LABEL HIT-000000.A3846 000000	-
84 - HANDLE PACKING (A) HIT-324046.A1 324046	£6.80	£8.16
85 - HANDLE DAMPER HIT-310124.A16 310124	£6.18	£7.41
86 - TRANSATORY UNIT HIT-310123.A6 310123	£11.82	£14.18
87 - WASHER M4 (10 PCS.) EXCEPT FOR USA HIT-949423.A37 949423	£1.67	£2.00
88 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A1 306143	£19.10	£22.92
89 - HANDLE (A) HIT-324042.A0 324042	£29.58	£35.49
90 - DISTANCE PIECE (B) HIT-991711.A6 991711	£1.67	£2.00
91 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A16 991690	£1.67	£2.00
92 - HANDLE PACKING (B) HIT-324047.A0 324047	£15.68	£18.82
93 - HANDLE (B) HIT-324043.A1 324043	£33.17	£39.80
94 - SDS MAX LABEL HIT-000000.A3847 000000	-
95 - PILLAR TERMINAL HIT-938307.A50 938307	£3.28	£3.93
96 - INTERNAL WIRE EXCEPT FOR USA HIT-981974.A6 981974	£1.67	£2.00
97 - TERMINAL EXCEPT FOR USA HIT-980063.A99 980063	£1.67	£2.00
98 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A12 307028	£1.67	£2.00
99 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA HIT-959141.A24 959141	£7.12	£8.54
100 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A125 984750	£1.67	£2.00
*101 - CORD CLIP HIT-960266.A63 960266	£1.67	£2.00
*101 - CORD CLIP FOR SUI HIT-981987Z.A4 981987Z	-
102 - CORD ARMOR D8.8 HIT-953327.A72 953327	£1.67	£2.00
*103 - CORD (CORD ARMOR D8.8) HIT-500390Z.A16 500390Z	-
*103 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500391Z.A3 500391Z	-
*103 - CORD (CORD ARMOR D8.8) FOR USA HIT-500434Z.A4 500434Z	-
*103 - CORD (CORD ARMOR D8.8) FOR BRA HIT-500487Z.A3 500487Z	-
104 - DAMPER (C) HIT-324130.A0 324130	-
501 - BULL POINT (SDS MAX) 280L HIT-313471.A24 313471	-
502 - HEX. BAR WRENCH 6MM HIT-872422.A31 872422	£1.67	£2.00
503 - CASE (PLASTIC) HIT-324049.A0 324049	£96.72	£116.06
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A18 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A11 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR USA HIT-980927.A39 980927	£55.68	£66.81
604 - BULL POINT (SDS MAX) 280L HIT-313471.A25 313471	-
605 - BULL POINT (SDS MAX) 400L HIT-313472.A1 313472	-
606 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A20 313473	-
607 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A1 313474	-
608 - CUTTER (SDS MAX) W50X400L HIT-313475.A20 313475	-
609 - SCOOP (SDS MAX) 400L HIT-313476.A1 313476	-
610 - BUSHING TOOL (SDS MAX) HIT-313477.A19 313477	-
611 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A1 313478	-
612 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A20 313479	-

Attribute Name	Value
Brand	Hikoki
